P CLAS A 150 21 W/2700 K E27 PARATHOM® CLASSIC A DIM

PARATHOM CLASSIC A DIM

P CLAS A 150 21 W/2700 K E27

GTIN: 4058075462632 Folding box / 1 Show all packages

Download data sheet

Contact sales

5-year warranty

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Low energy consumption
High color consistency thanks to narrow binning
Easy replacement of classic lamps thanks to compact design

Areas of application

Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

Professional LED lamps for line voltage
Dimmable (with many common dimmers, see also www.ledvance.com/dim)
Long lifetime up to 25,000 h
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

References / Links

For dimming conformity see www.ledvance.com/dim
For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	21 W
Construction wattage	21.00 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	150 W
Nominal current	110 mA
Type of current	AC
Inrush current	15 A
Operating frequency	50…60 Hz
Mains frequency	50…60 Hz
Max. lamp number on MCB B10 A	79
Max. lamp number on MCB B16 A	122
Power factor λ	> 0.90

Photometrical data

Luminous flux	2452 lm
Nominal useful luminous flux 90°	2452 lm
Luminous efficacy	116 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	≥80
Light color	827
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80

Light technical data

Beam angle	200 °
Warm-up time (60 %)	‹ 1.00 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	143.00 mm
Diameter	67.00 mm
Maximum diameter	67 mm
Product weight	210.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	110 °C

Lifespan

Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Frosted
Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, LED lamps contain several electronic components. Under unfavourable conditions these can lead to acoustic noise. In case of resonance even low noise can cause audible effect. Possible factors influencing this are the installation, the design of the lamp holder and the luminaire (acoustic resonance effect) as well as the dimmer or the transformer (harmonics or electronic resonance)

Capabilities

Dimmable

Yes

Certificates & Standards

Energy efficiency class	E ¹⁾
Energy consumption	21.00 kWh/1000h
Type of protection	IP20
Standards	CE, ROHS, ERP
Photobiological safety group acc. to EN62778	RG0

¹⁾ Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

ILCOS	DRAA/F-21/827-220-240-E27-60
Order reference	LEDPCLA150D 21W

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	E27
Correlated colour temperature type	SINGLE_VALUE
Length	143.00 mm
Height	67.00 mm
Width	67.00 mm
EPREL ID	1403229
Model number	AC24715

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075462632	Folding box 1	67 mm x 67 mm x 145 mm	235.00 g	0.65 dm³
4058075462649	Shipping box 10	348 mm x 145 mm x 159 mm	2500.00 g	8.02 dm³

Declarations of conformity
Declaration of Conformity LED Classic A, B, P, Stick Lamps

PDF (243.22 KB)

PRODUCT DATASHEET
P CLAS A 150 21 W 2700K E27

PDF (528.31 KB)

Product image: white background, diagonal with OSRAM logo
684018_CL A 150 20W/827 E27 FR

Product image: white background, diagonal
684047_CL A 150 20W/827 E27 FR

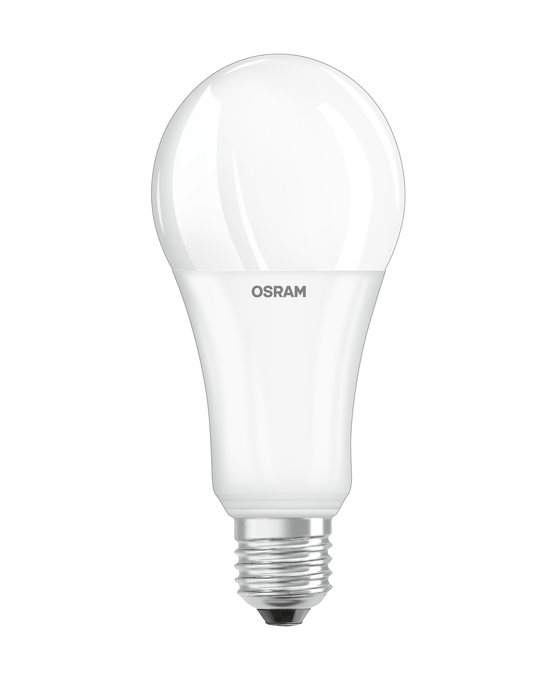

Product image: white background, upright, OSRAM logo
684028_CL A 150 20W/827 E27 FR

Product image: white background, upright
684035_CL A 150 20W/827 E27 FR

Product line drawing with letters
683974_CL A 150 20W/827 E27 FR

Energy label
EL-4058075462632-AC247 15

IES file (IES)
AC10701_CLA150D 21W 230VFR E27

LDT file (Eulumdat)
AC10701_CLA150D 21W 230VFR E27

Light distribution curve type polar
LEDPCLA150D 21W 827 230VFR E27 FS1 OSRAM

SVG (385.25 KB)

Light distribution curve type polar
LEDPCLA150D FR 21W 827 230V E27 FS1OSRAM

SVG (385.25 KB)

Light distribution curve type polar
LEDPCLA150D 21W 827 230VFR E27 FS1 OSRAM

SVG (385.25 KB)

EAN	SEG number	STK number	EFO number	ELDAS number
4058075462632	8295491	4731448	3734057	941804860
