BIOLUX HCL DL DN150 ZB 20W 2700-6500K

BIOLUX HCL DOWNLIGHT ZIGBEE GEN 1

GTIN: 4058075400733 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Enables an individual lighting solution in combination with compatible Zigbee HCL lighting controls
Biologically optimized lighting by adapting artificial light to natural daylight course
7 year system guarantee when operated in a BIOLUX HCL or VIVARES ZIGBEE system
Can support working with more concentration
Good glare reduction (UGR ≤ 19)

Areas of application

Lighting solution for up to 40 BIOLUX HCL luminaires - BIOLUX HCL LED strips combined mit BIOLUX HCL control unit
Open-plan office solution for up to 200 BIOLUX HCL luminaires combined with VIVARES ZIGBEE control unit
Hotel and office rooms with little daylight

Product features

Zigbee 3.0 certified Tunable White luminaires - LED strips for simple integration into partner systems
Ready for connection to BIOLUX HCL and VIVARES ZIGBEE control unit
Adjustable color temperature via Tunable White: 2,700…6,500 K
Wireless communication between control unit and luminaries via Zigbee protocol
Very high color rendering index Ra: > 90

Equipment / Accessories

LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)

Legal advice

The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- - VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app

Safety advice

Important operating notice and legal disclaimer: This product is exclusively intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products.

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	20.00 W
Nominal voltage	220…240 V
Input voltage range	220…240 V
Type of current	AC
Nominal current	93 mA
Inrush current	20 A
Mains frequency	50…60 Hz
Total harmonic distortion	< 20 %
Power factor λ	≥0.90

Photometrical data

Luminous efficacy	90 lm/W
Luminous flux	1800 lm
Luminous intensity	-
Color temperature	2700…6500 K
Color rendering index Ra	> 90
Light color (designation)	Warm White, Cool White, Cool Daylight
Standard deviation of color matching	≤3 sdcm
Flickering metric (Pst LM)	-
Stroboscope effect metric (SVM)	-

Light technical data

Beam angle	60 °
Starting time	< 0.5 s

Luminaire control gear data

Low flicker

Yes

Dimensions & Weight

Height	98.90 mm
Diameter	175.40 mm
Product weight	550.00 g

Colors & materials

Product color	White
Body material	Aluminum
Cover material	Polycarbonate (PC)

Temperatures & operating conditions

Ambient temperature range	-20…+40 °C
Temperature range in operation	-20…+40 °C

Lifespan

Lifespan L70/B50 at 25 °C	50000 h
Number of switching cycles	50000

Additional product data

Mounting location	Ceiling
Low flicker	Yes

Capabilities

Dimmable	Yes
Dimming interface	Zigbee 3.0
Suitable for emergency lighting	No

Certificates & Standards

Standards	CE, CB, ENEC, EAC
Protection class	II
Type of protection	IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075400733	Folding box 1	189 mm x 189 mm x 141 mm	674.00 g	5.04 dm³
4058075400740	Shipping box 4	397 mm x 207 mm x 308 mm	3175.00 g	25.31 dm³

Product image	Product name	EAN
	CONNECTOR BOX 5POLE L/N 4x	4058075473010

User instruction / safety instructions
BIOLUX HCL DL DN150 ZB

PDF (3.76 MB)

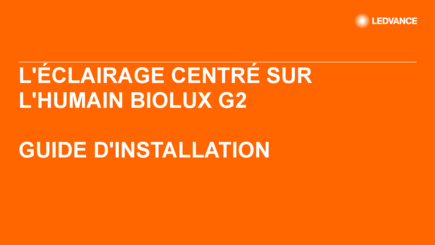

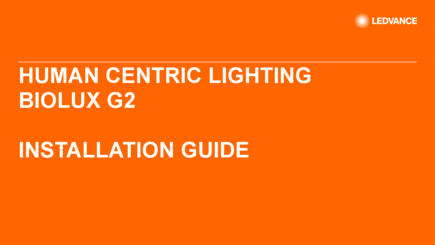

Extended installation guide
BIOLUX HCL SYSTEM EN

PDF (2.92 MB)

Extended installation guide
BIOLUX HCL SYSTEM DE

PDF (2.95 MB)

Extended installation guide
BIOLUX HCL FR

PDF (2.98 MB)

Legal information
BIOLUX HCL DL DN150 ZB

PDF (664.08 KB)

Legal information
BIOLUX HCL DL

PDF (1.11 MB)

Declarations of conformity
BIOLUX HCL

PDF (2.28 MB)

Certificates
VDE BIOLUX HCL

PDF (121.49 KB)

Certificates
VDE BIOLUX HCL

PDF (152.01 KB)

Certificates
VDE BIOLUX HCL

PDF (156.82 KB)

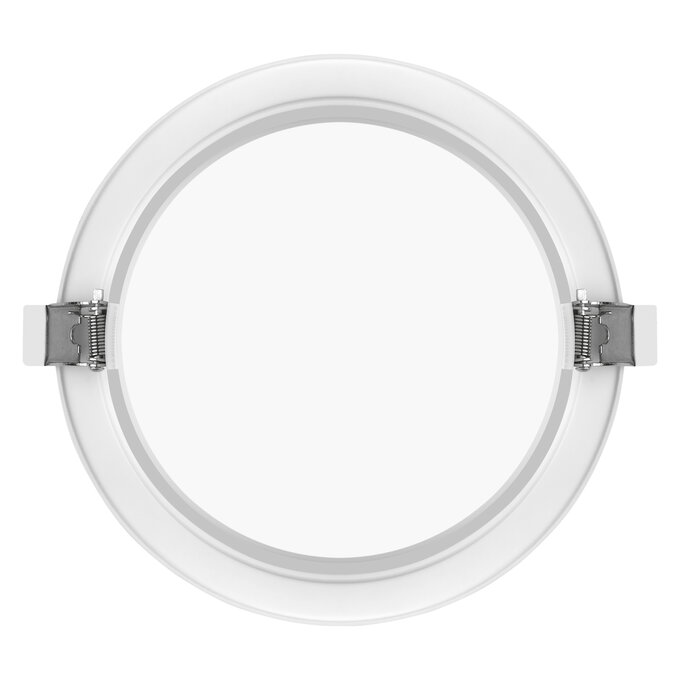

Product image: white background, diagonal

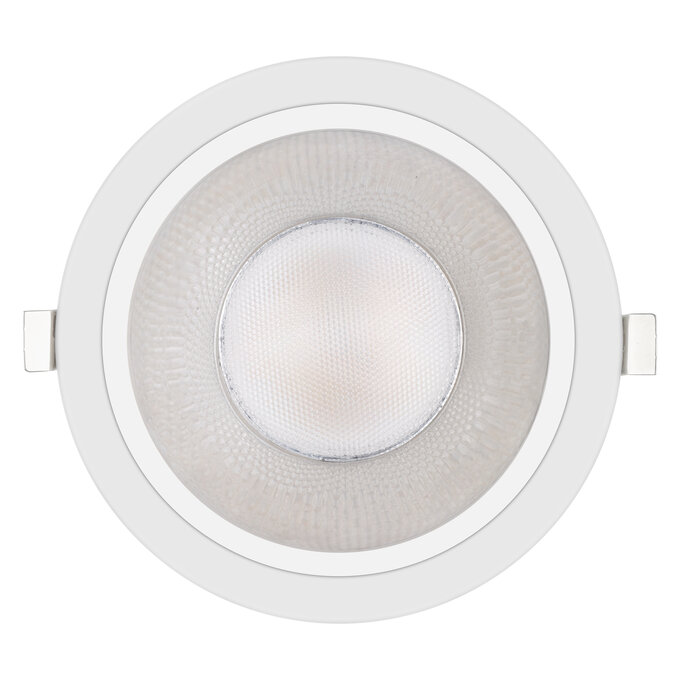

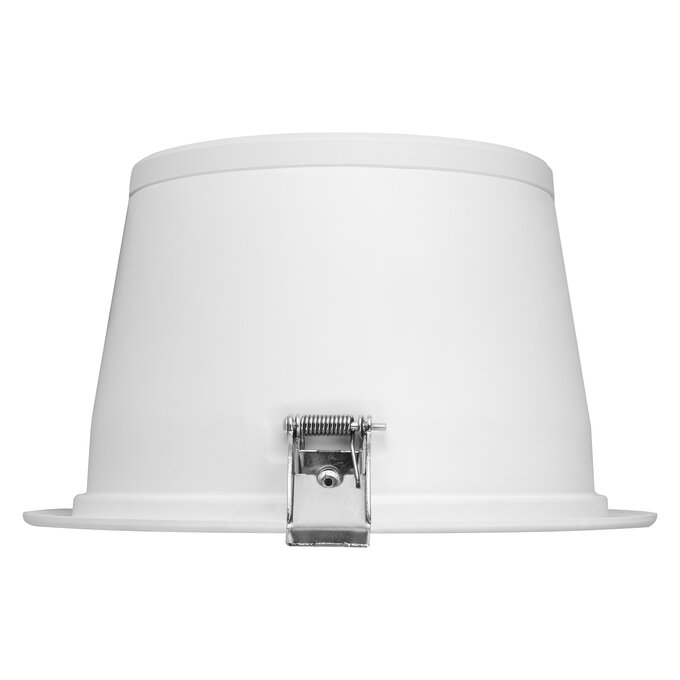

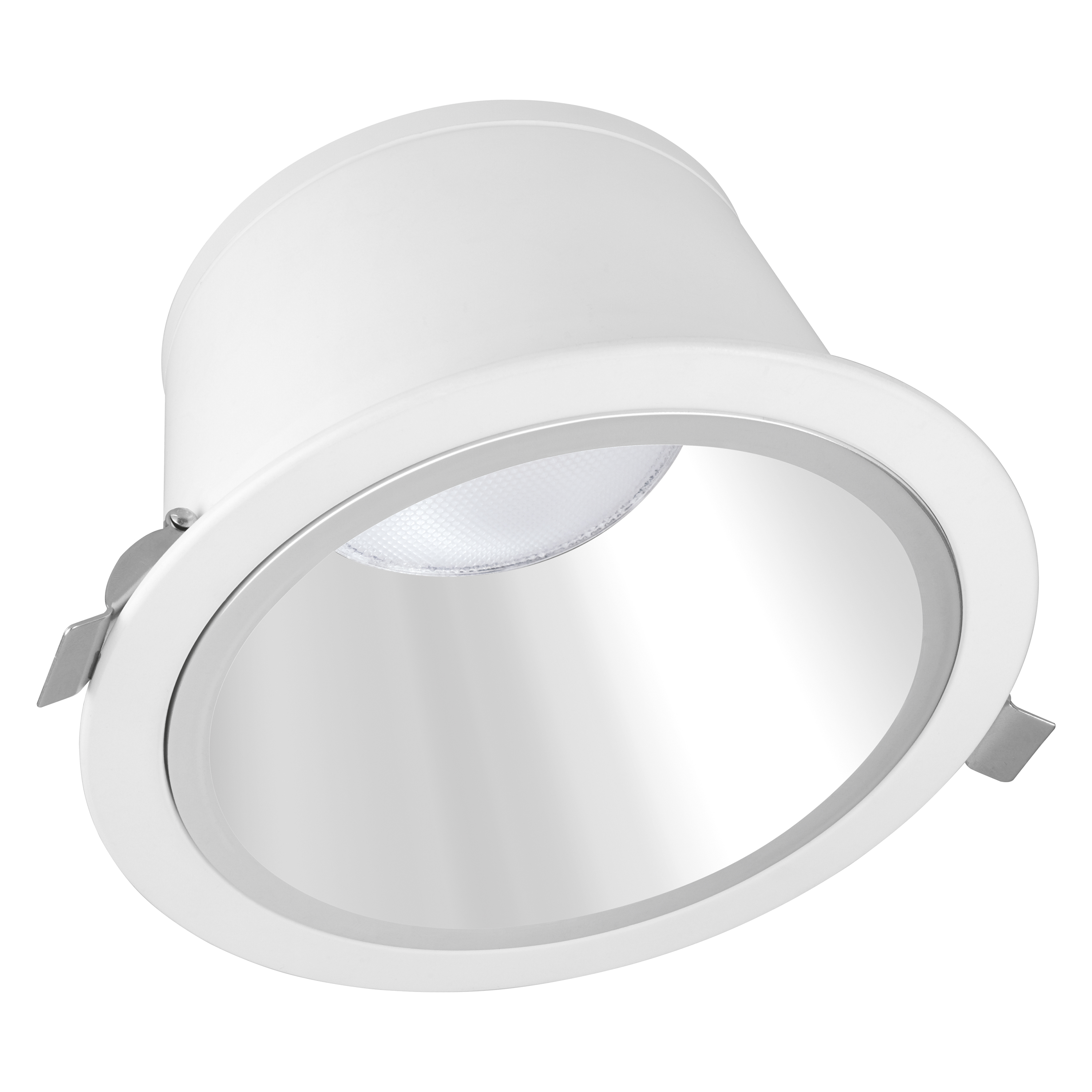

BIOLUX HCL DL DN150 ZB 20W TW

JPG (1.71 MB)

Product line drawing with letters
BIOLUX HCL DL DN150 ZB 20W TW

SVG (15.35 KB)

Product line drawing with numbers
BIOLUX HCL DL DN150 ZB 20W TW

SVG (20.87 KB)

Product line drawing - technical
BIOLUX HCL DL DN150 ZB 20W TW

SVG (13.3 KB)

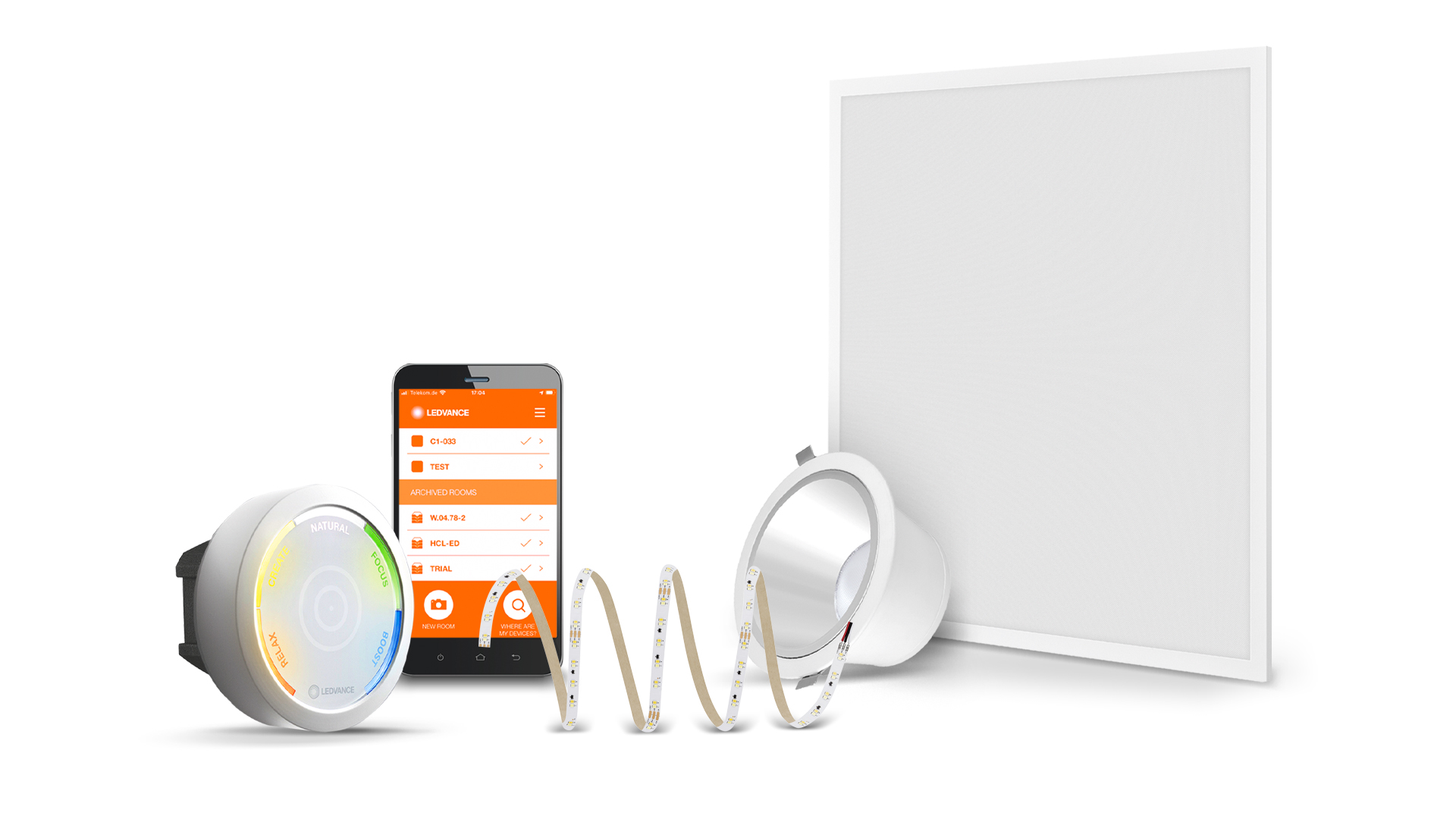

Beauty Shot
Biolux HCL Zigbee_Composing image

JPG (494.55 KB)

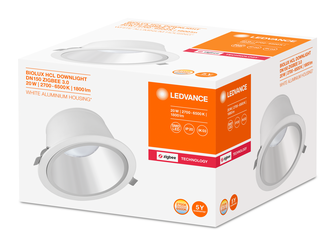

Packaging image, spacial
BIOLUX HCL DOWNLIGHT DN150 ZigBee 3.0 white 20W 827-865 MiCh

TIF (30.8 MB)

IES file (IES)
BIOLUX HCL DL DN150 ZB 20W 6500K

IES (8.41 KB)

IES files (IES, additional)
BIOLUX HCL DL DN150 ZB 20W 2700K

IES (8.36 KB)

IES files (IES, additional)
BIOLUX HCL DL DN150 ZB 20W 4000K

IES (8.41 KB)

LDT file (Eulumdat)
BIOLUX HCL DL DN150 ZB 20W 6500K

LDT (9.66 KB)

LDT files (Eulumdat, additional)
BIOLUX HCL DL DN150 ZB 20W 2700K

LDT (9.66 KB)

LDT files (Eulumdat, additional)
BIOLUX HCL DL DN150 ZB 20W 4000K

LDT (9.66 KB)

ULD file (DIALux)
BIOLUX HCL DL DN150 ZB 20W TW

ULD (468.48 KB)

ROLF file (RELUX)
BIOLUX HCL DL DN150 ZB

ROLF (563.83 KB)

BIM Revit 3D
Biolux Tunable White Downlight

ZIP (652.71 KB)

CAD STEP 3D
HCL DL

STEP (152.4 KB)

Tender documents
BIOLUX HCL DOWNLIGHT ZIGBEE ZB 20W 2700-6500K-EN

TXT (1.32 KB)

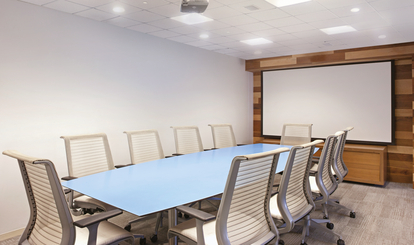

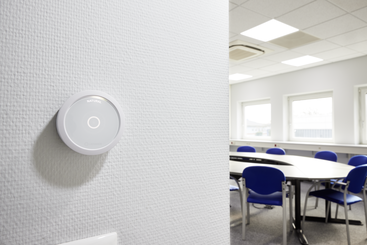

Application pictures

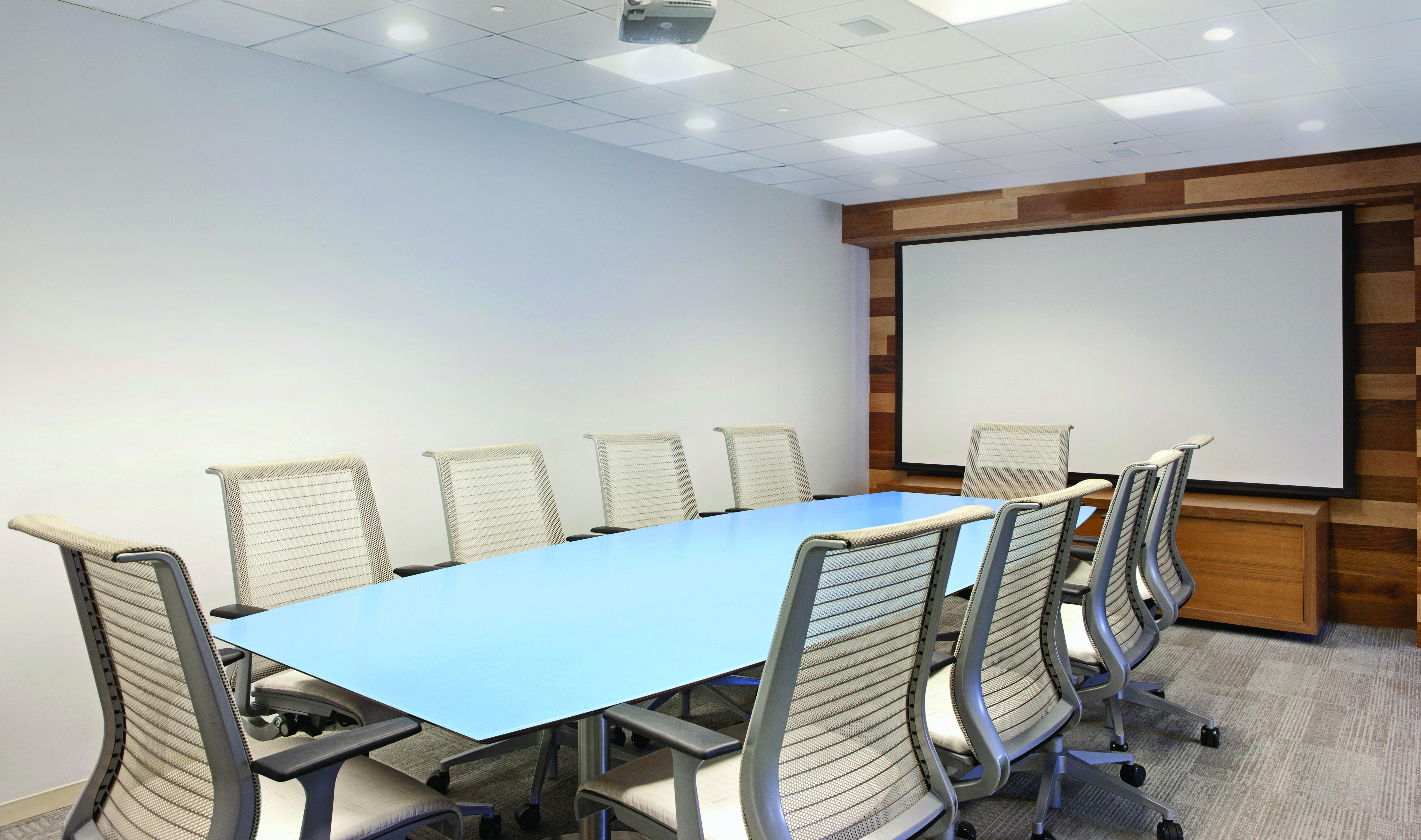

Empty office conference room ret

JPG (15.37 MB)

Application pictures

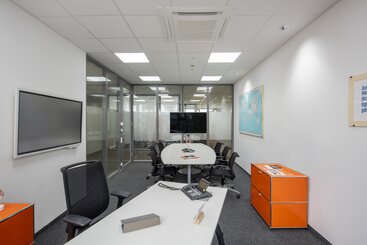

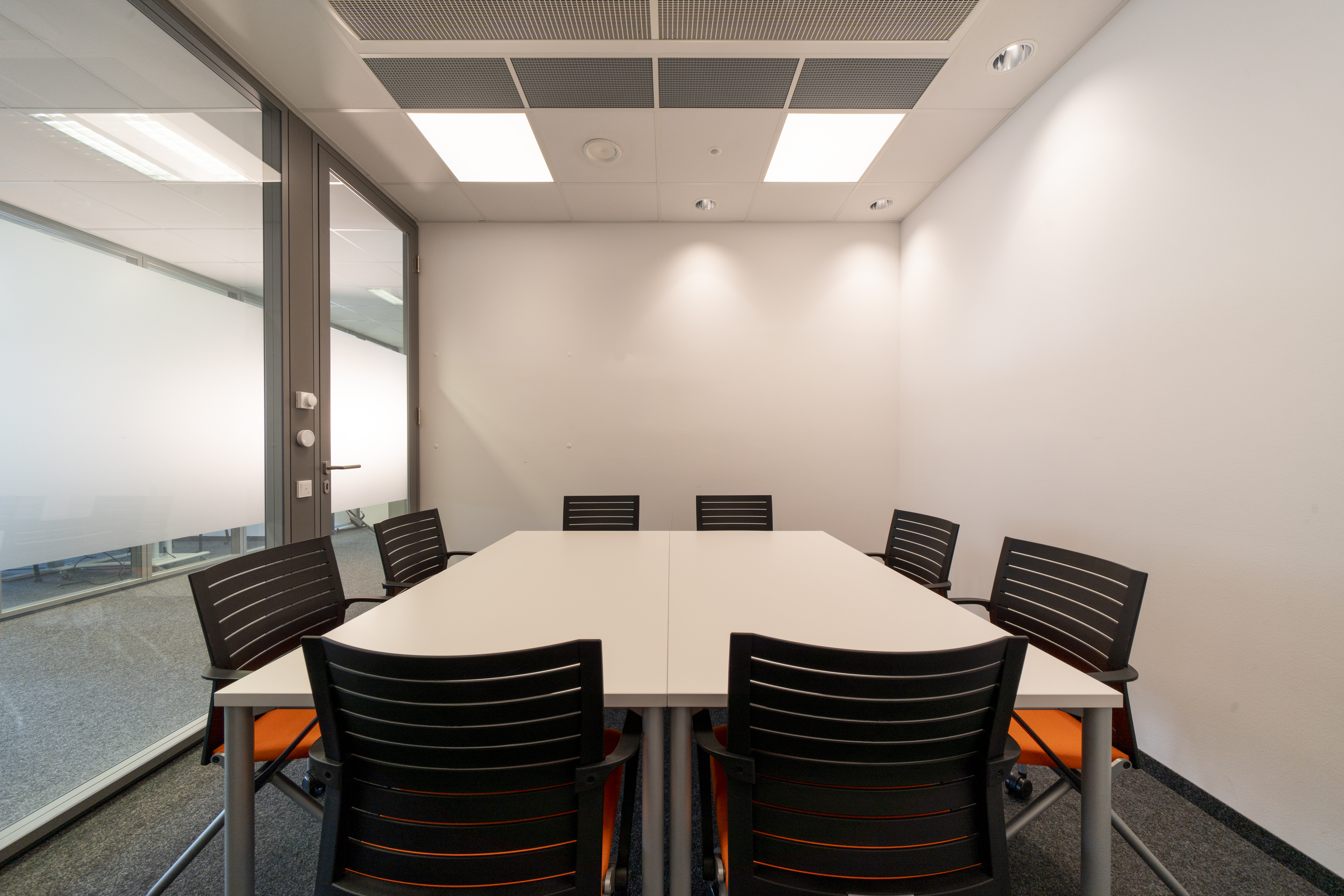

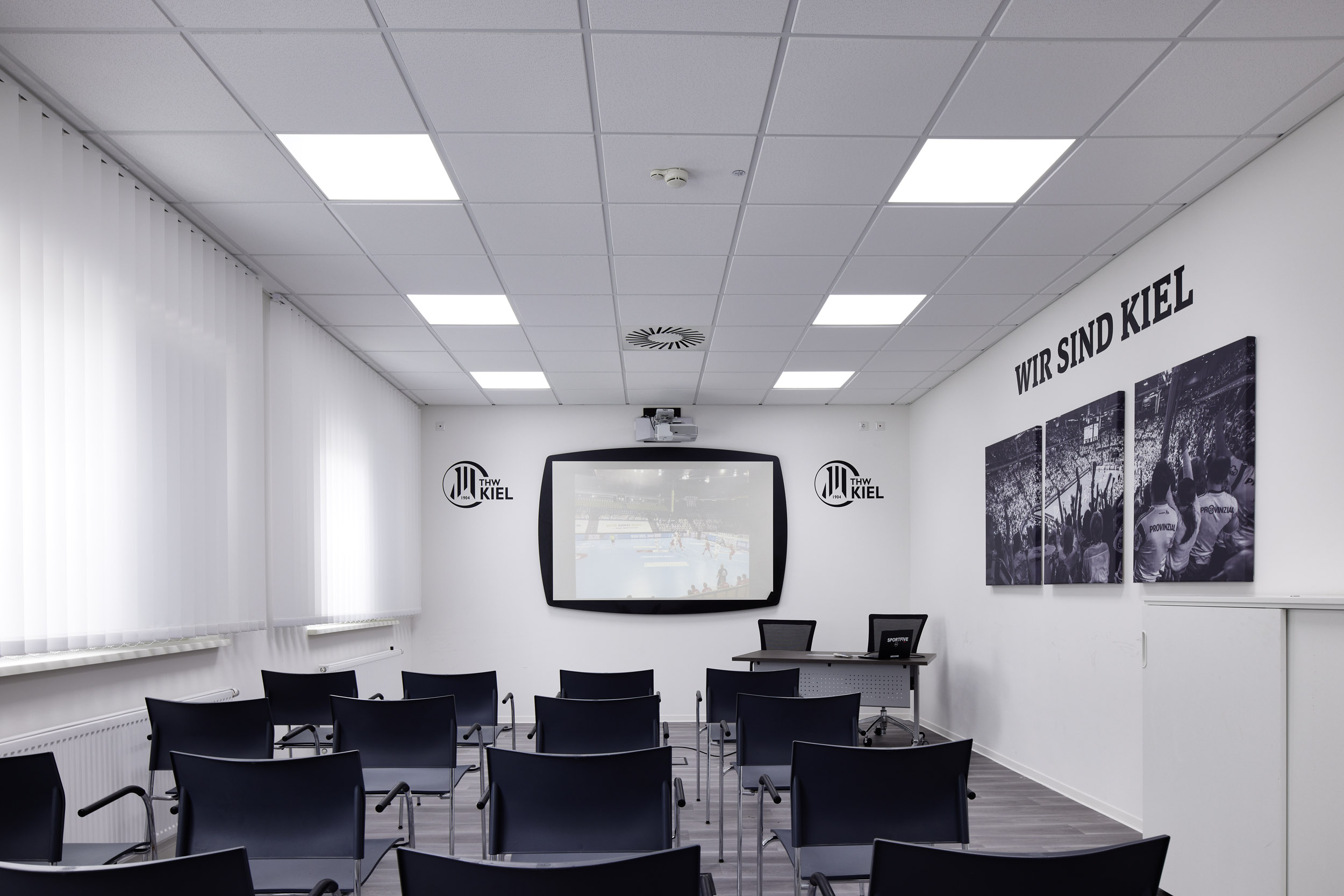

Case Study Office BIOLUX HCL-System

JPG (10.19 MB)

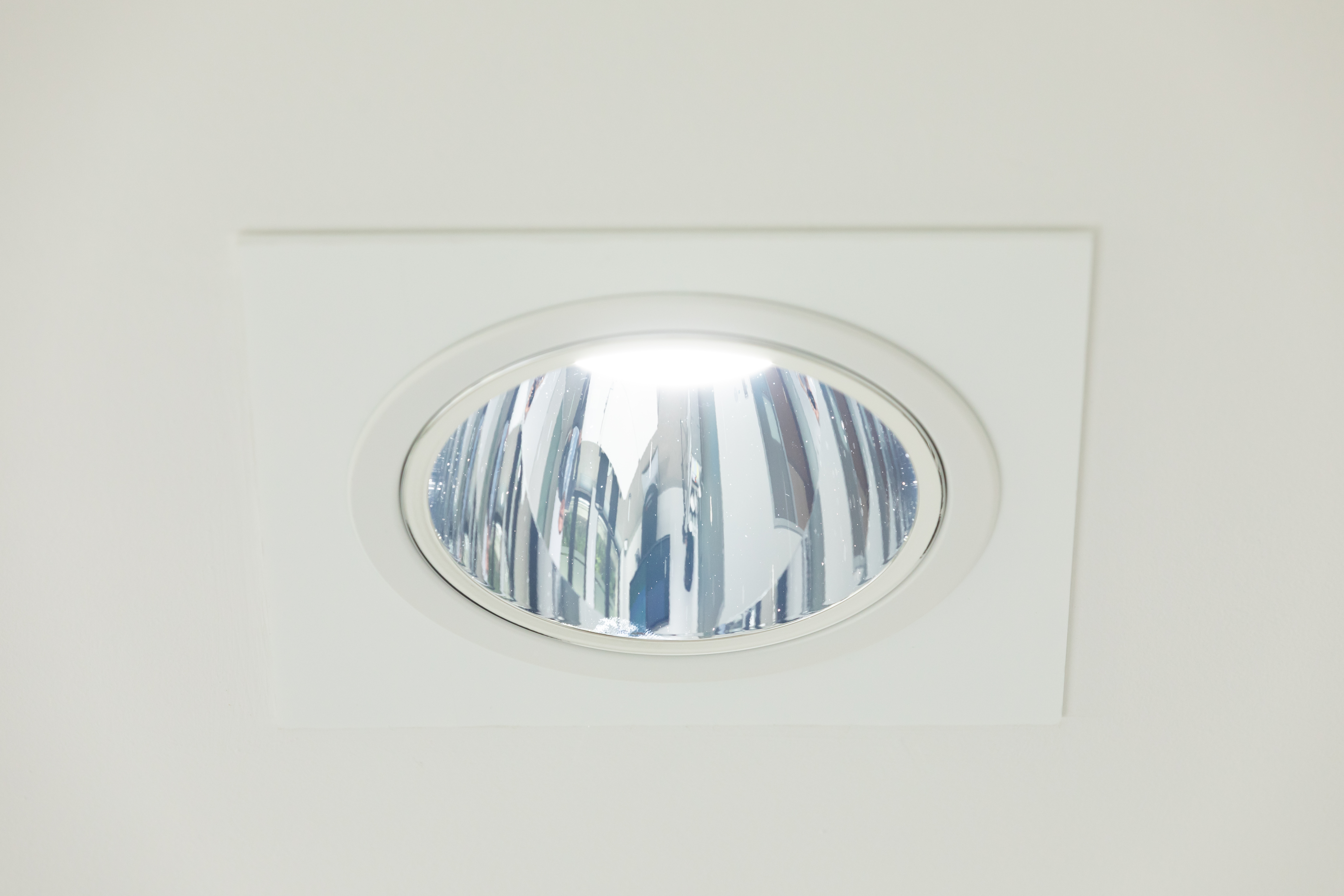

Application pictures

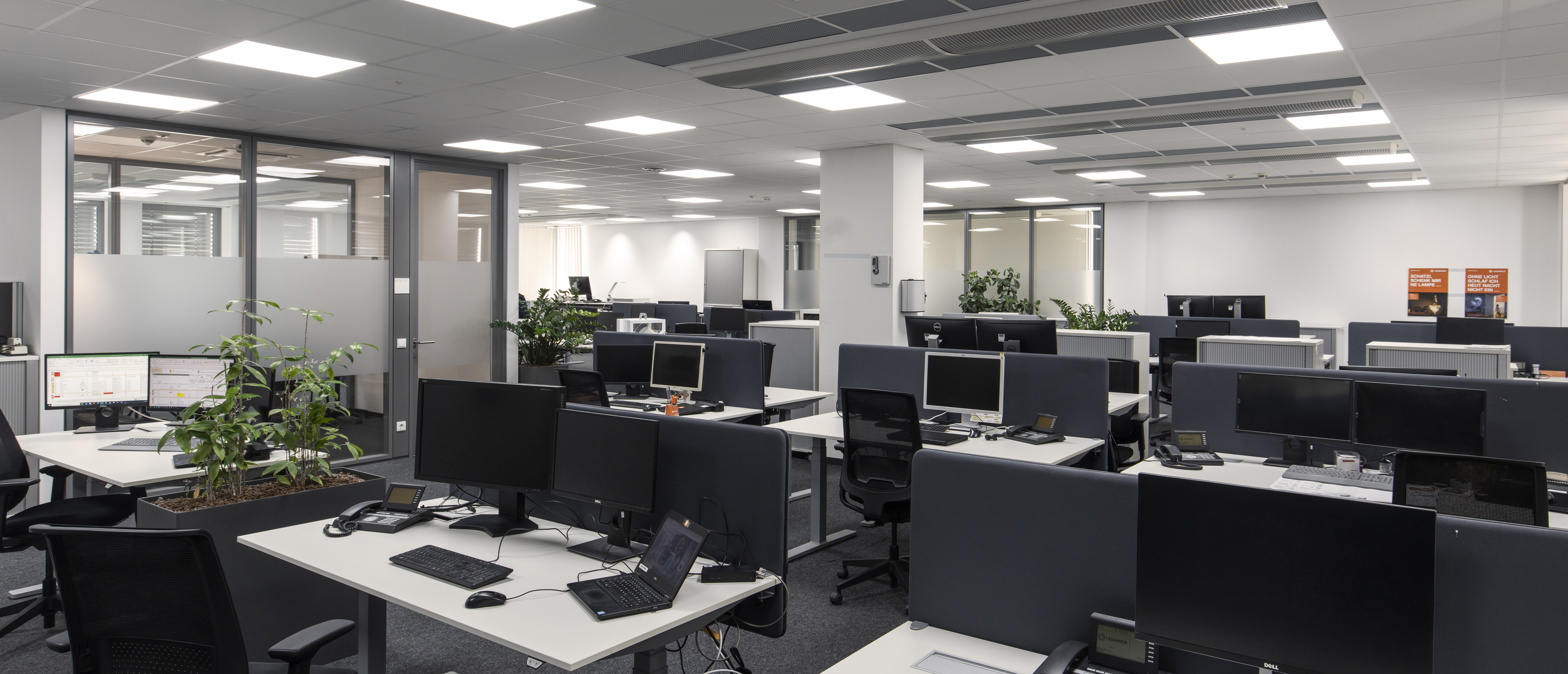

Case Study Office HCL-System

JPG (9.84 MB)

Application pictures

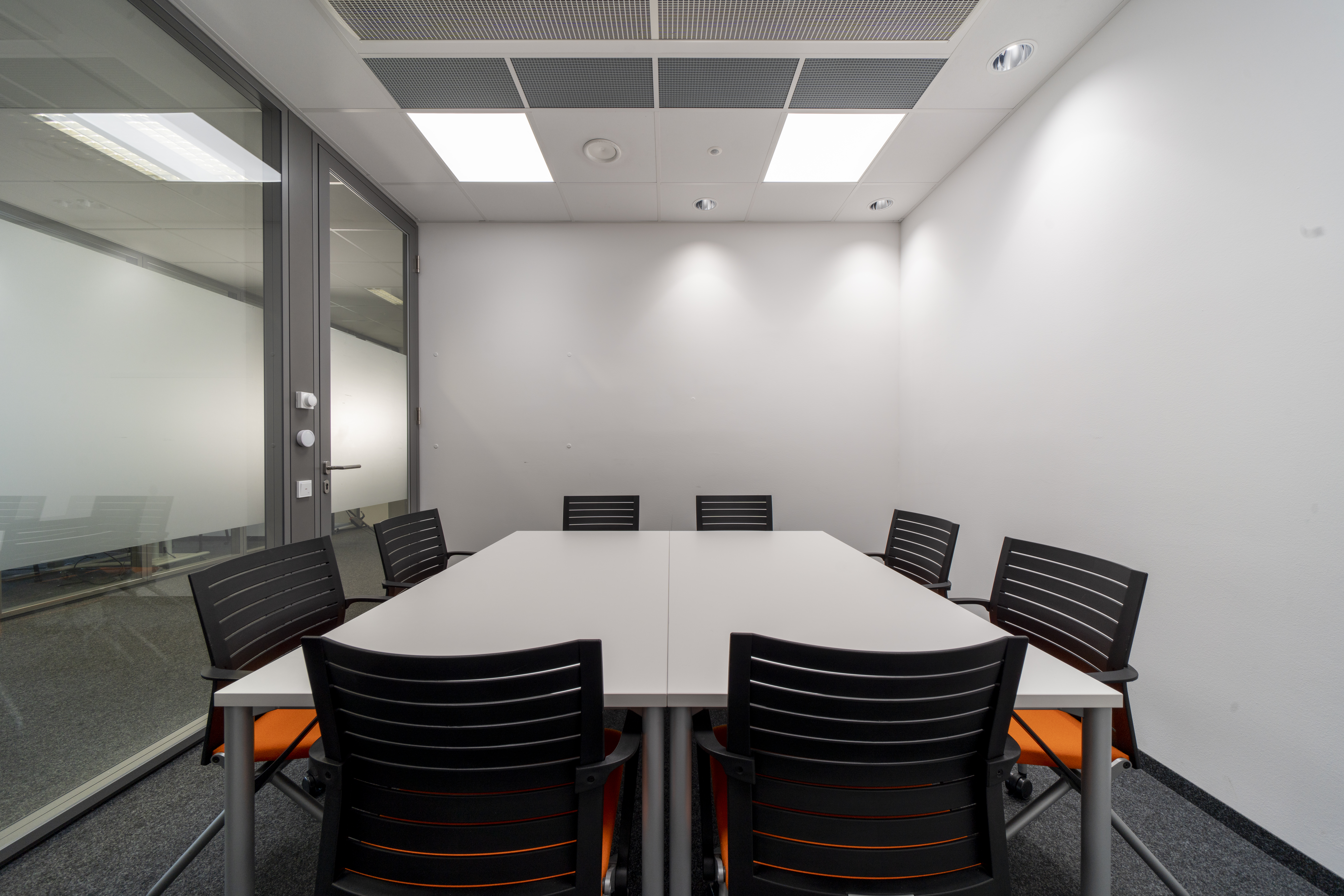

Case Study Office BIOLUX HCL-System
