SPOT FIREPROOF DIM

SPOT FP FIX DIM 8 W 3000 K IP65/IP20 SI

GTIN: 4058075127371 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • High luminous efficacy
  • Design matches the LEDVANCE DOWNLIGHT luminaire family
  • Energy savings of up to 90 % compared to halogen lamp spotlights
  • Functional and minimalistic design
  • Easy installation with fast connection
  • External driver for extended flexibility (compatible with selected dim. drivers)
  • Designed for extra IP protection
  • 5 years guarantee
Areas of application
  • Replacement of halogen lamp spotlights
  • Hotel rooms
  • Bars, restaurants
  • Bathrooms
  • Accent lighting
  • Galleries, museums
  • General illumination
Product features
  • Fire-resistant (up to 90 minutes, tested in accordance with EN 1365-2:2014 'fire resistance tests for loadbearing elements - Part 2: Floors and roofs')
  • Outdoor use and fire-resistant (up to 90 minutes, BS476-20:1987 and BS476-21:1987)
  • Compatible with standard ceiling cutouts of 68 mm
  • Initial color consistency: ≤ 4 SDCM
  • Type of protection, front side: IP65
Safety advice
  • Coordination with your responsible fire safety inspector is required in advance
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Electrical data
Nominal wattage 8.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 170 mA
Max. number of luminaires per miniature circuit breaker B16 200
Max. number of luminaires per miniature circuit breaker C10 100
Max. number of luminaires per miniature circuit breaker C16 200
Power factor λ > 0.90
Total harmonic distortion 20 %
Protection class II
Operating mode Electronic control gear (ECG)
Photometrical data
Luminous flux 620 lm
Luminous efficacy 75 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤4 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 36 °
Dimensions & Weight
Diameter 81.00 mm
Height 51.00 mm
Product weight 269.00 g
Materials & Colors
Product color Silver
Housing color Silver
Body material Aluminum
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+45 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP65/IP20
Protection class IK (shock resistance) IK06
Dimmable Yes
Type of dimming LEA/TR.EDG
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 68 mm
Mounting depth 90 mm
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
ECG - Length 120 mm
ECG - Height 35 mm
Certificates & Standards
Standards CE, CB, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075127371 Folding box
1		 142 mm x 102 mm x 112 mm 355.00 g 1.62 dm³
4058075127388 Shipping box
27		 440 mm x 320 mm x 360 mm 10110.00 g 50.69 dm³
User instruction / safety instructions
User Instruction Spot LED DIM
PDF (2.69 MB)
On-Pack-Info
Legal Insert Spot LED
PDF (1.59 MB)
Legal information
LSI SPOTFP LED FIX AND SPOT LED FIX
PDF (1.4 MB)
Declarations of conformity
Attestation-of-Conform ity-Spot LED -Fix DIM +Downlight LED 35W TÜV
PDF (2.3 MB)
Declarations of conformity
CE Declaration_Spot FP LED fix_Spot LED fix
PDF (199.5 KB)
Product image: white background, diagonal
Spot FP LED DIM 8W silver fireproof
TIF (45.94 MB)
Product line drawing with letters
LEDVANCE Spot Fire-Proof LED fix 8W DIM ml
SVG (33.65 KB)
Product line drawing with numbers
LEDVANCE Spot Fire-Proof LED fix 8W DIM 8W mn
SVG (33.63 KB)
Product line drawing with numbers
Spot FP LED DIM 8W mn k
EPS (412.38 KB)
Product line drawing, front, no dimensions
LEDVANCE Spot Fire-Proof LED fix 8W DIM k
SVG (24.19 KB)
Product line drawing, front, no dimensions
Spot LED DIM 8W k
EPS (393.9 KB)

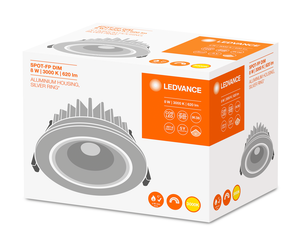

Packaging image, spacial
Spot FP fix DIM SI 8W 830 MiCh Side
TIF (17.37 MB)
Catalog info 2
Spot LED DIM
SVG (41.49 KB)
Catalog info 6
Spot LED DIM
SVG (108.19 KB)
IES file (IES)
SpotFP LED fix 8W 3000K SI DIM IP65
IES (5.47 KB)
LDT file (Eulumdat)
SpotFP LED fix 8W 3000K SI DIM IP65
LDT (5.94 KB)
ULD file (DIALux)
SPOTFIREPROOFDIM8W3000 KIP65SI
ULD (1.53 MB)
ROLF file (RELUX)
SPOT FP FIX DIM 8W 3000K
ROLF (701.33 KB)
Light distribution curve type cone
4058075811218 SpotFP LED fix 8W 3000K SI DIM IP65
SVG (85.25 KB)
Light distribution curve type polar
4058075811218 SpotFP LED fix 8W 3000K SI DIM IP65
SVG (273.92 KB)
EAN SEG number STK number ELDAS number
4058075127371 7451277 4125306 941400750
