HIGH BAY COMPACT
HB COMP V 166W 840 110DEG IP65
GTIN: 4058075708198
Shipping box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Modern exclusive design
- Energy savings of up to 60 % compared to conventional high bay luminaires
- Optimized weight and size due to compact design
Areas of application
- Replacement for high bay luminaires with mercury vapor or metal halide lamps
- Warehouses
- Logistics halls
- Industry
- High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
- Operating temperature: -20…45 °C
- Black aluminum housing, tempered glass cover
- Opal cover
- Type of protection: IP65
- Lifetime (L70): up to 50,000 h
- High luminous efficacy: up to 120 lm/W
Equipment / Accessories
- Bracket available
- Reflector available
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 166.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 720 mA |
| Inrush current | 8.34 A |
| Inrush current time Th50 | 19.84 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 17 |
| Max. number of luminaires per miniature circuit breaker C10 | 11 |
| Max. number of luminaires per miniature circuit breaker C16 | 17 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 20000 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤5 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |
Dimensions & Weight
| Diameter | 260.00 mm |
| Height | 50.00 mm |
| Product weight | 1500.00 g |
| Cable length | 500 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Post top |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | > 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA, CB, EAC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075708198 | Shipping box 1 |
75 mm x 295 mm x 305 mm | 1844.00 g | 6.75 dm³ |
User instruction / safety instructions
UI HighBay Compact V 110D
UI HighBay Compact V 110D
Legal information
LS Insert HighBay Compact V 110D
LS Insert HighBay Compact V 110D
Legal information
Legal insert HB VAL AND HB COMP V
Legal insert HB VAL AND HB COMP V
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
EC Declaration HB COMP V
EC Declaration HB COMP V

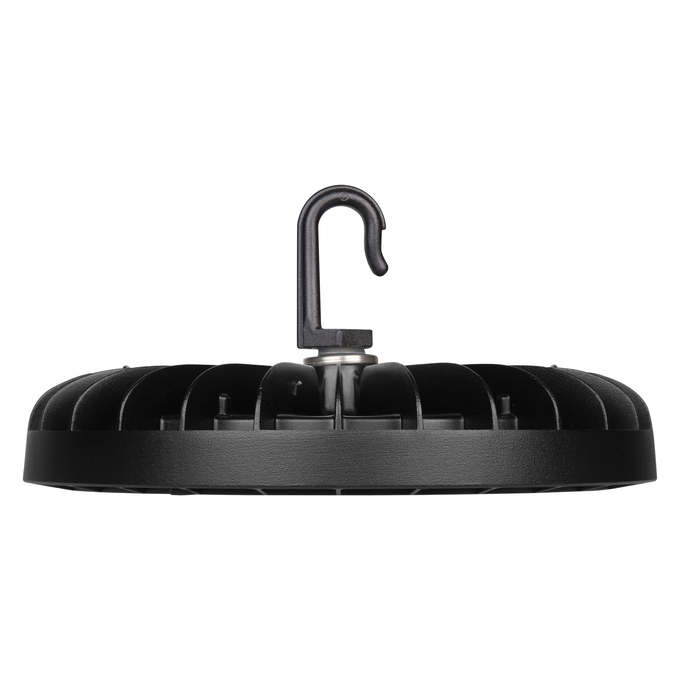

Product image: white background, diagonal
HB COMP V 166W 840 110DEG IP65
HB COMP V 166W 840 110DEG IP65

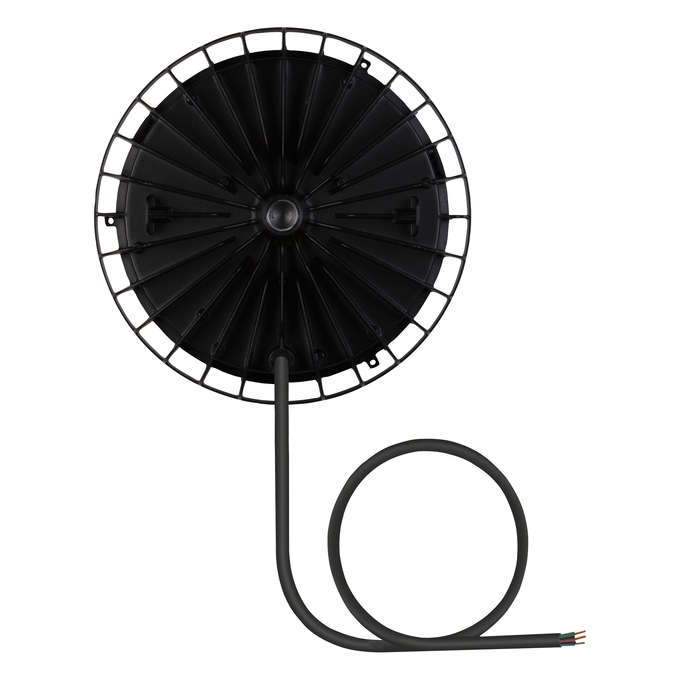

Product image: white background, upright
