DOWNLIGHT SURFACE IP65
DL SURFACE IP65 DN 250 P 45W 830 60D BK
GTIN: 4058075769359
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Suitable for use in dusty and damp locations thanks to high IP rating
- Suitable for use in public areas thanks to high IK rating
- 5 years guarantee
- Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Suitable for indoor and outdoor installations
- Corridors, stairways, entrance areas
- Passages, underpasses
- Public areas
Product features
- Impact resistance: IK06
- Push wire terminal for tool-free connection
- Through wiring possible
- Type of protection: IP65
- Luminous flux: up to 4,950 lm
- High luminous efficacy: up to 110 lm/W
- Lifetime (L70/B50): 100,000 h (at 25 °C)
- Ambient temperature in operation: -30…+40 °C
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 45.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 220.000 mA |
| Inrush current | 31 A |
| Inrush current time Th50 | 420 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 9 |
| Max. number of luminaires per miniature circuit breaker C10 | 6 |
| Max. number of luminaires per miniature circuit breaker C16 | 9 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated driver |
Photometrical data
| Luminous flux | 4725 lm |
| Luminous efficacy | 105 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 60 ° |
| UGR | < 19 |
Dimensions & Weight
| Diameter | 250.00 mm |
| Height | 125.00 mm |
| Product weight | 2800.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum|Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -30…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP65/IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Outdoor |
| Adjustable | No |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Lifespan L90/B10 at 25 °C | 60000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 1100 mA |
| ECG - Output ripple current | < 15 % |
Certificates & Standards
| Standards | CE, CB, EAC, ENEC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075769359 | Folding box 1 |
297 mm x 297 mm x 172 mm | 2900.00 g | 15.17 dm³ |
| 4058075769366 | Shipping box 4 |
616 mm x 316 mm x 366 mm | 12600.00 g | 71.24 dm³ |
User instruction / safety instructions
DL SURFACE IP65
DL SURFACE IP65
Legal information
LSI DL SURFACE IP65
LSI DL SURFACE IP65
Legal information
Legal Insert DL SURFACE
Legal Insert DL SURFACE
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration of Conformity DL SURFACE IP65
CE Declaration of Conformity DL SURFACE IP65
Certificates
DL SF IP65
DL SF IP65

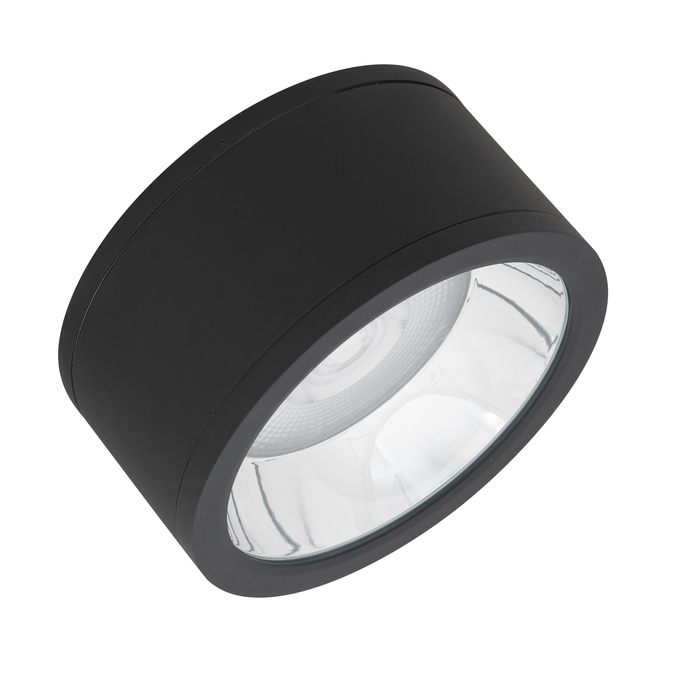

Product image: white background, diagonal
DL SURFACE DN250 IP65 BK
DL SURFACE DN250 IP65 BK

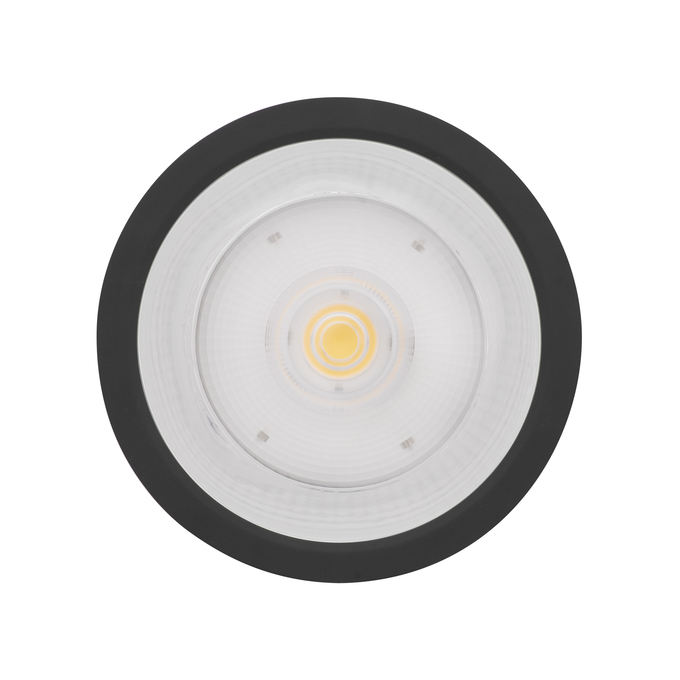

Product image: white background, upright
