PARATHOM CLASSIC A
P CLAS A 150 19 W/2700 K E27
GTIN: 4058075463127
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED lamps for line voltage
- Not dimmable
- Lifetime up to 15,000 h
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 19 W |
| Construction wattage | 19.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 150 W |
| Nominal current | 160 mA |
| Type of current | AC |
| Inrush current | 7.5 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 29 |
| Max. lamp number on MCB B16 A | 48 |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 2452 lm |
| Nominal useful luminous flux 90° | 2452 lm |
| Luminous efficacy | 129 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 150 ° |
| Warm-up time (60 %) | ‹ 1.00 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 128.00 mm |
| Diameter | 68.00 mm |
| Maximum diameter | 68 mm |
| Product weight | 72.00 g |
Temperatures & operating conditions
| Ambient temperature range | -15…+40 °C |
| Maximum temperature at tc test point | 100 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | E 1) |
| Energy consumption | 19.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| Order reference | LEDPCLA150 19W/ |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E27 |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 128.00 mm |
| Height | 68.00 mm |
| Width | 68.00 mm |
| EPREL ID | 1403224 |
| Model number | AC24709 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075463127 | Folding box 1 |
71 mm x 71 mm x 135 mm | 86.00 g | 0.68 dm³ |
| 4058075463134 | Shipping box 10 |
366 mm x 151 mm x 150 mm | 1021.00 g | 8.29 dm³ |
PRODUCT DATASHEET
P CLAS A 150 19 W 2700K E27
P CLAS A 150 19 W 2700K E27

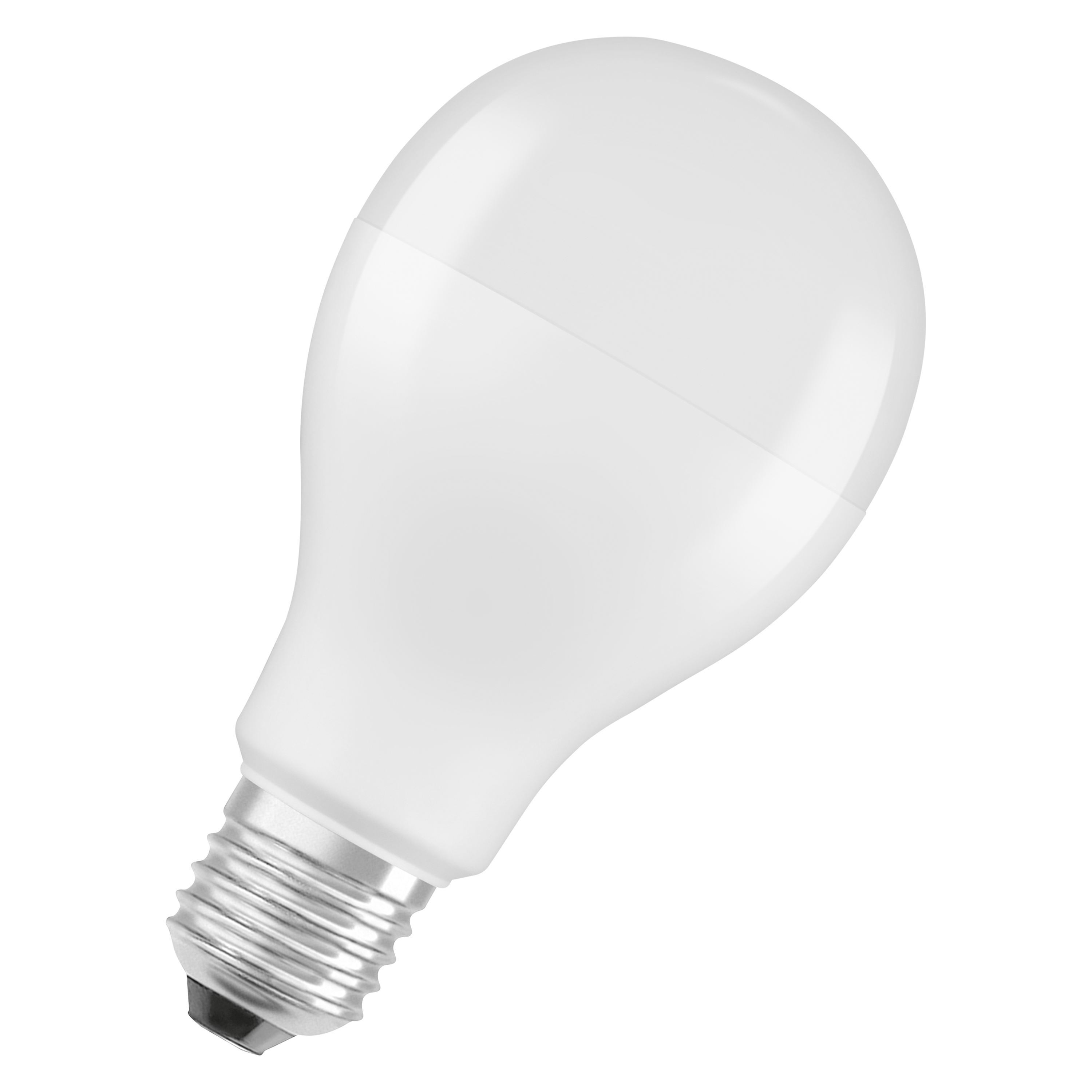

Product image: white background, diagonal
LED CLAS A 150FR E27
LED CLAS A 150FR E27

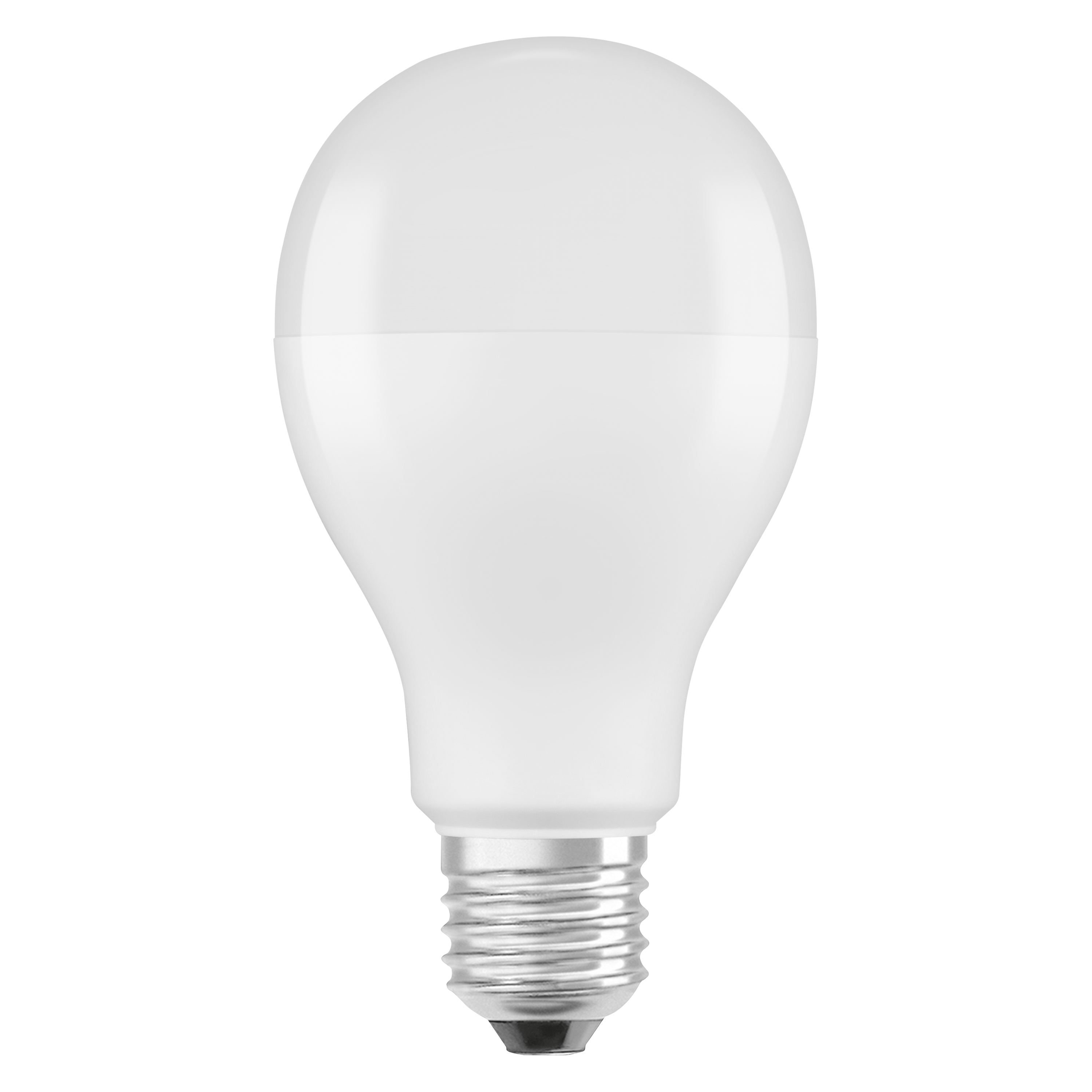

Product image: white background, upright
LED CLAS A 150FR E27
LED CLAS A 150FR E27
Product line drawing with letters
LED CLAS A 150FR E27
LED CLAS A 150FR E27
Product line drawing, front, no dimensions
LED CLAS A 150FR E27
LED CLAS A 150FR E27
Packaging image, frontal
LED PARA CLA 150 19W 827 FR E27 MiCh Front
LED PARA CLA 150 19W 827 FR E27 MiCh Front
Packaging image, spacial
LED PARA CLA 150 19W 827 FR E27 MiCh Side
LED PARA CLA 150 19W 827 FR E27 MiCh Side
Energy label
EL-4058075463127-AC247 09
EL-4058075463127-AC247 09
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4058075463127 | 8295501 | 4731459 | 941804800 |
