SMART+ WIFI CONTACT SENSOR

SMART+ WIFI CONTACT SENSOR White

GTIN: 4099854333132 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy control and automation of compatible SMART+ WiFi products based on contact status
  • Notification of contact status change
  • Monitors the history of contact status
Areas of application
  • Smart home indoors
  • Wherever smart control and automation are to be implemented in compatible smart home systems
Product features
  • Compatible with Amazon Alexa and Google Home
  • Wireless smart contact sensor for status of windows and doors (open/close)
  • Simple and flexible mounting with adhesive tape and a choice of two magnet shapes depending on the application
  • Rechargeable battery and improved battery life (20 months operating time per charge with 5 detections per day)
  • Network protocol: WiFi (2.4 GHz)
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Check the battery level by SMART+ WiFi APP
Equipment / Accessories

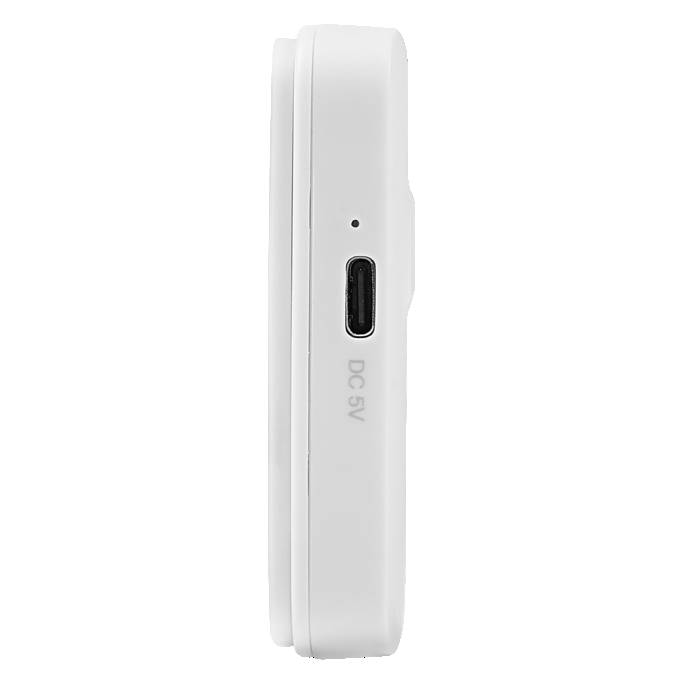

  • Rechargeable battery integrated and easy charging via USB-C

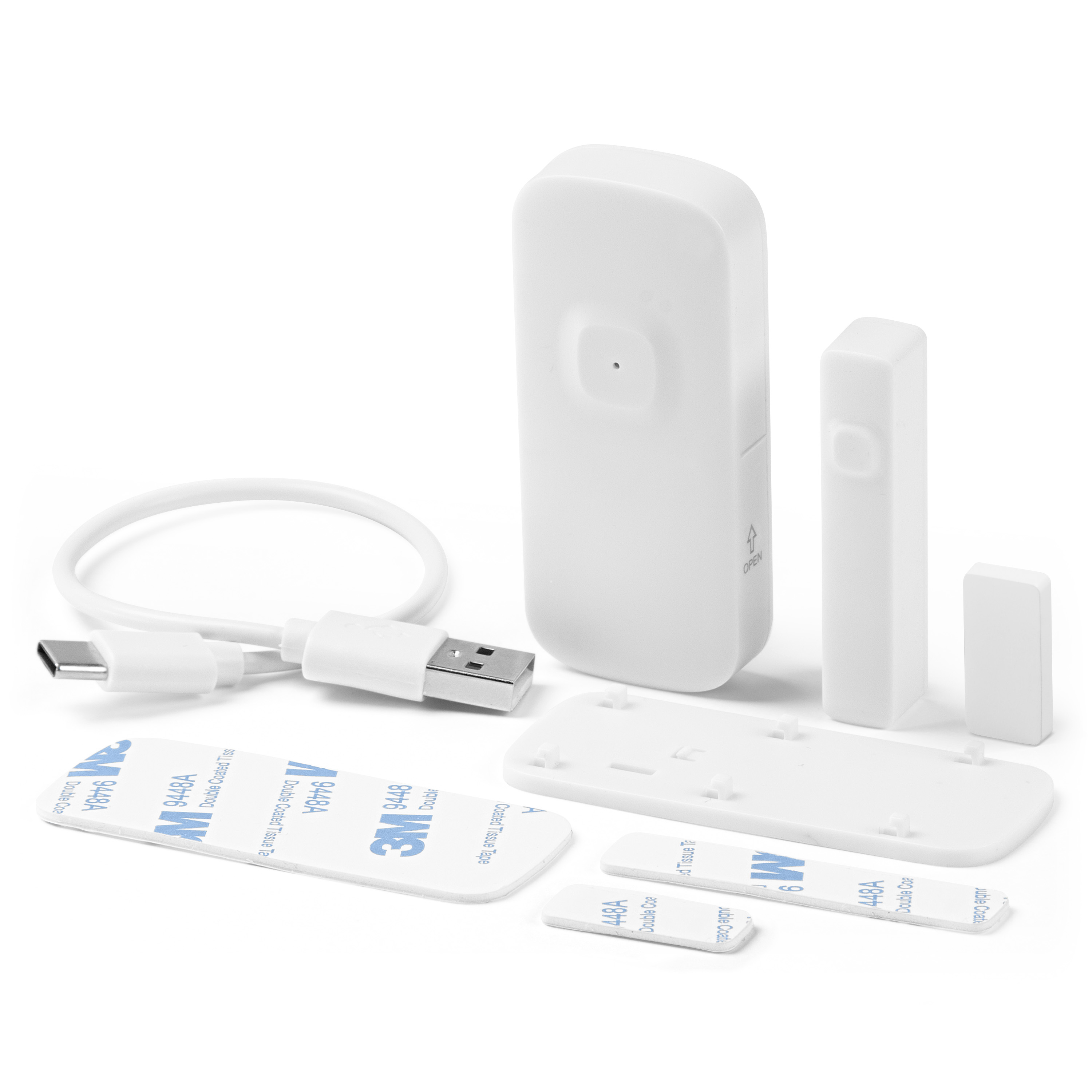

  • Charging cable and installation kit included
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal voltage 5 V
Operating mode Battery
Dimensions & Weight
Product weight 46.8 g
Length 72.00 mm
Width 31.00 mm
Height 15.50 mm
Colors & materials
Product color White
Body material Plastic
Temperatures & operating conditions
Ambient temperature range -10…+50 °C
Capabilities
Dimmable No
Compatible smart home technology Amazon Alexa, Google Assistant
Certificates & Standards
Standards CE, UKCA
Protection class III
Type of protection IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854333132 Folding box
1
23 mm x 78 mm x 149 mm 64.00 g 0.27 dm³
4099854333149 Shipping box
8
166 mm x 102 mm x 165 mm 592.00 g 2.79 dm³
User instruction / safety instructions
SMART+ WIFI CONTACT SENSOR
Declarations of conformity

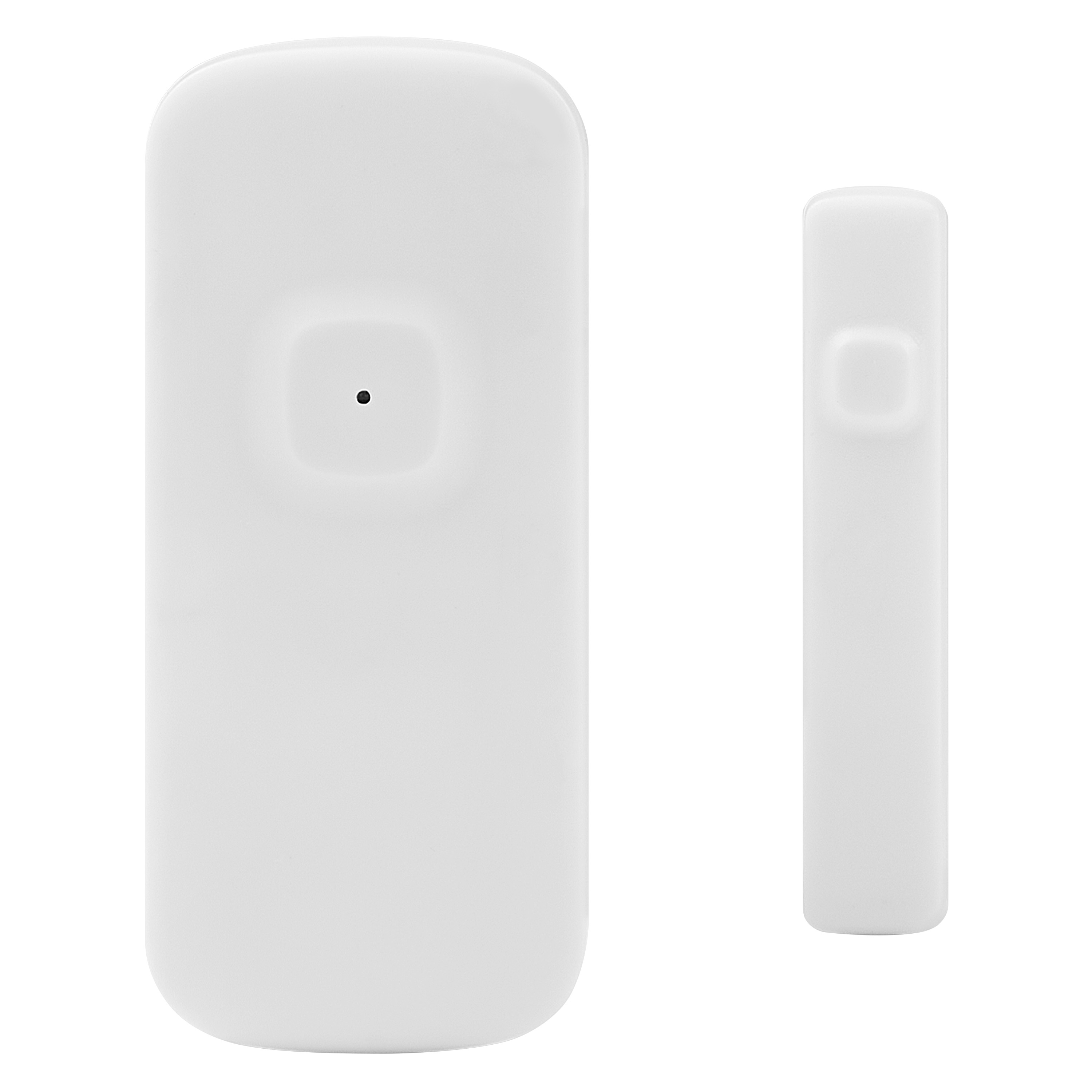

SMART WIFI CONTACT SENSOR

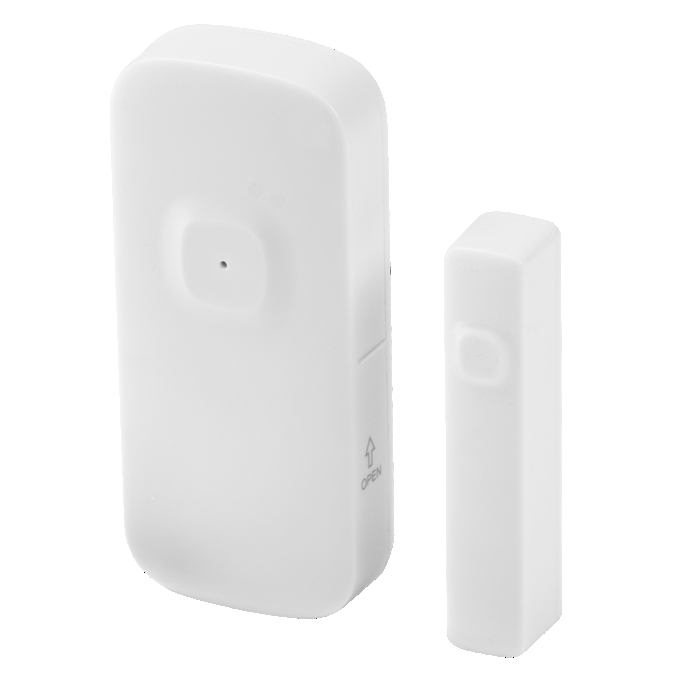

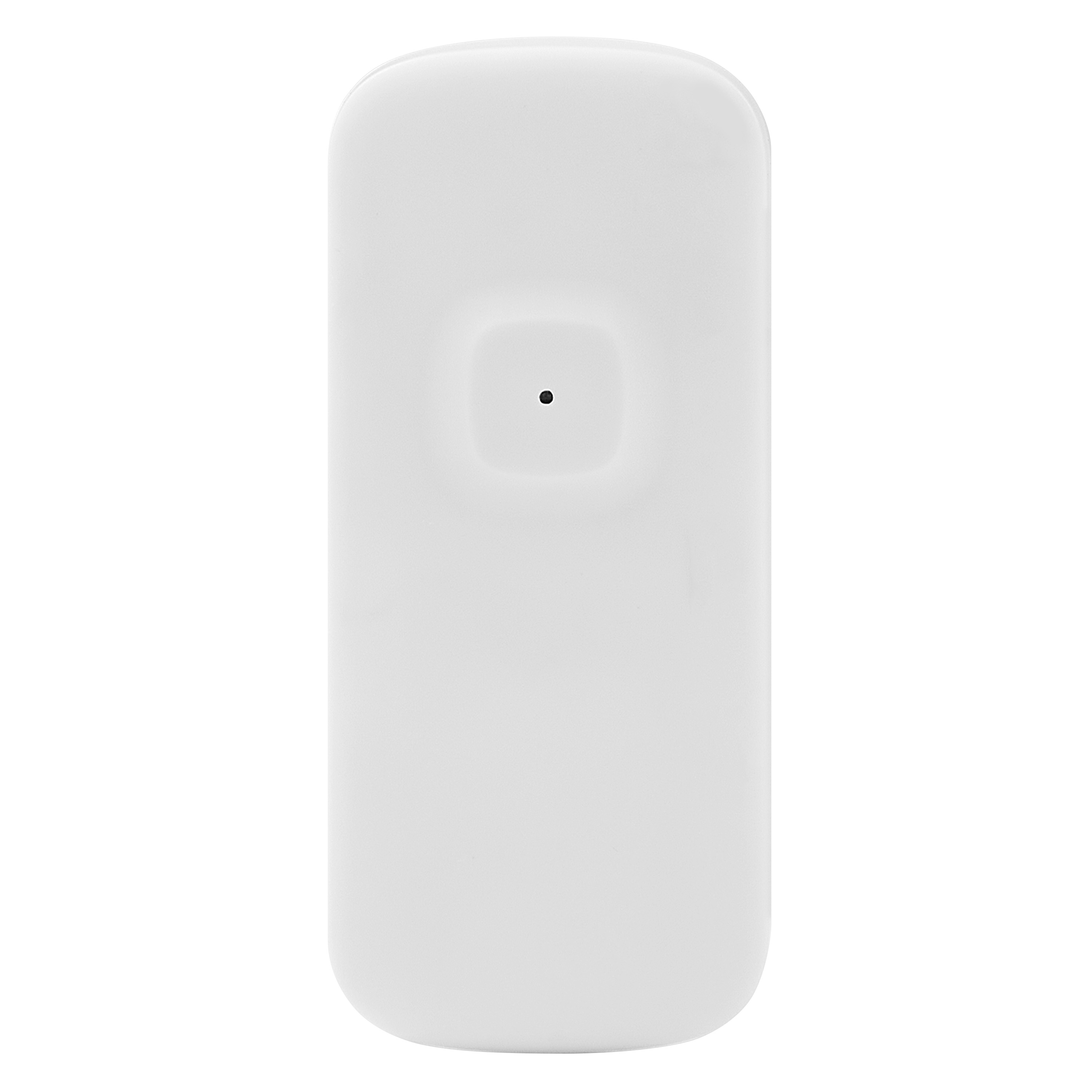

Product image: white background, upright

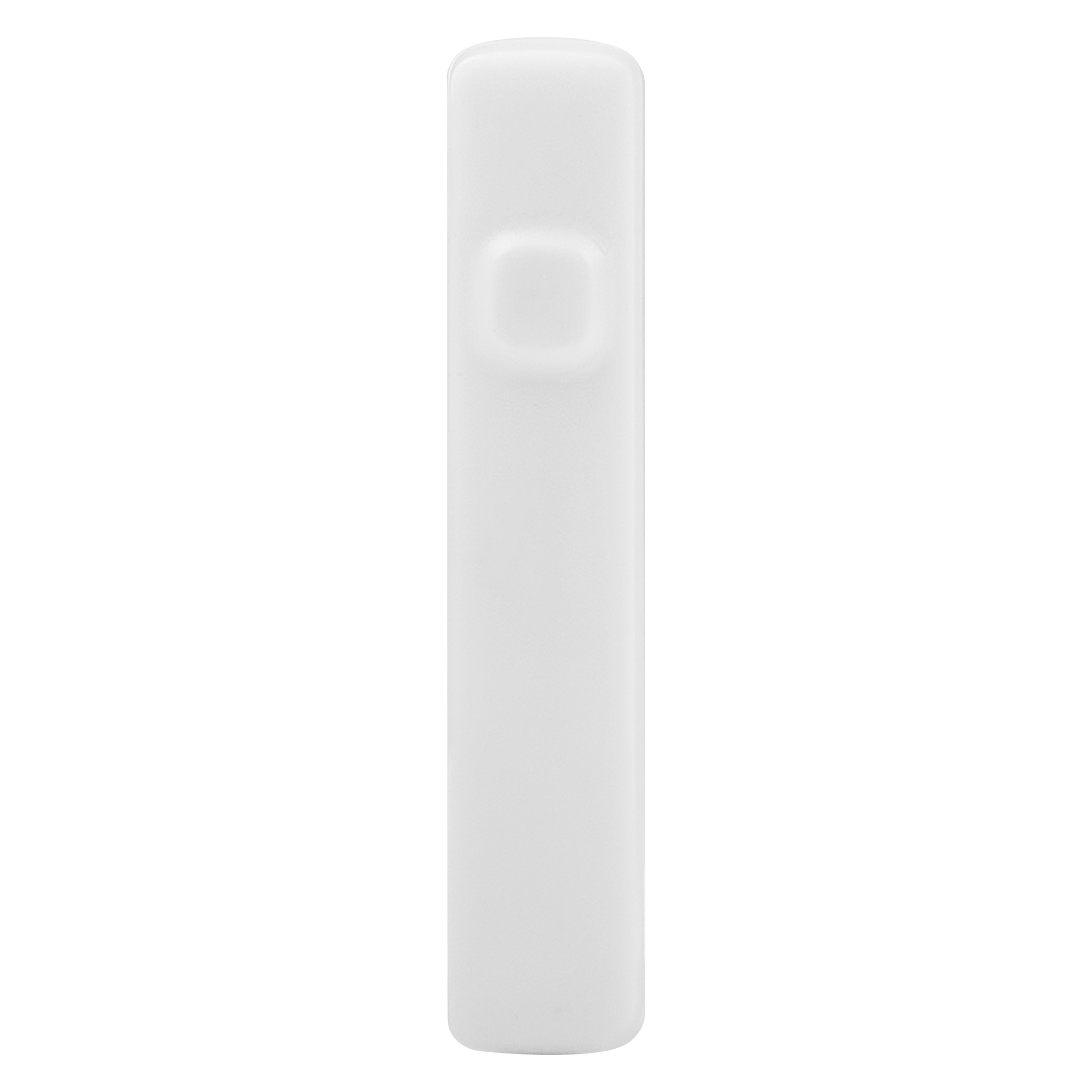

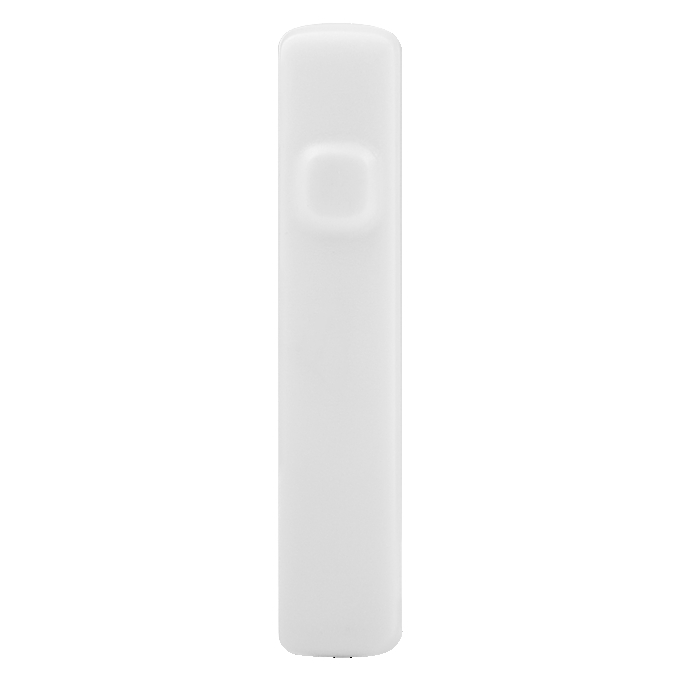

SMART WIFI CONTACT SENSOR
Product image: white background, upright

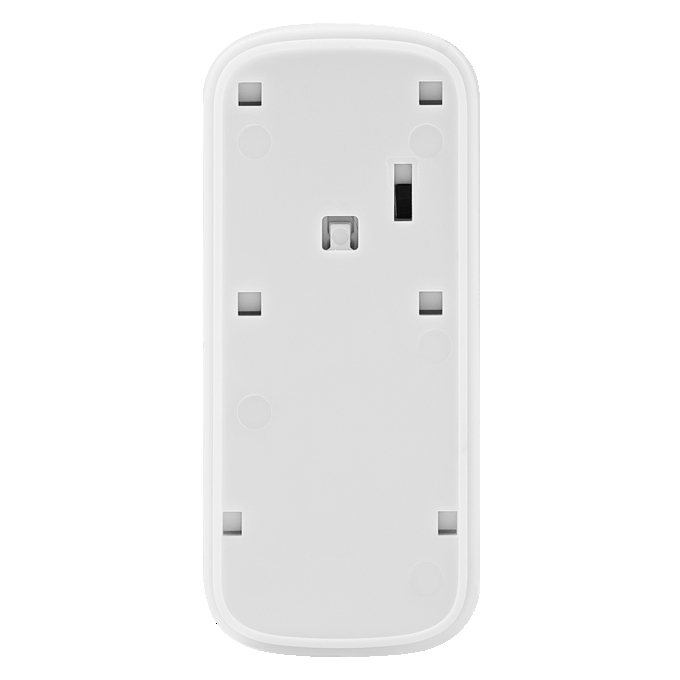

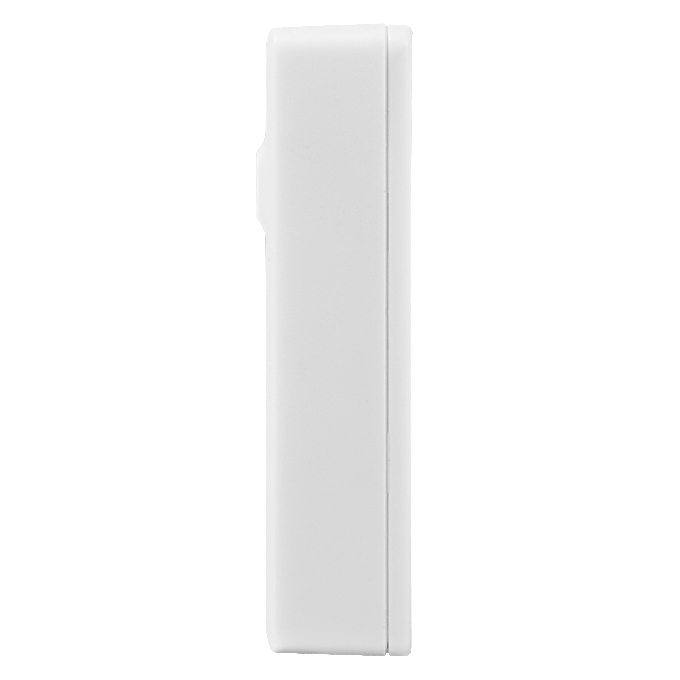

SMART WIFI CONTACT SENSOR
Product image: white background, upright, alternative image

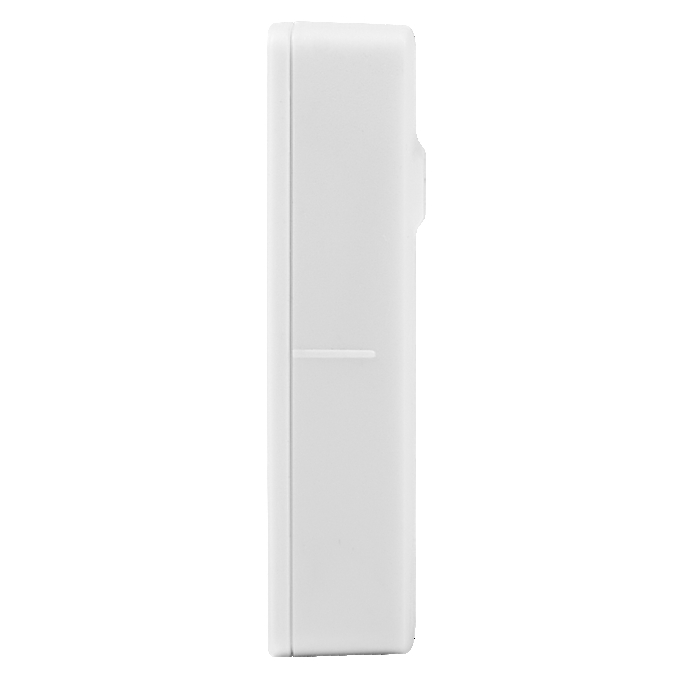

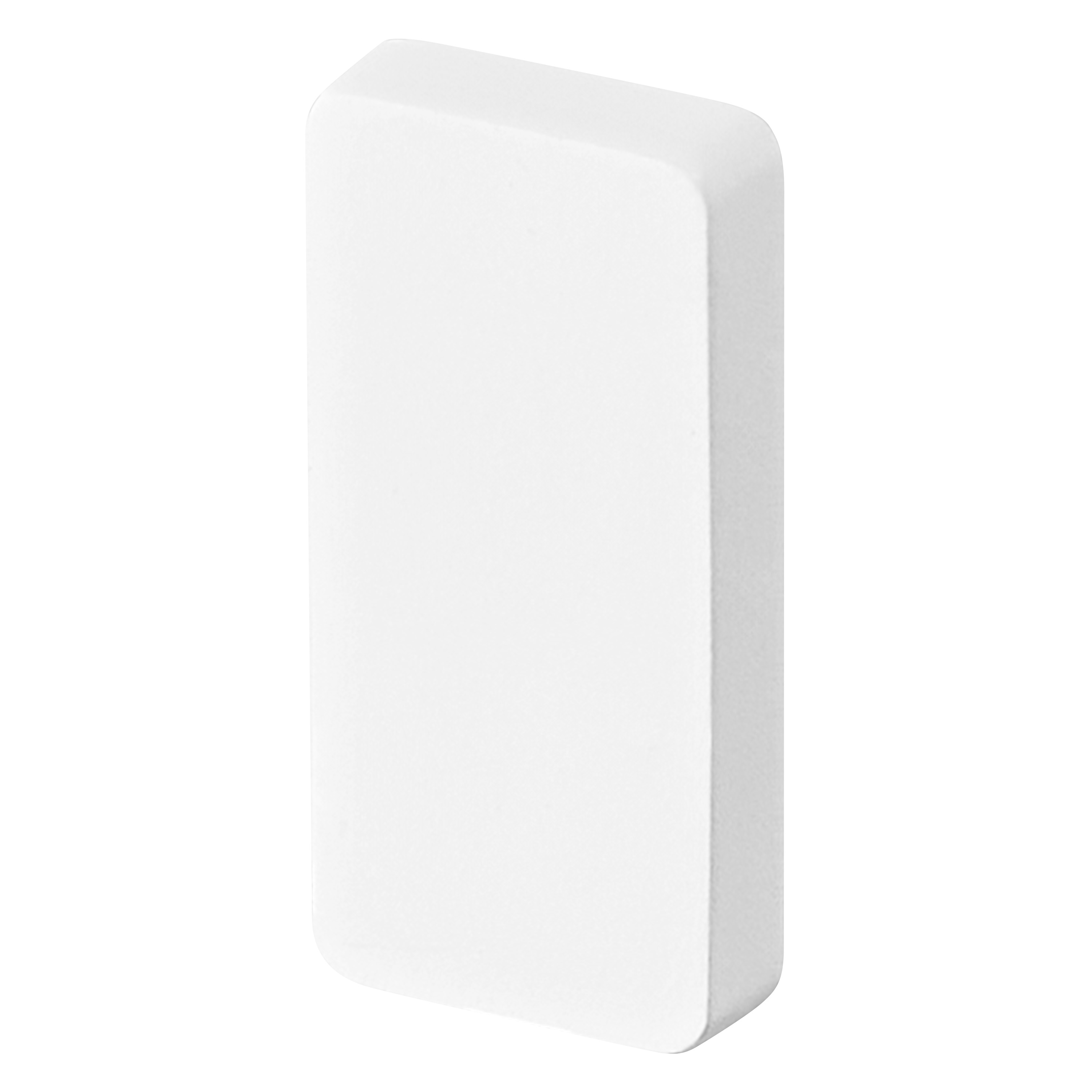

SMART WIFI CONTACT SENSOR
Product image: white background, upright, alternative image
SMART WIFI CONTACT SENSOR
Product image: white background, upright, alternative image
SMART WIFI CONTACT SENSOR
Product image: white background, upright, alternative image
SMART WIFI CONTACT SENSOR

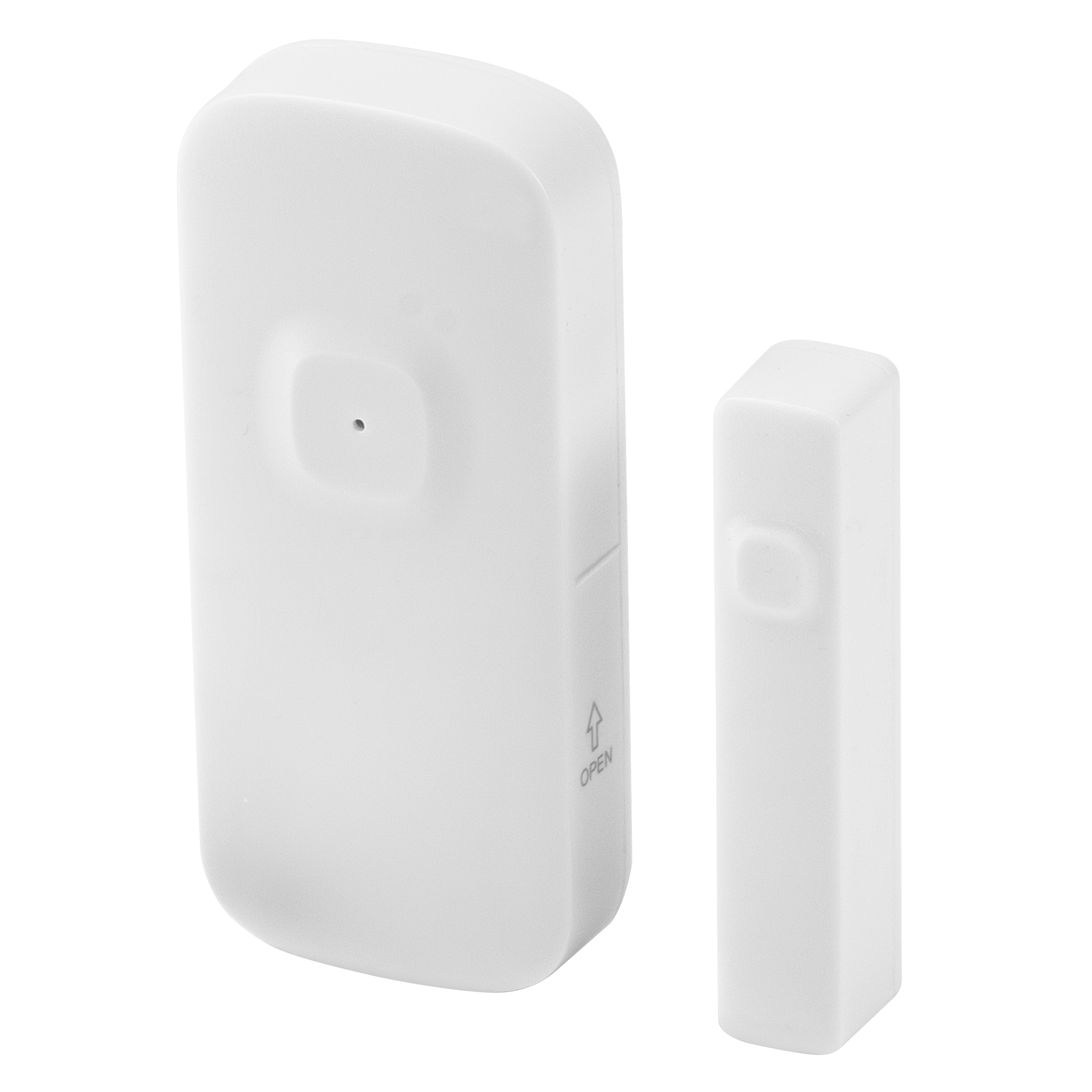

Product image: white background, spacial
SMART WIFI CONTACT SENSOR
Product infographic (application image with text and graphic)
Contact sensor doors windows e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
SMART WIFI CONTACT SENSOR
Product line drawing with numbers
SMART WIFI CONTACT SENSOR
Product line drawing, front, no dimensions
SMART WIFI CONTACT SENSOR

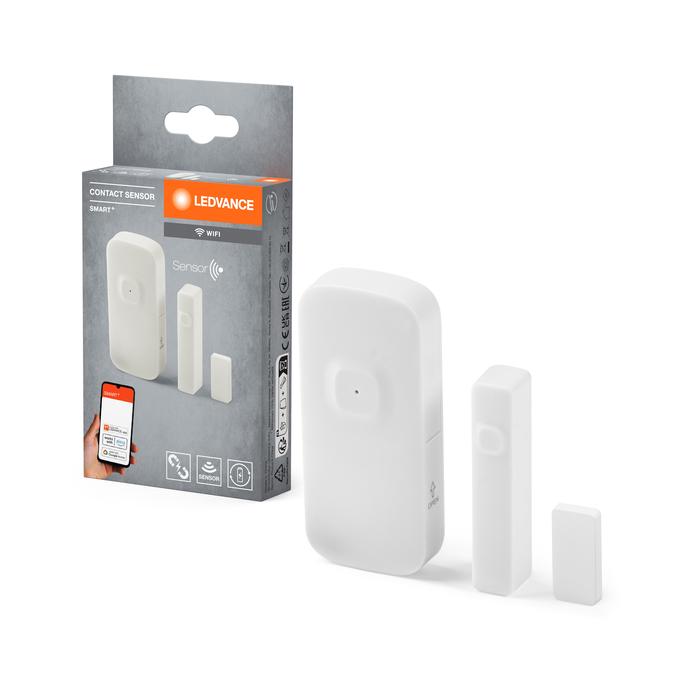

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI CONTACT SENSOR
Packaging image, frontal
SH FC WIFI CONTACT SENSOR

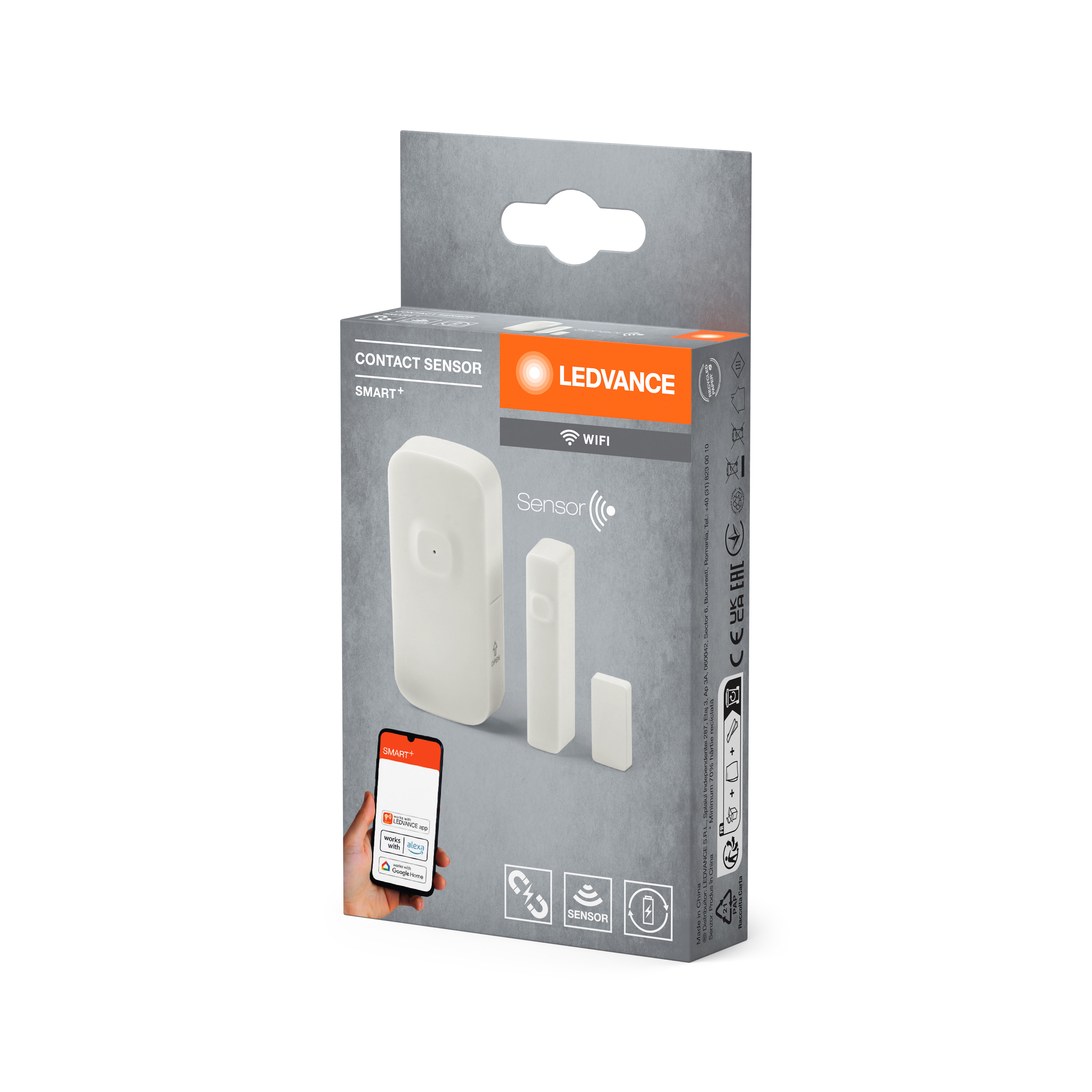

Packaging image, spacial
SH FC WIFI CONTACT SENSOR
Application pictures

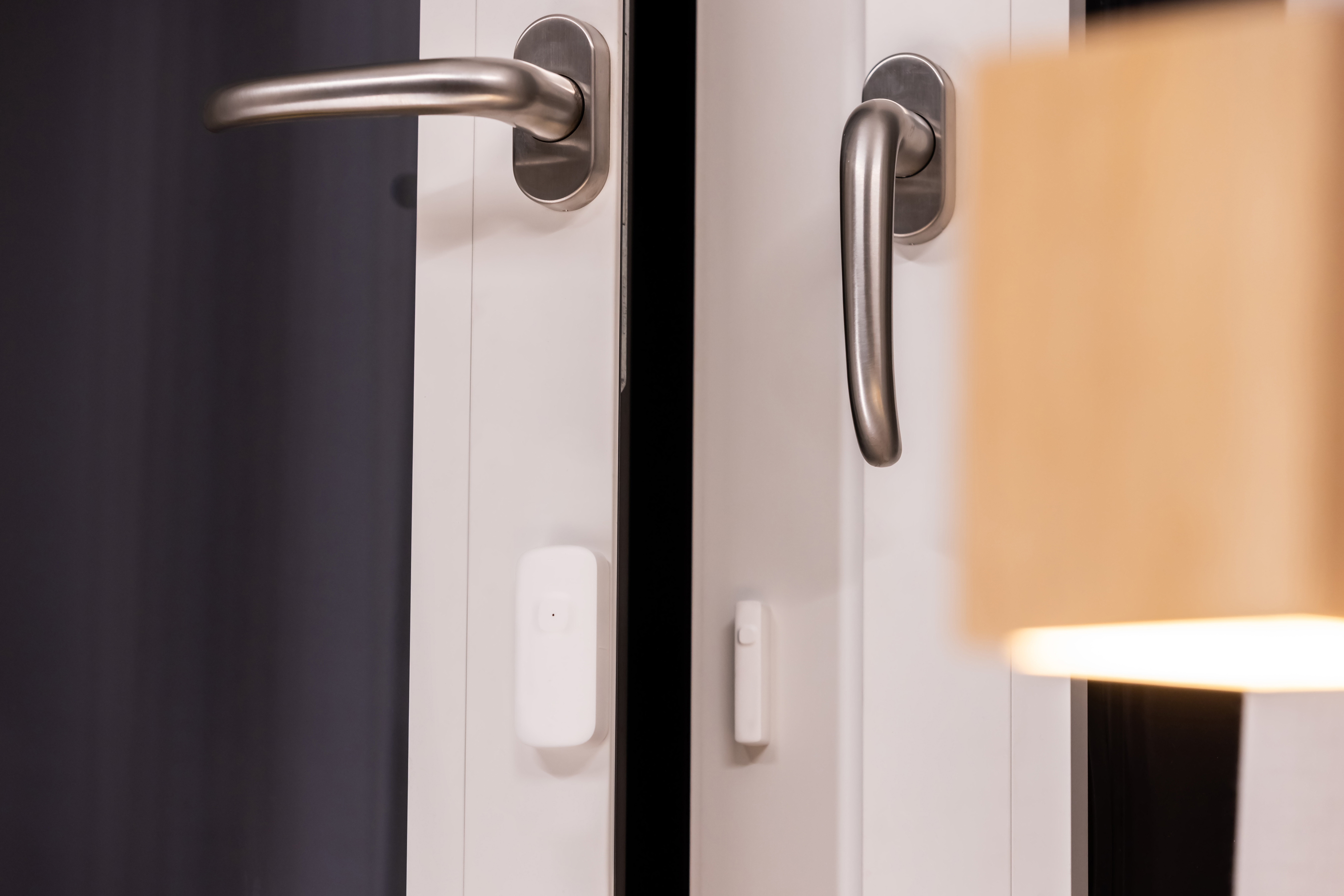

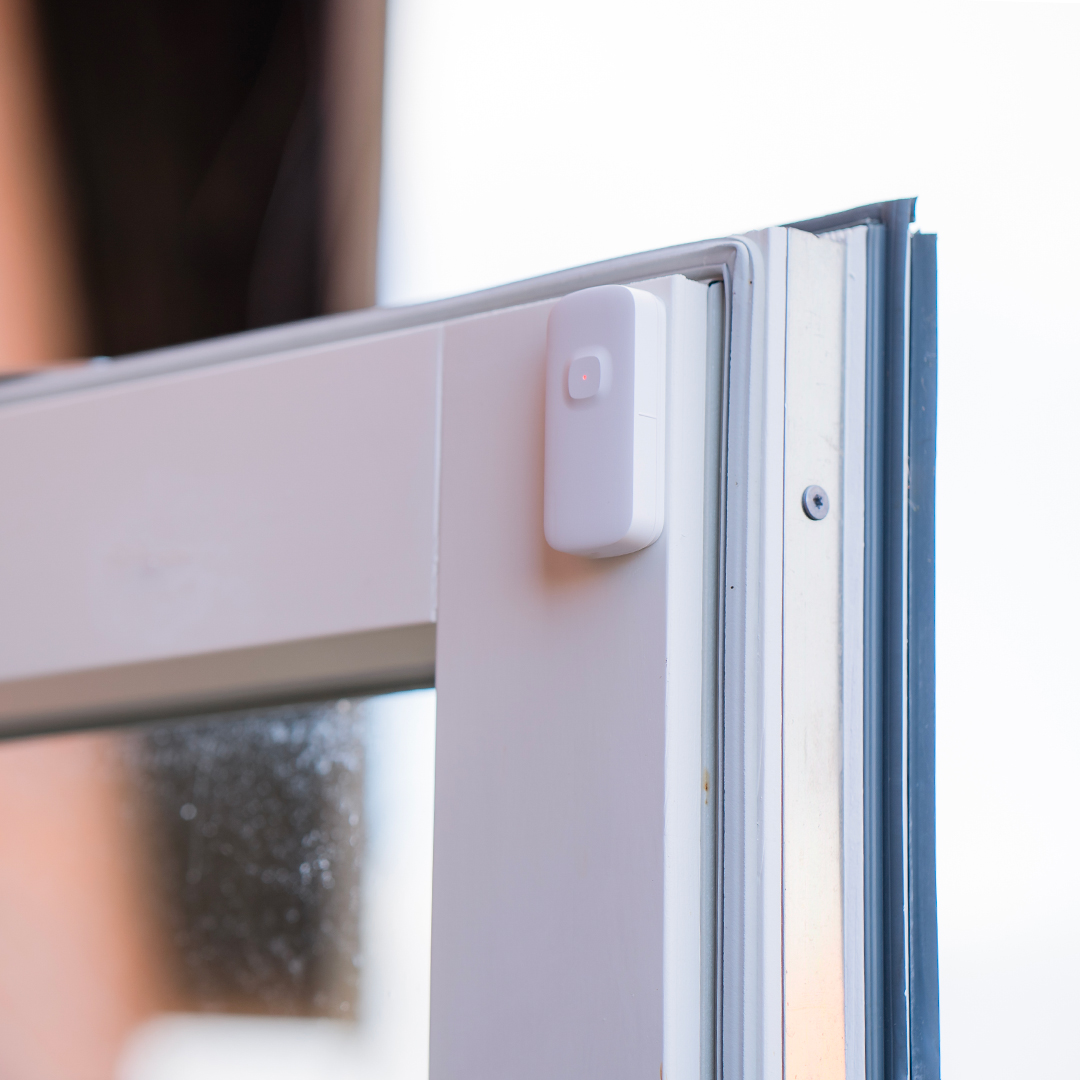

SMART WIFI CONTACT SENSOR WINDOW

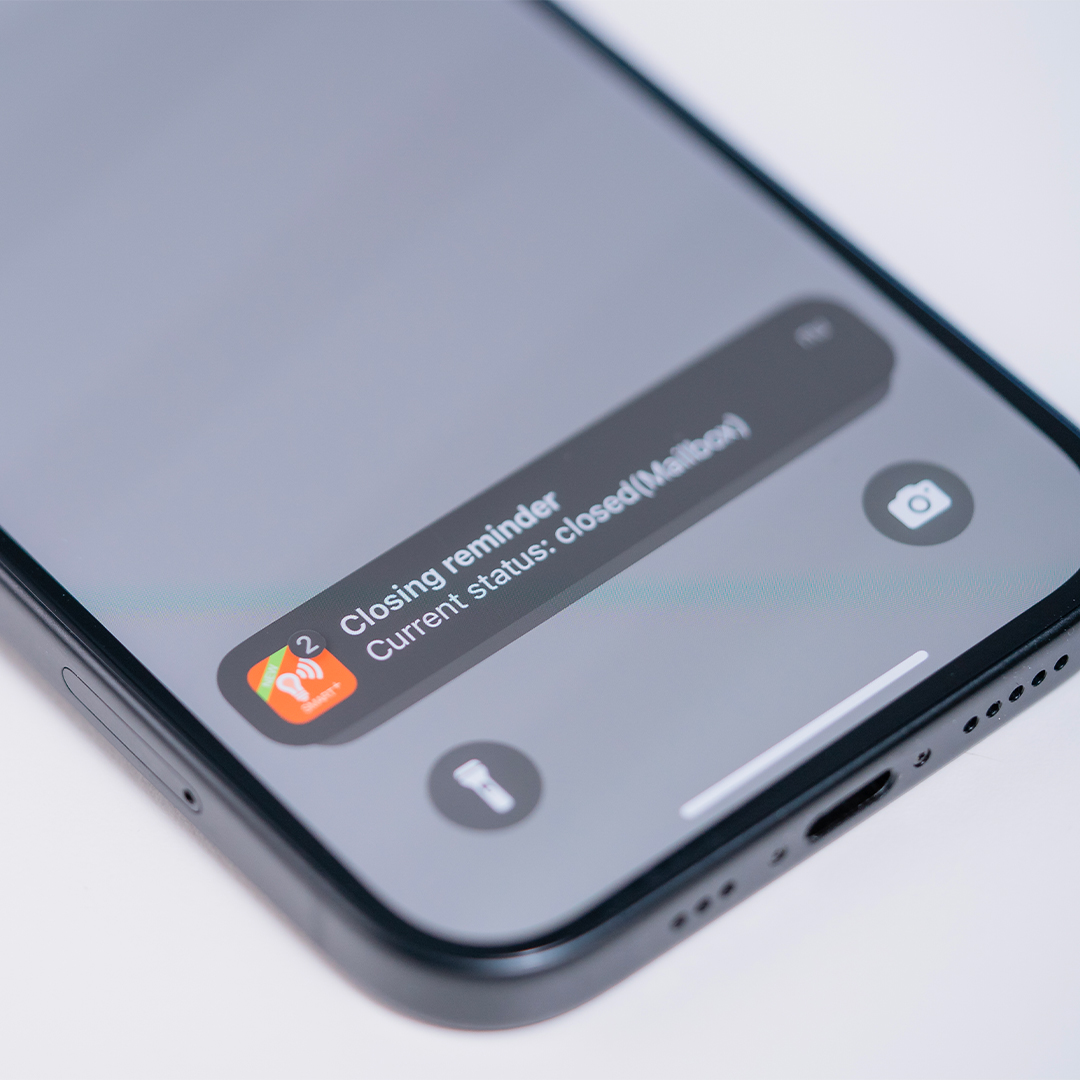

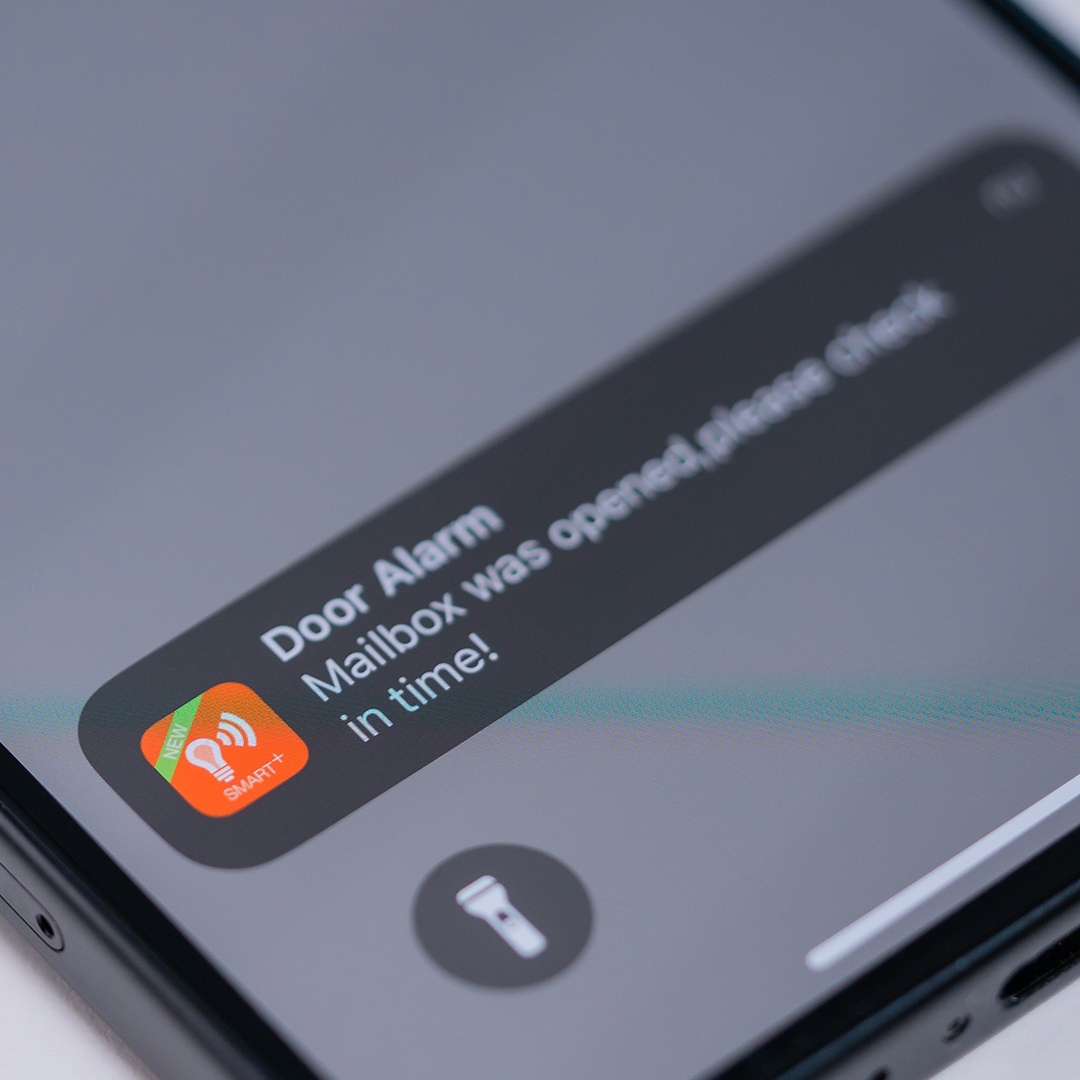

Application pictures

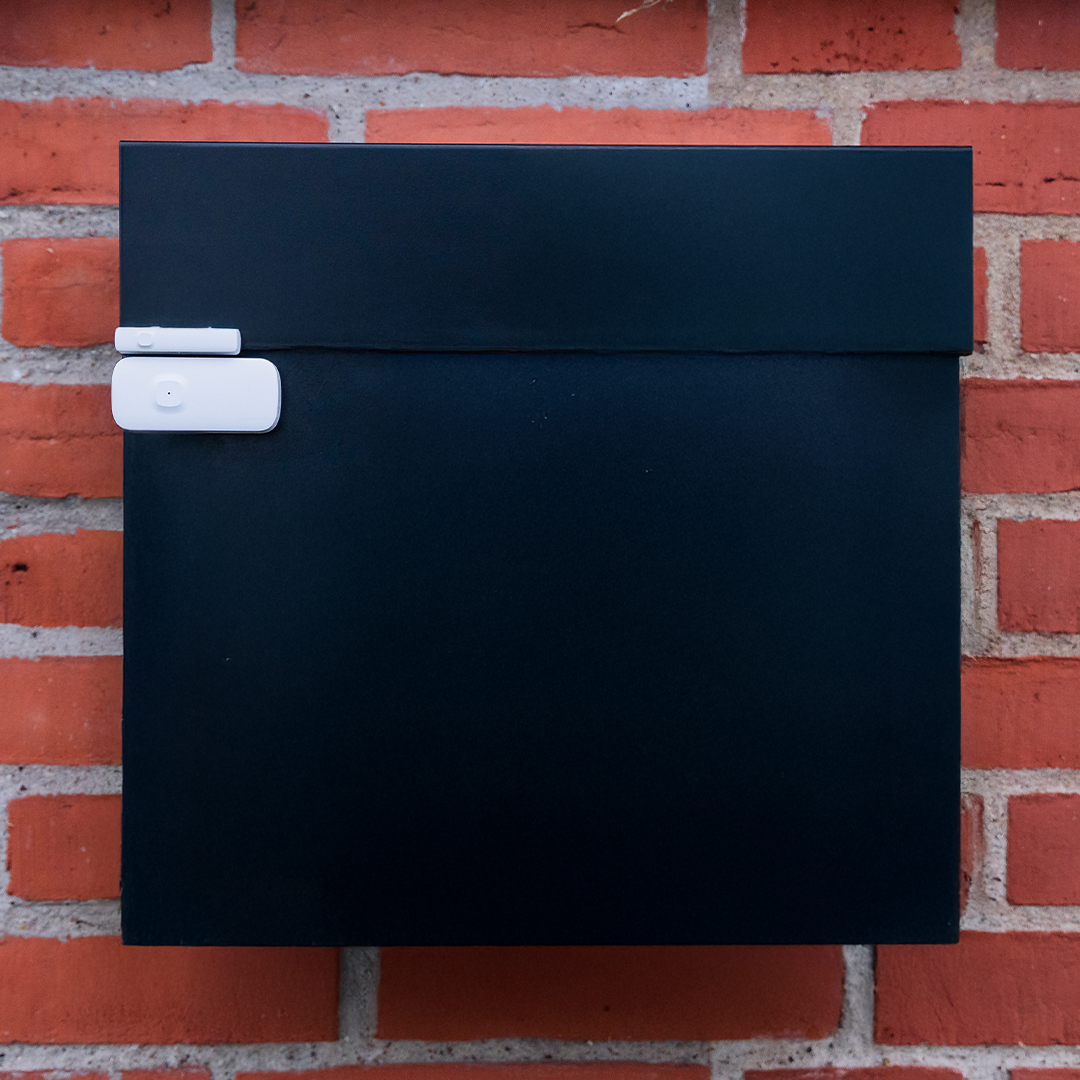

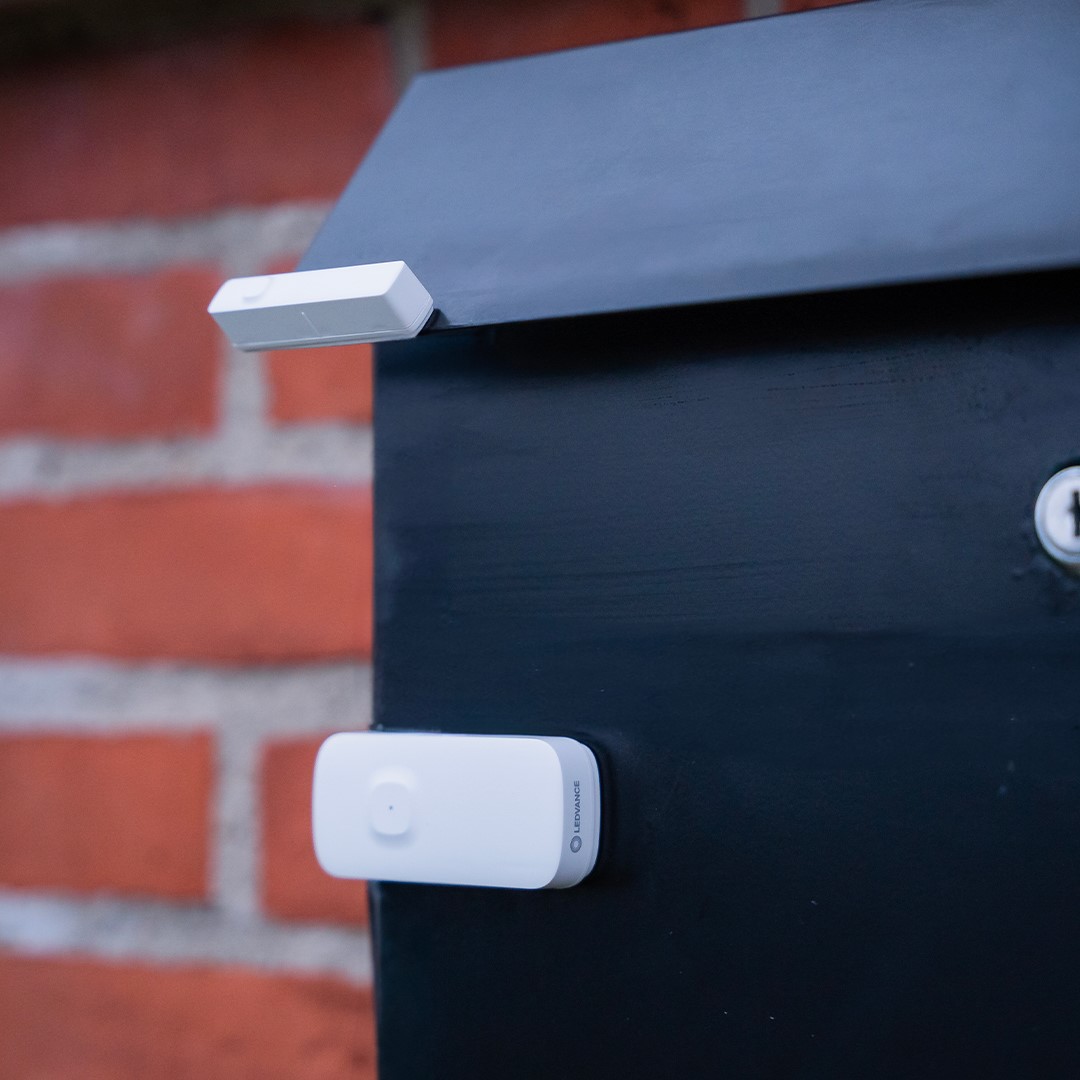

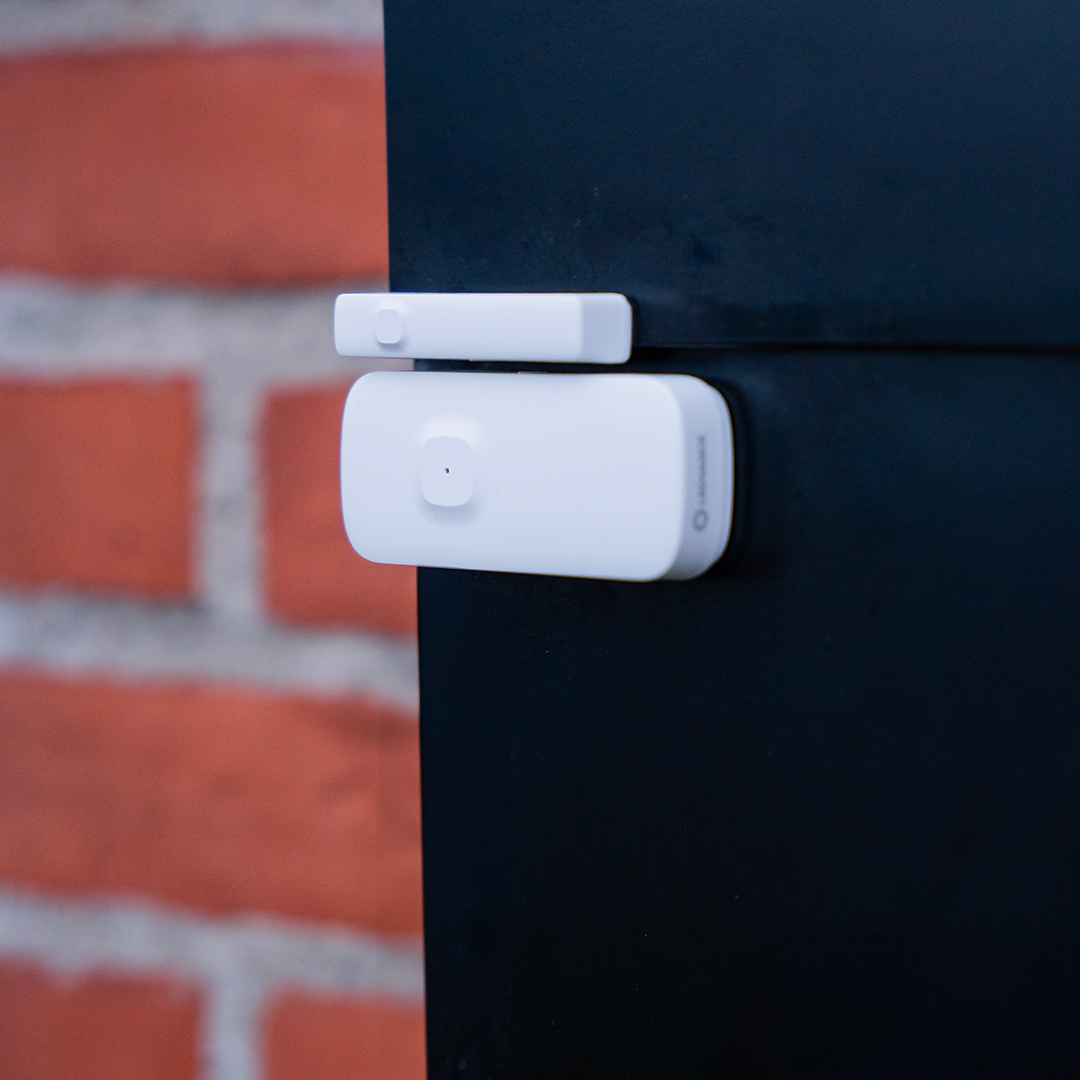

Still + video of contact sensor on mailbox
Application pictures
Still + video of contact sensor on mailbox
Application pictures
Still + video of contact sensor on mailbox
Application pictures
Still + video of contact sensor on mailbox
Application pictures
Still + video of contact sensor on mailbox
Application pictures
Still + video of contact sensor on mailbox
Application pictures
Stills and video of contacy sensor on candy drawer
Application pictures
Stills and video of contacy sensor on candy drawer
Application pictures
Stills and video of contacy sensor on candy drawer
Application pictures
Stills and video of contacy sensor on candy drawer
Application pictures

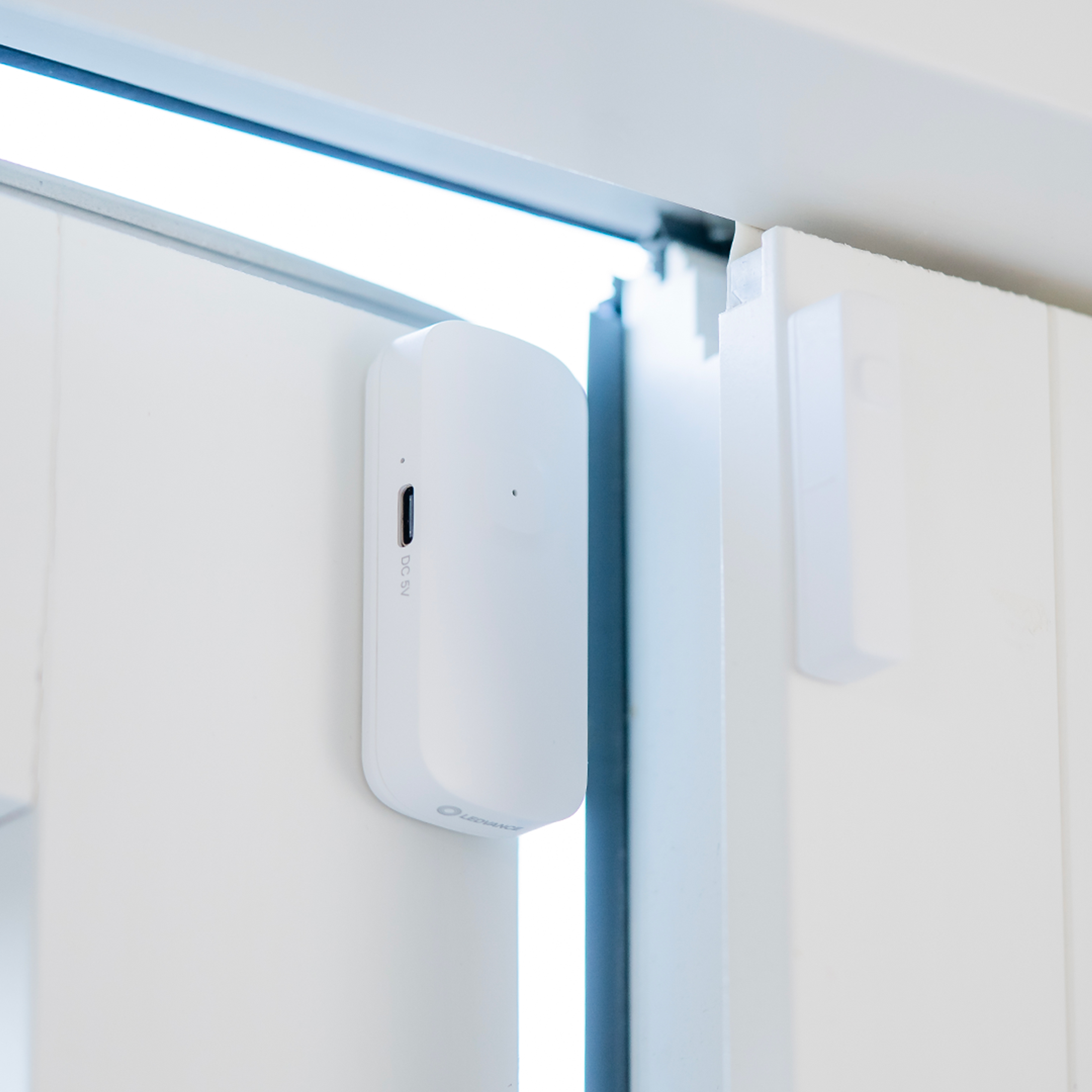

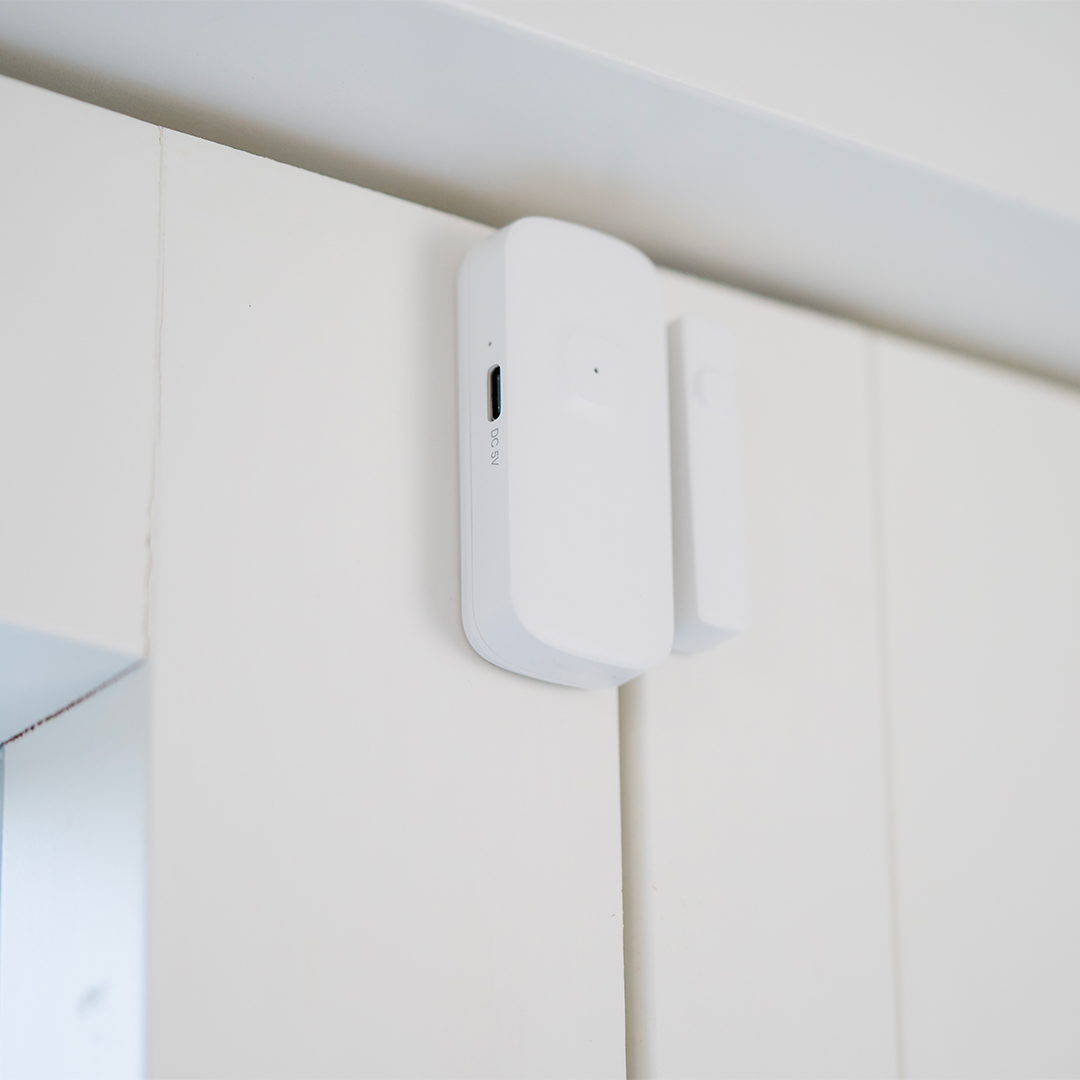

Smart+ application contact sensor
Application pictures
Smart+ application contact sensor
Application pictures
Smart+ application contact sensor
Application pictures
Smart+ application contact sensor
Application pictures
Smart+ application contact sensor
Application pictures
Smart+ application contact sensor
Application pictures Getty

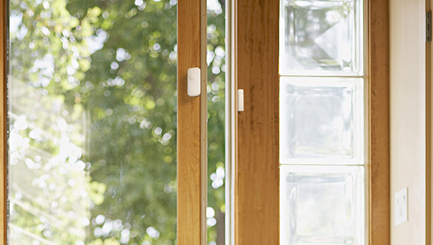

SMART WIFI CONTACT SENSOR FRONT DOOR CLOSE UP

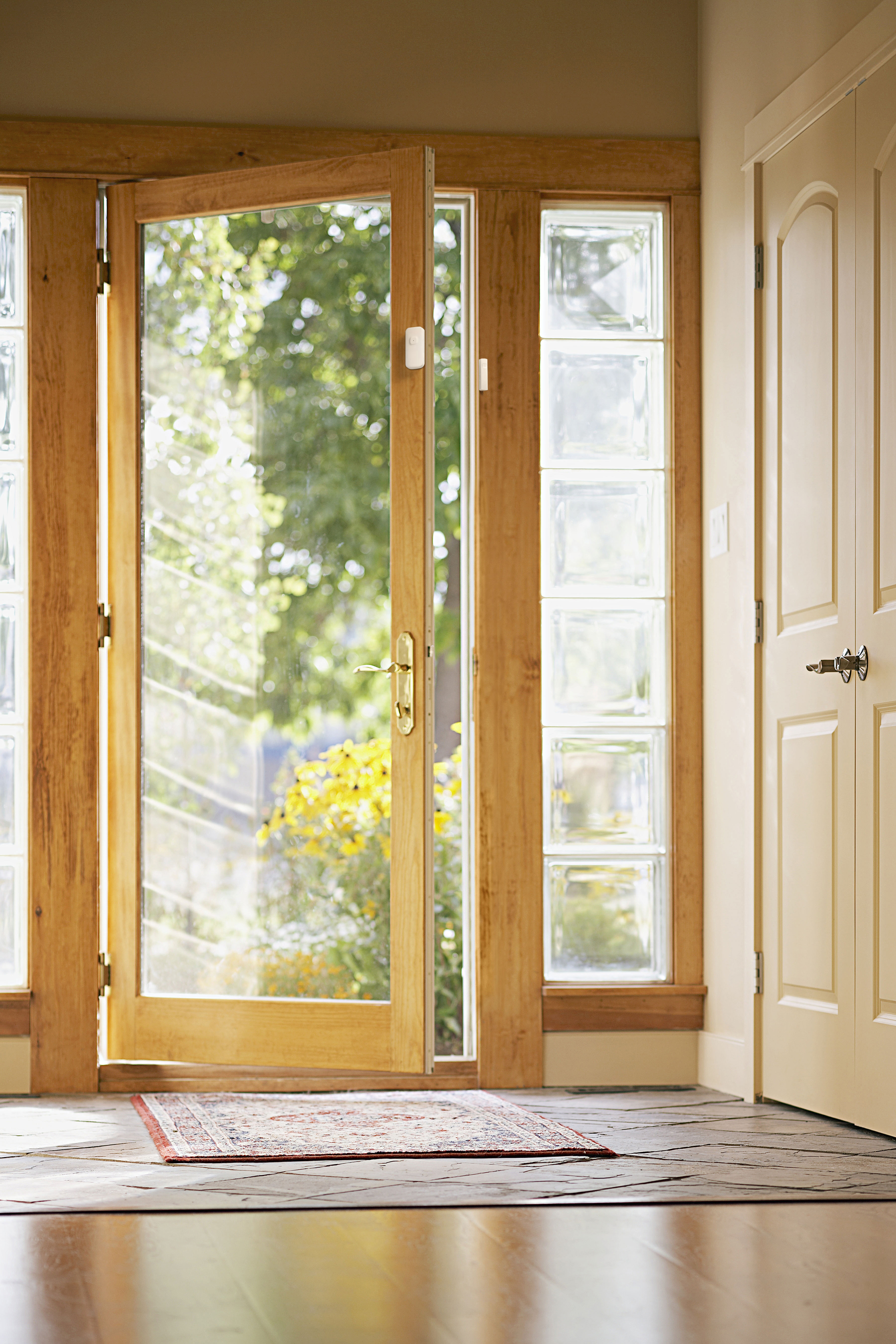

Application pictures Getty
SMART WIFI CONTACT SENSOR FRONT DOOR
EAN SEG number ELDAS number
4099854333132 1302017 941904020
