LV BATTERY GEN 1

LES LV-5K

GTIN: 4099854199882 Shipping box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Compatible with different brands of inverters
  • Easy and offline configuration
  • Built-in pressure relief valve
  • Stacks are connected in parallel
  • 10 years of product guarantee
  • Environmental friendly
Areas of application
  • Residential installations
  • Commercial applications
Product features
  • Already built-in battery management system (BMS) with working range from 40.0 - 58.4 V
  • Control box included in every battery module
  • Stackable from 1 to 4 modules with up to 20.5 kWh in one stack
  • Dedicated app on mobile phone for remote monitoring and management
  • LiFePO4 battery type for stable and efficient operation over many years
  • Protection rating: IP65
  • SOC LED display for battery energy level status
  • Charging / discharging current of 50 A (nominal) and 100 A (peak)
  • Thermal management system
References / Links
Electrical data
Type of current DC
Nominal voltage [PICOS] 51,2 V
Number of phases 1
Nominal capacity of battery 5.12 kWh
Usable battery capacity 4.864 kWh
Max. depth of discharge 90 %
Dimensions & Weight
Length 680.00 mm
Width 380.00 mm
Height 152.50 mm
Product weight 46000.00 g
Additional product data
Model Lithium ion
Ambient temperature range 0…+35 °C
Suitable for emergency power Yes
Suitable for indoor installation Yes
Outdoor application No
Type of protection IP65
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854199882 Shipping box
1		 755 mm x 230 mm x 465 mm 50100.00 g 80.75 dm³
User instruction / safety instructions
LES-LV-5K
PDF (8.59 MB)
Extended installation guide
LES-LV-5K
PDF (2.68 MB)
Declarations of conformity
LES-LV battery
PDF (285.68 KB)
Product family datasheet
LES LV 5K
PDF (317.13 KB)

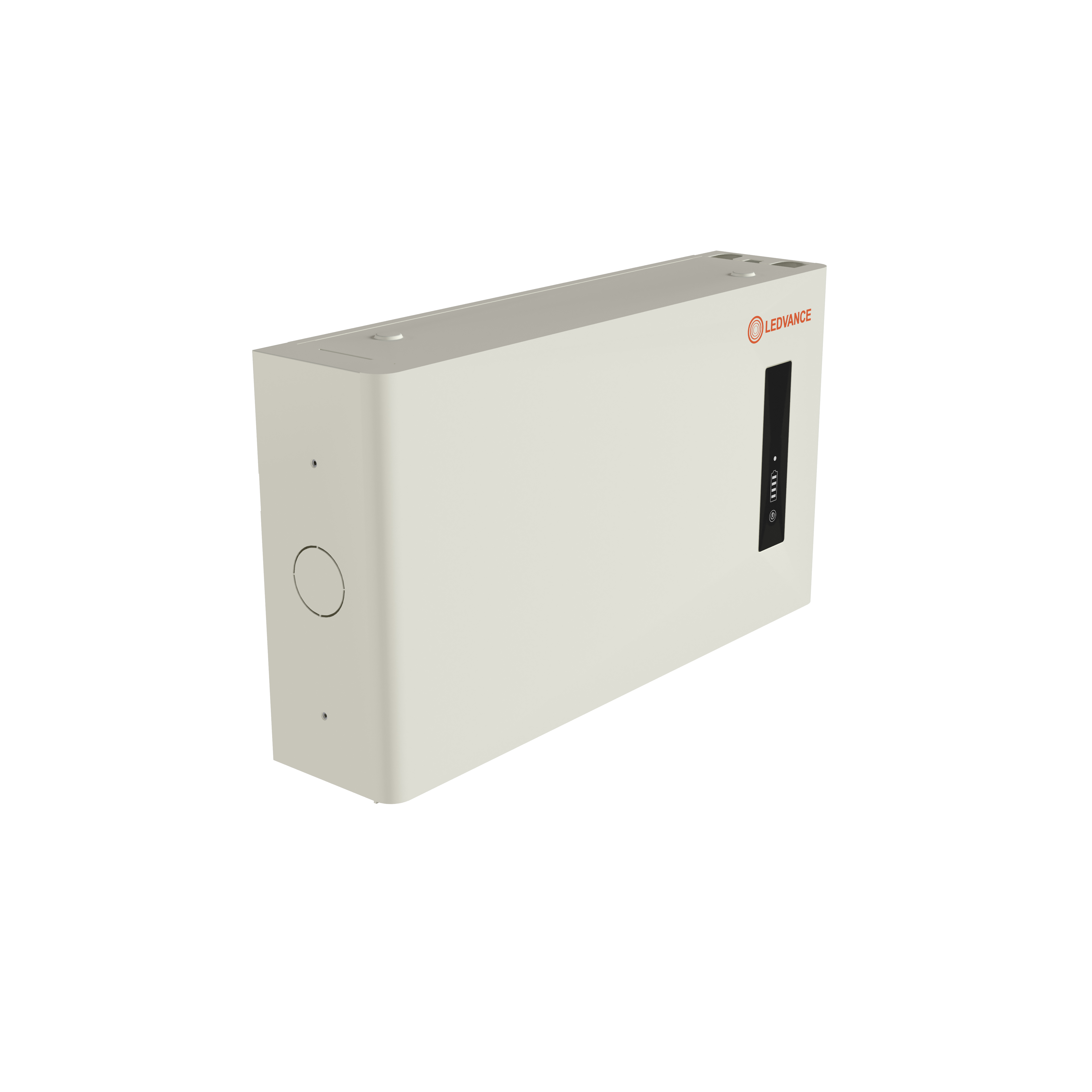

Product image: white background, diagonal
LES LV 5K
JPG (2.7 MB)

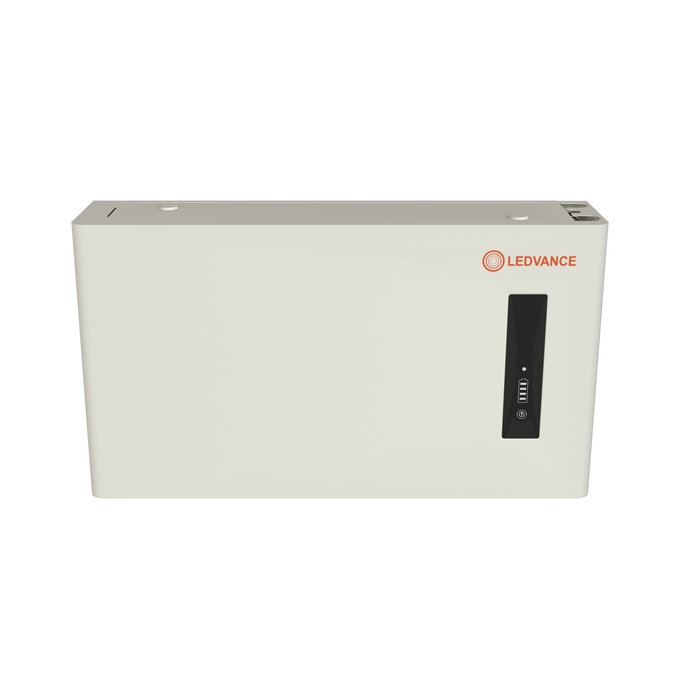

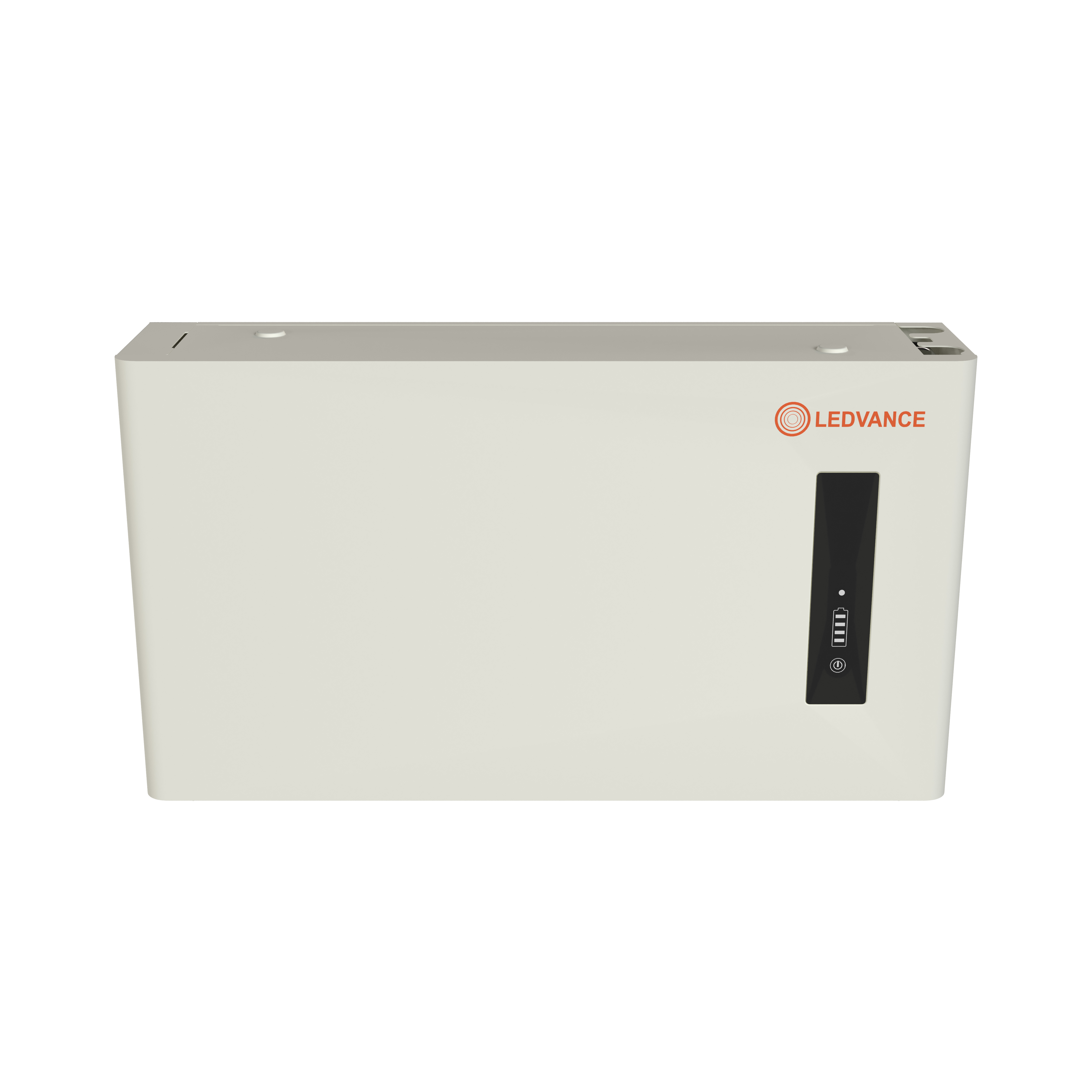

Product image: white background, upright
LES LV 5K
JPG (3.31 MB)

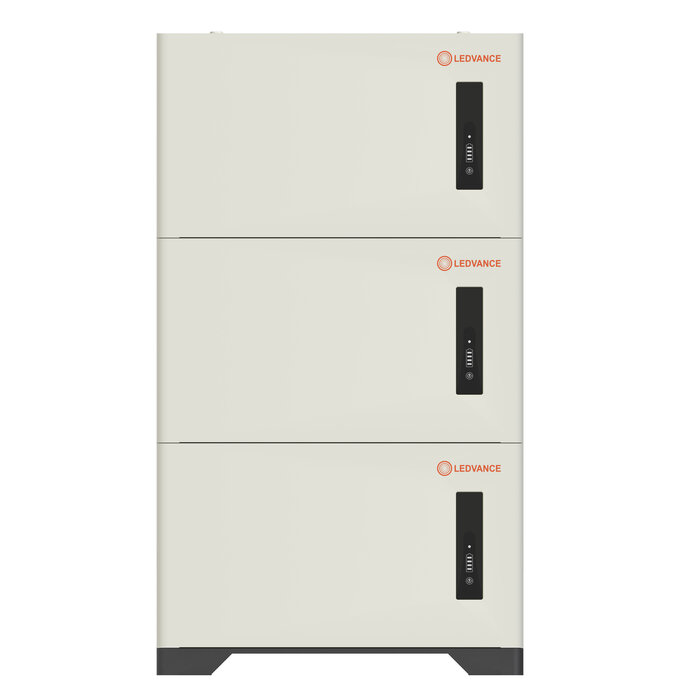

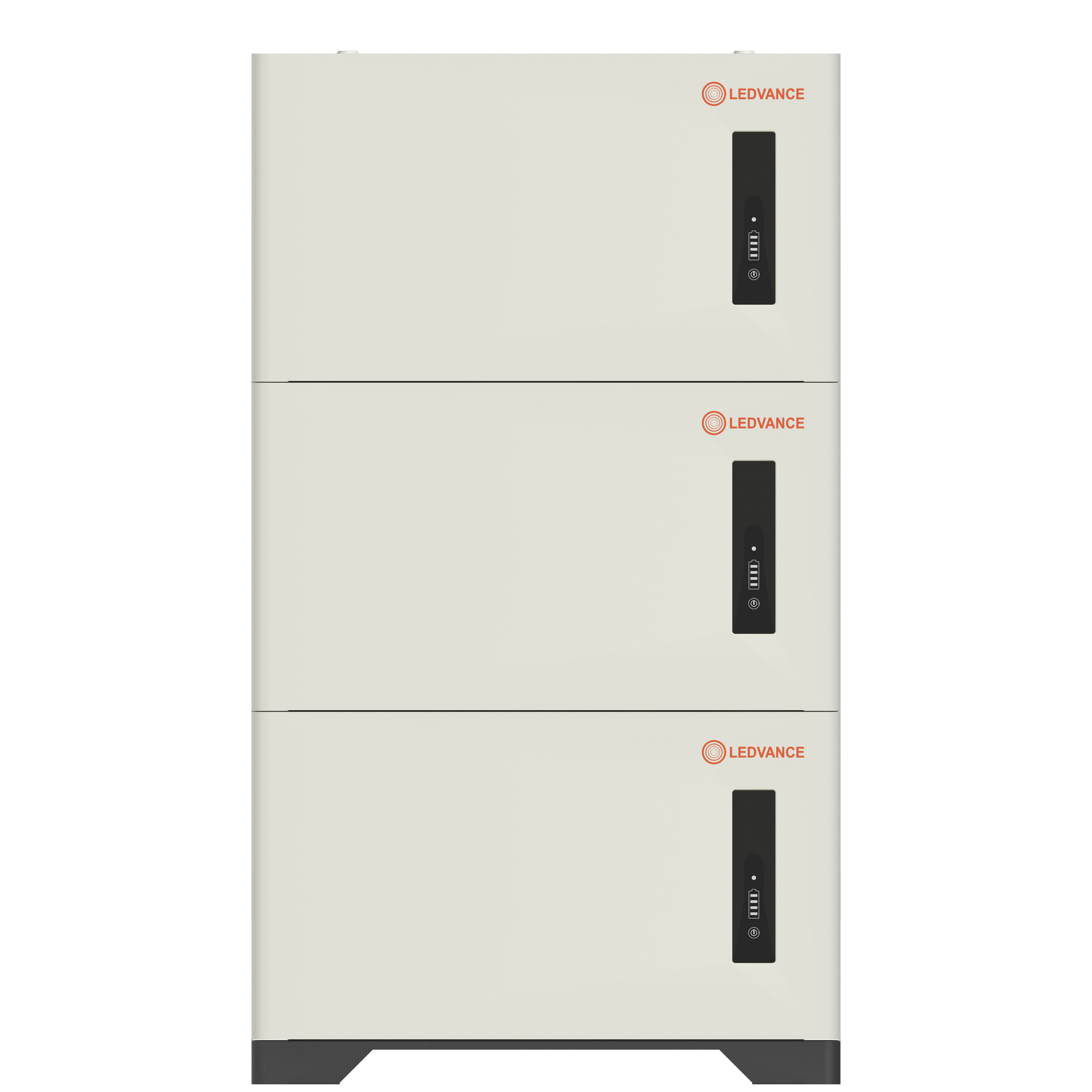

Product image: white background, with accessory, alternative image
LV Energy Storage
JPG (3.89 MB)

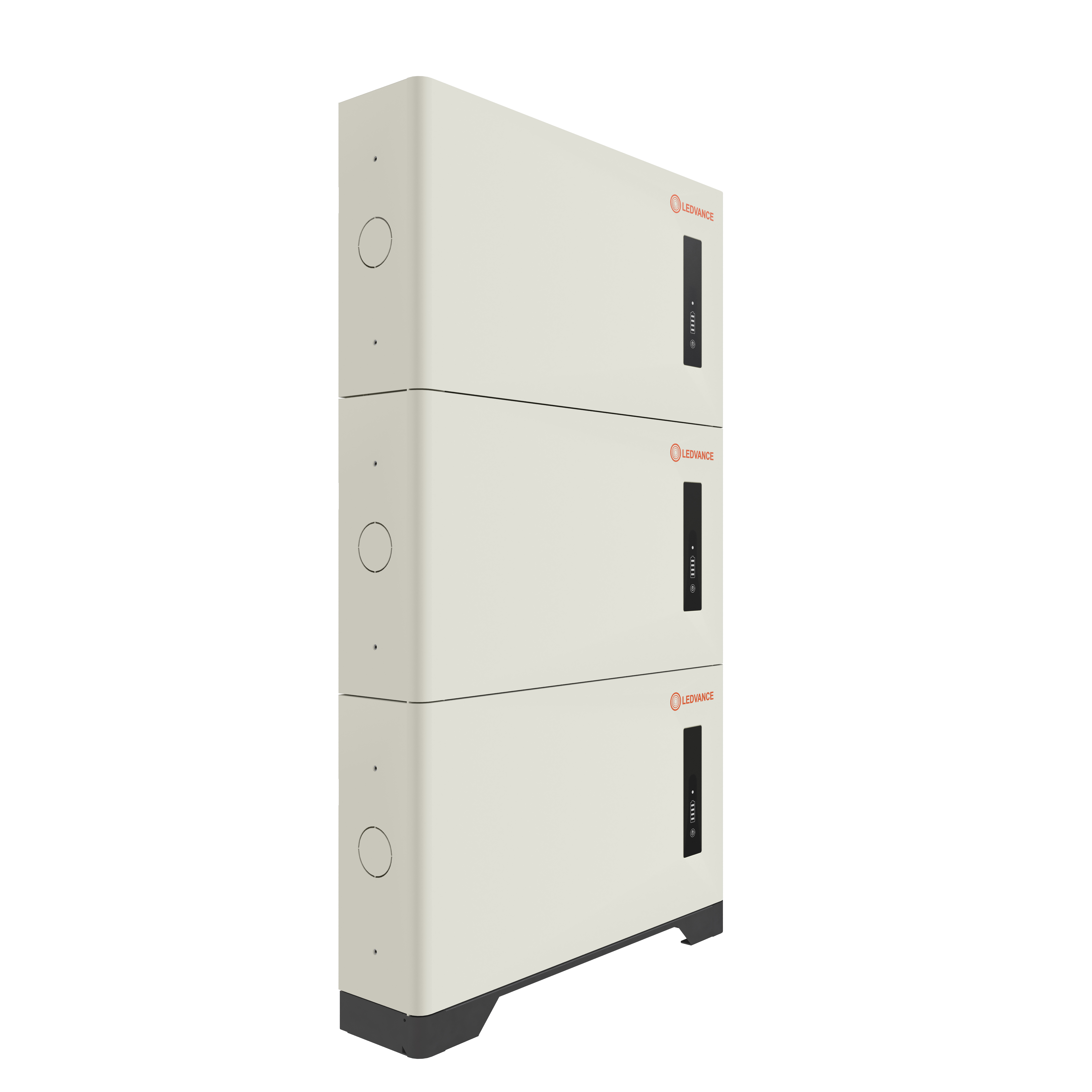

Product image: white background, with accessory, alternative image
