LV BATTERY SYSTEM COMPONENTS
LES LV-SYS 200
GTIN: 4099854199905
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Cables with connectors that fit to inverters from different suppliers
- Stable battery module base
- Mounting wall-bracket included that allows to screw the battery stack to the wall
Areas of application
- Residential installations
- Commercial applications
Product features
- Available in two versions: SYS 100 for smaller, SYS 200 for larger inverters
- High power cables designed for current of up to 150 A (for SYS 100 version) or up to 200 A (for SYS 200 version)
- 1 component set for installation of 1 complete stack
- Stackable from 1 to 4 battery modules
- Protection rating: IP65
Equipment / Accessories
- Battery module base
- All necessary cables included: power-, communication- and grounding cable
- Wall-mounting bracket (x2)
- Box fixing plate (x2)
References / Links
- For Guarantee see www.ledvance.com/guarantee
Dimensions & Weight
| Product weight | 6000.00 g |
Additional product data
| Type of accessory | Other |
| Suitable for | Photovoltaic |
| Accessory | Yes |
| Spare part | Yes |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854199905 | Shipping box 1 |
690 mm x 180 mm x 130 mm | 6500.00 g | 16.15 dm³ |
User instruction / safety instructions
LES-LV-5K
LES-LV-5K
Extended installation guide
LES-LV-5K
LES-LV-5K
Declarations of conformity
LES-LV battery
LES-LV battery

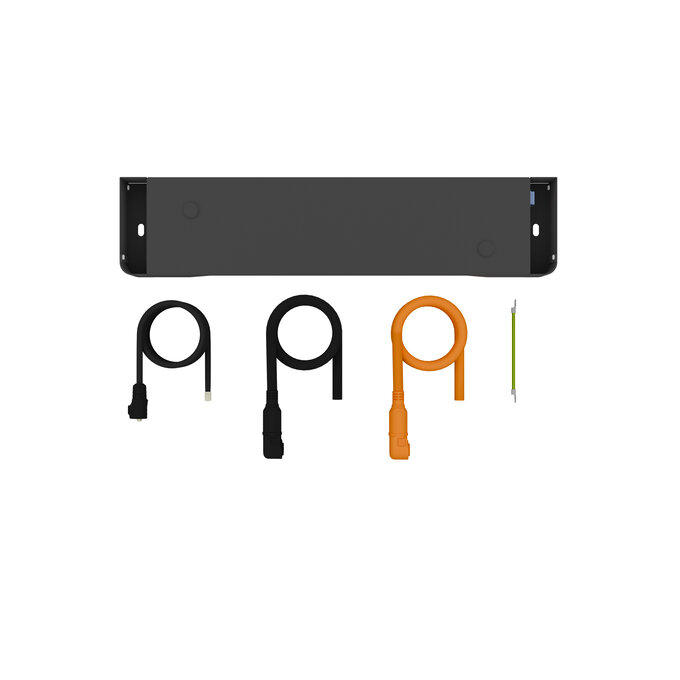

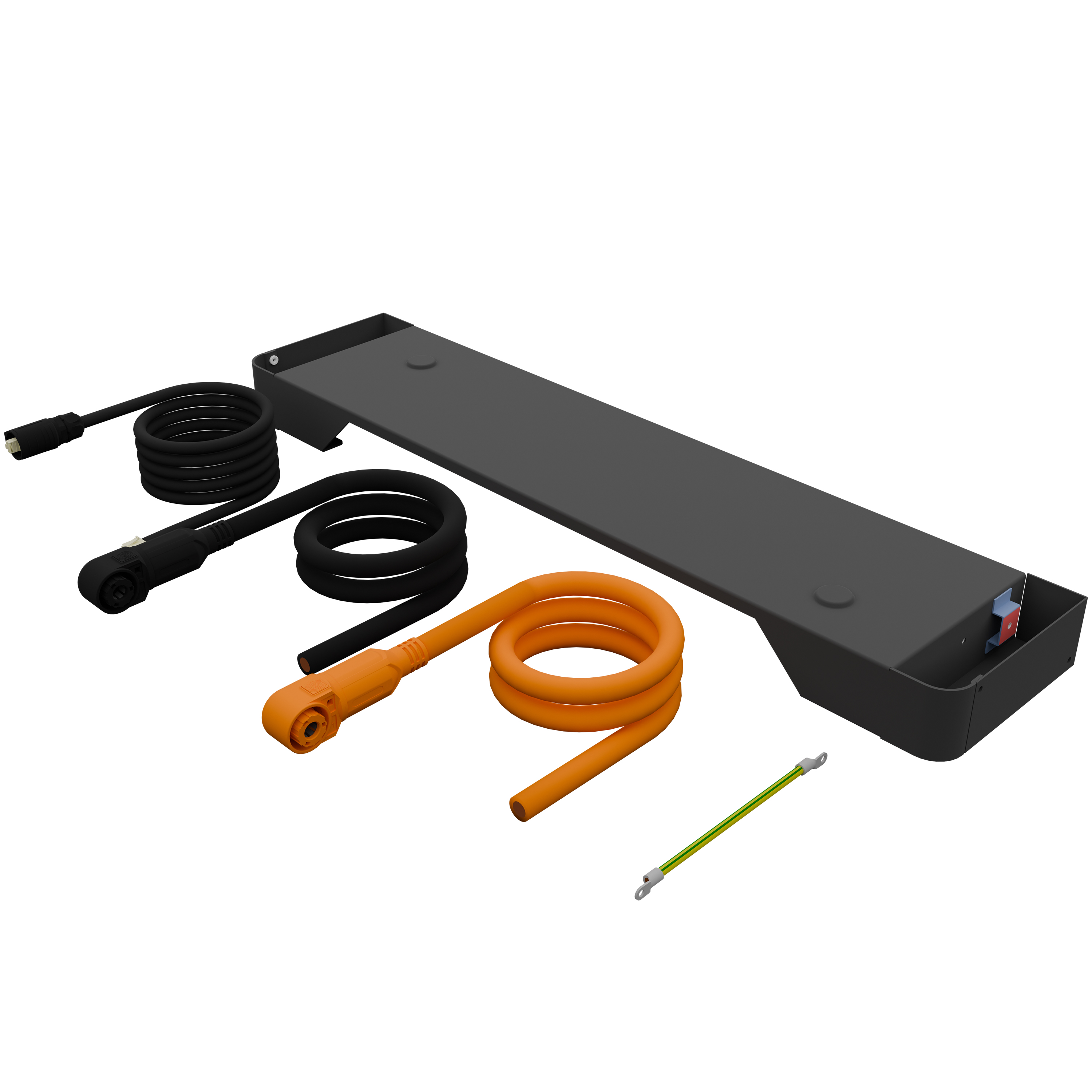

Product image: white background, diagonal
LES-LV-SYS
LES-LV-SYS

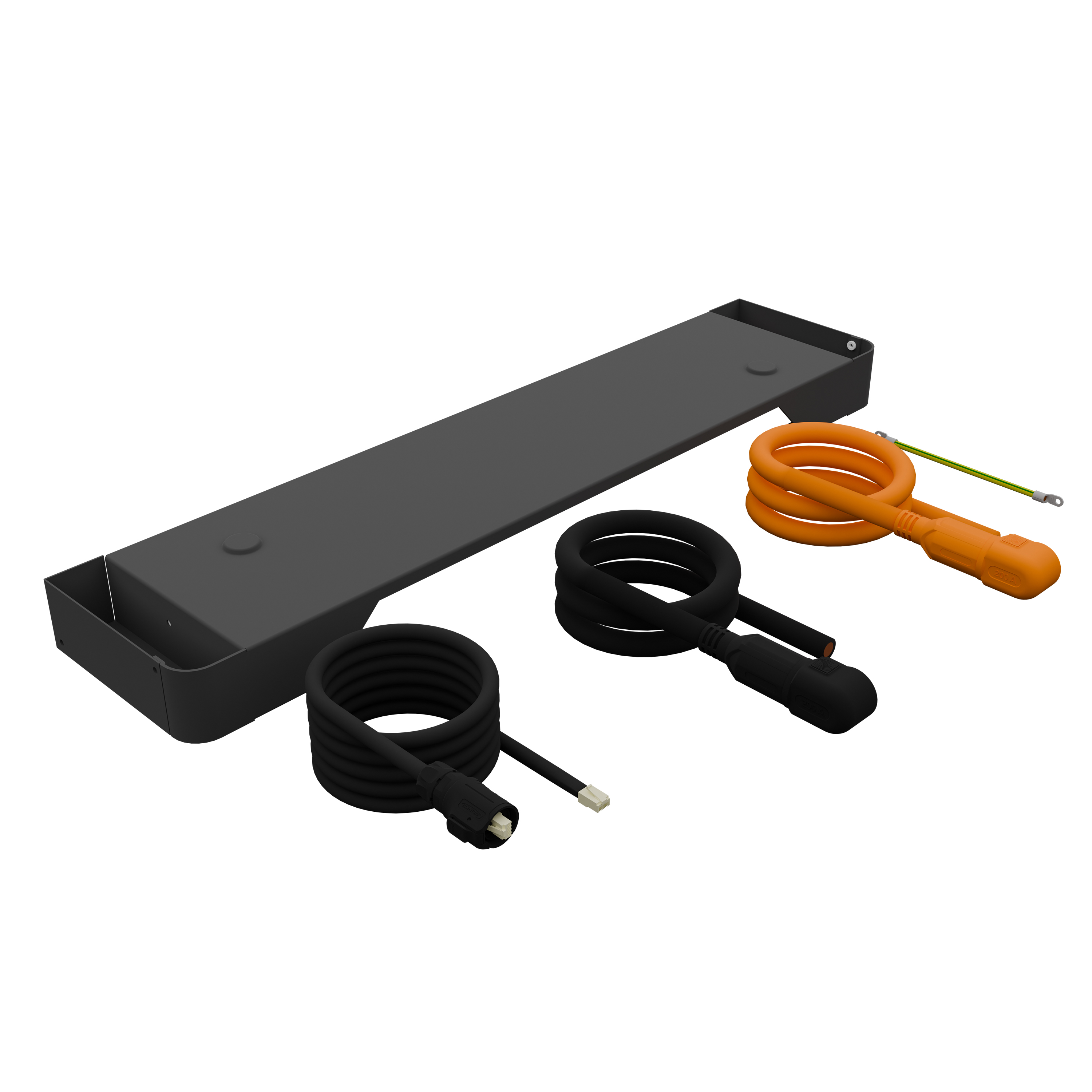

Product image: white background, diagonal, alternative image
LES-LV-SYS
LES-LV-SYS
| EAN | STK number |
|---|---|
| 4099854199905 | 8010069 |
