WORKLIGHT LED PANEL
LED Worklight Panel 50W 4000K
GTIN: 4058075576599
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Worklight for indoor area usage, e.g. wallpainting
- Energy savings of up to 80% compared to halogen lamp worklights
- Homogenous illumination
- Opal cover above LEDs for homogeneous illumination and minimized glare
Areas of application
- Renovation
- Workshops
Product features
- Lighting panel can be swivelled up and down
- Direct connection to AC power supply
Safety advice
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal wattage | 50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 225.000 mA |
| Inrush current | 0.5 A |
| Max. number of luminaires per miniature circuit breaker C10 | - |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 4000 lm |
| Total luminous flux of contained light sources | 4300 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | ≤1 % |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 50.00 mm |
| Height | 141.00 mm |
| Width | 201.00 mm |
| Product weight | 2000.00 g |
Materials & Colors
| Product color | Orange |
| Housing color | Orange |
| Body material | Aluminum|Plastic |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | +10…+40 °C |
| Temperature range at storage | -20…+70 °C |
| Type of connection | Protective contact Plug type |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK07 |
| Dimmable | No |
| Mounting type | Standing |
| Mounting location | Floor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Luminous flux in maintained operation mode | - |
Certificates & Standards
| Standards | CE |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075576599 | Folding box 1 |
80 mm x 217 mm x 164 mm | 2059.00 g | 2.85 dm³ |
| 4058075576605 | Shipping box 4 |
343 mm x 238 mm x 193 mm | 8556.00 g | 15.76 dm³ |
User instruction / safety instructions
LED WORKLIGHT PANEL 50W
LED WORKLIGHT PANEL 50W
Declarations of conformity
LED WORKLIGHT PANEL 50W
LED WORKLIGHT PANEL 50W

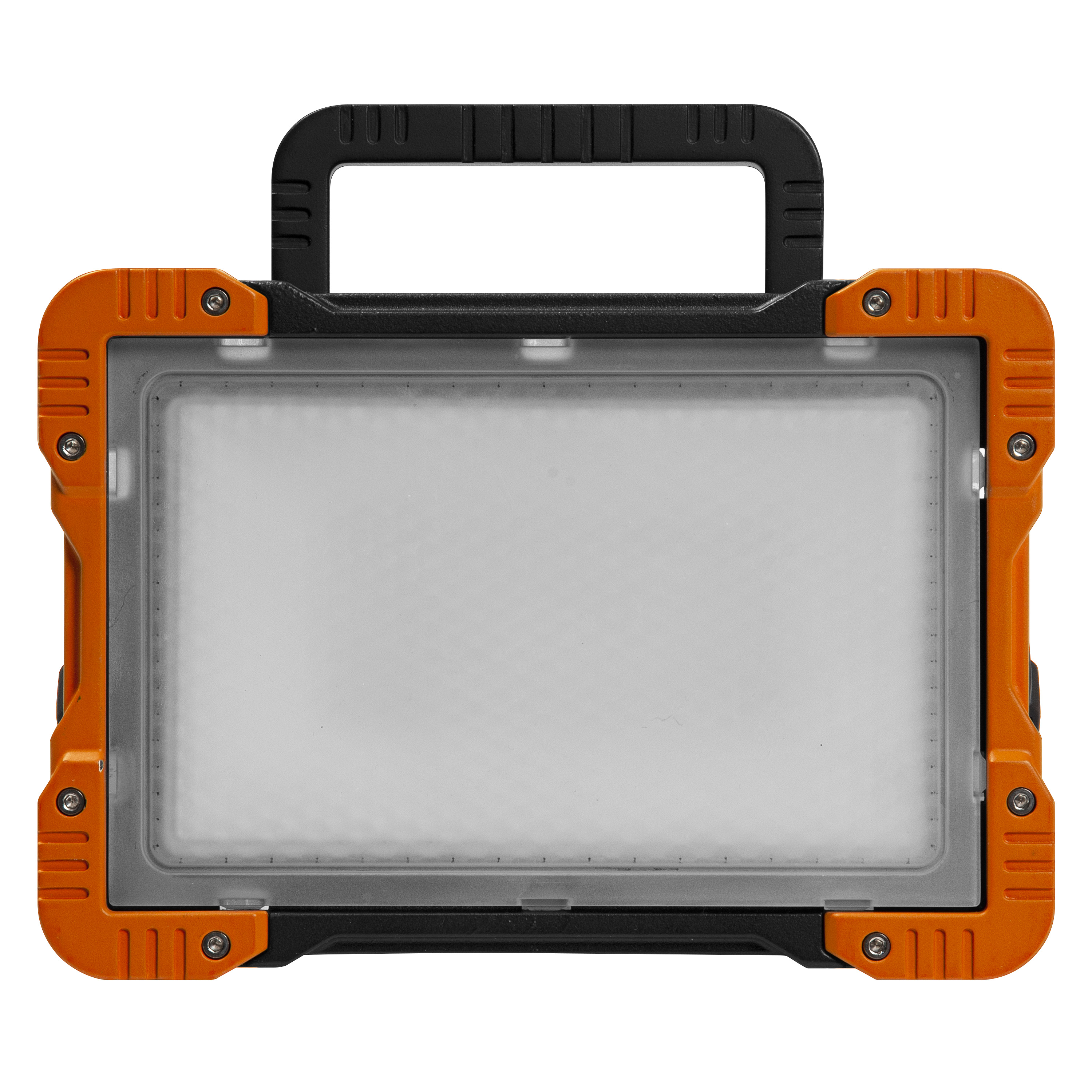

Product image: white background, upright
LED WORKLIGHT PANEL 50W 840
LED WORKLIGHT PANEL 50W 840

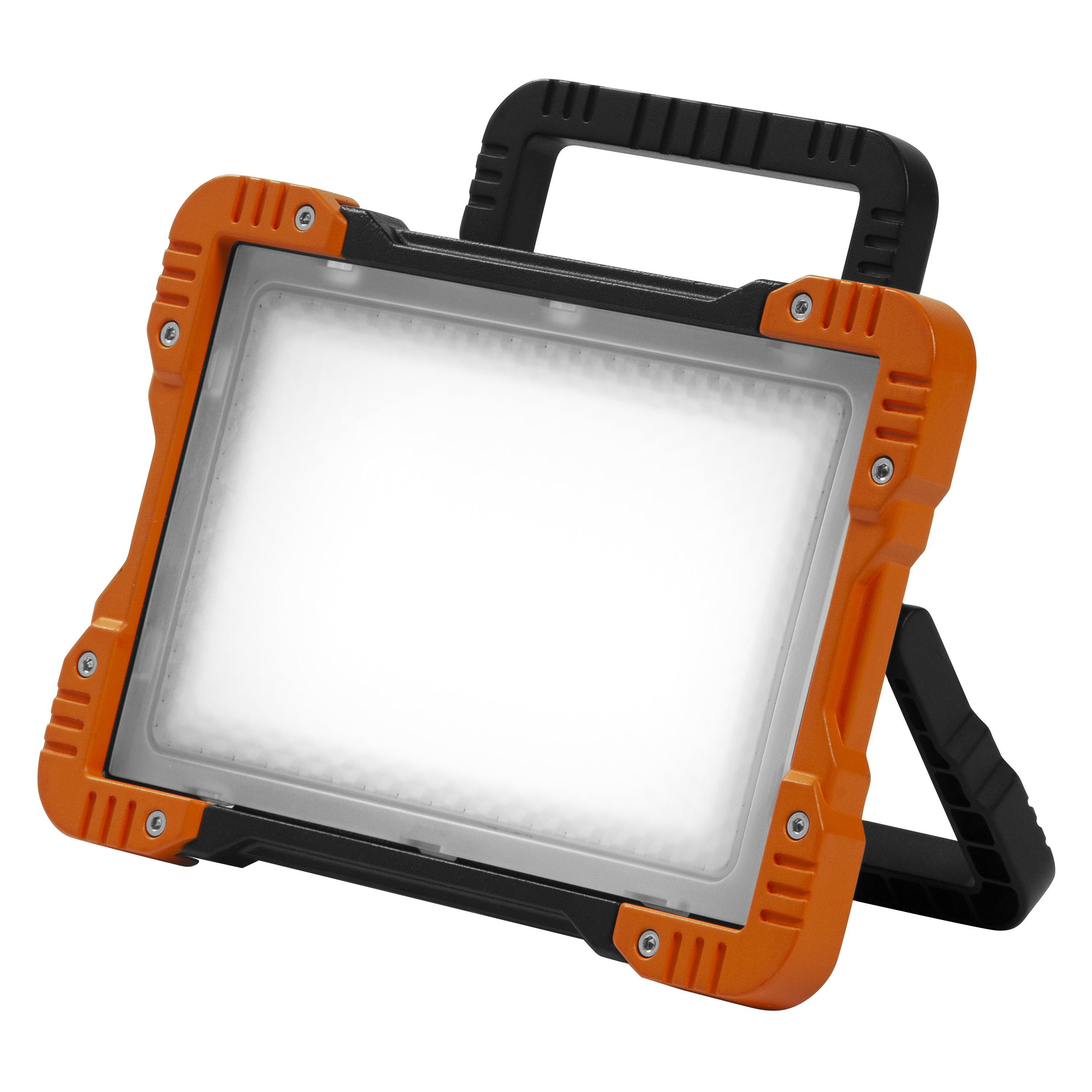

Product image: white background, upright, alternative image
LED WORKLIGHT PANEL 50W 840
LED WORKLIGHT PANEL 50W 840
Product image: white background, upright, switched on
LED WORKLIGHT PANEL 50W 840
LED WORKLIGHT PANEL 50W 840
Product infographic (application image with text and graphic)
Worklight assortment E-Com-Grafik V1 1200x1200 2023 EN
Worklight assortment E-Com-Grafik V1 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Worklight assortment E-Com-Grafik V2 1200x1200 2023 EN
Worklight assortment E-Com-Grafik V2 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Worklight e-Com graphic 1200x1200px 2025 EN
Worklight e-Com graphic 1200x1200px 2025 EN
Product line drawing with letters
LED WORKLIGHT PANEL 50W 840
LED WORKLIGHT PANEL 50W 840
Product line drawing with numbers
LED WORKLIGHT PANEL 50W 840
LED WORKLIGHT PANEL 50W 840
Product line drawing, front, no dimensions
LED WORKLIGHT PANEL 50W 840
LED WORKLIGHT PANEL 50W 840

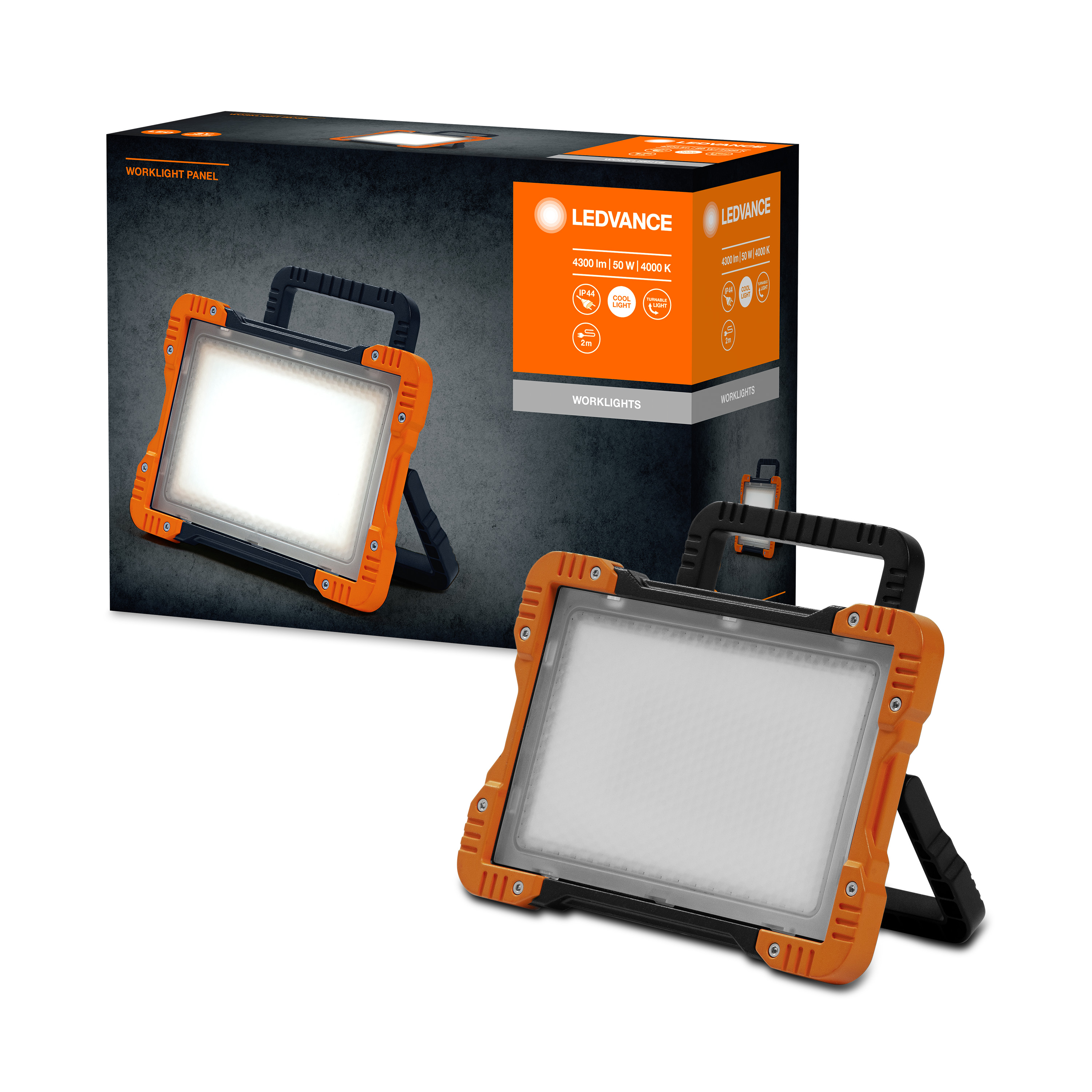

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC WL PANEL 50W 840 MiPRC
LUM FC WL PANEL 50W 840 MiPRC
Packaging image, frontal
LUM FC LED WL PANEL 50W 840 MiPRC
LUM FC LED WL PANEL 50W 840 MiPRC

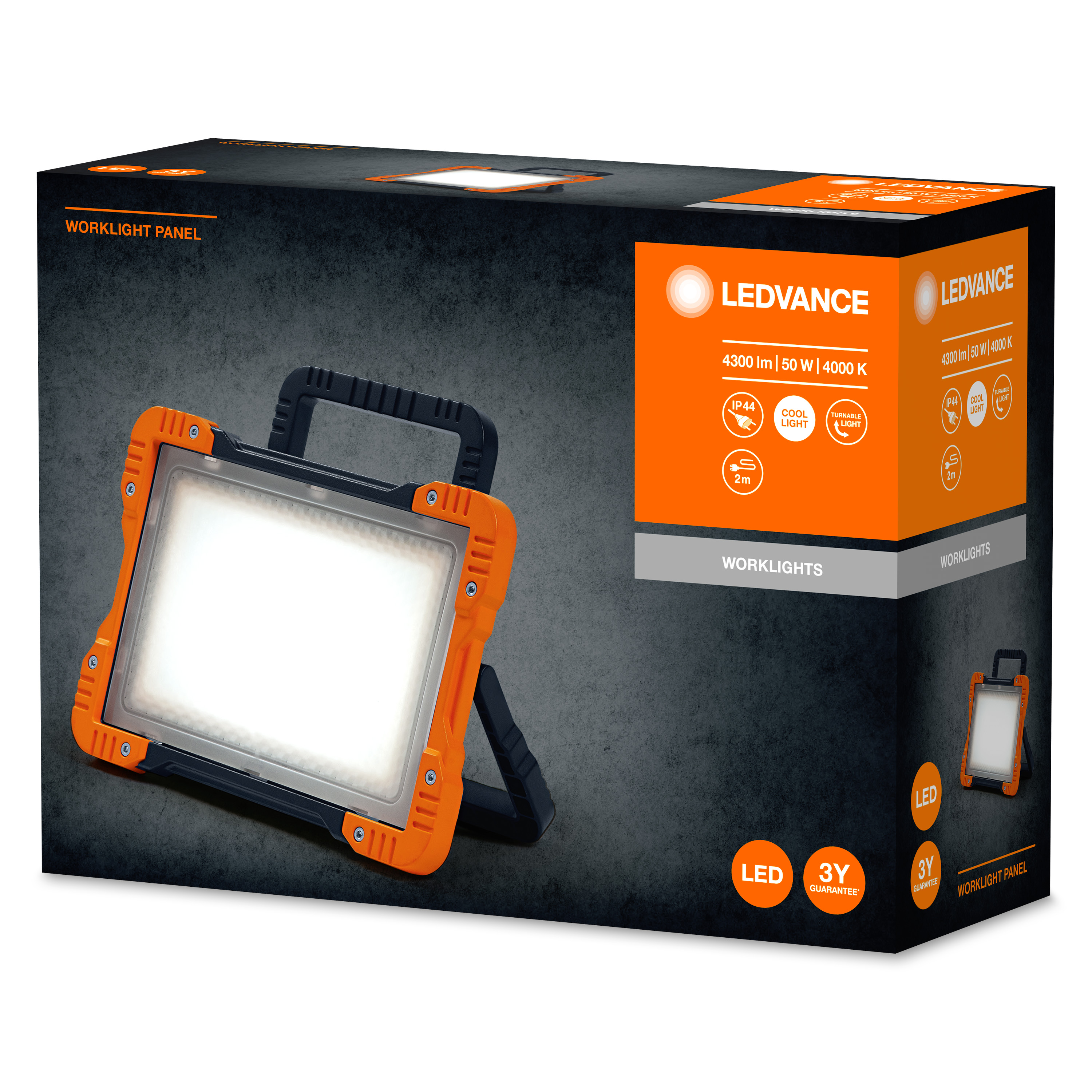

Packaging image, spacial
