LED BULKHEAD
LED Bulkhead 6W 4000K Black
GTIN: 4058075271647
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Energy-efficient thanks to LED technology
Areas of application
- Outdoor
- Basements, garages, warehouses
Product features
- Bright and functional outdoor LED luminaires
- Type of protection: IP54
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 6.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 52.000 mA |
| Power factor λ | > 0.5 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 420 lm |
| Total luminous flux of contained light sources | 600 lm |
| Luminous efficacy | 76 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 117.00 mm |
| Height | 70.00 mm |
| Width | 168.00 mm |
| Product weight | 175.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Polycarbonate (PC) |
| Cover material | Acrylonitrile butadiene styrene (ABS) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screw terminal |
| Type of protection | IP54 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075271647 | Folding box 1 |
78 mm x 124 mm x 177 mm | 202.00 g | 1.71 dm³ |
| 4058075271654 | Shipping box 8 |
327 mm x 263 mm x 196 mm | 1924.00 g | 16.86 dm³ |
User instruction / safety instructions
LED BULKHEAD
LED BULKHEAD
Legal information
Legal insert
Legal insert
Declarations of conformity
LED BULKHEAD 6W 840 BK LEDV
LED BULKHEAD 6W 840 BK LEDV
Product datasheet -> old version of product
4058075271647 LED BULKHEAD 6 W 4000 K BK en old
4058075271647 LED BULKHEAD 6 W 4000 K BK en old
Product image: white background, diagonal
LED BULKHEAD 6W BK
LED BULKHEAD 6W BK
Product image: white background, upright
LED BULKHEAD 6W BK
LED BULKHEAD 6W BK
Product image: white background, upright, switched on
LED BULKHEAD 6W BK
LED BULKHEAD 6W BK
Product line drawing with letters
LED BULKHEAD 6W
LED BULKHEAD 6W
Product line drawing with numbers
LED BULKHEAD 6W
LED BULKHEAD 6W
Product line drawing, front, no dimensions
LED BULKHEAD 6W
LED BULKHEAD 6W

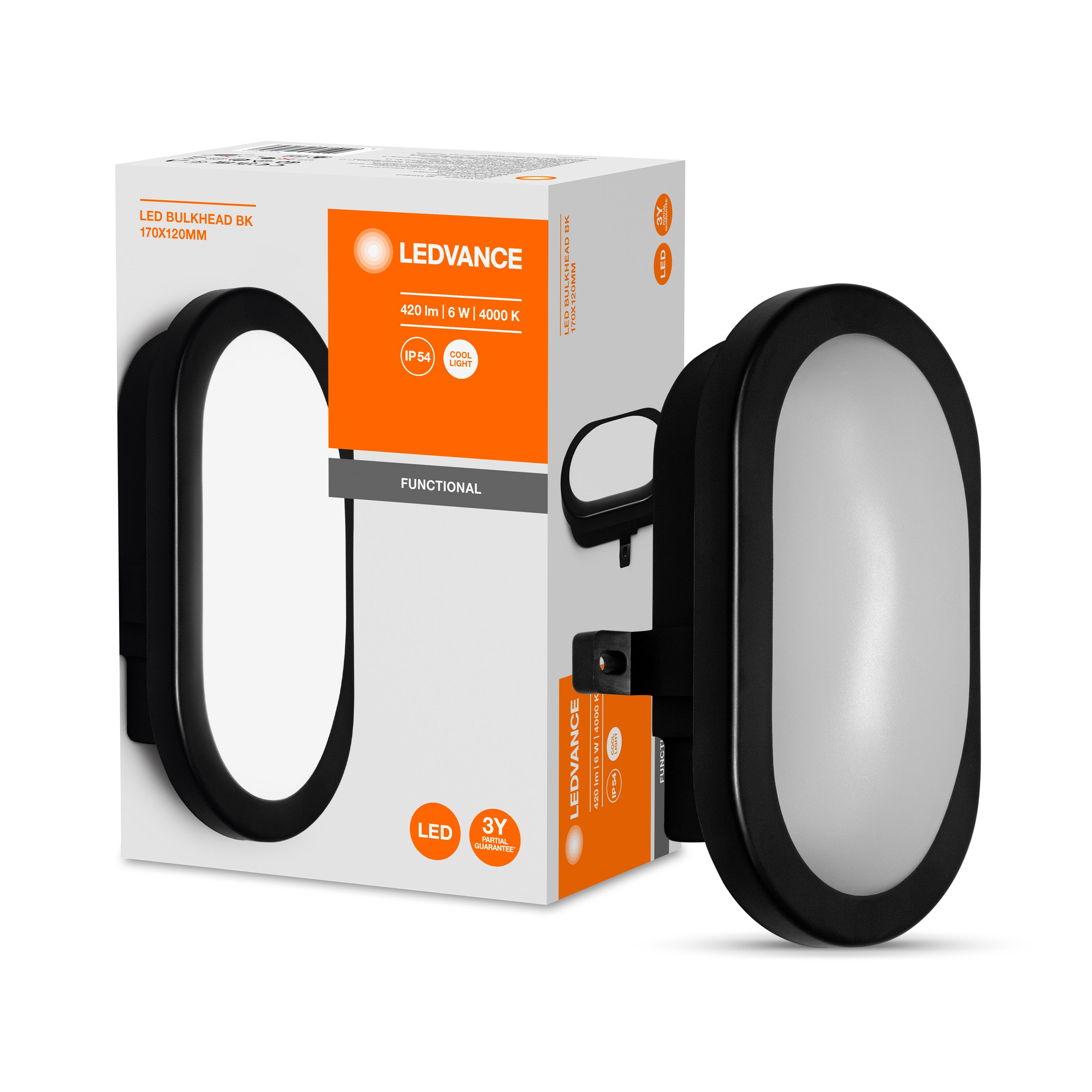

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC LED Bulkhead 6W BK
LUM FC LED Bulkhead 6W BK

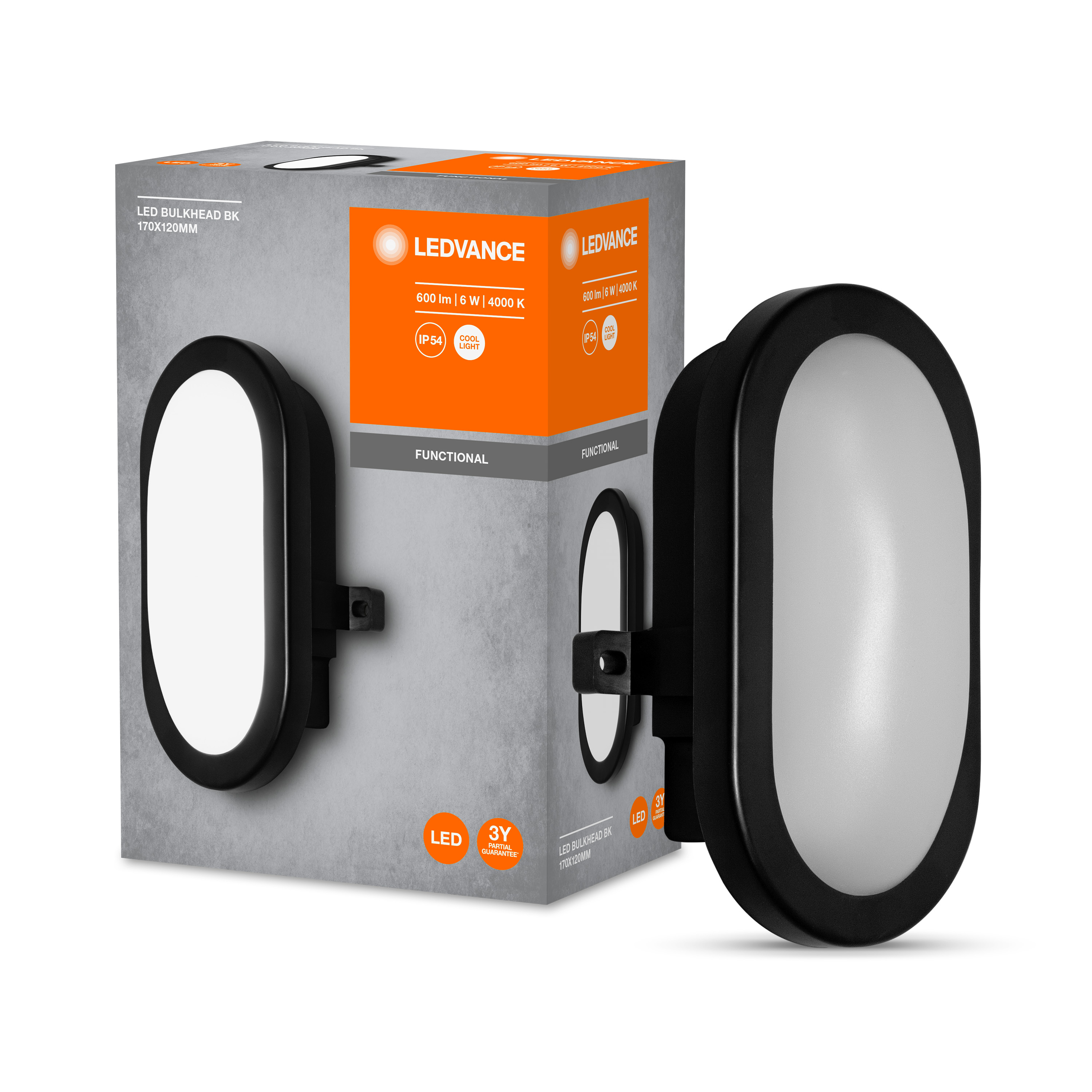

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC LED Bulkhead 6W BK MiPRC
LUM FC LED Bulkhead 6W BK MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC LED Bulkhead 6W BK MiPRC
LUM FC LED Bulkhead 6W BK MiPRC

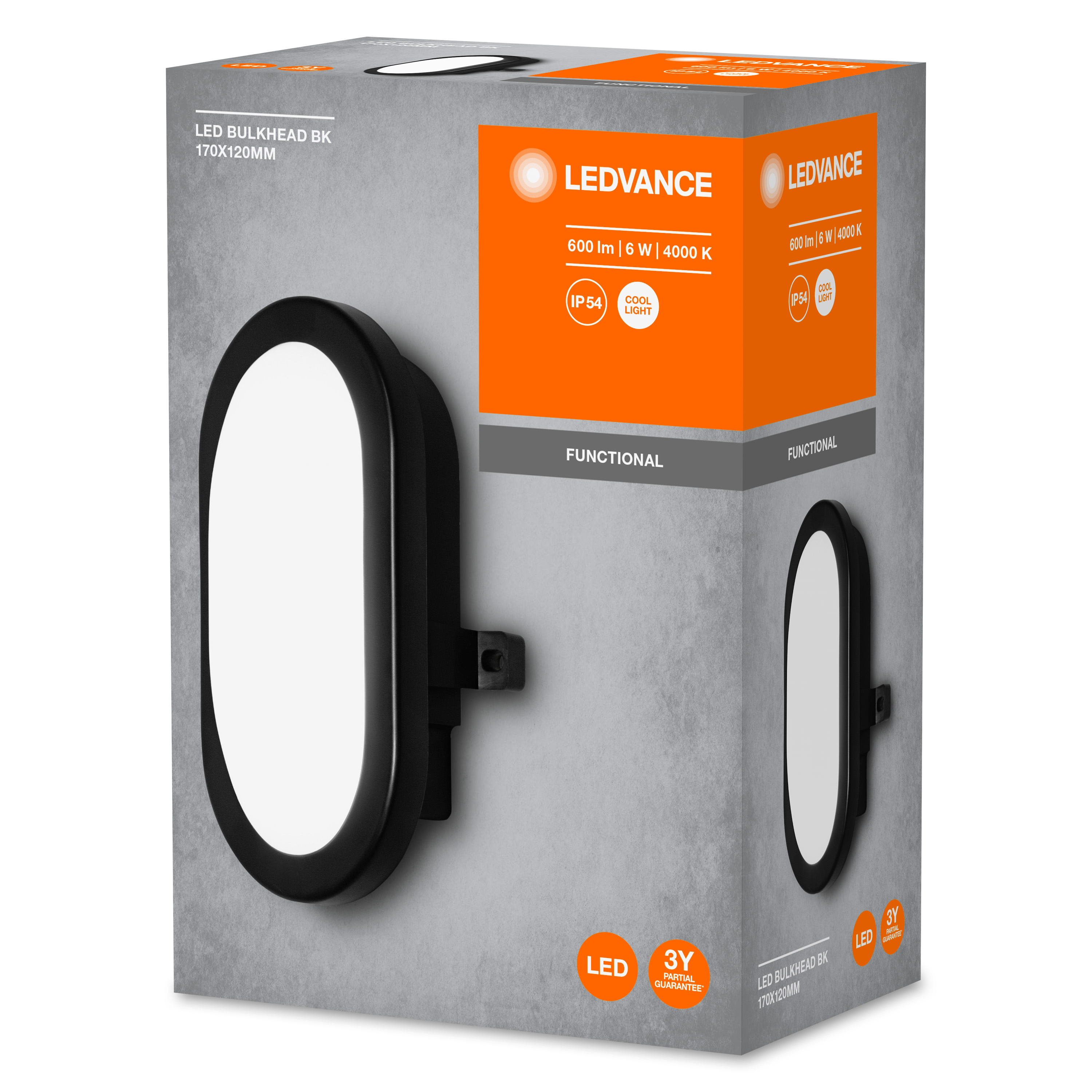

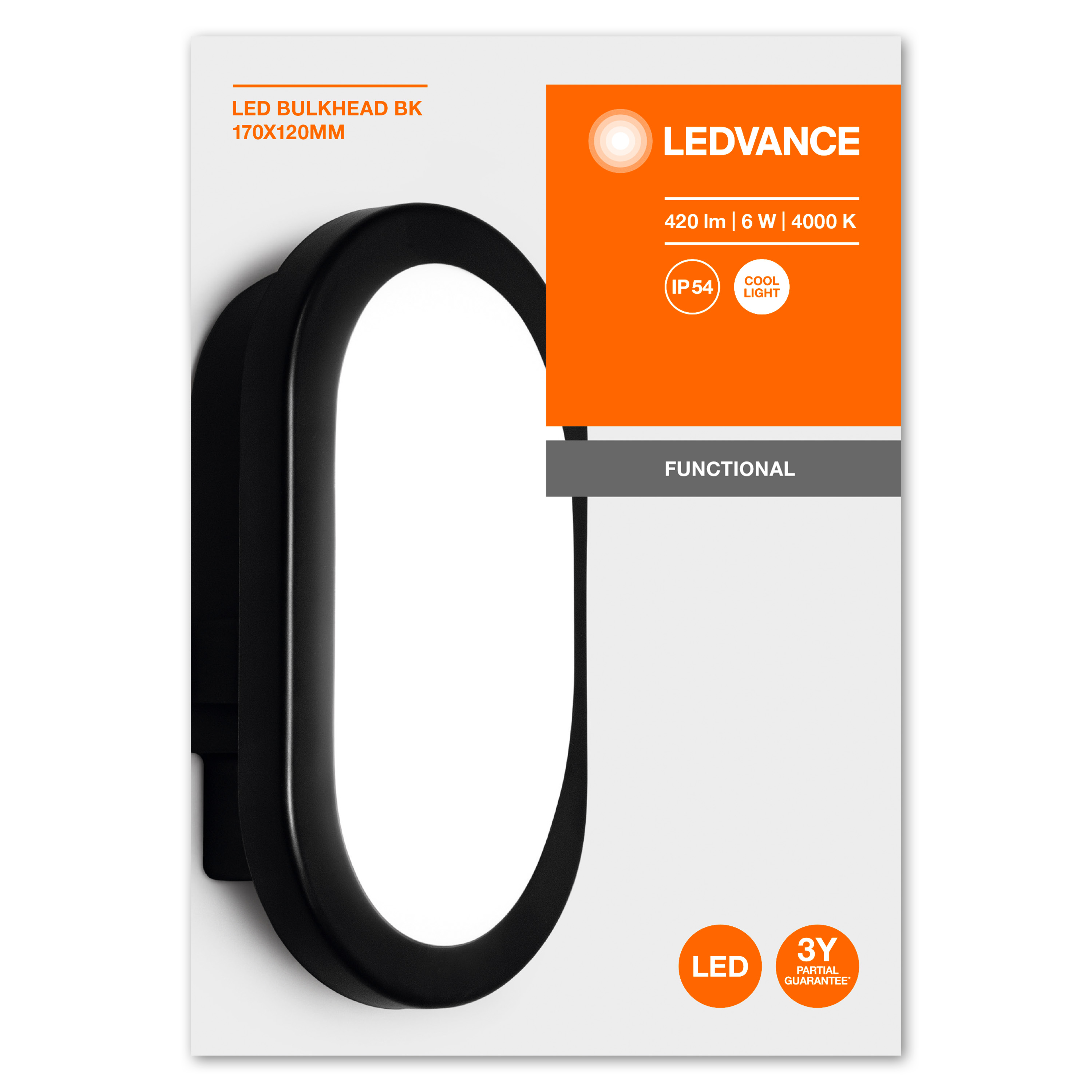

Packaging image, frontal
