LUNETTA Slim
LUNETTA Slim White
GTIN: 4058075227934
Blister / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Automatically switches on and off according to the amount of available daylight
- Plug and Play due to EU Plug
- Energy-efficient thanks to LED technology
Areas of application
- Bedrooms
- Children's bedrooms
- For indoor use only
Product features
- Integrated day/night sensor
- Light emitted indirectly
Safety advice
- This product is not a toy. It should not be left unattended in the hands of children or operated by children.
- Not designed as a replacement for conventional lighting in private household.
Electrical data
| Nominal wattage | 0.30 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 30.000 mA |
| Max. number of luminaires per miniature circuit breaker C10 | - |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 3 lm |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
Dimensions & Weight
| Length | 58.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
| Product weight | 30.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC)|Acrylonitrile butadiene styrene (ABS) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Socket |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| Type of sensor | Motion, Light |
| Sensor technology | Passive infrared (PIR) |
| Sensor detection angle | 100 ° |
| Detection range of motion sensor | 5 m |
Certificates & Standards
| Standards | CE, EAC |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075227934 | Blister 1 |
60 mm x 140 mm x 195 mm | 49.00 g | 1.64 dm³ |
| 4058075227941 | Shipping box 6 |
385 mm x 154 mm x 210 mm | 468.00 g | 12.45 dm³ |
Legal information
Legal insert B-not dimmable
Legal insert B-not dimmable
Declarations of conformity
CE Declaration Lunetta Slim
CE Declaration Lunetta Slim

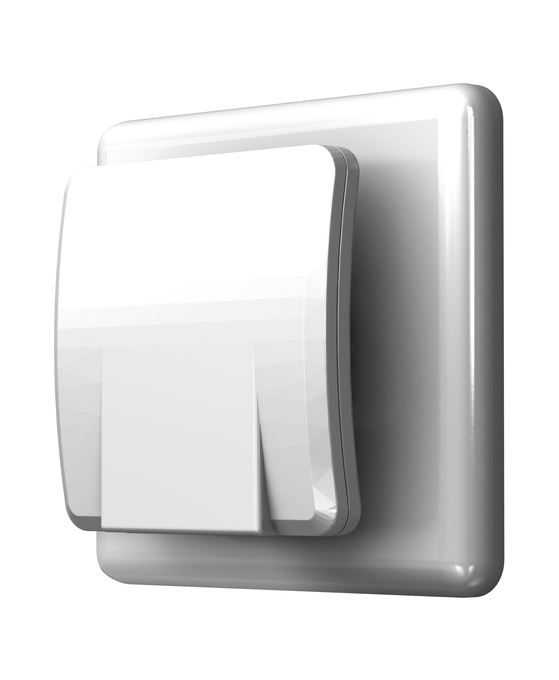

Product image: white background, upright
LUNETTA SLIM
LUNETTA SLIM

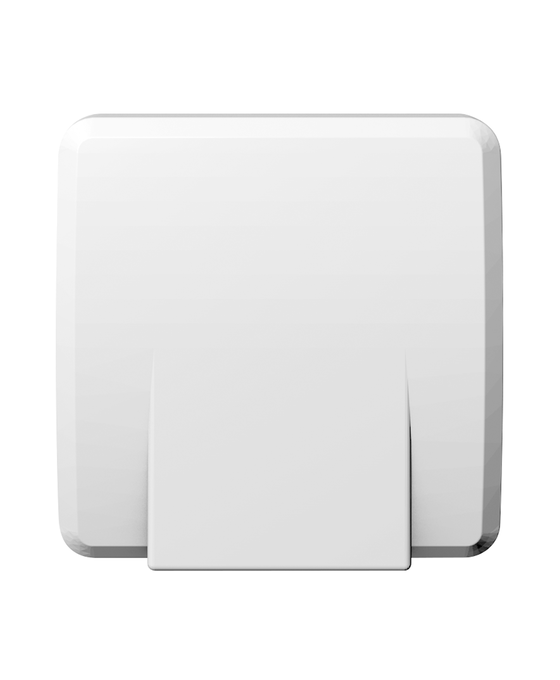

Product image: white background, upright, alternative image
LUNETTA SLIM
LUNETTA SLIM
Product image: white background, upright, switched on
LUNETTA SLIM
LUNETTA SLIM
Product infographic (application image with text and graphic)
Indoor Mobile Luminaires e-Com graphic 1200x1200px 2024 EN
Indoor Mobile Luminaires e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
LUNETTA SLIM
LUNETTA SLIM
Product line drawing with numbers
LUNETTA SLIM
LUNETTA SLIM
Product line drawing, front, no dimensions
LUNETTA SLIM
LUNETTA SLIM

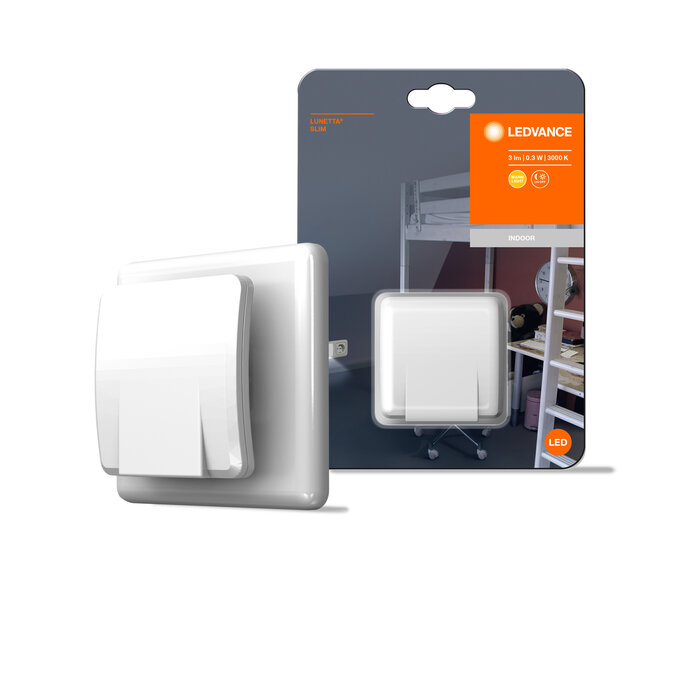

Combo Shot = Product Beauty Shot + Packaging Image
LUNETTA SLIM
LUNETTA SLIM
Packaging image, frontal
LUM Bli Lunetta Slim MiPRC Front
LUM Bli Lunetta Slim MiPRC Front

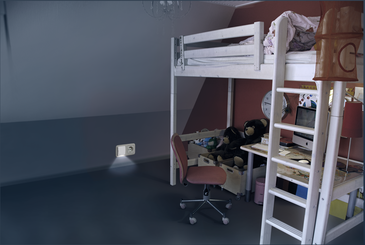

Application pictures
LUNETTA SLIM
LUNETTA SLIM
| EAN | ELDAS number |
|---|---|
| 4058075227934 | 941797720 |
