DECOR SPOT JUPITER
Decor Spot Jupiter Silver 2 Spot
GTIN: 4058075828223
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality look and feel
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Kitchens, workspaces
- Ceiling and wall surface mounting
Product features
- Luminaire family features five versions with up to 4 spot heads
- On/off switch on 1-head version for easy operation
- Adjustable heads
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 11.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 83.000 mA |
| Inrush current | 0.726 A |
| Inrush current time Th50 | 300 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 150 |
| Max. number of luminaires per miniature circuit breaker C16 | 150 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 70 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 410 lm |
| Total luminous flux of contained light sources | 1000 lm |
| Luminous efficacy | 36 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 6 sdcm |
| Luminous intensity | 290 cd |
| Flickering metric (Pst LM) | <10 % |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 65 ° |
Dimensions & Weight
| Length | 300.00 mm |
| Height | 150.00 mm |
| Width | 83.00 mm |
| Product weight | 780.00 g |
Materials & Colors
| Product color | Silver |
| Housing color | Silver |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Adjustable | Yes |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075828223 | Folding box 1 |
132 mm x 182 mm x 383 mm | 934.00 g | 9.20 dm³ |
| 4058075828230 | Shipping box 4 |
542 mm x 196 mm x 408 mm | 4374.00 g | 43.34 dm³ |
User instruction / safety instructions
Decor Spot Jupiter Silver
Decor Spot Jupiter Silver
Legal information
Decor Spot lights
Decor Spot lights
Declarations of conformity
CE Declaration Decor Spot Pluto
CE Declaration Decor Spot Pluto

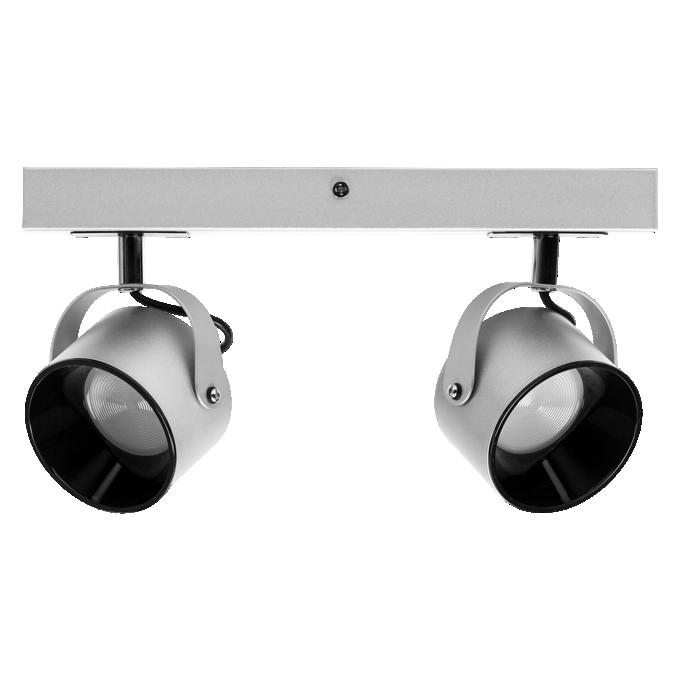

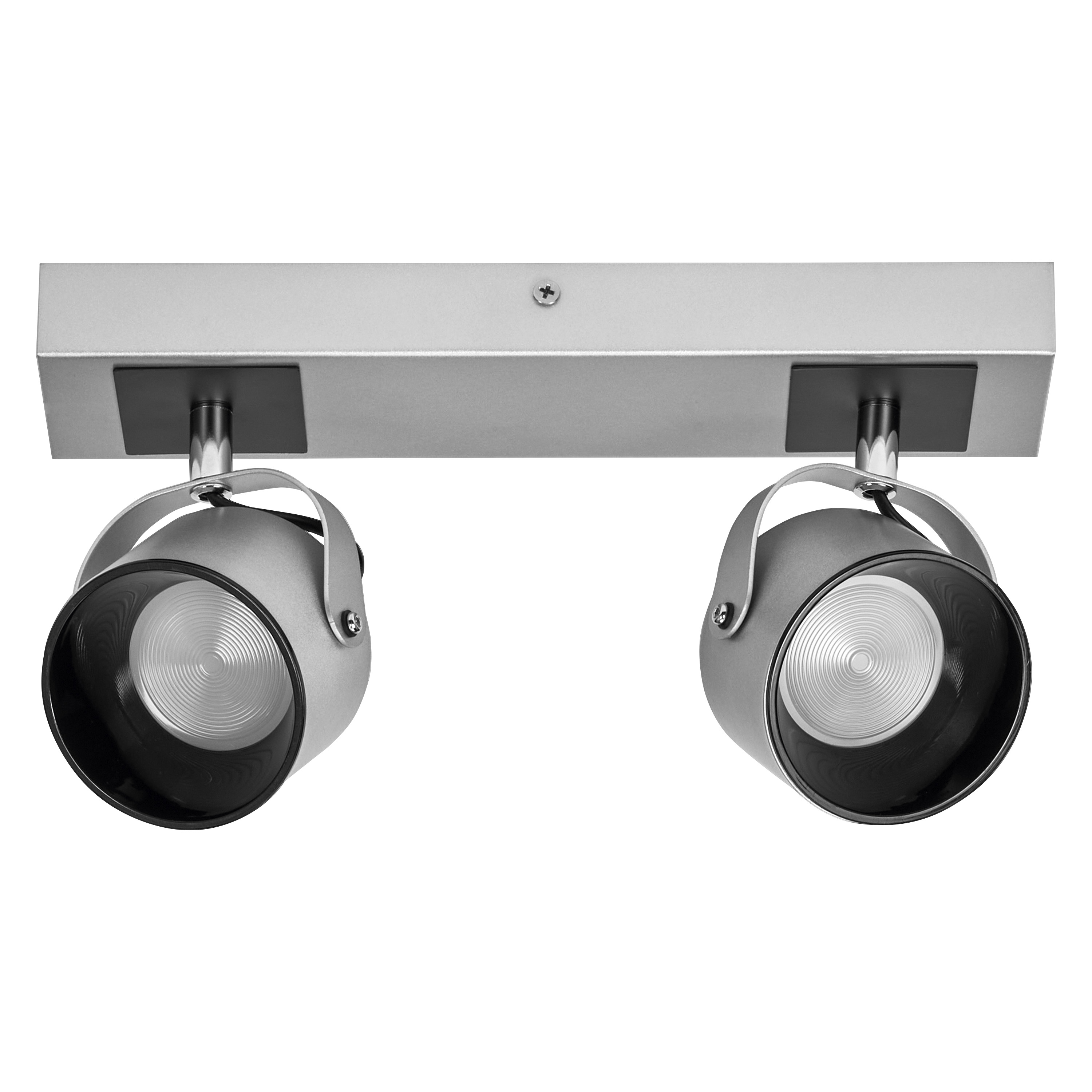

Product image: white background, upright
DECOR SPOT JUPITER 300MM 11.5W830SI
DECOR SPOT JUPITER 300MM 11.5W830SI

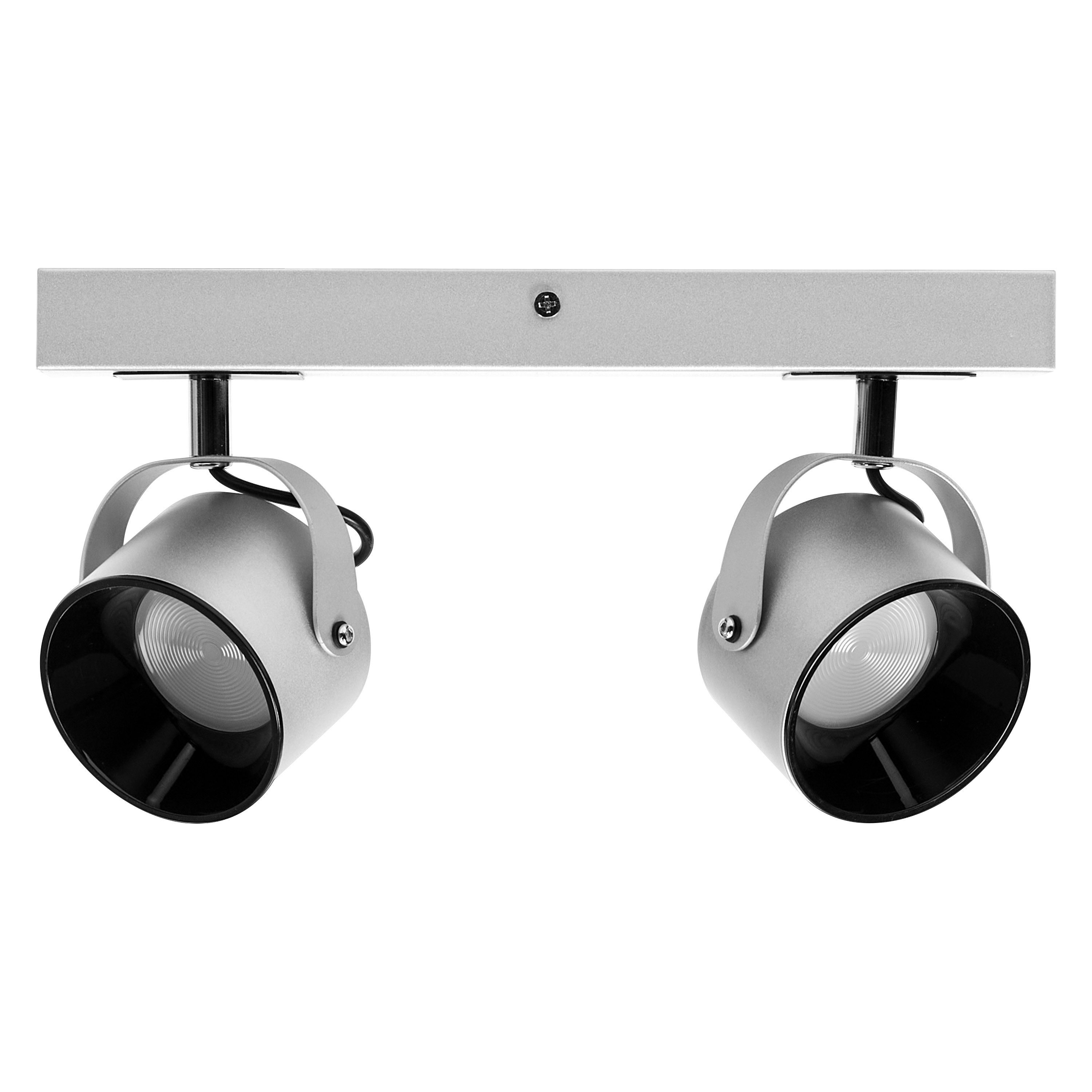

Product image: white background, upright, alternative image
DECOR SPOT JUPITER 300MM 11.5W830SI
DECOR SPOT JUPITER 300MM 11.5W830SI

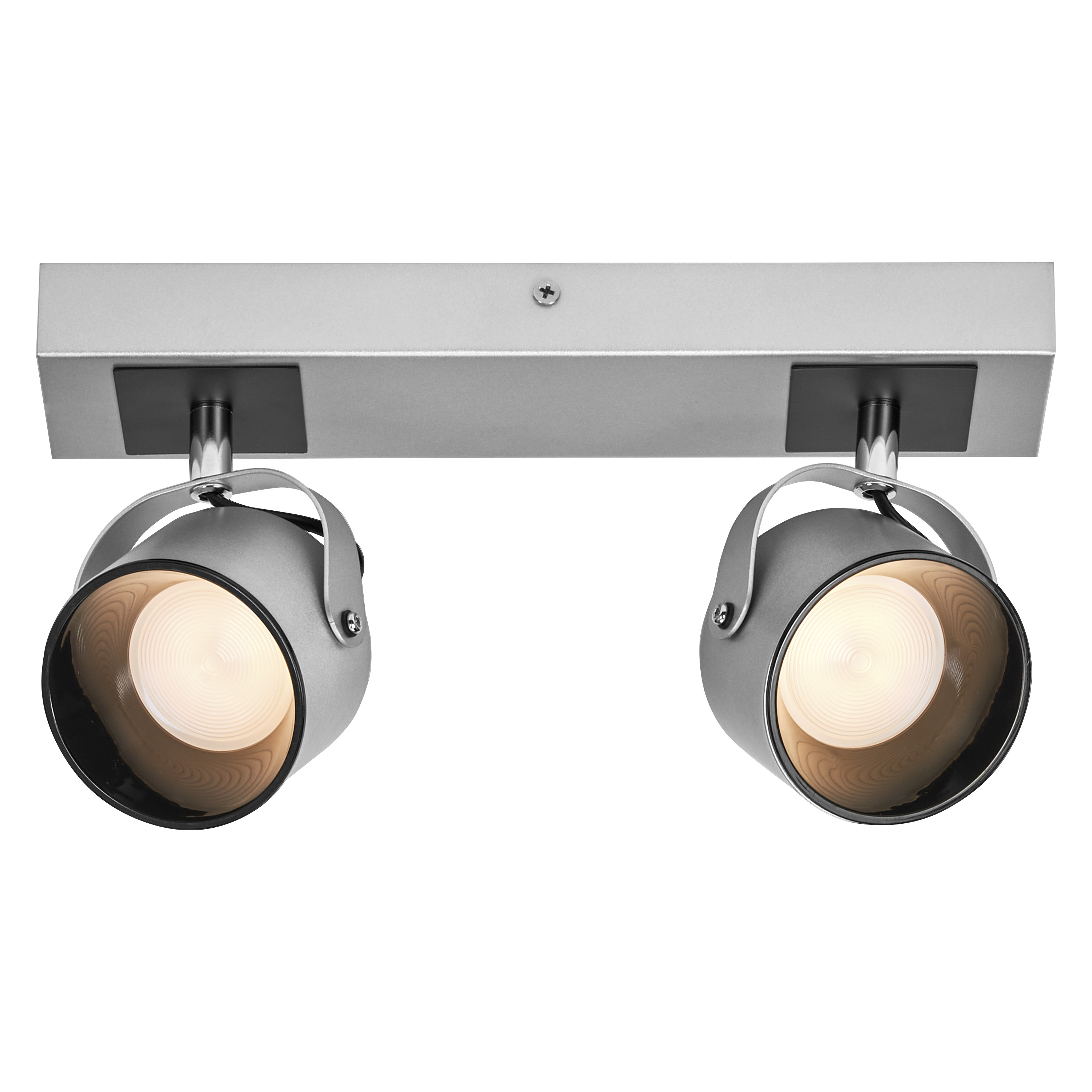

Product image: white background, upright, switched on
