FS CMFT HEAD SN P 114W 840 WT

GTIN: 4099854606533 Shipping box / 1 Show all packages

Tools

Single component (luminaire head, luminaire pole, luminaire base and regional electrical connection) for mounting the FLOOR STANDING COMFORT
For use at single or double desks
Individual offices
Open-space office
Home offices

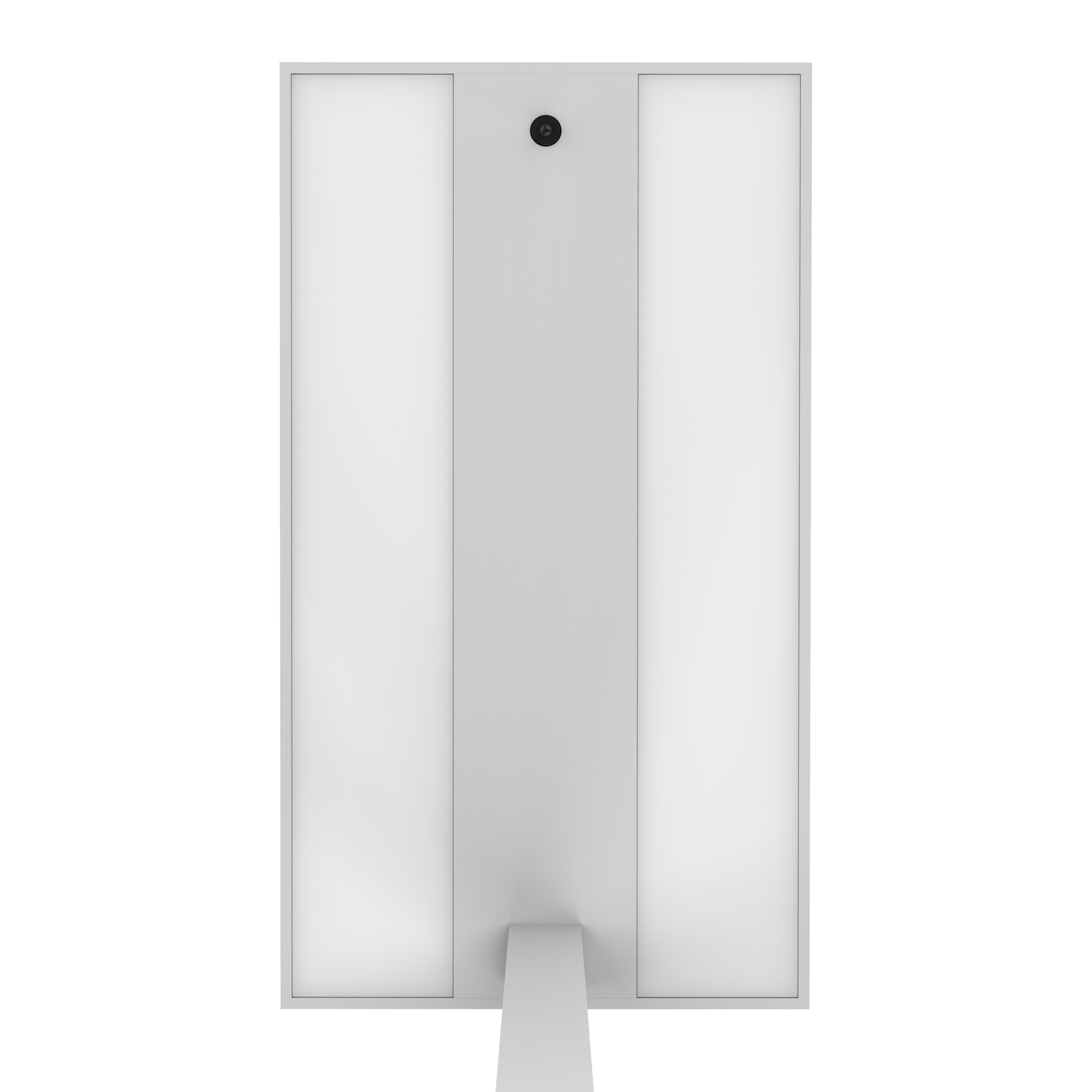

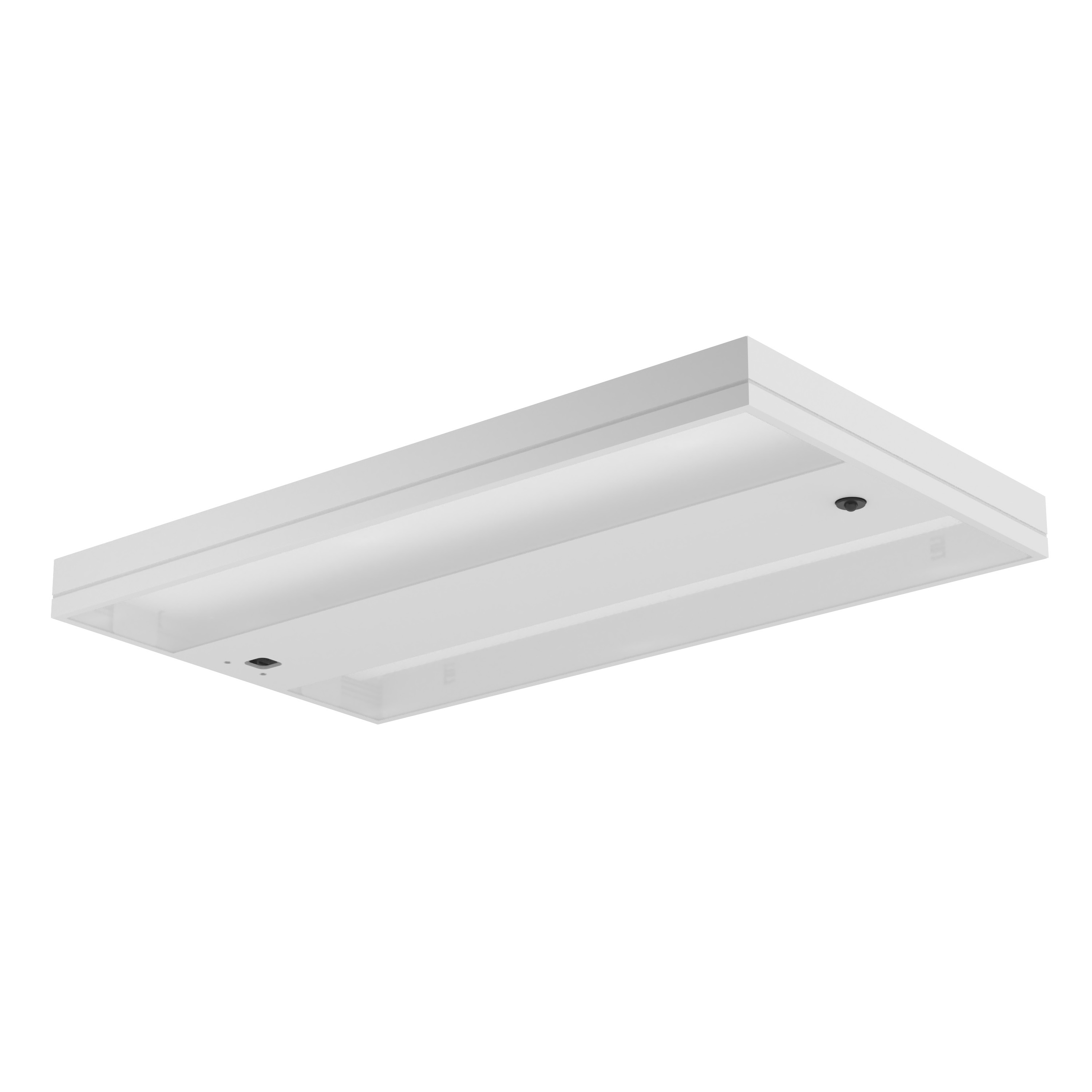

Powder coated luminaire head made of aluminum
High lumen output with overall up to 20,000 lm (18,400 lm indirect and 1,600 lm direct)
High luminous efficacy: up to 175 lm/W
Diffusor prismatic (direct) and transparent (indirect) for an overall glare reduction of UGR <16
Lifetime (L80/B10): up to 100,000 h (at 25 °C)
Color temperature 4,000 K with SDCM <3 and CRI 80
Available in white (like RAL9003), grey (like RAL9006) and black (like RAL9005)

All electrical connections must be made by a qualified person.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.

Nominal wattage	114.00 W
Nominal voltage	220…240 V
Mains frequency	50/60 Hz
Nominal current	630.000 mA
Inrush current	5 A
Inrush current time T_h50	900 µs
Max. number of luminaires per miniature circuit breaker B16	22
Max. number of luminaires per miniature circuit breaker C10	23
Max. number of luminaires per miniature circuit breaker C16	37
Power factor λ	> 0.95
Total harmonic distortion	< 20 %
Protection class	I
Operating mode	Integrated LED driver

Luminous flux	20000 lm ¹⁾
Luminous efficacy	175 lm/W
Color temperature	4000 K
Light color (designation)	Cool White
Color rendering index Ra	> 80
Standard deviation of color matching	3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	< 1
Stroboscope effect metric (SVM)	< 0.4
Photobiological safety group acc. to EN62778	RG1
Photobiological safety group acc. to EN62471	RG0
Beam angle	120 ° x 90 °

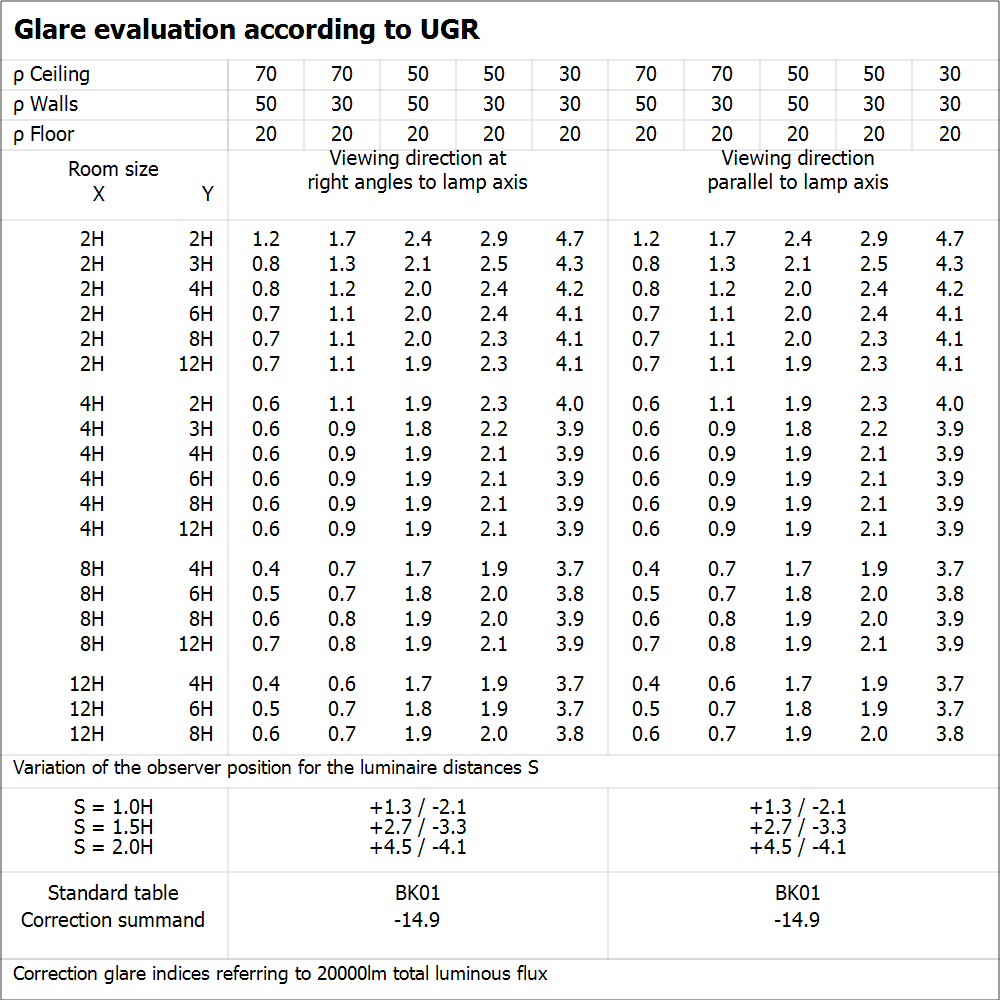

UGR	< 16

¹⁾ 18400 lm indirect and 1600 lm direct

Product color	White
Housing color	White
Body material	Aluminum
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Ambient temperature range	+10…+35 °C
Temperature range at storage	+5…+40 °C
Type of protection	IP20
Protection class IK (shock resistance)	IK03
Dimmable	Yes
Type of dimming	DALI
Mounting type	Standing
Mounting location	Floor
Application environment	Indoor
Adjustable	No
With light source	Yes
Replaceable light source	No

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Output current	630 mA
ECG - Output ripple current	< 5 %

Type of sensor	Motion, Light
Sensor technology	Passive infrared (PIR)
Sensor detection angle	80 °

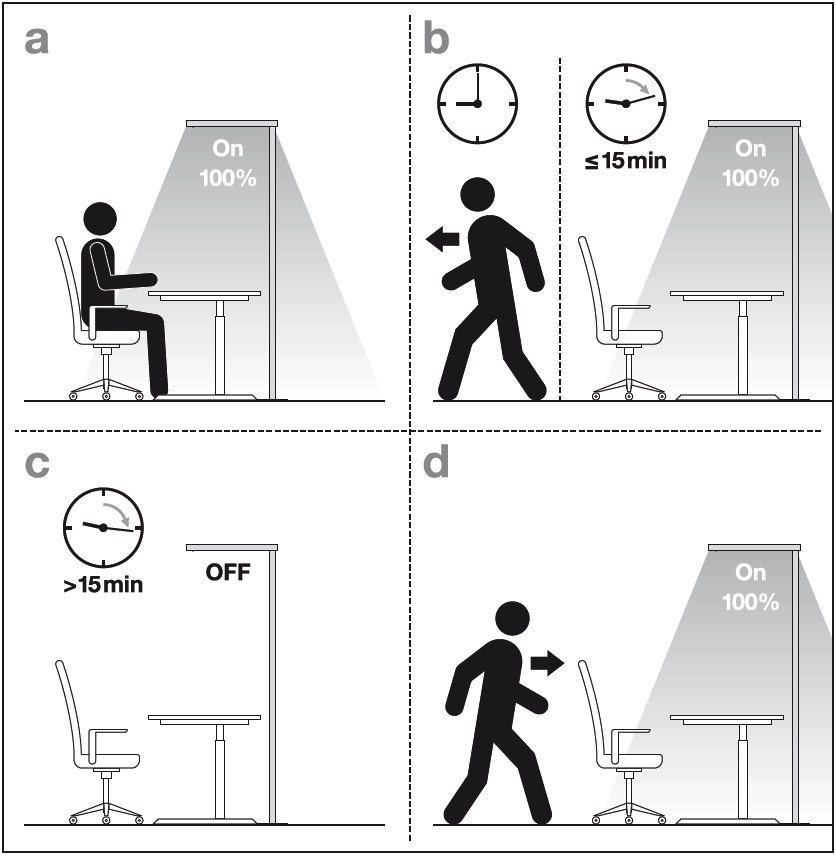

Sensor controlled switching time	900 s
Detection range of motion sensor	0…2.5 m

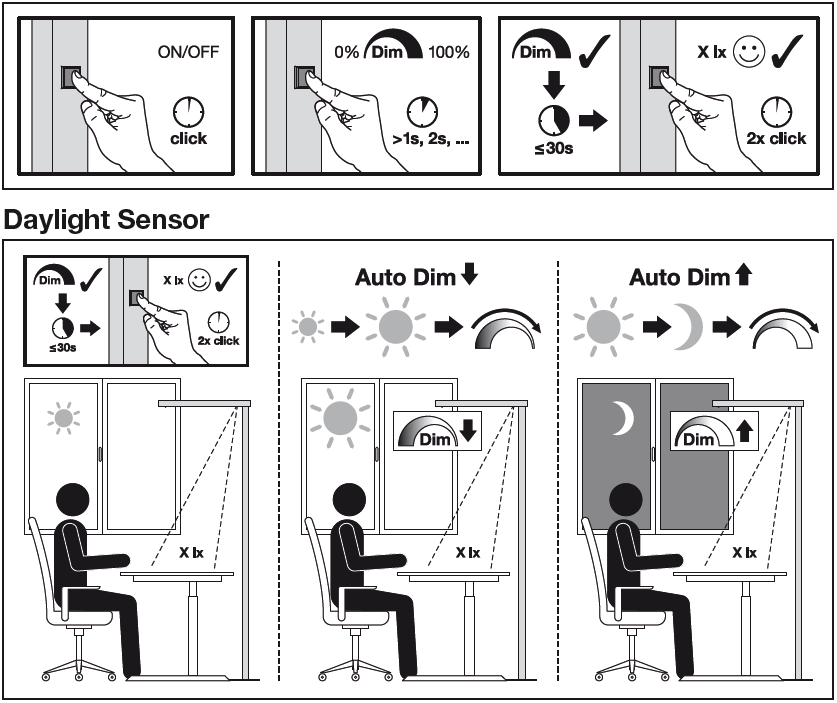

Detection threshold of daylight sensor	10…1200 lx
Sensor IK rating	IK03

Standards	CE, EMC, ROHS, REACH, ENEC
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No

Number of illuminants

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
