EM SPOT E 1.3W 3H AT | EMERGENCY SPOT | LEDVANCE

NEW

EMERGENCY SPOT

EM SPOT E 1.3W 3H AT

GTIN: 4099854230653 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

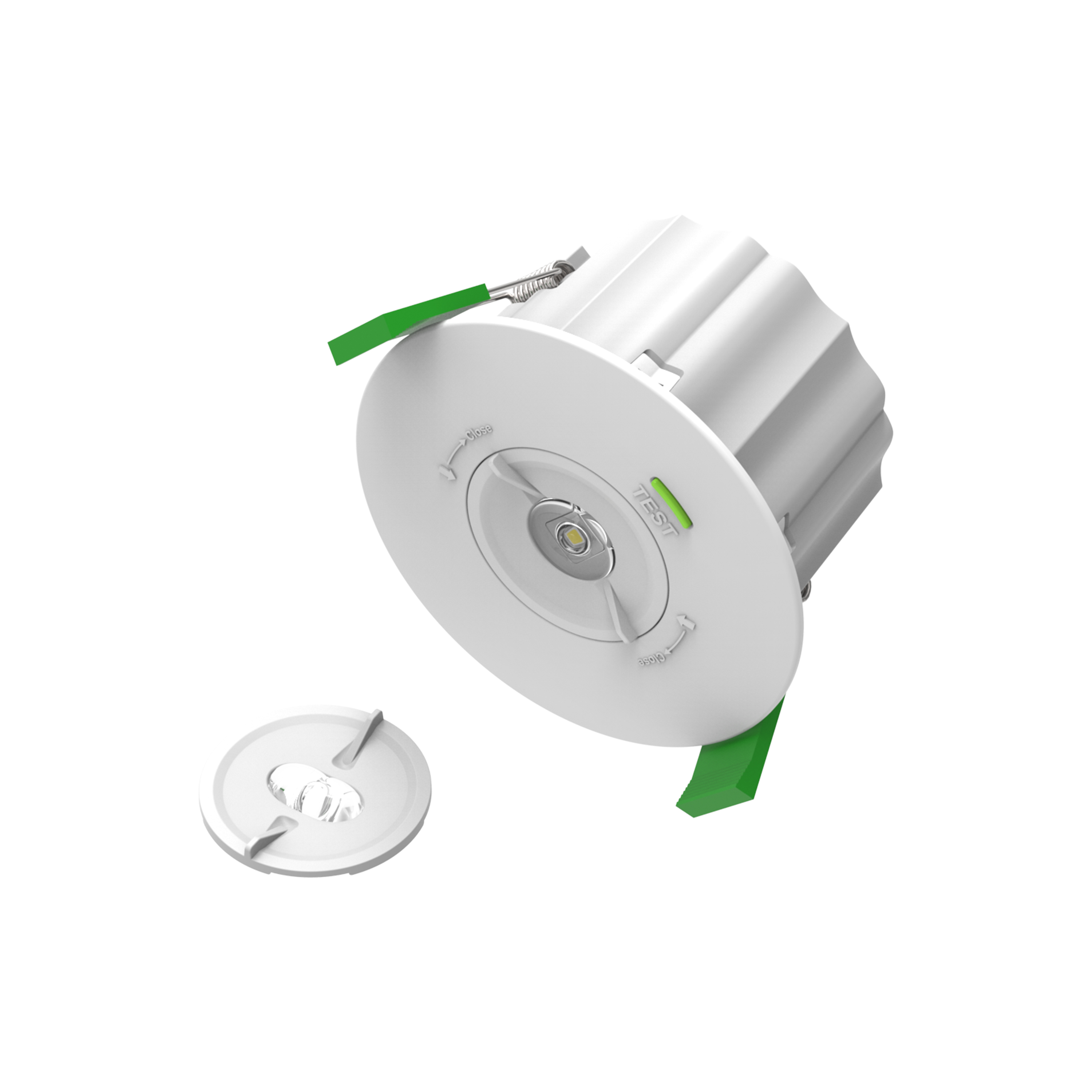

Flexible changeable lenses for different applications included in packaging
Less luminaires per installation due to optimized light distribution
Easy maintenance with automatic test function or integrated test switch

Areas of application

Antipanic lighting
Foyers
Offices
Corridors, entrances, foyers, stairwells, elevators

Product features

Battery discharge time: 3 h
Battery technology: LiFePO4
Function test: manual (MA) or automatic (AT)
With integrated test switch for manual testing
Operation mode: non-maintained (NM)

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	1.30 W
Nominal voltage	220…240 V
Mains frequency	50/60 Hz
Nominal current	20.000 mA
Inrush current	6.72 A
Inrush current time T_h50	47.6 µs
Max. number of luminaires per miniature circuit breaker B16	111
Max. number of luminaires per miniature circuit breaker C10	89
Max. number of luminaires per miniature circuit breaker C16	142
Power factor λ	0.2
Protection class	II
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	200 lm
Luminous efficacy	150 lm/W
Color temperature	5700 K
Light color (designation)	Cool Daylight
Color rendering index Ra	> 70
Low flicker	Yes
Flickering metric (Pst LM)	≤ 1
Stroboscope effect metric (SVM)	≤ 0,4
Photobiological safety group acc. to EN62778	RG1
Beam angle	150° + 155x90 °

Adjustable attributes

Nominal wattage	Color temperature	Luminous flux	Luminous efficacy
1.3 W	5700 K	200 lm + 160 lm	150 lm/W + 120lm/W

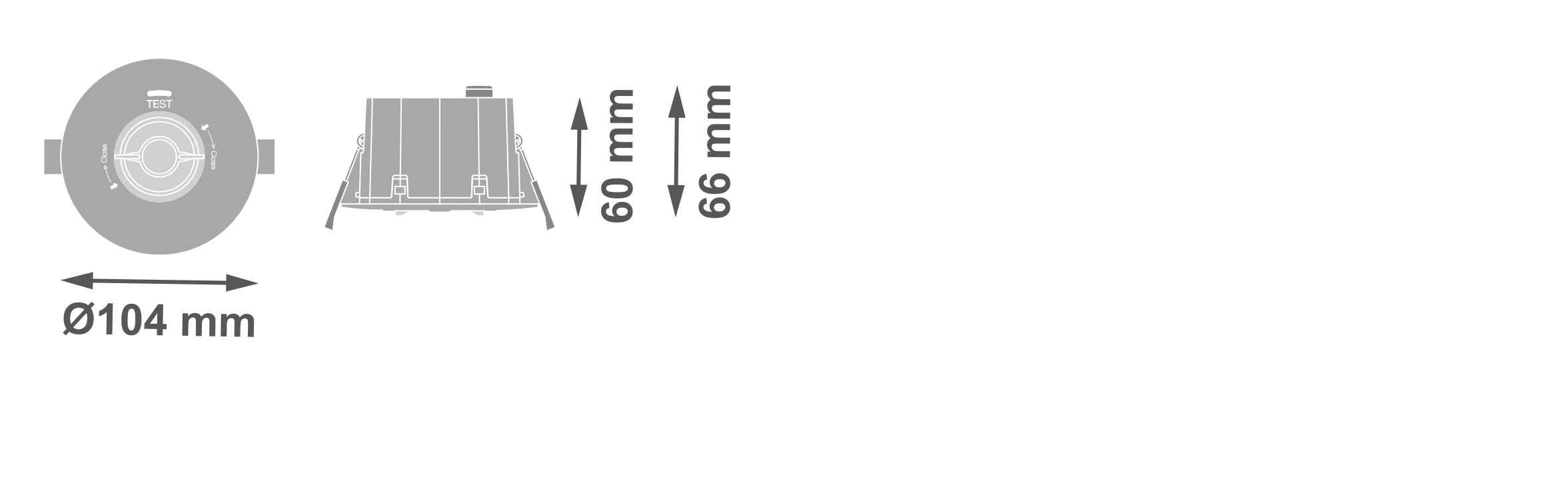

Dimensions & Weight

Diameter	104.00 mm
Height	66.00 mm
Product weight	250.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Polycarbonate (PC)
Cover material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	0…+45 °C
Temperature range at storage	0…+35 °C
Type of connection	Terminal
Type of protection	IP20
Dimmable	No
Mounting type	Recessed
Mounting location	Ceiling
Application environment	Indoor
Mounting diameter	95 mm
Mounting depth	66.00 mm
Adjustable	No
With light source	Yes
Replaceable light source	No

Lifespan

Number of switching cycles

50000

Control gear

Output current	230 mA
ECG - Output ripple current	28 %

BATTERY

Type of Battery	LiFePO4
Battery size [GMS]	Others
Nominal voltage of battery	3.2 V
Nominal capacity of battery	1800 mAh
Battery charging time	24 h

Emergency lighting

Type of Emergency Lighting (EL)	EL unit (battery and controller) for decentral operation included
Area of emergency application	Anti-panic lighting
Type of emergency light operation	Non-maintained
Type of emergency operation test	Automatic
Wattage in emergency operation mode	1.3 W
Luminous flux in emergency operation mode	200 lm
Battery life in emergency operation mode	3 h
Integrated test switch	Yes

Certificates & Standards

Standards	CE, CB, EAC, UKCA, ENEC
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

Additional product data

Product remark

Available from March 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854230653	Folding box 1	142 mm x 140 mm x 83 mm	320.00 g	1.65 dm³
4099854230660	Shipping box 20	300 mm x 295 mm x 445 mm	6850.00 g	39.38 dm³
