DAMP PROOF

DP 1200 39 W 4000K IP65 GY

GTIN: 4058075000926 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Uniform light distribution
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Easy installation, no tools required for connection
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 115 lm/W
  • Beam angle: 105°
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
References / Links
Electrical data
Nominal wattage 39.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Nominal current 170 mA
Inrush current 7 A
Inrush current time Th50 220 µs
Max. number of luminaires per miniature circuit breaker B16 48
Max. number of luminaires per miniature circuit breaker C10 40
Max. number of luminaires per miniature circuit breaker C16 64
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver
Photometrical data
Luminous flux 4400 lm
Luminous efficacy 115 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 105 °
Dimensions & Weight
Length 1200.00 mm
Height 78.00 mm
Width 95.00 mm
Product weight 1650.00 g
Materials & Colors
Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -30…+40 °C
Type of connection Screwless terminal, 3-Pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CE, CB, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075000926 Folding box
1		 1,205 mm x 102 mm x 84 mm 1833.00 g 10.32 dm³
4058075000933 Shipping box
6		 1,225 mm x 333 mm x 192 mm 11992.00 g 78.32 dm³
User instruction / safety instructions
DAMP PROOF LED IP65
PDF (3.77 MB)
On-Pack-Info
Legal Insert DAMP PROOF LED
PDF (1.57 MB)
On-Pack-Info
Legal Insert DAMP PROOF LED
PDF (1.55 MB)
Certificates
CE Certificate for DampProof
PDF (893.65 KB)
Certificates
EC declararion Damp Proof
PDF (300.15 KB)
PRODUCT DATASHEET
DAMP PROOF LED 1200 39 W 4000 K
PDF (267.64 KB)
Product image: white background, upright
707950_LEDVANCE Damp Proof LED
TIF (48.01 MB)
Product line drawing with letters
707588_LEDVANCE Damp Proof LED 1200 21W and 39W
SVG (23.79 KB)
Product line drawing with numbers
707560_LEDVANCE Damp Proof LED 1200 21W and 39W
SVG (23.84 KB)
Product line drawing, front, no dimensions
707621_LEDVANCE Damp Proof LED 1200 21W and 39W
SVG (18.44 KB)

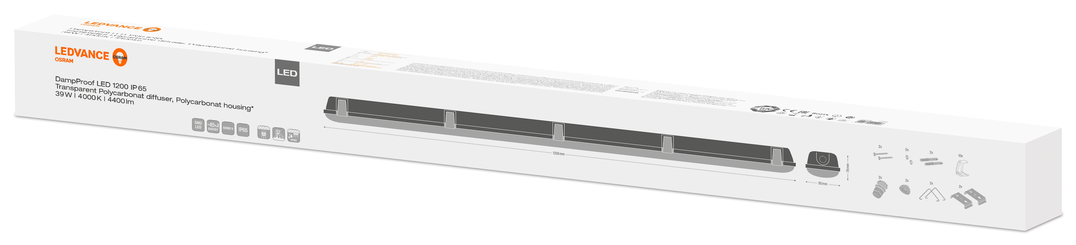

Packaging image, spacial
