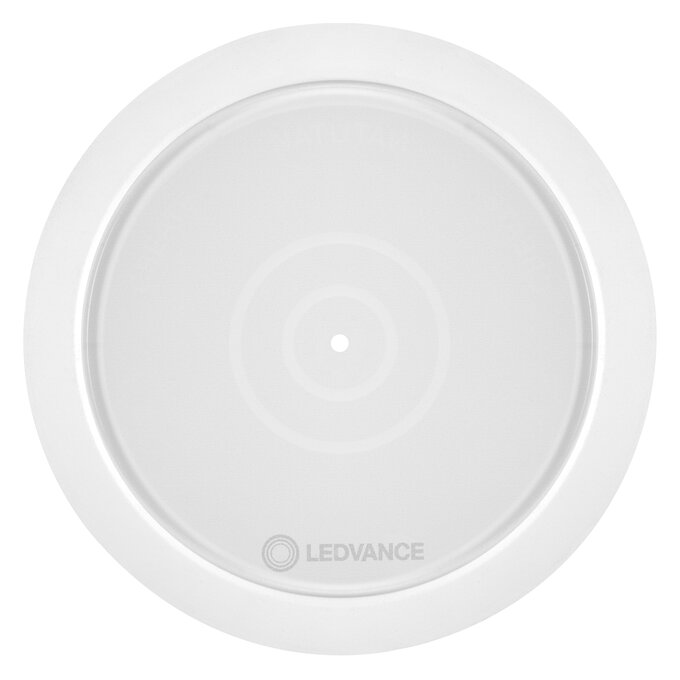

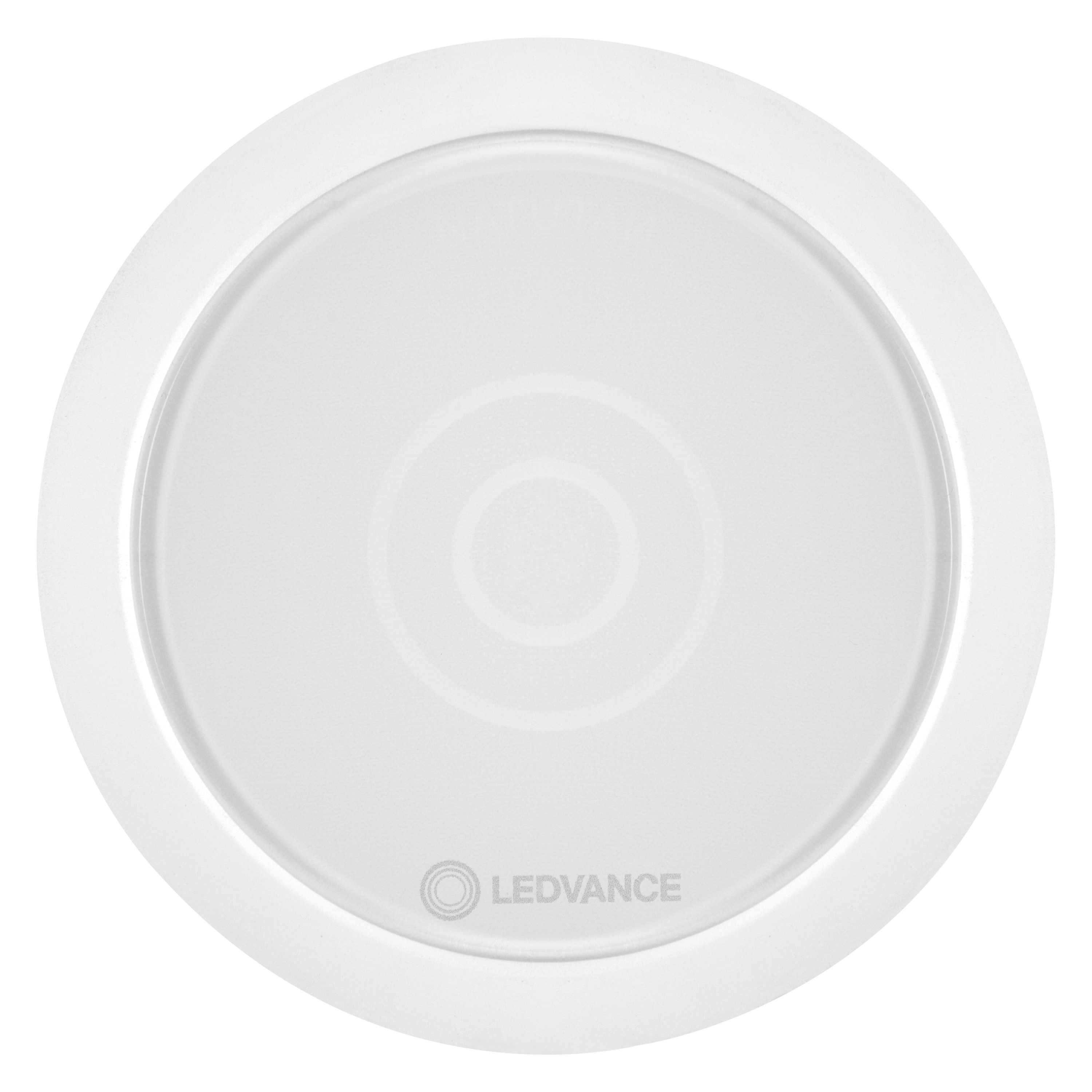

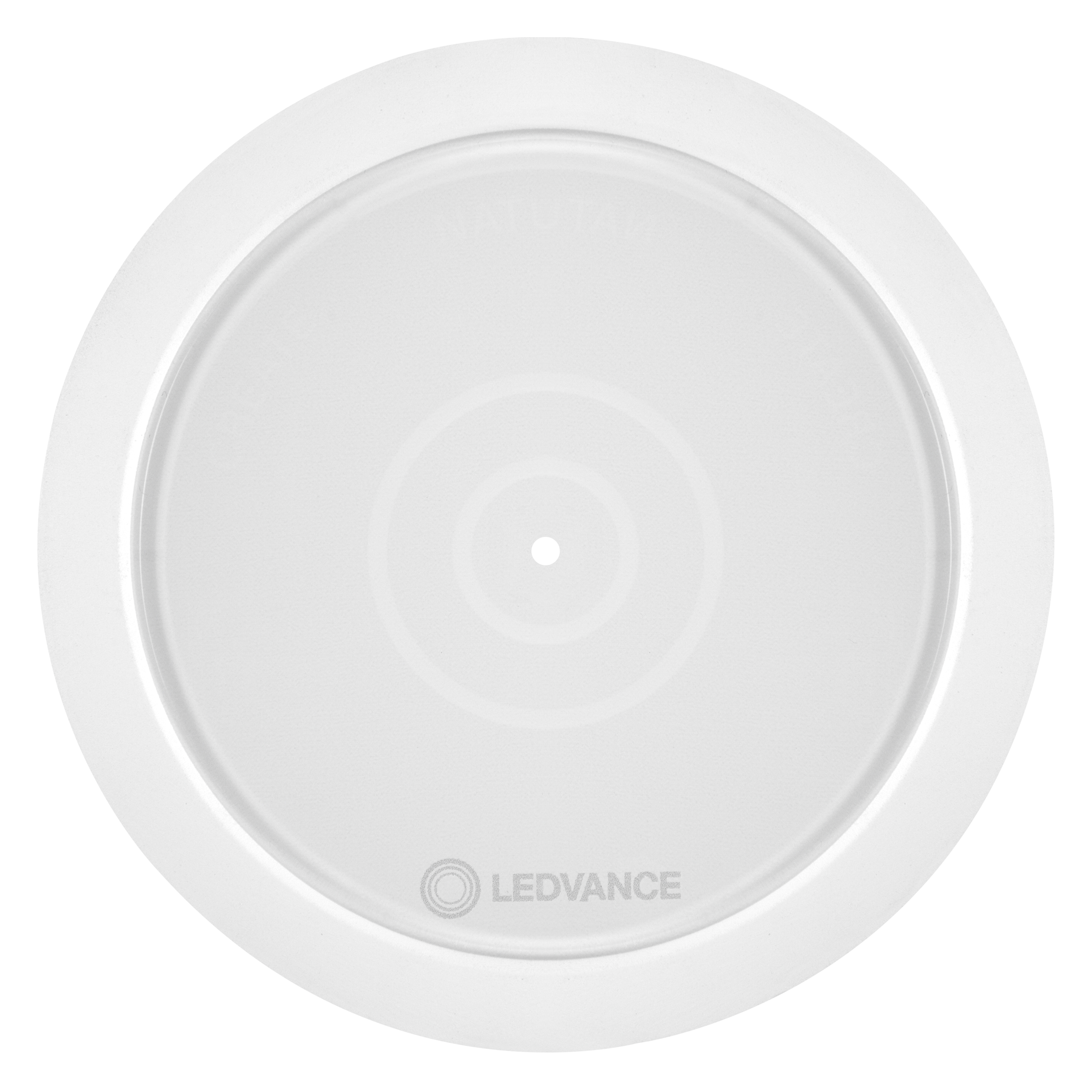

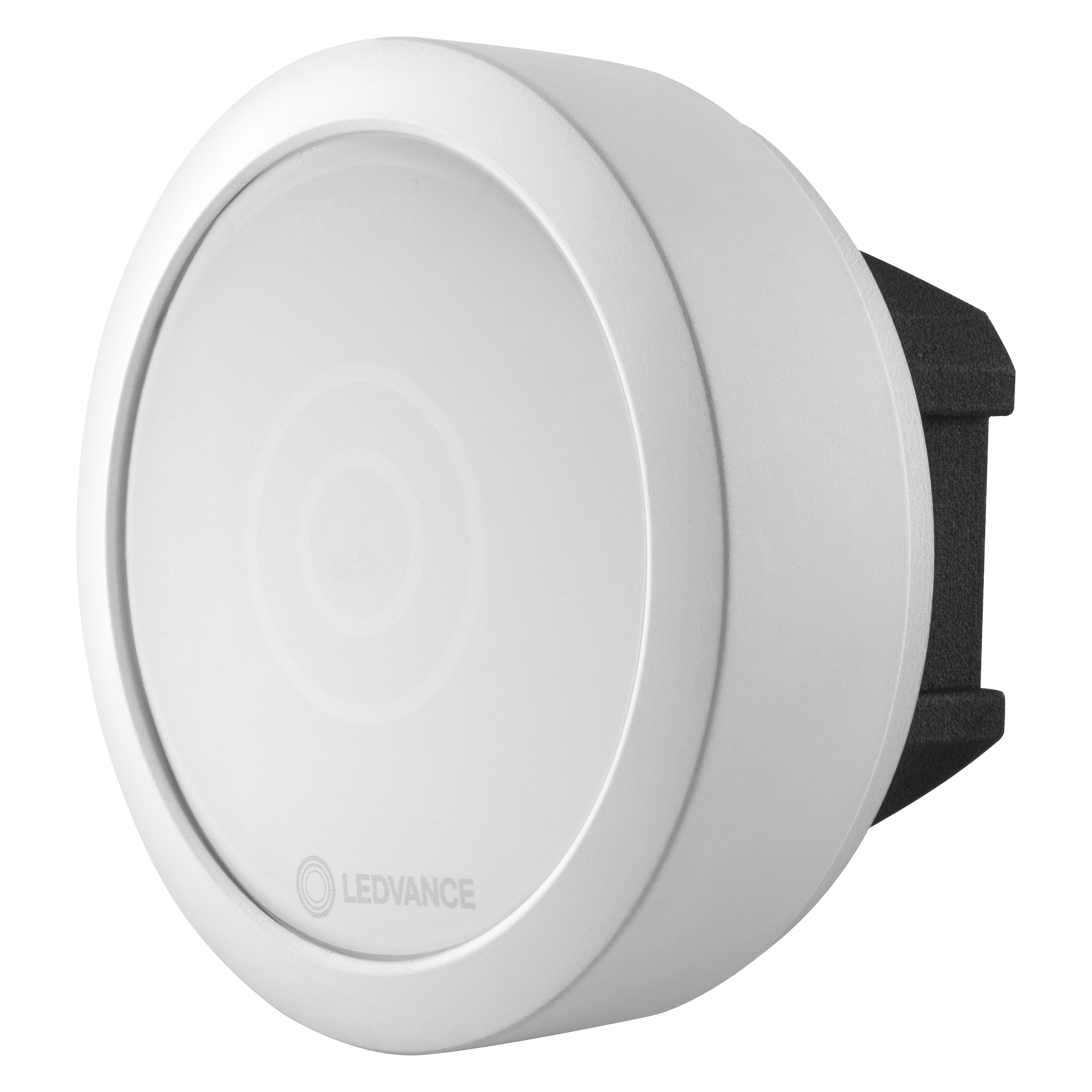

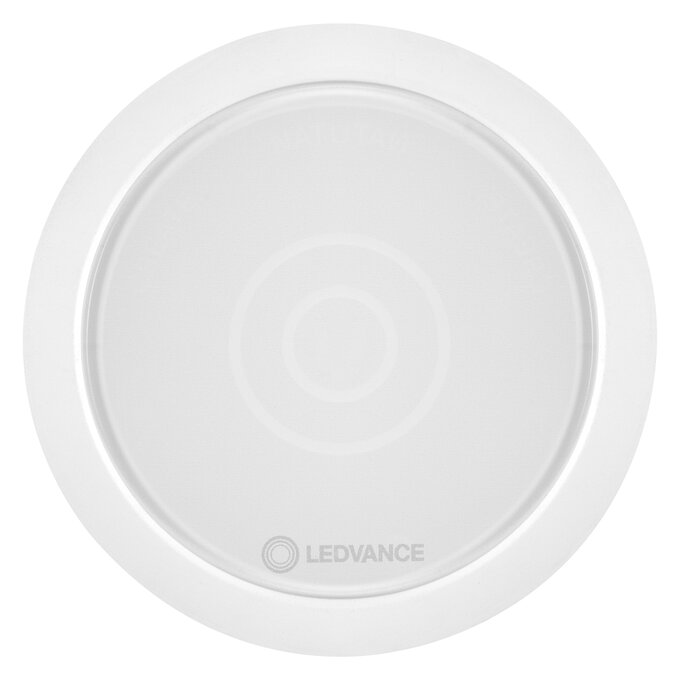

BIOLUX HCL CONTROL UNIT S ZB

GTIN: 4058075724624 Folding box / 1 Show all packages

Contact sales

Easy and quick installation of the BIOLUX HCL-lighting system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL-luminaire(s) / BIOLUX HCL LED strips / VIVARES occupancy sensor) thanks to wireless Zigbee 3.0 technology
Automated commissioning and setup by LEDVANCE BIOLUX app, no programming, registration or cloud required
Intuitive control of BIOLUX HCL luminaires - BIOLUX HCL LED strips via control unit
Easy selection of the appropriate lighting modes for different working situations
Orientation light in the control unit if luminaires are switched-off
5 years BIOLUX HCL system guarantee when operated as part of a BIOLUX HCL system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL luminaire(s) - BIOLUX HCL LED strips and VIVARES occupancy sensor)

Lighting solution for up to 48 BIOLUX HCL products (luminaires/ LED strips / VIVARES occupancy sensors)
Meeting and conference rooms
Hotel and office rooms with little daylight
Nursery and elderly homes
Hospitals

LEDVANCE designed high-value product

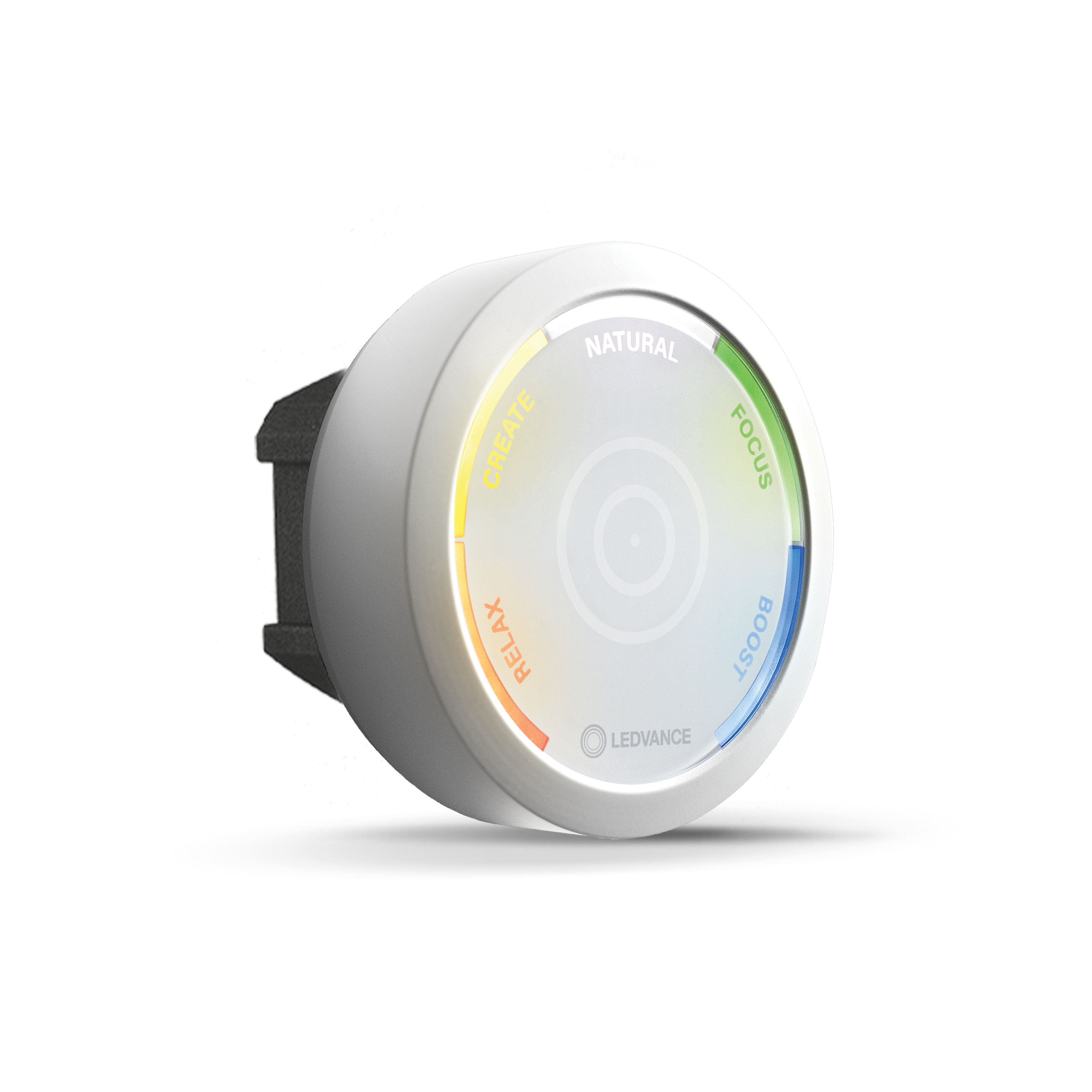

6 preprogrammed lighting modes intuitively selectable: RELAX, CREATE, NATURAL, FOCUS, BOOST and ON/OFF
Selected lighting mode is shown on the display of the control unit
Intuitive timetable mode for individual date and time settings of the 6 lighting modes in the BIOLUX app for automated course
Switch on/off the lights with the control unit and/or optional VIVARES occupancy sensor

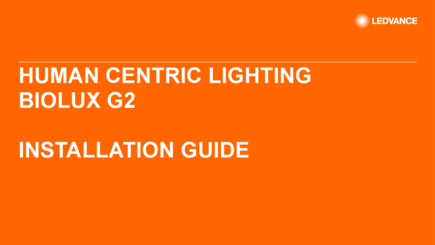

Implemented FAQ and installation guide in the BIOLUX app for quick support during the on-site installation

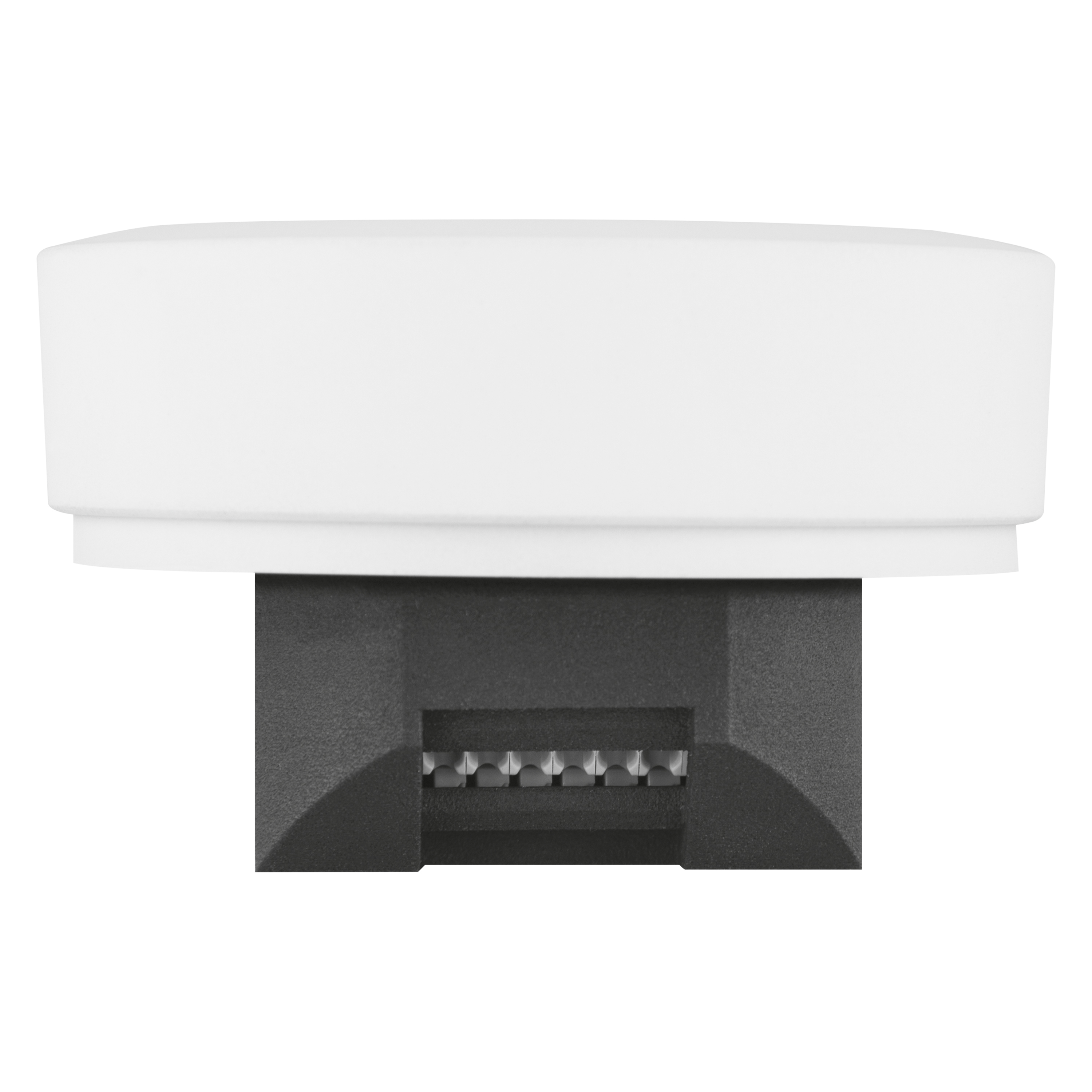

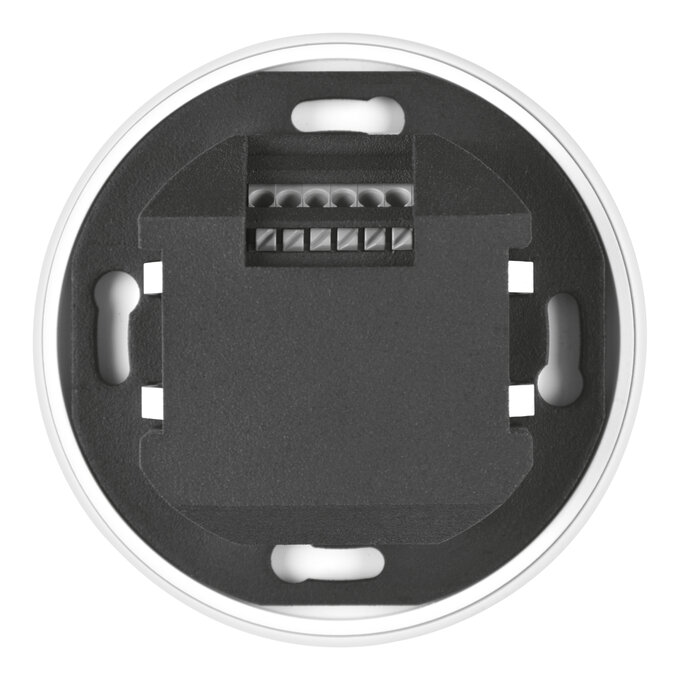

Installation in standard flush-mounted boxes like used for lighting switches and sockets

LEDVANCE BIOLUX app required for commissioning and additional functions time table / sensor configuration / NATURAL test (available for Android and iOS)

The use of the LEDVANCE BIOLUX app is exclusively subject to the LEDVANCE BIOLUX app Terms of Use, which are displayed during installation of the app and are available in the app

Important operating notice and legal disclaimer: This product is exclusively intended for operation as part of a BIOLUX HCL system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL luminaire(s), LED strips and VIVARES occupancy sensor including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL system products.
Important operating notice: The BIOLUX HCL CONTROL UNIT may be rotated clockwise or counterclockwise a maximum of 7,200° (equivalent to 20 complete 360° rotations) per day in total (adding together all operating procedures).

For Guarantee see www.ledvance.com/guarantee
For reference projects see https://www.ledvance.com/professional/lighting-solutions

Low flicker

Yes

Product color	White
Body material	Polycarbonate\|Methacrylate butadiene styrene\|Polymethylmethacrylate
Cover material	Polymethylmethacrylate (PMMA)

Ambient temperature range	0…+40 °C
Temperature range in operation	0…+40 °C

Mounting location	Wall
Low flicker	Yes

Dimmable

Standards	CE, UKCA, EAC
Type of protection	IP20

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
