DALIeco Swarm Adapter
DALIECO SWARM ADAPTER
GTIN: 4052899955646
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Simple configuration via screwdriver
Areas of application
- Offices
- Corridors
Product features
- 868 MHz radio radapter for wireless synchronization of DALIeco control units
- Bidirectional transmission of motion signals and central on/off commands
- Digital radio coding of up to seven zones and seven group addresses
- Transmitter range: up to 50 m
- VDE certified system
- Direct connection and supply via DALIeco control unit
Electrical data
| Nominal wattage | 4.00 W |
| Nominal voltage | 16 V |
| Mains frequency | 50/60 Hz |
Dimensions & Weight
| Length | 68.00 mm |
| Width | 30.00 mm |
| Height | 11.00 mm |
| Product weight | 17.00 g |
Temperatures & operating conditions
| Ambient temperature range | 0…+50 °C |
Additional product data
| Number of control outputs | 1 |
Capabilities
| Dimmable | No |
| Number of control outputs | 1 |
| Type of installation | Luminaire integration |
| Transmitter range | 50 m |
Certificates & Standards
| Approval marks – approval | CE |
| Protection class | III |
| Type of protection | IP20 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899955646 | Folding box 1 |
|||
| 4052899955653 | Shipping box 45 |
320 mm x 265 mm x 160 mm | 1500.00 g | 13.57 dm³ |
User instruction / safety instructions
726597_DALIEco Swarm Adapter radio leafleat
726597_DALIEco Swarm Adapter radio leafleat
User instruction / safety instructions
726596_DALI ECO Swarm adapter mounting instruction
726596_DALI ECO Swarm adapter mounting instruction
User instruction / safety instructions
726598_DALIEco Swarm Adapter user instruction
726598_DALIEco Swarm Adapter user instruction
Declarations of conformity
EU Declaration of Conformity DALIeco Swarm Adapter
EU Declaration of Conformity DALIeco Swarm Adapter
Product image: white background, diagonal
727079_DALIeco Swarm Adapter
727079_DALIeco Swarm Adapter

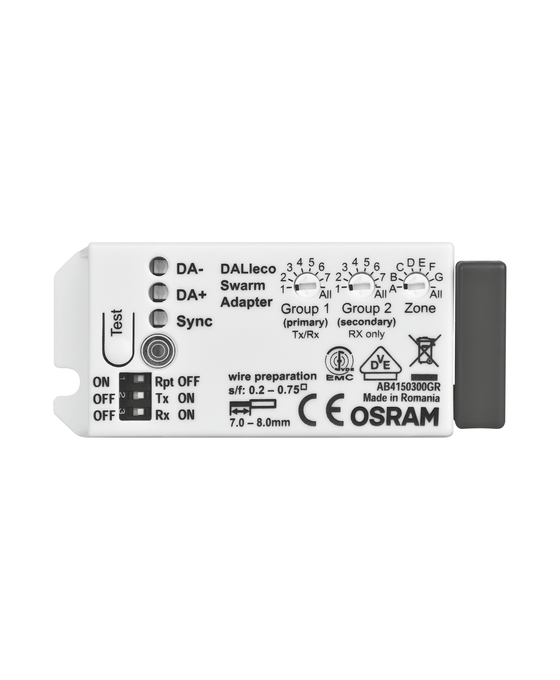

Product image: white background, horizontal
