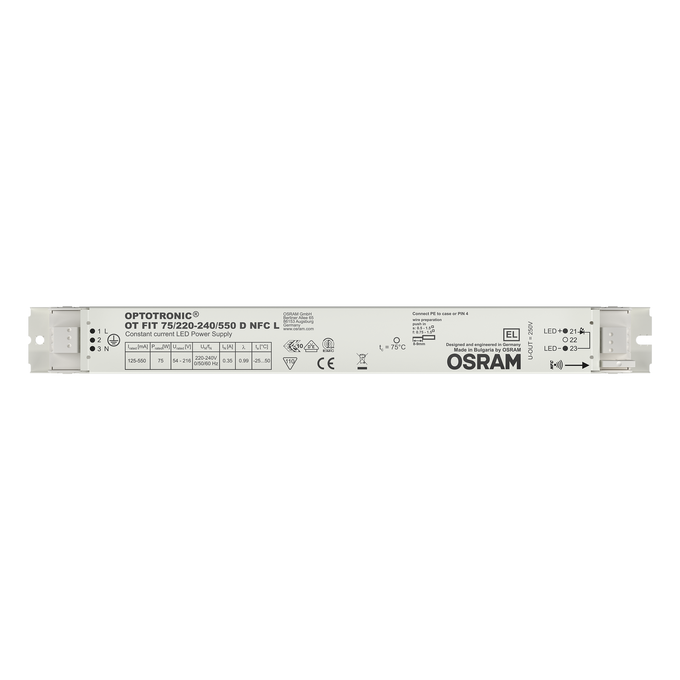

OT FIT 75/220…240/550 D NFC L

GTIN: 4052899990180 Unpacked / 1 Show all packages

Contact sales

Linear lighting for office, education, industry, storage areas and retail
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for installation in emergency lighting systems according to EN 60598-2-22
Suitable for luminaires of protection class I

Nominal wattage	75.00 W
Nominal output power	10…75 W
Nominal voltage	220…240 V
Nominal output voltage	54…216 V
Input voltage AC	198…264 V
Input voltage DC	176…276 V
Nominal output current	125…550 mA ¹⁾
Inrush current	41 A
Output ripple current (100 Hz)	< 1 %
Mains frequency	50/60 Hz
Power factor λ	> 0.95
ECG efficiency	up to 94 %
Device power loss	7 W
Max. ECG no. on circuit breaker 10 A (B)	16
Max. ECG no. on circuit breaker 16 A (B)	26
Max. ECG no. on circuit breaker 25 A (B)	-
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	Non isolated

¹⁾ ±5%

Length	280.00 mm
Mounting hole spacing, length	270,0 mm
Width	30.00 mm
Height	21.00 mm
Cable cross-section, input side	0.5…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Wire preparation length, input side	8.0…9.0 mm
Product weight	180.00 g

Casing material	Metal
Body material	Metal

Ambient temperature range	-25…+50 °C
Maximum temperature at tc test point	75 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

50000 h, 100000 h ¹⁾

¹⁾ At maximum T_c = 75°C / 10% failure rate / At T_c = 65°C / 10% failure rate

Encapsulated

Dimmable	No
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	2,0 m
Suitable for fixtures with prot. class	I

Approval marks – approval	CE, EL, ENEC 10, VDE-EMC, CCC, RCM
Standards	Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 62384, Acc. to EN 61000-3-2, Acc. to EN 61000-3-3, Acc. to EN 61547
Protection class	I
Type of protection	IP20

Temperature range at storage

-40…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
