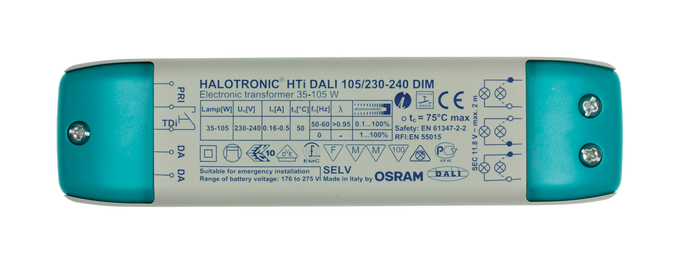

HTI DALI 105/230…240 DIM

GTIN: 4008321420633 Unpacked / 1 Show all packages

Contact sales

Very low power consumption thanks to high efficiency
Through-wiring possible on the primary side
Large temperature range
Protective operation throughout the entire partial-load range for long lamp life

DALI transformer for low voltage halogen lamps
Electrical isolation between the primary side and the secondary side
Short-circuit protection, overload protection, overtemperature protection: electronically reversible
Device fits also for special applications where dimming below 1 % is required

Nominal wattage	108.00 W
Nominal voltage	230…240 V
Nominal output voltage	11.6 V, 11.4 V ¹⁾
Input voltage range	230…240 V
Input voltage DC	176…275 V
Inrush current	0.6 A
Mains frequency	50/60 Hz ²⁾
Power factor λ	0.95 ³⁾
Device power loss	6 W ⁴⁾
Max. ECG no. on circuit breaker 10 A (B)	23
Max. ECG no. on circuit breaker 16 A (B)	38
Operating frequency	40 kHz

¹⁾ 105 W / 35 W
²⁾ Approximately
³⁾ Minimum
⁴⁾ Maximum

Length	170.00 mm
Mounting hole spacing, length	140,0 mm
Width	44.00 mm
Height	34.00 mm
Wire preparation length, input side	8.0 mm
Wire preparation length, output side	8.0 mm
Product weight	160.00 g

Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	75 °C
Max.housing temperature in case of fault	100 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

Encapsulated

Dimmable	Yes
Dimming interface	DALI, Touch DIM, Touch DIM Sensor
Dimming range	0.1…100 % ¹⁾
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	2,0 m
Type of connection, output side	Screw connection

¹⁾ With AC / 1…100% with DC

Approval marks – approval	E1 approval, VDE, VDE-EMC
Standards	Acc. to EN 55015:2006 + A1:2007, Acc. to EN 61000-3-2, Acc. to EN 61547, Acc. to EN 61347-2-2
Protection class	II
Type of protection	IP20

Temperature range at storage

-40…+85 °C

Networked standby power for CLS

0.50 W

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
