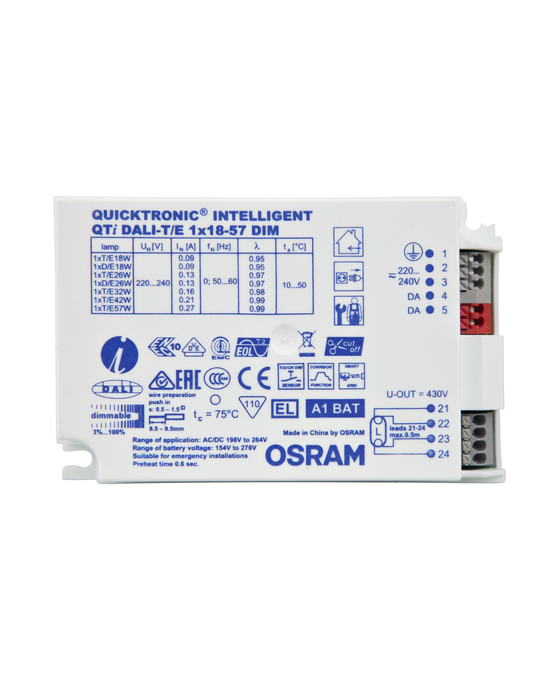

QTi DALI-T/E 1x18…57 DIM

QUICKTRONIC INTELLIGENT DALI DIM CFL

GTIN: 4008321060808 Unpacked / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

System+ Guarantee available
Easy integration in luminaire thanks to same dimensions like DALI GI ECG

DALI product features

Control via the DALI interface
Compliance with the DALI Version-1 and IEC 60929
Control input protected against overvoltage and polarity reversal (OSRAM ECG)

Touch DIM and Touch DIM Sensor function

Manual dimming without controller and with standard switches
Including memory function (double click) and soft start

Areas of application

Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
Open-plan offices, corridors and storage rooms
Public buildings
Suitable for luminaires of protection class I

Product features

Corridor function for direct connection of ECG to common motion sensor
Corridor function with pre-programmed light program
Touch DIM function for free parameterization of light value and turn on time
Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
Fit for emergency function for automatic detection of emergency lighting by ECG
Very low standby power consumption: < 0.2 W (A1 BAT)
Lifetime: > 100,000 h (for T = 65 °C at T_c)
Very high number of switching cycles: up to 300,000
Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)
POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
Line frequency: 0 Hz, 50…60 Hz, rectified AC

References / Links

For more information on the system guarantee and the terms and conditions of the guarantee visit www.ledvance.com/system-guarantee

Electrical data

Nominal wattage	61.00 W
Nominal voltage	220…240 V
Nominal output voltage	430 V
Input voltage DC	154…276 V
Type of current	AC/DC
Inrush current	28 A
Mains frequency	50/60 Hz
Max. ECG no. on circuit breaker 10 A (B)	12 ¹⁾
Max. ECG no. on circuit breaker 16 A (B)	19 ¹⁾
Operating frequency	42…130 kHz
Power loss in stand-by mode	0.2

¹⁾ Type B

Light technical data

Starting time [PIM]

0.6 s

Dimensions & Weight

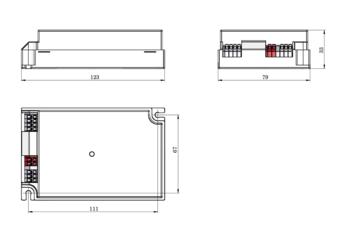

Length	123.00 mm
Mounting hole spacing, length	129,5 mm
Width	79.00 mm
Height	33.00 mm
Cable cross-section, input side	0.5…1.5 mm²
Wire preparation length, input side	8,5…9,5 mm ¹⁾
Wire preparation length, output side	8,5…9,5 mm ¹⁾
Product weight	227.00 g

¹⁾ Wire cross-section for push-in contacts: 0.5…1.5 mm²

Colors & materials

Casing material	Metal
Body material	Metal

Temperatures & operating conditions

Ambient temperature range	+10…+50 °C
Maximum temperature at tc test point	75 °C ¹⁾
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ²⁾

¹⁾ In case of significant exceeding of max. Tc-point temperature lamp power will be reduced to guarantee ECG lifetime
²⁾ Maximum 56 days/year at 85 %

Lifespan

ECG lifetime

100000 h ¹⁾

¹⁾ At T_case = 65°C at T_c point / 10% failure rate

Additional product data

Product remark

Optional cable clamp, see chapter ECG mountings - cable clamp

Capabilities

Dimmable	Yes
Dimming interface	DALI, Touch DIM, Touch DIM Sensor
Dimming range	3…100 % ¹⁾
Overheating protection	Yes
Max. cable length to lamp/LED module	0,5 m
Suitable for fixtures with prot. class	I
End of lamp life safety shutdown	EOL T.2

¹⁾ Luminous flux

Certificates & Standards

Approval marks – approval	VDE, VDE-EMC, EL, EAC, RCM, CCC
Standards	Acc. to EN 61347-2-3, Acc. to EN 60929, Acc. to EN 55015:2006 + A1:2007, Acc. to EN 61000-3-2, Acc. to EN 61547, Acc. to IEC 62386-101:Ed1, Acc. to IEC 62386-102:Ed1
Protection class	I
Type of protection	IP20
Energy efficiency class	A1
EEI – Energy Label	A1 BAT

LOGISTICAL DATA

Temperature range at storage

-40…+85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
