SPECIAL OVEN T
SPC.T FR 15 W 230 V E14
GTIN: 4050300003085
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Domestic baking ovens
Product features
- Ambient temperature: up to 300 °C
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
- Not designed as a replacement for conventional lighting in private household.
Electrical data
| Nominal wattage | 15 W |
| Construction wattage | 15.00 W |
| Nominal voltage | 230 V |
Photometrical data
| Luminous flux | 85 lm |
| Luminous efficacy | 5 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | > 99 |
| Light color | 927 |
Light technical data
| Starting time | 0 s |
Dimensions & Weight
| Overall length | 57.00 mm |
| Length with base excl. base pins/connection | 57.00 mm |
| Light center length (LCL) | 45,0 mm |
| Diameter | 26,0 mm |
| Product weight | 7.6 g |
Lifespan
| Lifespan L70/B50 at 25 °C | 1000 h |
Additional product data
| Base (standard designation) | E14 |
| Mercury-free | Yes |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Energy efficiency class | G |
| Energy consumption | 15.00 kWh/1000h |
Country-specific categorizations
| ILCOS | IBT/F-15-230-E14-26 |
| Order reference | SPC.T26/57 FR 1 |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | OTHER |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E14 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0.00 W |
| Networked standby power for CLS | 0 W |
| Claim of equivalent power | No |
| Length | 55.00 mm |
| Height | 26,0 mm |
| Width | 26,0 mm |
| Chromaticity coordinate x | 0.496 |
| Chromaticity coordinate y | 0.412 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 714462 |
| Model number | AC35397,AC35397 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4050300003085 | Folding box 1 |
61 mm x 24 mm x 27 mm | 14.60 g | 0.04 dm³ |
| 4050300555171 | Bundle 10 |
56 mm x 63 mm x 137 mm | 129.00 g | 0.48 dm³ |
| 4050300555188 | Shipping box 100 |
275 mm x 141 mm x 138 mm | 1490.00 g | 5.35 dm³ |
Declarations of conformity
OVEN 15W 25W E14
OVEN 15W 25W E14
Product image: white background, diagonal with OSRAM logo
SPECIAL OVEN T26 57 E14 frosted
SPECIAL OVEN T26 57 E14 frosted
Product image: white background, diagonal
SPECIAL OVEN T26 57 E14 frosted
SPECIAL OVEN T26 57 E14 frosted
Product image: white background, upright, OSRAM logo
SPECIAL OVEN T26 57 E14 frosted
SPECIAL OVEN T26 57 E14 frosted
Product image: white background, upright
SPECIAL OVEN T26 57 E14 frosted
SPECIAL OVEN T26 57 E14 frosted
Product line drawing with letters
91_SPECIAL PYGMY T
91_SPECIAL PYGMY T
Product line drawing, front, no dimensions
15311_SPECIAL PYGMY T
15311_SPECIAL PYGMY T

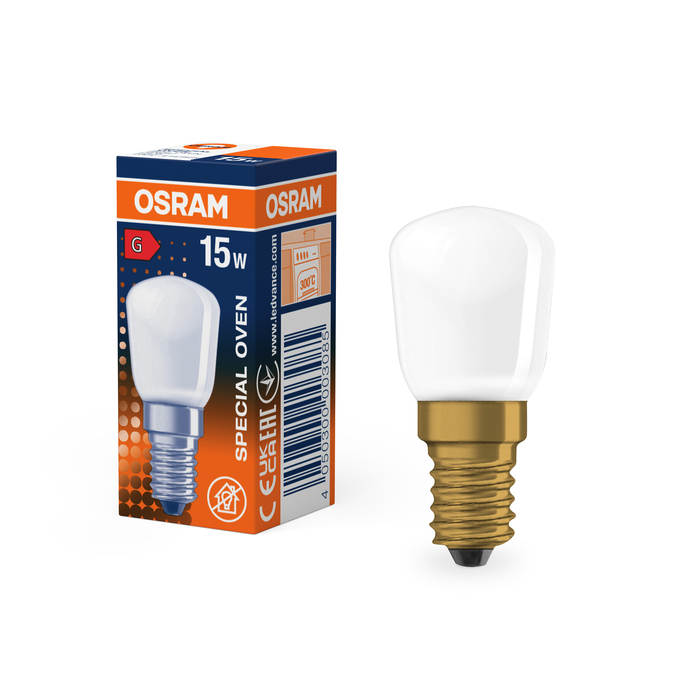

Combo Shot = Product Beauty Shot + Packaging Image
SPC T26-57 FR 15W 230V E14
SPC T26-57 FR 15W 230V E14

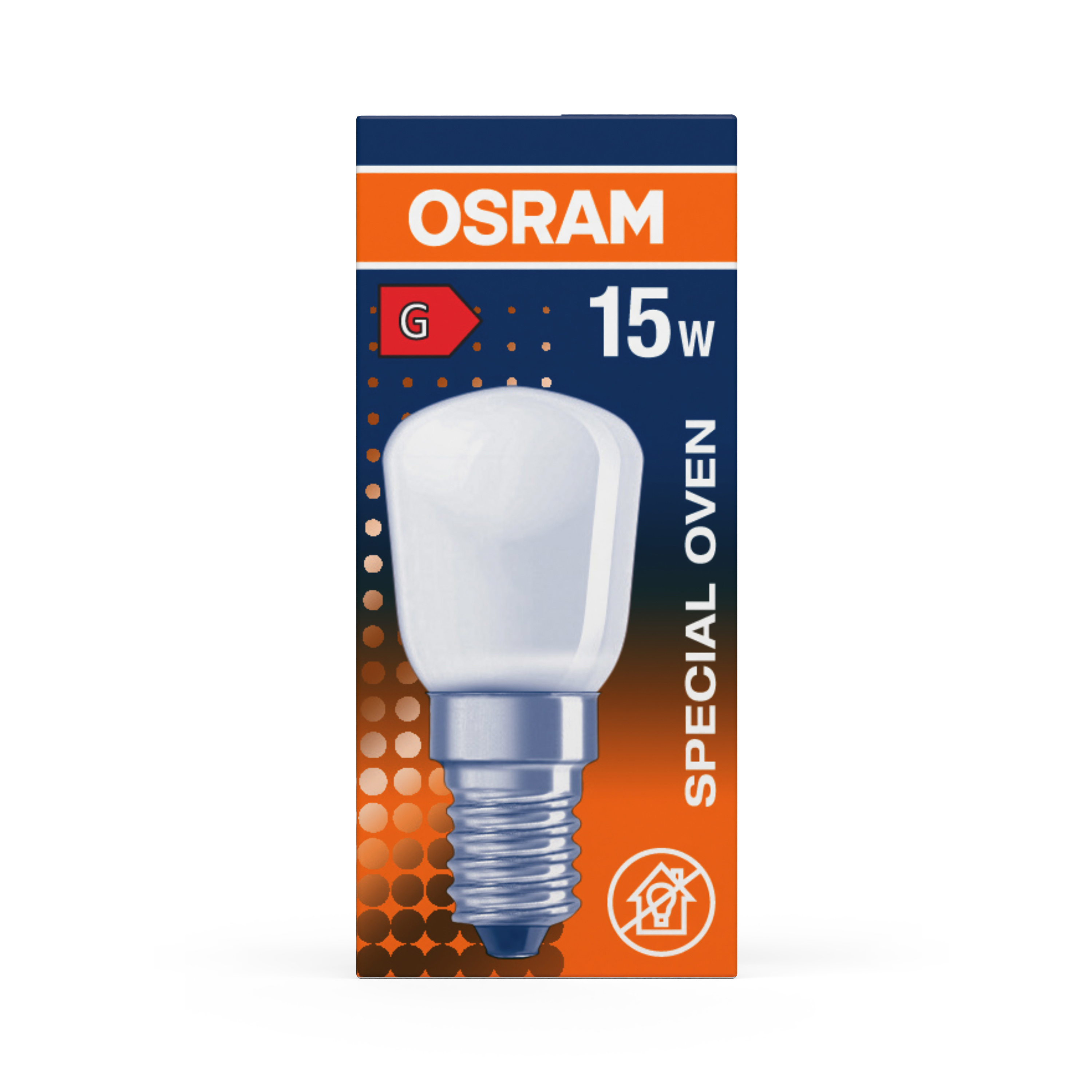

Packaging image, frontal
SPC T26-57 FR 15W 230V E14 MiCh
SPC T26-57 FR 15W 230V E14 MiCh

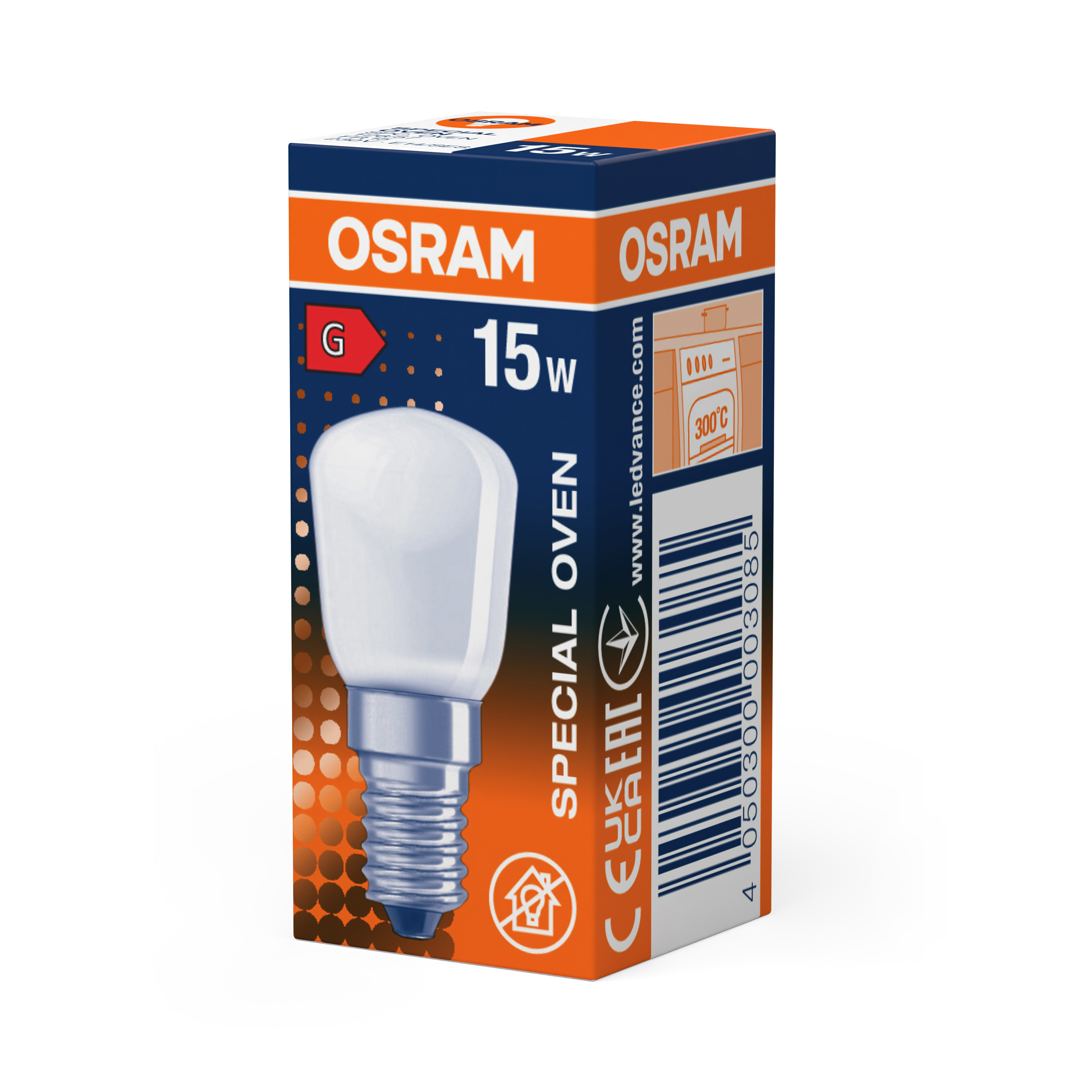

Packaging image, spacial
SPC T26-57 FR 15W 230V E14 MiCh
SPC T26-57 FR 15W 230V E14 MiCh
Energy label
EL-4050300003085-AC353 97
EL-4050300003085-AC353 97
Spectral power distribution
349635_HAL_ohne_UVS
349635_HAL_ohne_UVS
| EAN | SEG number | STK number | ELDAS number | AU model number |
|---|---|---|---|---|
| 4050300003085 | 8325586 | 4732515 | 940620170 | OSRPILOT26FR15WE14 |
