SP DRIVER DALI 8W | SP DRIVER | LEDVANCE

SP DRIVER

SP DRIVER DALI 8W

GTIN: 4099854089558 Folding box / 1 Show all packages

Download data sheet

Our warranty conditions

PRODUCT DETAILS

Product benefits

DALI driver with individual luminaire current set-up already installed
Extended services such as energy monitoring and remote maintenance possible with DALI versions
Easy replacement of external driver thanks to plug with bayonet lock

Areas of application

DALI installations

Product features

IoT-ready driver with DALI-2 technology
Push DIM function for dimming and switching directly on a pushbutton
Suitable for emergency central battery installations acc. to EN 60598-2-22
Twist & lock connector for ease of installation

Equipment / Accessories

Can only be used with LEDVANCE SPOTs 8 W (CC 180mA)

Safety advice

Do not cover with any thermal insulation material!

Electrical data

Nominal wattage	8.00 W
Nominal voltage	220…240 V
Mains frequency	50/60 Hz
Max. number of luminaires per miniature circuit breaker B16	130
Power factor λ	0.90
Protection class	II

Dimensions & Weight

Length	120.00 mm
Height	30.00 mm
Width	53.00 mm
Product weight	100.00 g

Materials & Colors

Product color	Grey
Body material	Polycarbonate (PC)
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+40 °C
Temperature range at storage	-42…+80 °C
Type of protection	IP20
Dimmable	Yes
Type of dimming	DALI2
Replaceable light source	No

Control gear

Output current

180 mA

Emergency lighting

Wattage in emergency operation mode	3,0 W
Luminous flux in emergency operation mode	120 lm

Certificates & Standards

Standards

CE, UKCA, EAC

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854089558	Folding box 1	35 mm x 220 mm x 62 mm	205.00 g	0.48 dm³
4099854089565	Shipping box 4	227 mm x 155 mm x 74 mm	1025.00 g	2.60 dm³

User instruction / safety instructions
UI SP FIX P and SP FIX ADJ

User instruction / safety instructions
UI SP DK FIX P

User instruction / safety instructions
UI SP FP FIX P

Legal information
Informationstext 18 Abs 4 ElektroG

PDF (435.15 KB)

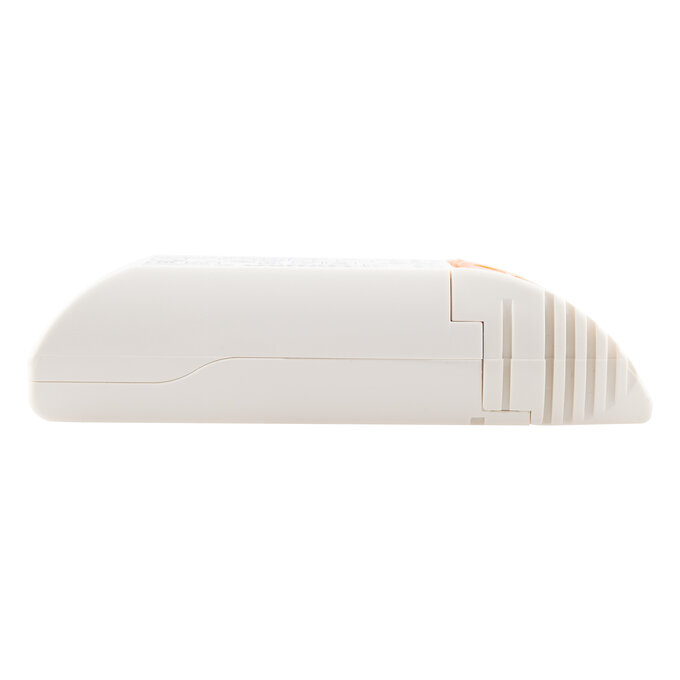

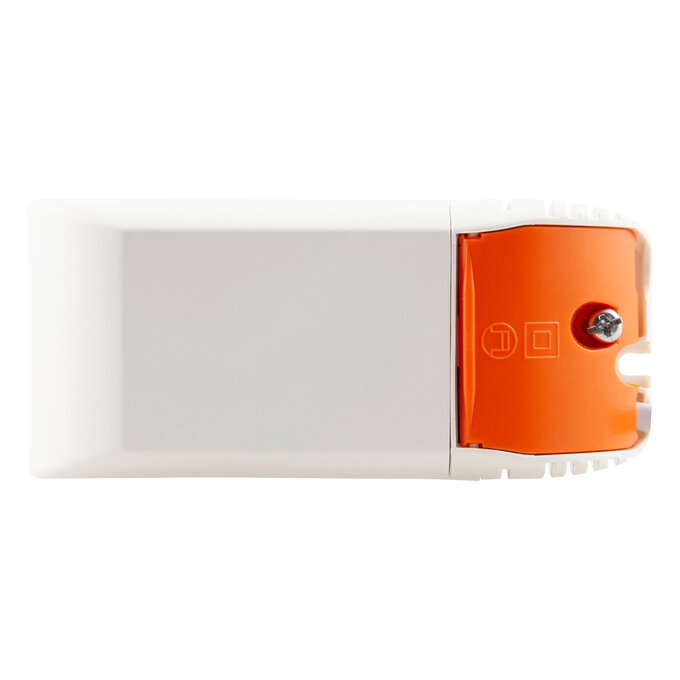

Product image: white background, upright
SP DRIVER DALI 8W

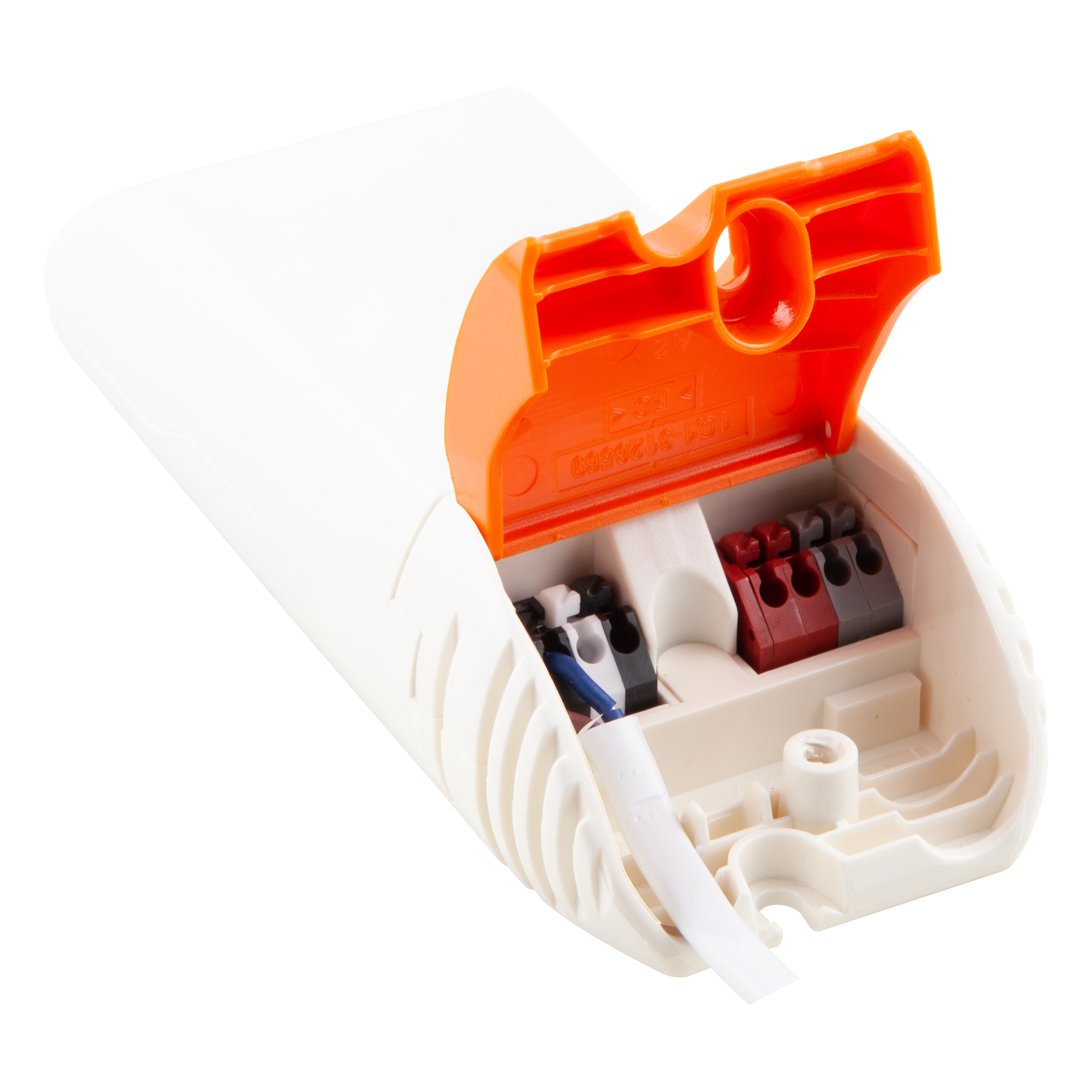

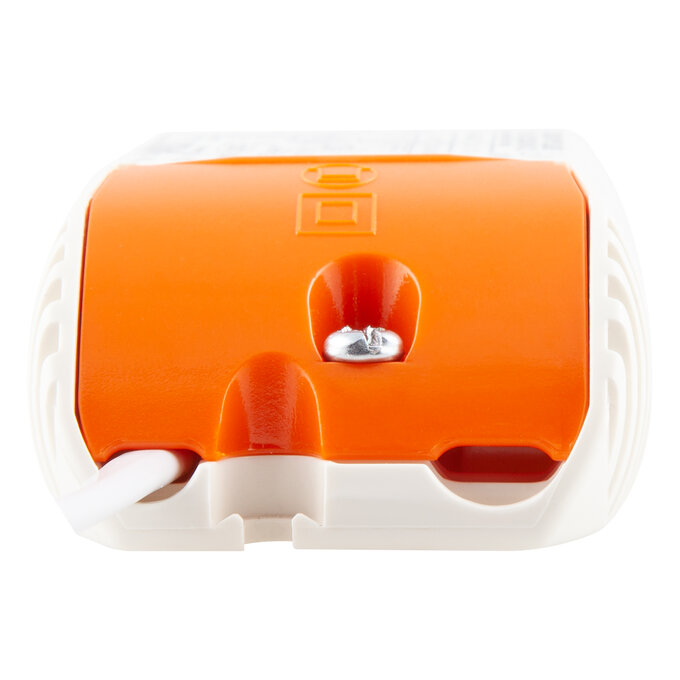

Product image: white background, spacial
SP DRIVER DALI 8W

Product image: white background, spacial
SP DRIVER DALI 8W

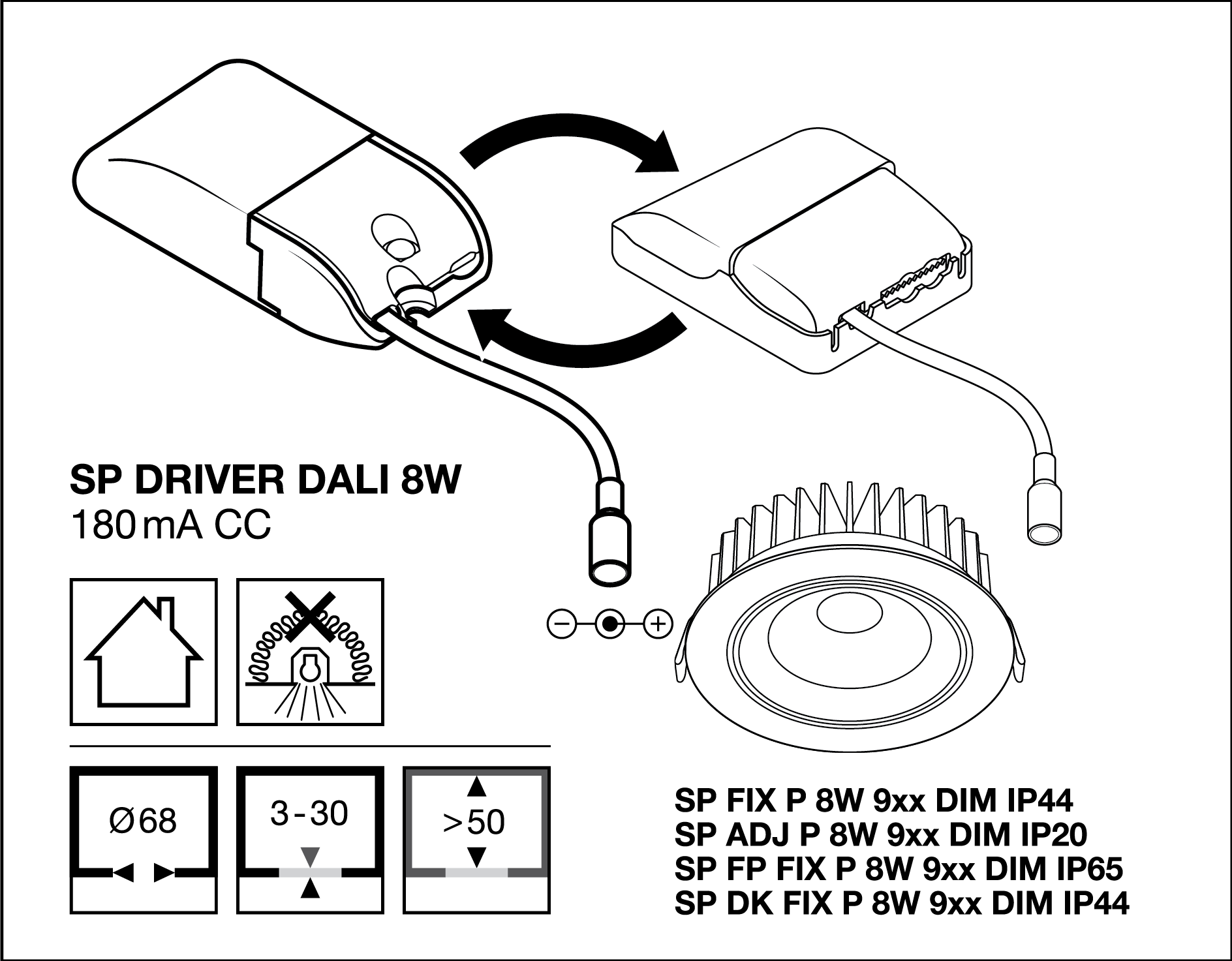

Product line drawing with letters
SP DRIVER DALI 8W

Product line drawing with numbers
SP DRIVER DALI 8W

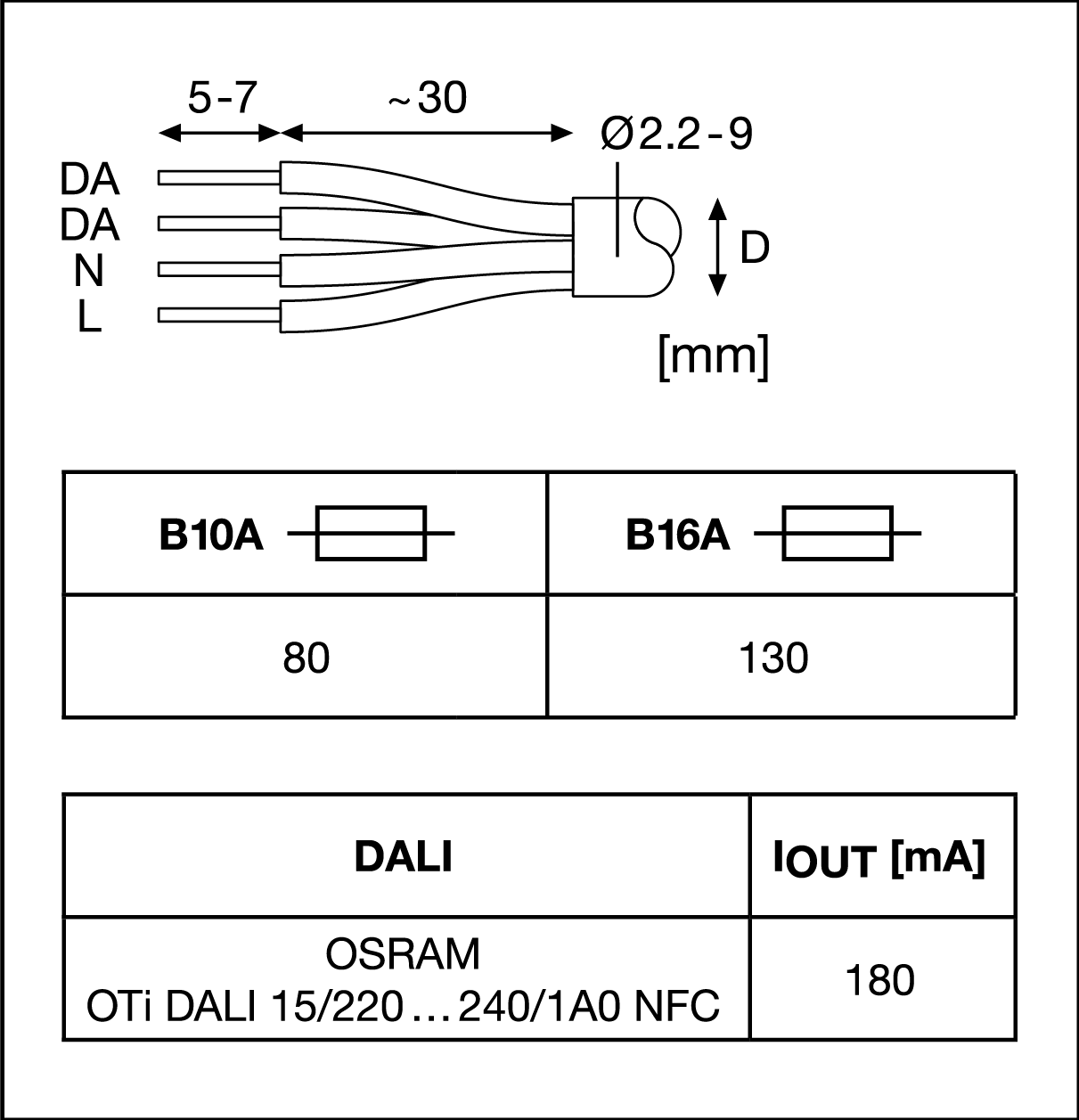

Product line drawing - technical
SP DRIVER DALI 8W

Catalog info 1
SP DRIVER DALI 8W

PNG (209.69 KB)

Catalog info 2
SP DRIVER DALI 8W

Tender documents
SP DRIVER DALI 8W-en

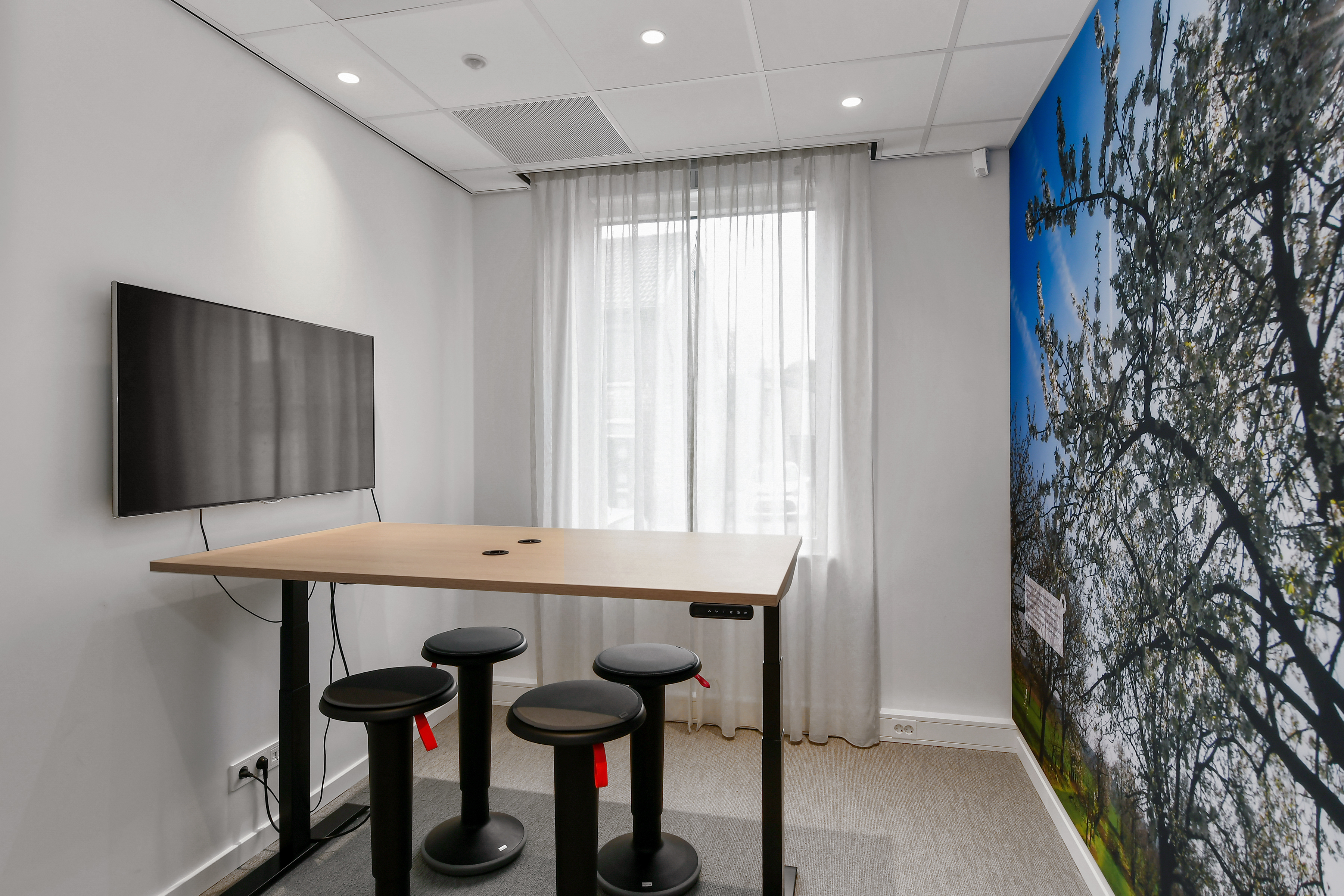

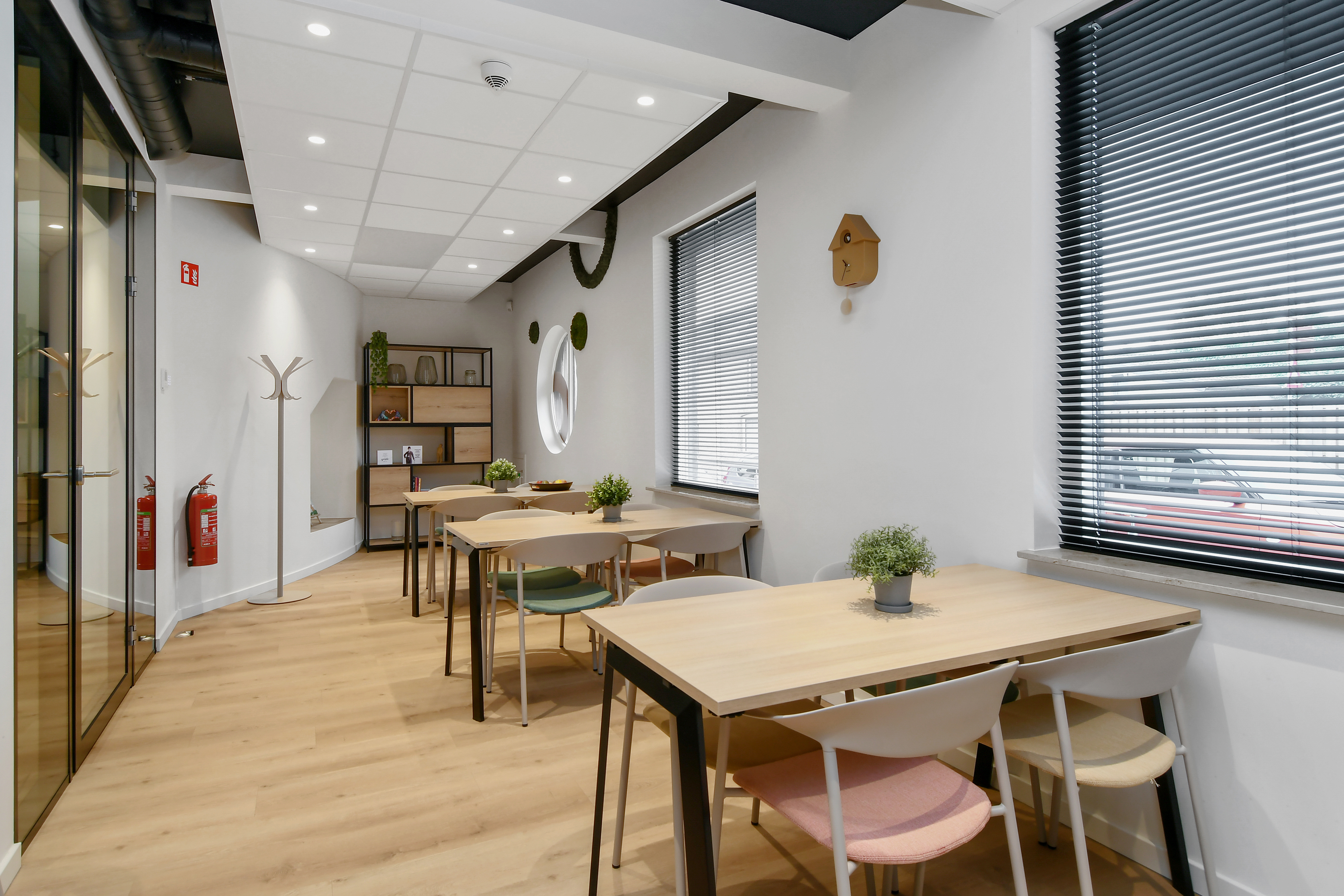

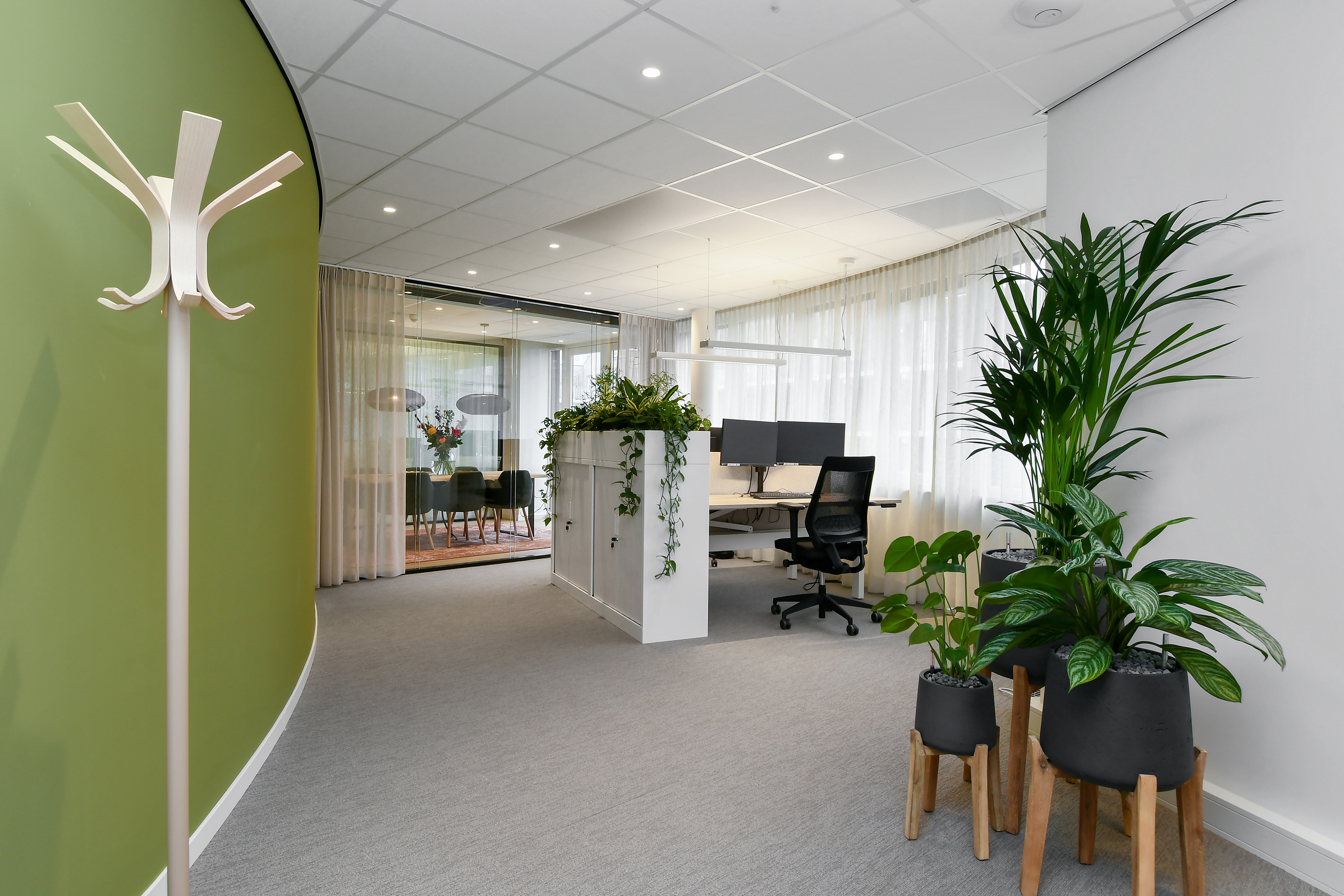

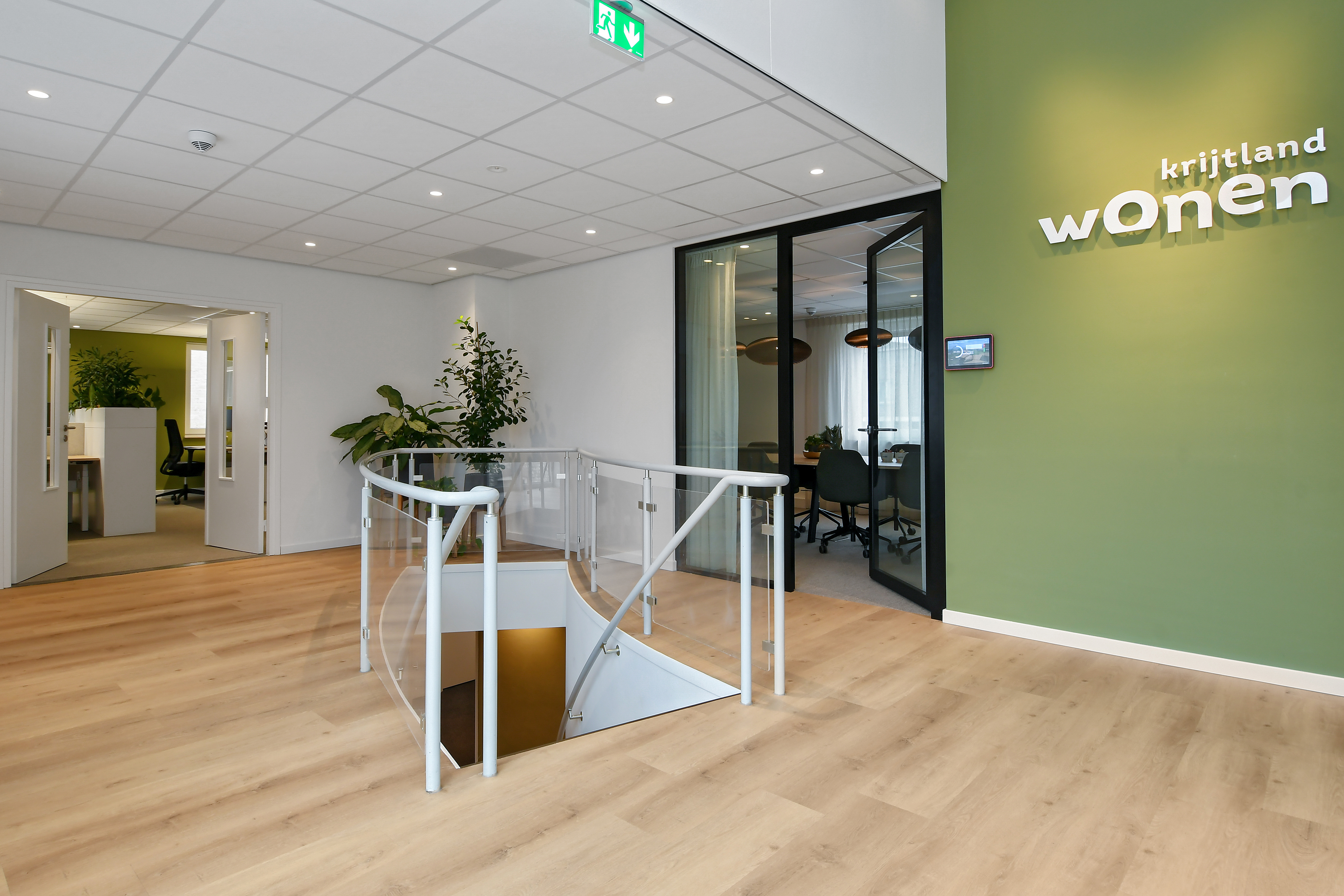

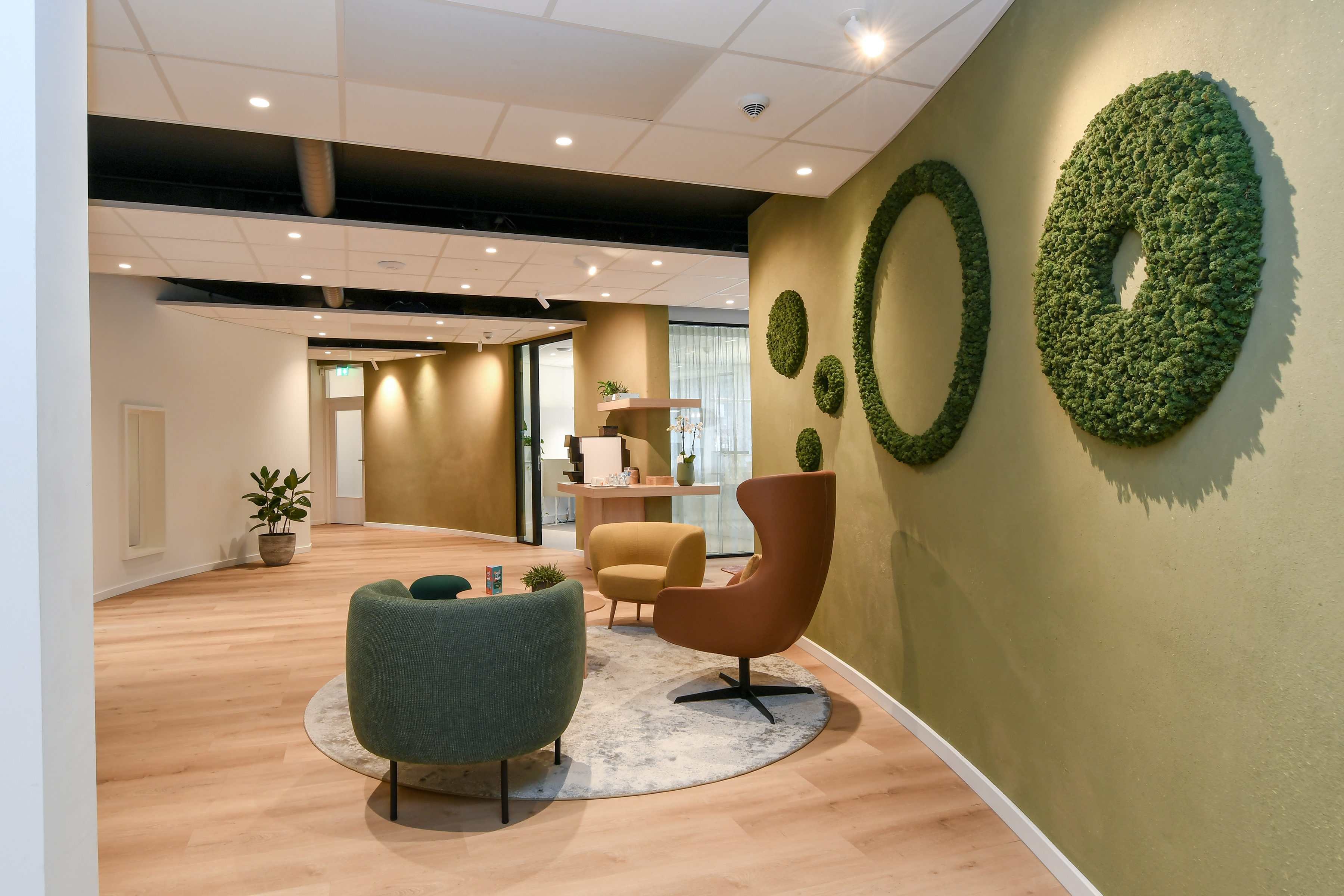

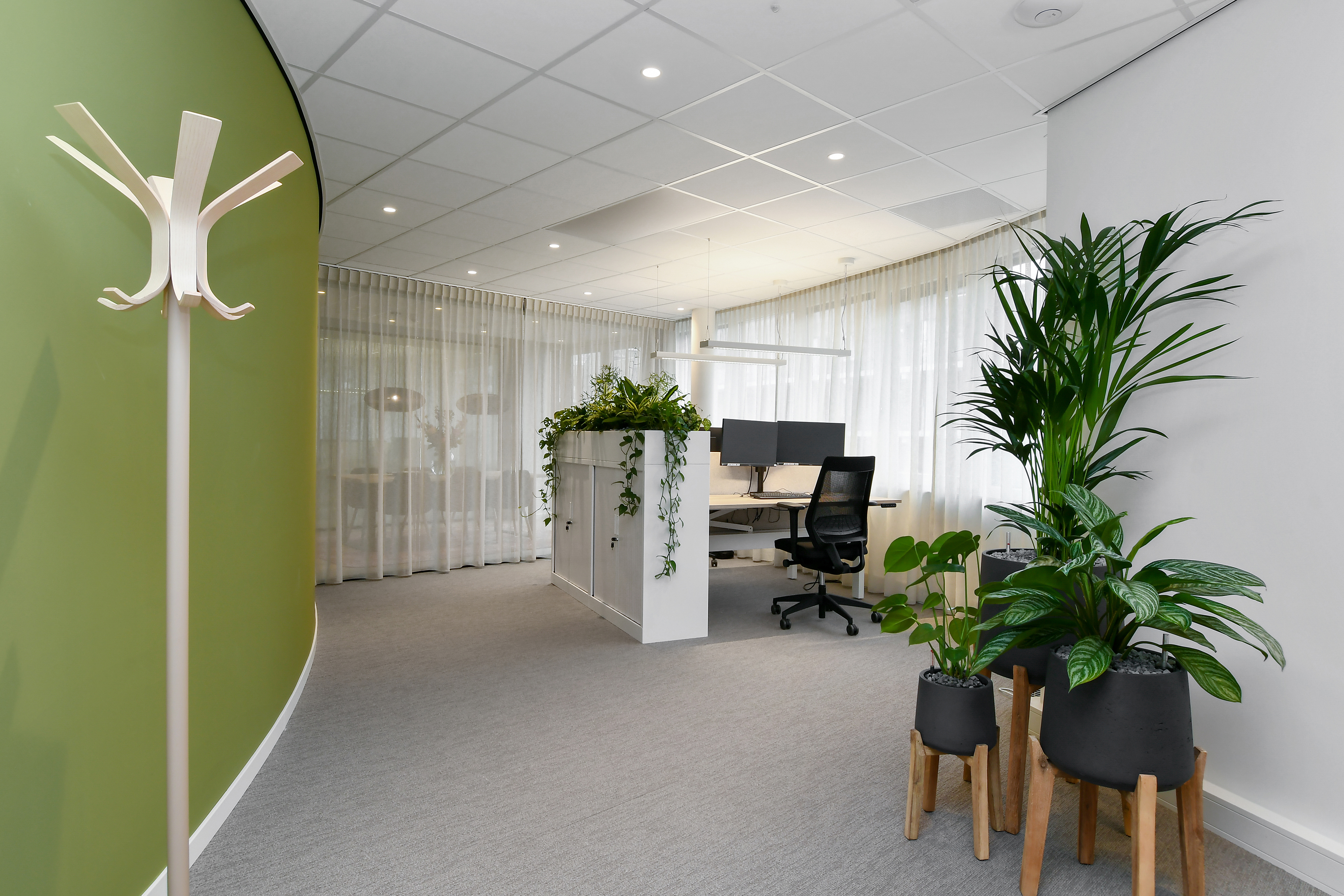

Application pictures
