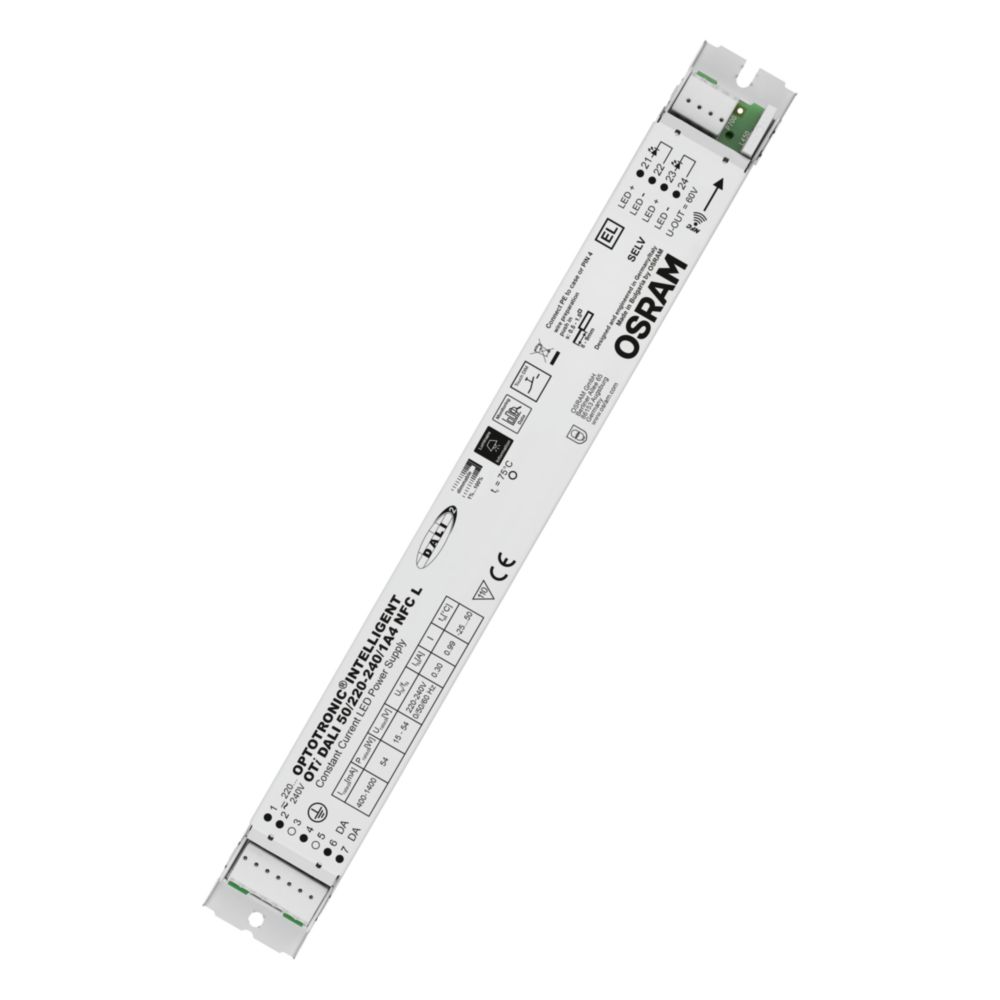

OTi DALI 50/220...240/1A4 NFC L

GTIN: 4062172074988 Unpacked / 1 Show all packages

Fully programmable via software (DALI Interface, NFC)
Advanced luminaire/driver data (power, energy, operating hours…) for analytics
DALI-2 certified incl. Parts 251, 252, 253
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
High-quality dimming of 1…100 % by amplitude dimming
Higher quality of light thanks to < 3 % output ripple current
Very high efficiency
Very low standby power consumption: < 0.15 W
Fulfill safety requirement due to overload, overtemperature, Hot Plug protection

Linear lighting for office, education, industry, storage areas and retail
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for luminaires of protection class I

Nominal wattage	54.00 W
Nominal output power	50 W
Nominal voltage	220…240 V
Nominal output voltage	15…54 V
Input voltage AC	198…264 V
Input voltage DC	176…276 V
U-OUT (working voltage)	60 V
Nominal output current	600…1400 mA
Inrush current	≤ 20 A
Output current tolerance	±3 %
Output ripple current (100 Hz)	≤ 3 %
Mains frequency	0/50/60 Hz
Total harmonic distortion	≤ 10 %
Power factor λ	≥ 0.95
ECG efficiency	up to 91 %
Device power loss	5 W
Max. ECG no. on circuit breaker 10 A (B)	12
Max. ECG no. on circuit breaker 16 A (B)	20
Max. ECG no. on circuit breaker 25 A (B)	-
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	SELV
Operating frequency	0/50/60 Hz
Power loss in stand-by mode	≤0.15 W
Flickering metric (Pst LM)	≤1

Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0.4

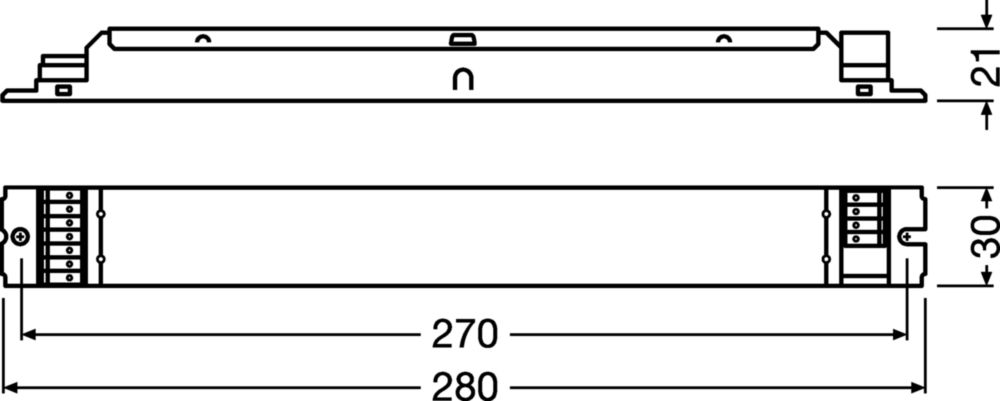

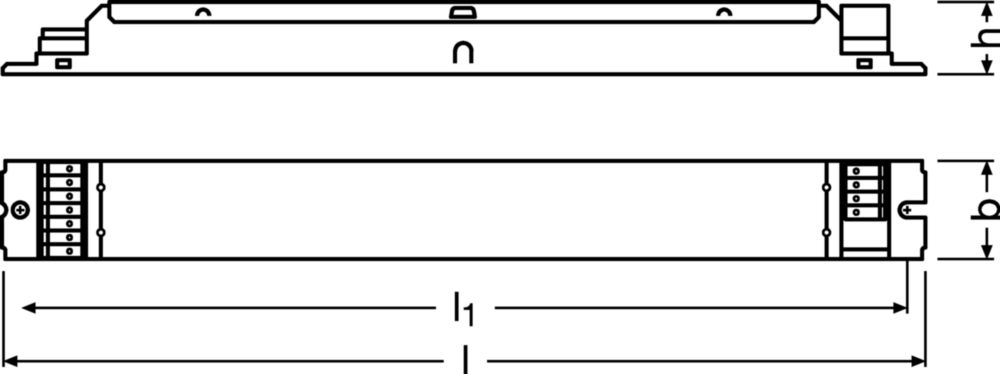

Length	280.00 mm
Mounting hole spacing, length	270,0 mm
Width	30.00 mm
Height	21.00 mm
Cable cross-section, input side	0.5…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Wire preparation length, input side	8.0…9.0 mm
Wire preparation length, output side	8.0…9.0 mm
Product weight	209.00 g

Casing material	Metal
Body material	Metal

Ambient temperature range	-25…+60 °C
Maximum temperature at tc test point	75 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

100000 h

Encapsulated

Dimmable	Yes
Dimming interface	DALI
Dimming range	1…100 %
Overheating protection	Yes
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	2,0 m
Suitable for fixtures with prot. class	I
Suitable for emergency lighting	Yes
Type of connection, output side	Push terminal

Approval marks – approval	CE, VDE-ENEC, EAC, CCC, BIS, RCM
Standards	Acc. to IEC 61347-1, Acc. to IEC 61347-2-13, Acc. to IEC 62384, Acc. to IEC 62386, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3, Acc. to IEC 61347
Protection class	I
Type of protection	IP20
Energy efficiency class	A1

Temperature range at storage

-40…+85 °C

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
