Coming soon
SMART+ Matter Wall Twist
SMART+ Matter Wall Twist White 230x127mm Tunable White
GTIN: 4099854475078
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: WiFi
Equipment / Accessories
- Mounting bracket included
- Mounting screws and dowels included
- Control via app or voice control requires compatible Smart home system
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 12.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 100.000 mA |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 900 lm |
| Total luminous flux of contained light sources | 1200 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 3000…6500 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 127.00 mm |
| Height | 230.00 mm |
| Width | 95.00 mm |
| Product weight | 590.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 15000 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from October 2025, Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times. |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854475078 | Folding box 1 |
100 mm x 136 mm x 280 mm | 698.00 g | 3.81 dm³ |
| 4099854475085 | Shipping box 4 |
290 mm x 216 mm x 300 mm | 3302.00 g | 18.79 dm³ |
User instruction / safety instructions
G11240113 SMART WFMTDECORWALLTWIST
G11240113 SMART WFMTDECORWALLTWIST
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11243080
Safety Insert G11243080
Legal information
Legal Insert G11230649
Legal Insert G11230649
Declarations of conformity
EC declaration_Wall lamp
EC declaration_Wall lamp
EU Data Act
SMART MATTER Lamps Luminaires Plugs
SMART MATTER Lamps Luminaires Plugs
EU Data Act
SMART WiFi Lamps and Luminaires
SMART WiFi Lamps and Luminaires
Product image: white background, upright
SMART WIFI ORBISW TWIST 230X127TW WT
SMART WIFI ORBISW TWIST 230X127TW WT
Product image: white background, upright, alternative image
SMART WIFI ORBISW TWIST 230X127TW WT
SMART WIFI ORBISW TWIST 230X127TW WT
Product line drawing with letters
SMART WIFI ORBISW TWIST
SMART WIFI ORBISW TWIST
Product line drawing with numbers
SMART WIFI ORBISW TWIST
SMART WIFI ORBISW TWIST
Product line drawing, front, no dimensions
SMART WIFI ORBISW TWIST
SMART WIFI ORBISW TWIST

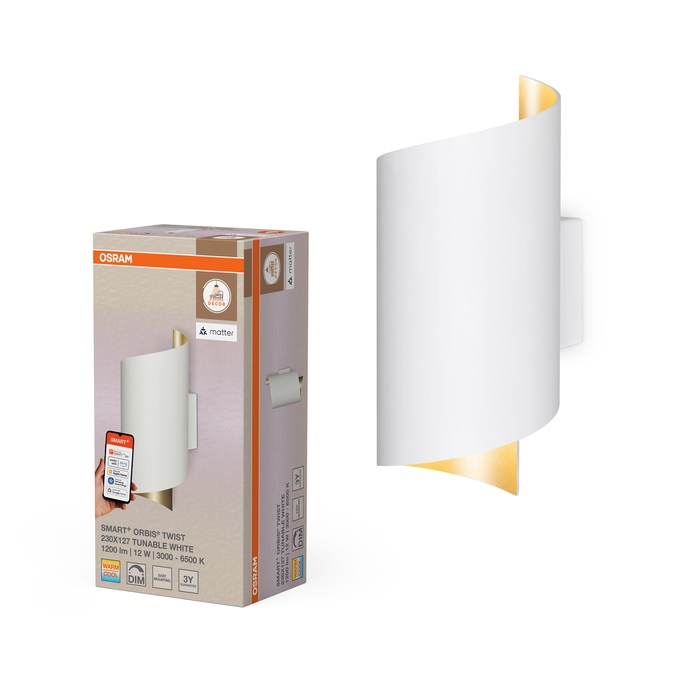

Combo Shot = Product Beauty Shot + Packaging Image
