SMART+ Matter Planon Frameless Sparkle

SMART+ Matter Planon Frameless Sparkle 450x450mm Tunable White

GTIN: 4099854473487 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Creating individual light scenes according to your needs with cold white to warm white (3000 K to 6500 K)
  • Elegant design
  • Sparkle effect that creates a sky night effect
  • Easy and quick installation
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children's rooms or home offices
Product features
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Adjustable color temperature via Tunable White: 3,000…6,500 K
  • Dimmable
  • Network protocol: Matter over WiFi (2.4 GHz)
  • Sparkle effect
Equipment / Accessories
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Control via app or voice control requires compatible Smart home system
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 24.50 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 135.000 mA
Inrush current time Th50 1900 µs
Max. number of luminaires per miniature circuit breaker B16 29
Max. number of luminaires per miniature circuit breaker C16 49
Power factor λ ≥0.7
Total harmonic distortion < 20 %
Protection class I
Photometrical data
Luminous flux 1300 lm
Total luminous flux of contained light sources 2250 lm
Luminous efficacy 53 lm/W
Color temperature 3000…6500 K
Light color (designation) Tunable White
Color rendering index Ra > 80
Standard deviation of color matching ≤6 sdcm
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 °
Dimensions & Weight
Length 450.00 mm
Height 63.00 mm
Width 450.00 mm
Product weight 2970.00 g
Materials & Colors
Product color White
Housing color White
Body material Steel
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP20
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Application environment Indoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Available from October 2025, Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times.
Number of illuminants empty
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854473487 Folding box
1
82 mm x 502 mm x 503 mm 3583.00 g 20.71 dm³
4099854473494 Shipping box
4
525 mm x 347 mm x 528 mm 15343.00 g 96.19 dm³
User instruction / safety instructions
G11240110 SMART WIFI MAT PLANONFLSPARK
Legal information
Informationstext 18 Abs 4 ElektroG
Legal information
Safety insert G11243082
Legal information
Legal Insert G11244761
Declarations of conformity
SMART WIFI
EU Data Act
SMART MATTER Lamps Luminaires Plugs
EU Data Act
SMART WiFi Lamps and Luminaires

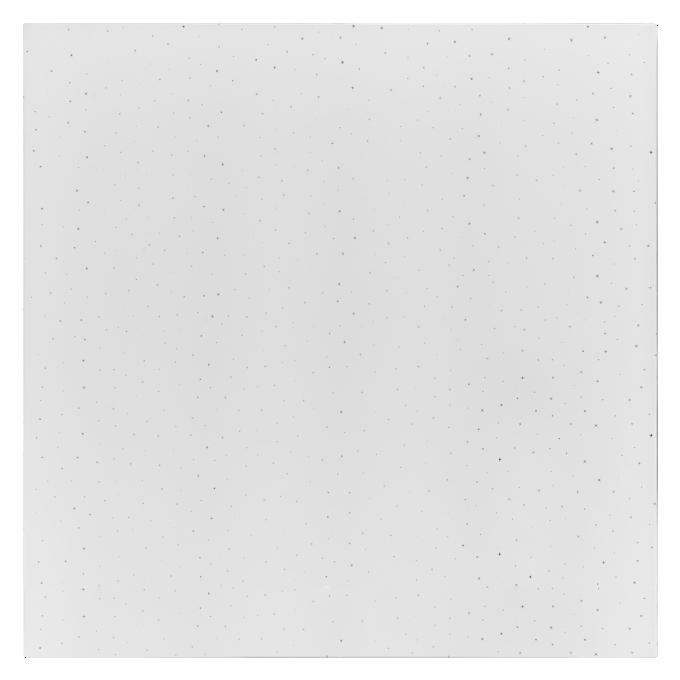

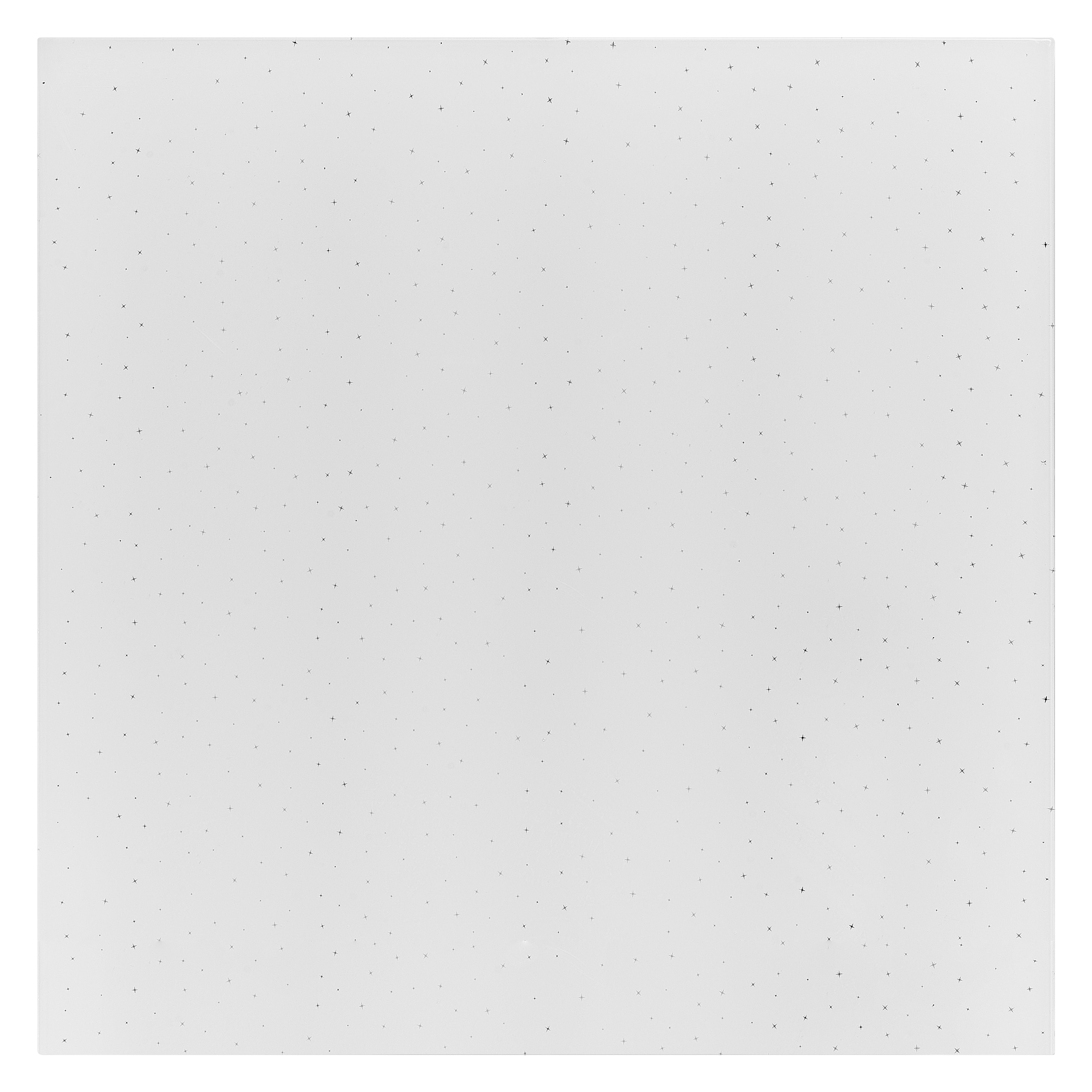

Product image: white background, upright
SMART WIFI PLANONFL SPARK

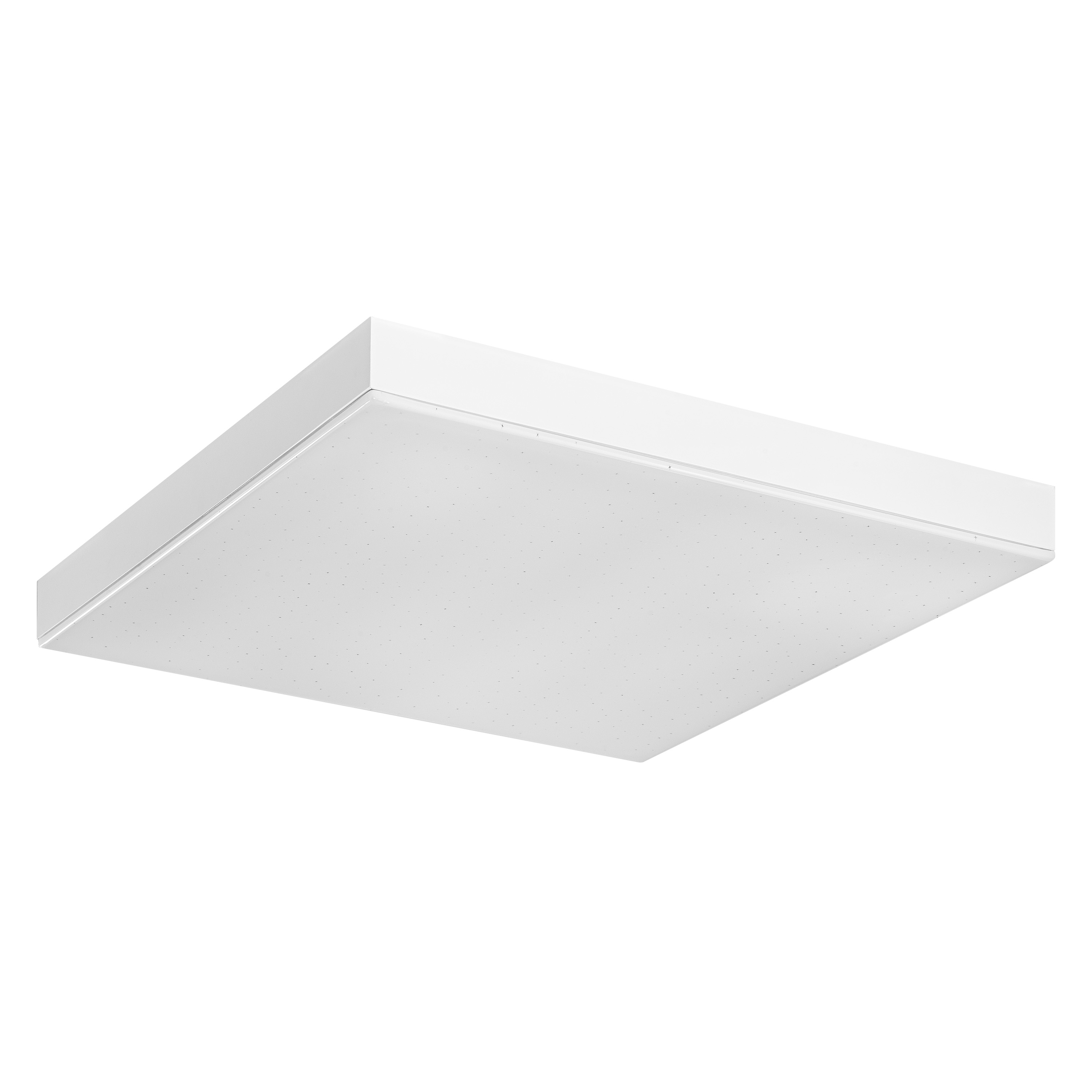

Product image: white background, upright, alternative image
SMART WIFI PLANONFL SPARK

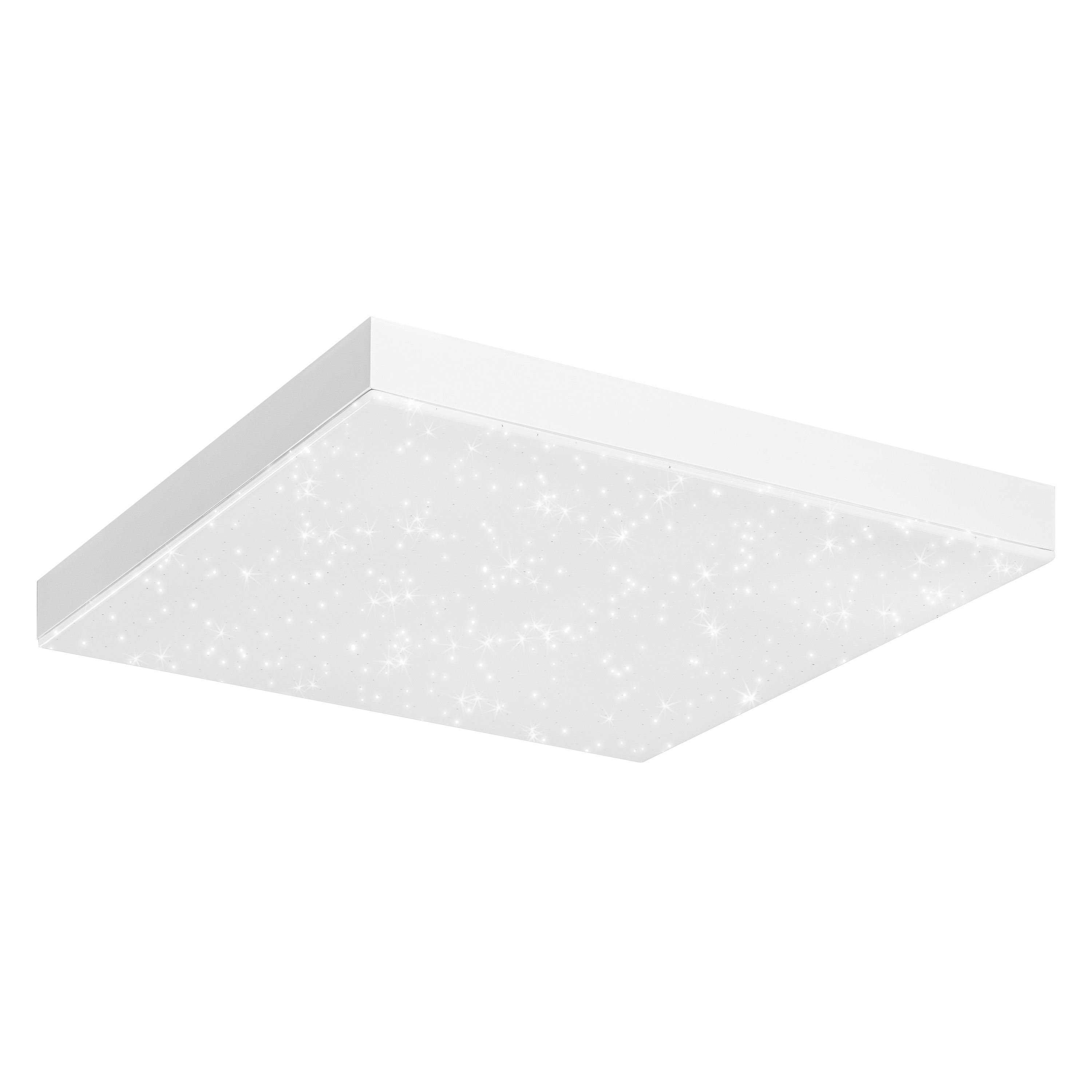

Product image: white background, upright, switched on
SMART WIFI PLANONFL SPARK

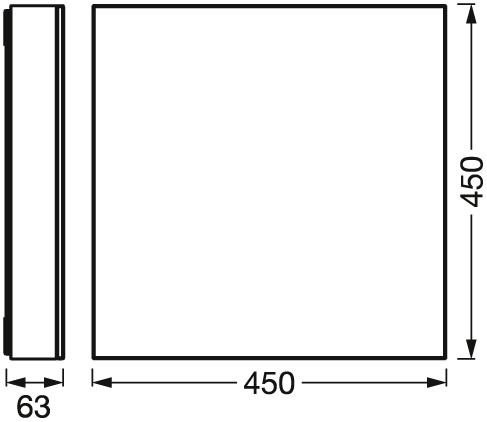

Product line drawing with letters
SMART WIFI PLANONFL SPARK
Product line drawing with numbers
SMART WIFI PLANONFL SPARK
Product line drawing, front, no dimensions
SMART WIFI PLANONFL SPARK

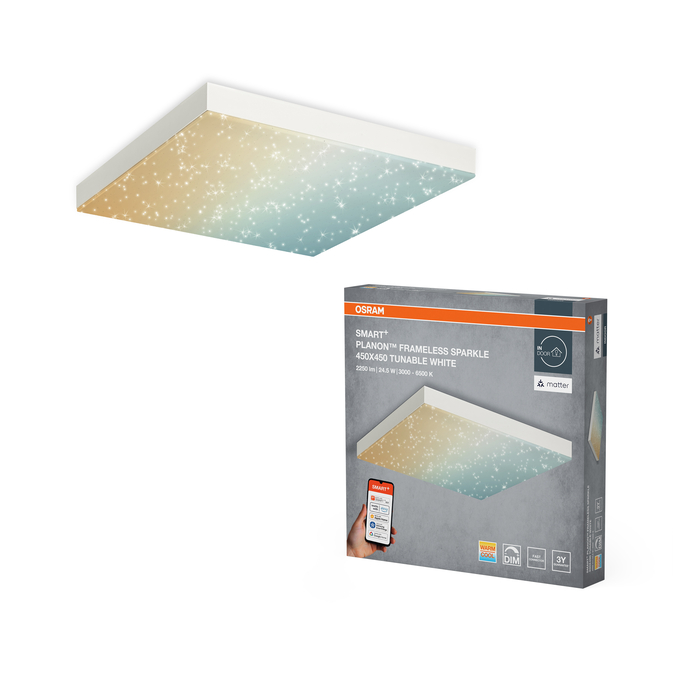

Combo Shot = Product Beauty Shot + Packaging Image
