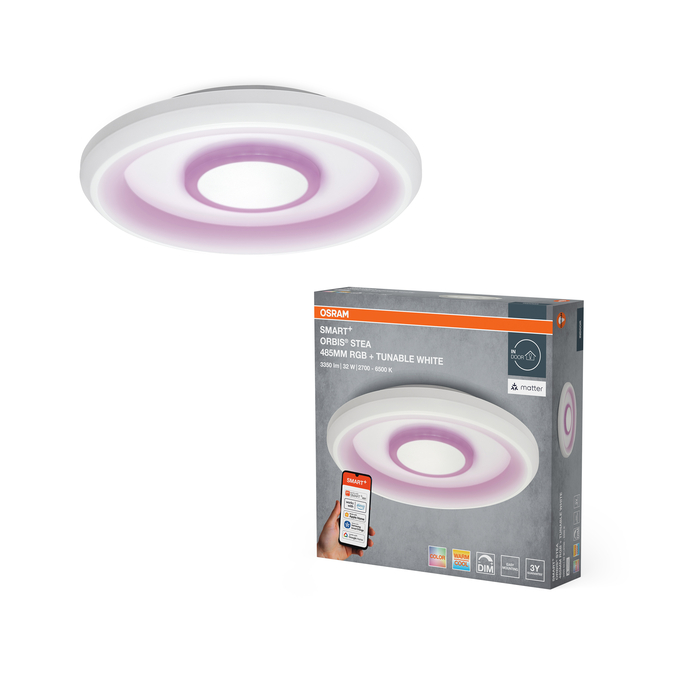

SMART+ Matter Stea 485mm Multicolor

Coming soon

SMART+ Matter Stea

GTIN: 4099854473623 Folding box / 1 Show all packages

Download data sheet

Our warranty conditions

PRODUCT DETAILS

Product benefits

Creating individual light scenes according to your needs with cold white to warm white (3000 K to 6500 K)
2 independent main lights
TW and RGB
Easy and quick installation

Areas of application

Indoor applications
Kitchens, living rooms, children's rooms or home offices

Product features

Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Controllable via voice control available: Google Assistant or Amazon Alexa
RGB color control, approx. 16 million color options adjustable
Adjustable color temperature via Tunable White: 3,000…6,500 K
Dimmable
Network protocol: Matter over WiFi (2.4 GHz)

Equipment / Accessories

For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Control via app or voice control requires compatible Smart home system
Complete mounting and connecting accessories included

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Check wall-ceiling for suitability. If uncertain, seek professional advice.

References / Links

Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq

Electrical data

Nominal wattage	32.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	140.000 mA
Inrush current time T_h50	350 µs
Max. number of luminaires per miniature circuit breaker B16	5
Power factor λ	0.90
Total harmonic distortion	< 20 %
Protection class	I
Operating mode	External LED driver

Photometrical data

Luminous flux	1950 lm
Total luminous flux of contained light sources	3350 lm
Luminous efficacy	222 lm/W
Color temperature	2700…6500 K
Light color (designation)	Tunable White
Color rendering index Ra	> 80
Standard deviation of color matching	< 6 sdcm
Photobiological safety group acc. to EN62778	RG0
Photobiological safety group acc. to EN62471	RG0
Beam angle	110 °

Dimensions & Weight

Diameter	485.00 mm
Height	80.00 mm
Product weight	2900.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Steel
Cover material	Polycarbonate (PC)
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+45 °C
Temperature range at storage	-20…+80 °C
Type of connection	Screw terminal
Type of protection	IP20
Protection class IK (shock resistance)	IK03
Dimmable	Yes
Type of dimming	WiFi
Mounting type	Surface
Application environment	Indoor
With light source	Yes

Lifespan

Lifespan L70/B50 at 25 °C	30000 h
Number of switching cycles	15000

Emergency lighting

Type of emergency operation test

None

Certificates & Standards

Standards	CE, UKCA
Luminaire with limited surface temperature, "D sign"	No
Replaceable light source (EPREL)	Not replaceable

Additional product data

Product remark

Available from October 2025, Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times.

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
