SMART+ WIFI ORBIS WALL WAVE
SMART+ Wifi Orbis Wall Wave IP44 320mm TW
GTIN: 4058075573802
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Steerable
Areas of application
- Bathrooms
Product features
- Type of protection: IP44
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: WiFi
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Mounting bracket included
- Mounting screws and dowels included
- Control via app or voice control requires compatible Smart home system
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 15.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 64.000 mA |
| Inrush current | 1.57 A |
| Inrush current time Th50 | 100 µs |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 800 lm |
| Total luminous flux of contained light sources | 1400 lm |
| Luminous efficacy | 50 lm/W |
| Color temperature | 3000…6500 K |
| Reference control setting of contained light source (Kelvin) | 3000 K 1) |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |
1) Performing a reset will restore the default values set by the manufacturer
Dimensions & Weight
| Length | 320.00 mm |
| Height | 93.00 mm |
| Width | 120.00 mm |
| Product weight | 990.00 g |
Materials & Colors
| Product color | Silver |
| Housing color | Silver |
| Body material | Polymethylmethacrylate (PMMA) |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 15000 |
Emergency lighting
| Type of emergency operation test | None |
| Integrated test switch | No |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075573802 | Folding box 1 |
115 mm x 150 mm x 390 mm | 1152.00 g | 6.73 dm³ |
| 4058075573819 | Shipping box 4 |
318 mm x 248 mm x 410 mm | 5335.00 g | 32.33 dm³ |
User instruction / safety instructions
SMART WIFI ORBIS WAVE TW IP44
SMART WIFI ORBIS WAVE TW IP44
Legal information
Legal insert Residential luminaires
Legal insert Residential luminaires
Declarations of conformity
CE Declaration Smart Orbis
CE Declaration Smart Orbis

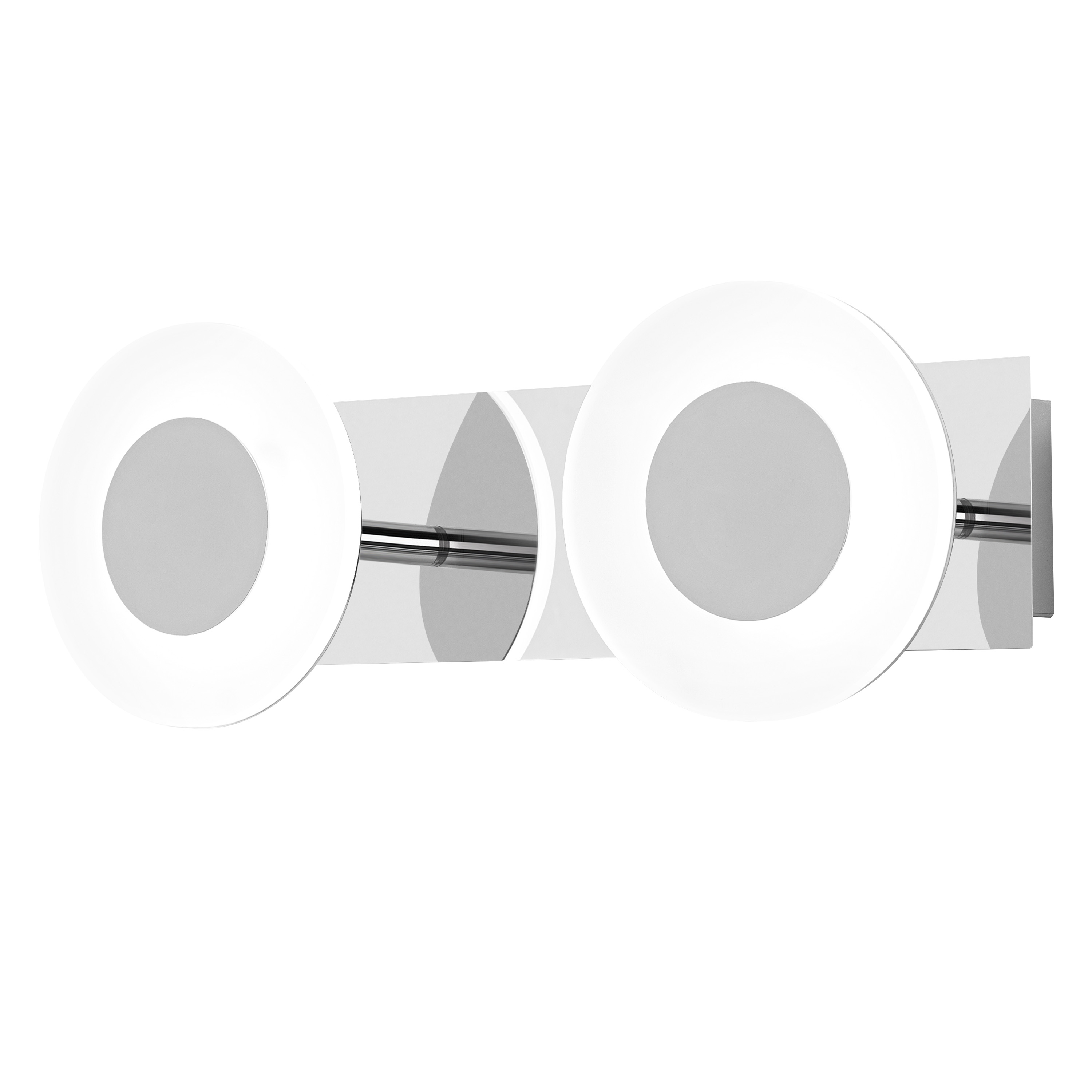

Product image: white background, upright
SMART WIFI ORBIS WAVE 320 IP44 TWCR
SMART WIFI ORBIS WAVE 320 IP44 TWCR

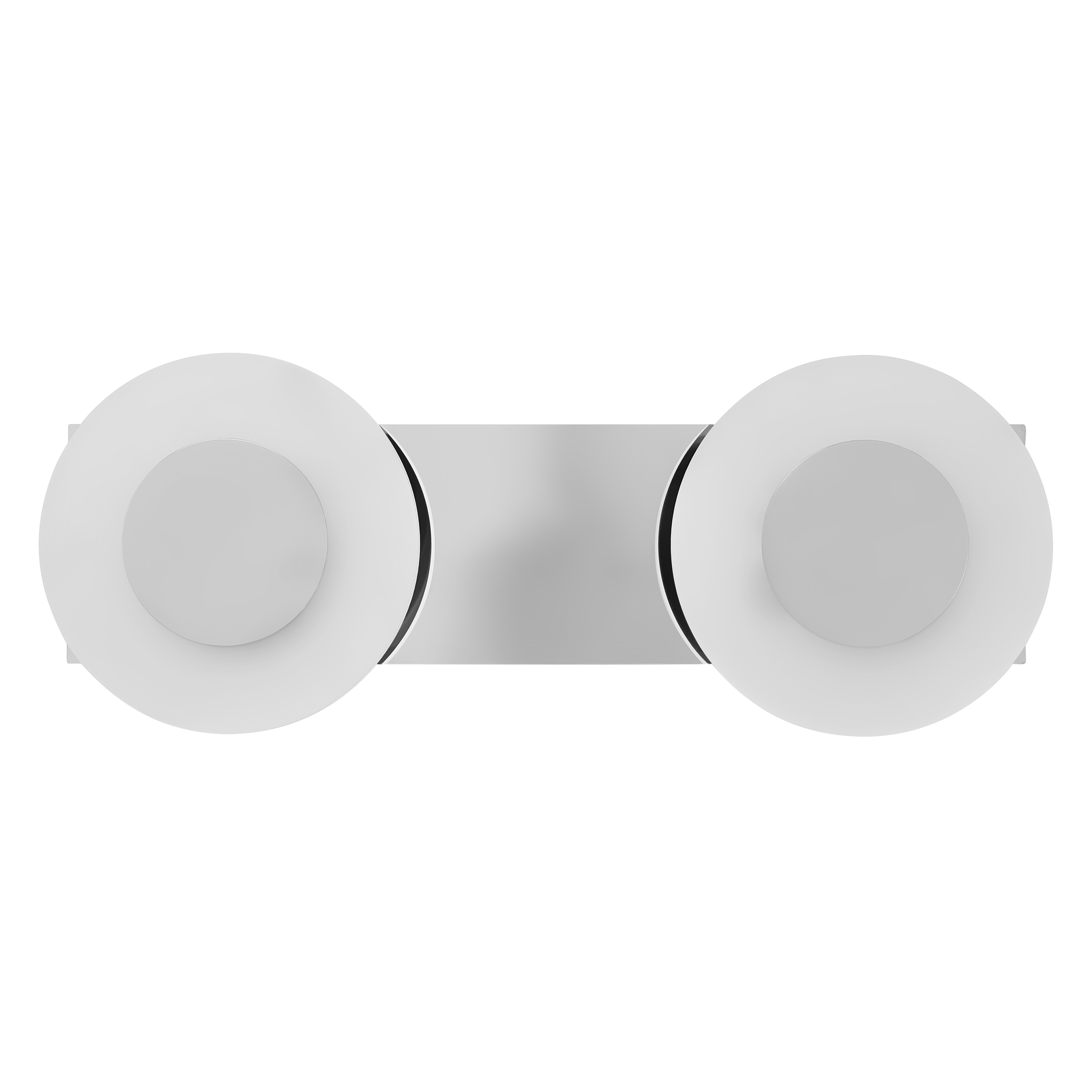

Product image: white background, upright, alternative image
SMART WIFI ORBIS WAVE 320 IP44 TWCR
SMART WIFI ORBIS WAVE 320 IP44 TWCR
Product image: white background, upright, switched on
SMART WIFI ORBIS WAVE 320 IP44 TWCR
SMART WIFI ORBIS WAVE 320 IP44 TWCR
Product infographic (application image with text and graphic)
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
SMART WIFI ORBIS WAVE 320 IP44 TWCR
SMART WIFI ORBIS WAVE 320 IP44 TWCR
Product line drawing with numbers
SMART WIFI ORBIS WAVE 320 IP44 TWCR
SMART WIFI ORBIS WAVE 320 IP44 TWCR
Product line drawing, front, no dimensions
SMART WIFI ORBIS WAVE 320 IP44 TWCR
SMART WIFI ORBIS WAVE 320 IP44 TWCR

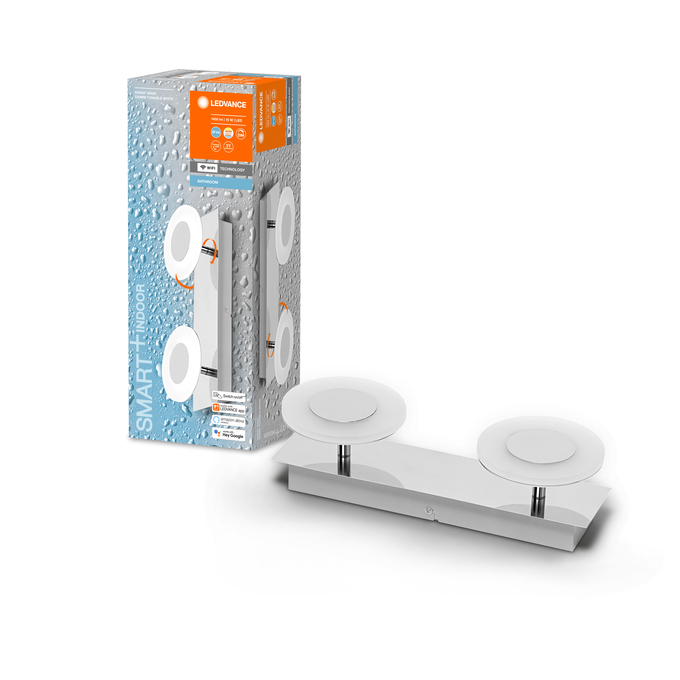

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI WAVE 320 TW CR MiPRC
SH FC WIFI WAVE 320 TW CR MiPRC

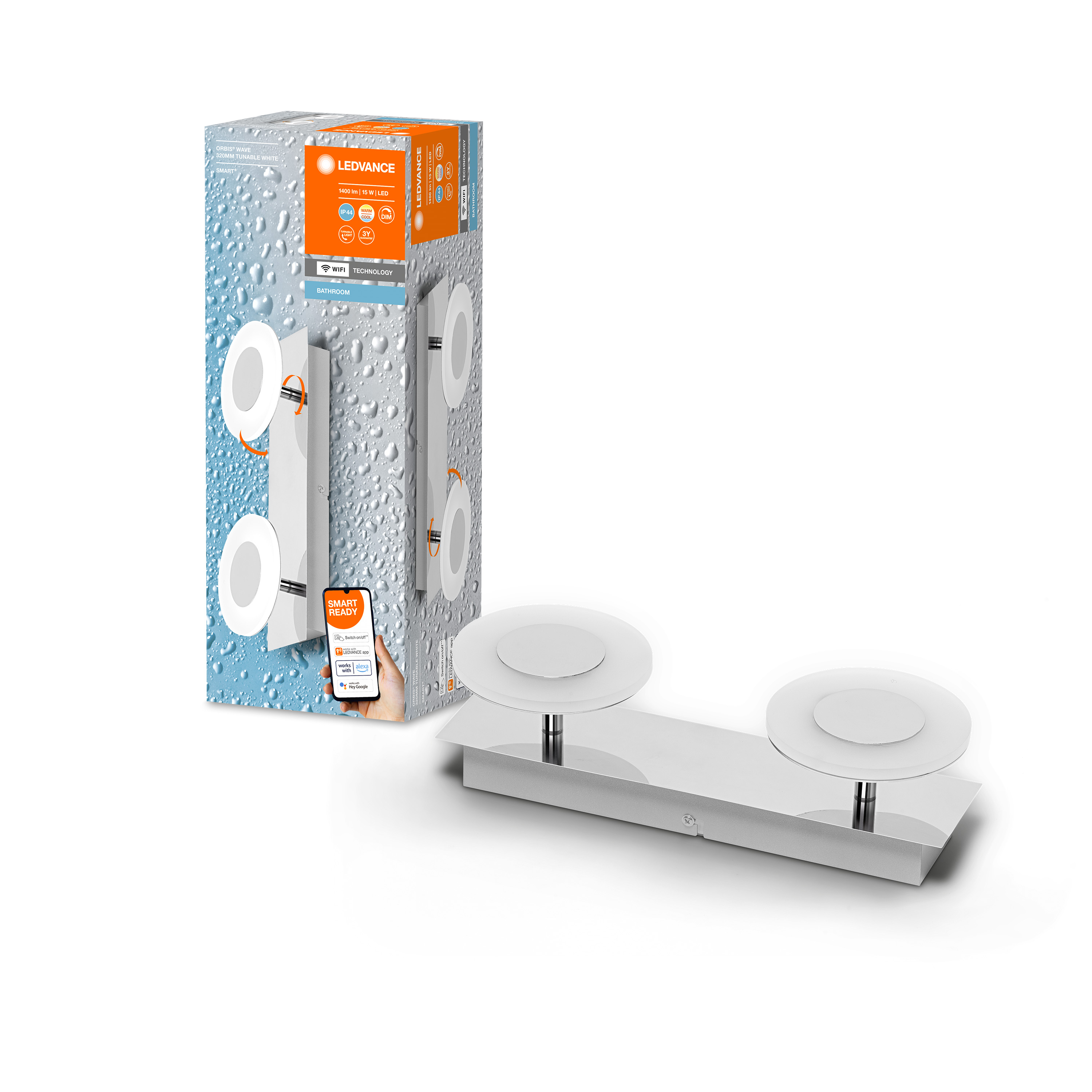

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI WAVE 320 IP44 TW CR MiPRC
SH FC WIFI WAVE 320 IP44 TW CR MiPRC
Packaging image, frontal
SH FC WIFI WAVE 320 TW CR MiPRC
SH FC WIFI WAVE 320 TW CR MiPRC
Packaging image, spacial
SH FC WIFI WAVE 320 TW CR MiPRC
SH FC WIFI WAVE 320 TW CR MiPRC

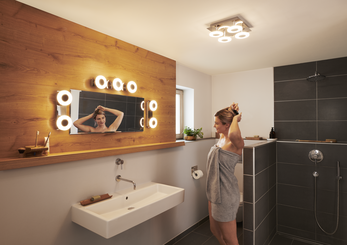

Application pictures
Smart WIFI Wall Orbis Wave w model ww
Smart WIFI Wall Orbis Wave w model ww

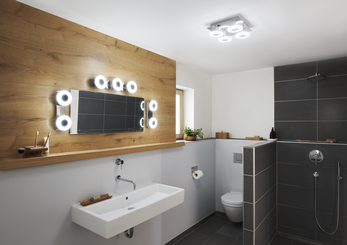

Application pictures
Smart WIFI Wall Orbis Wave w o model cw
Smart WIFI Wall Orbis Wave w o model cw
| EAN | ELDAS number |
|---|---|
| 4058075573802 | 941264820 |
