Sun@Home Bathroom

SUN@HOME Bathroom Round 300mm

GTIN: 4058075750630 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Adapts the light according to your Biorhythm: the right light at the right time
  • Enable increased concentration and efficiency
  • Improve overall activity level and daytime alertness
  • Improve sleeping rhythm and –intensity
  • Improve optic convenience
  • Enables an improved level of clean-air-safety by killing residential germs and bad odors
  • Homogenous light distribution
  • Easy and quick installation
Areas of application
  • Indoor applications
  • Bathrooms (IP44)
  • Living areas
Product features
  • Automated biorhythm feature
  • Innovative Fullspectrum SunLike LEDs with CRI95
  • SunLike LEDs with reduced Blue Light in LED Spectrum
  • Innovative luminaire coating-technology fighting household germs and odors
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Adjustable color temperature via Tunable White: 2,200…5,000 K
  • Dimmable
  • Suitable for bathroom use (IP44)
Equipment / Accessories
  • Complete mounting and connecting accessories included
  • Control via app or voice control requires compatible Smart home system
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 14.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 60 mA
Inrush current 0.06 A
Inrush current time Th50 1900 µs
Max. number of luminaires per miniature circuit breaker B16 14
Max. number of luminaires per miniature circuit breaker C16 24
Power factor λ ≥ 0.07
Total harmonic distortion < 20 %
Protection class II
Operating mode Mains voltage
Photometrical data
Luminous flux 460 lm
Total luminous flux of contained light sources 1040 lm
Luminous efficacy 45 lm/W
Color temperature 2200…5000 K
Reference control setting of contained light source (Kelvin) 2700 K
Light color (designation) Tunable White
Color rendering index Ra > 95
Standard deviation of color matching < 6 sdcm
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 110 °
Dimensions & Weight
Length 305.00 mm
Height 112.00 mm
Width 102.00 mm
Product weight 750.00 g
Materials & Colors
Product color Silver
Housing color Silver
Body material Metal
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Terminal, 2-pin
Type of protection IP44
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Mounting location Wall, Ceiling
Application environment Indoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075750630 Folding box
1		 122 mm x 352 mm x 133 mm 899.00 g 5.71 dm³
4058075750647 Shipping box
8		 507 mm x 285 mm x 378 mm 8019.00 g 54.62 dm³
User instruction / safety instructions
UI SUN@HOME BATHROOM ROUND
PDF (1.78 MB)
Declarations of conformity
SUNATHOME BATHROOM ROUND
PDF (284.95 KB)

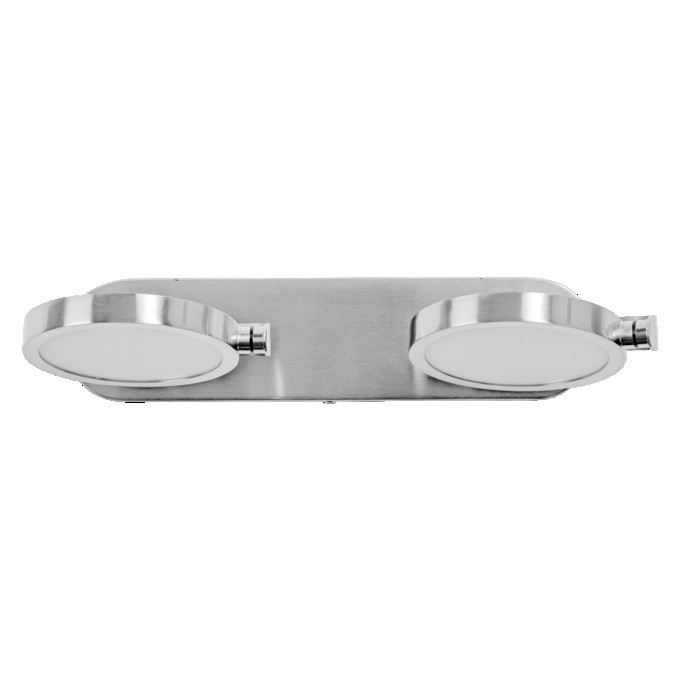

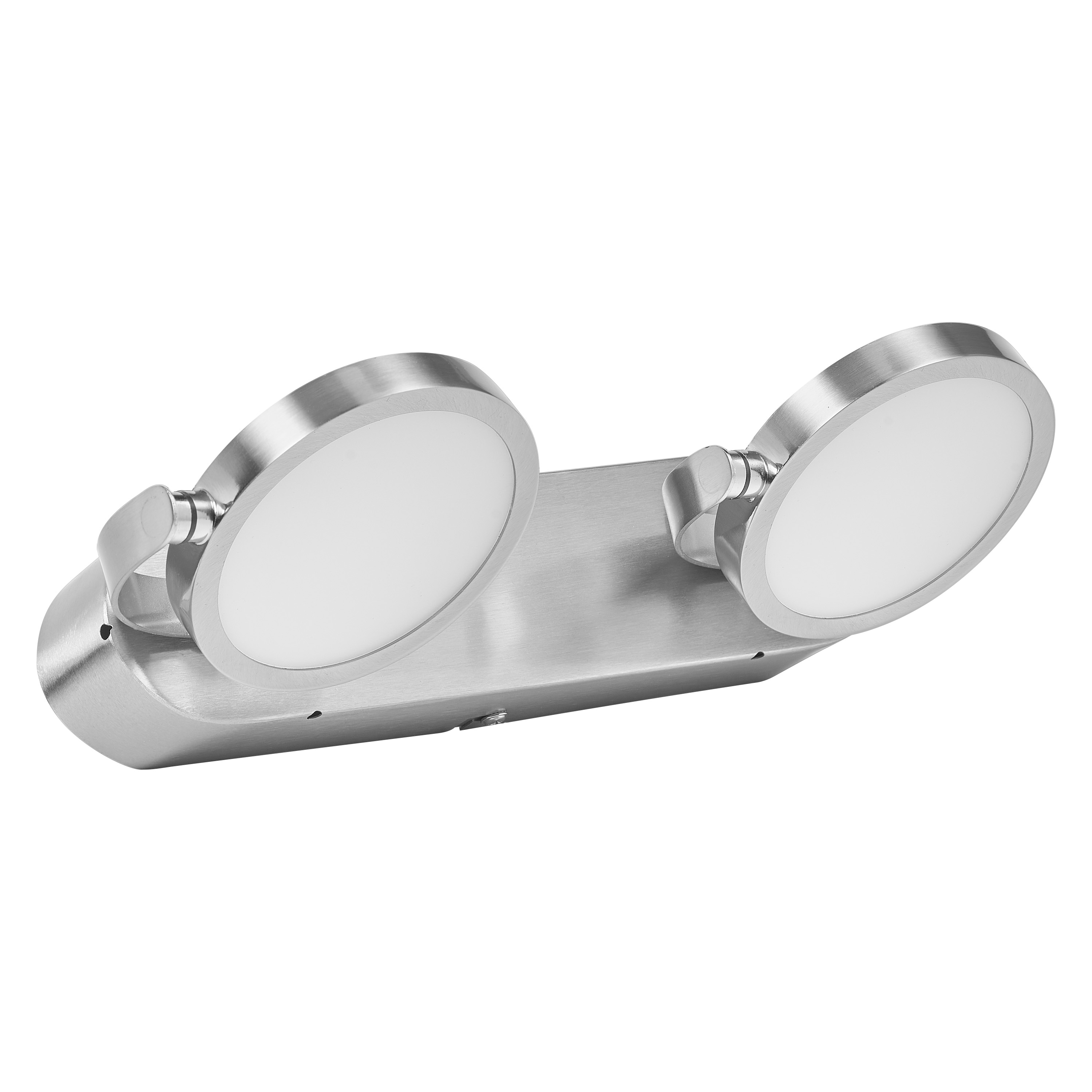

Product image: white background, upright
SUNATHOME BATHROOM ROUND
JPG (558.03 KB)

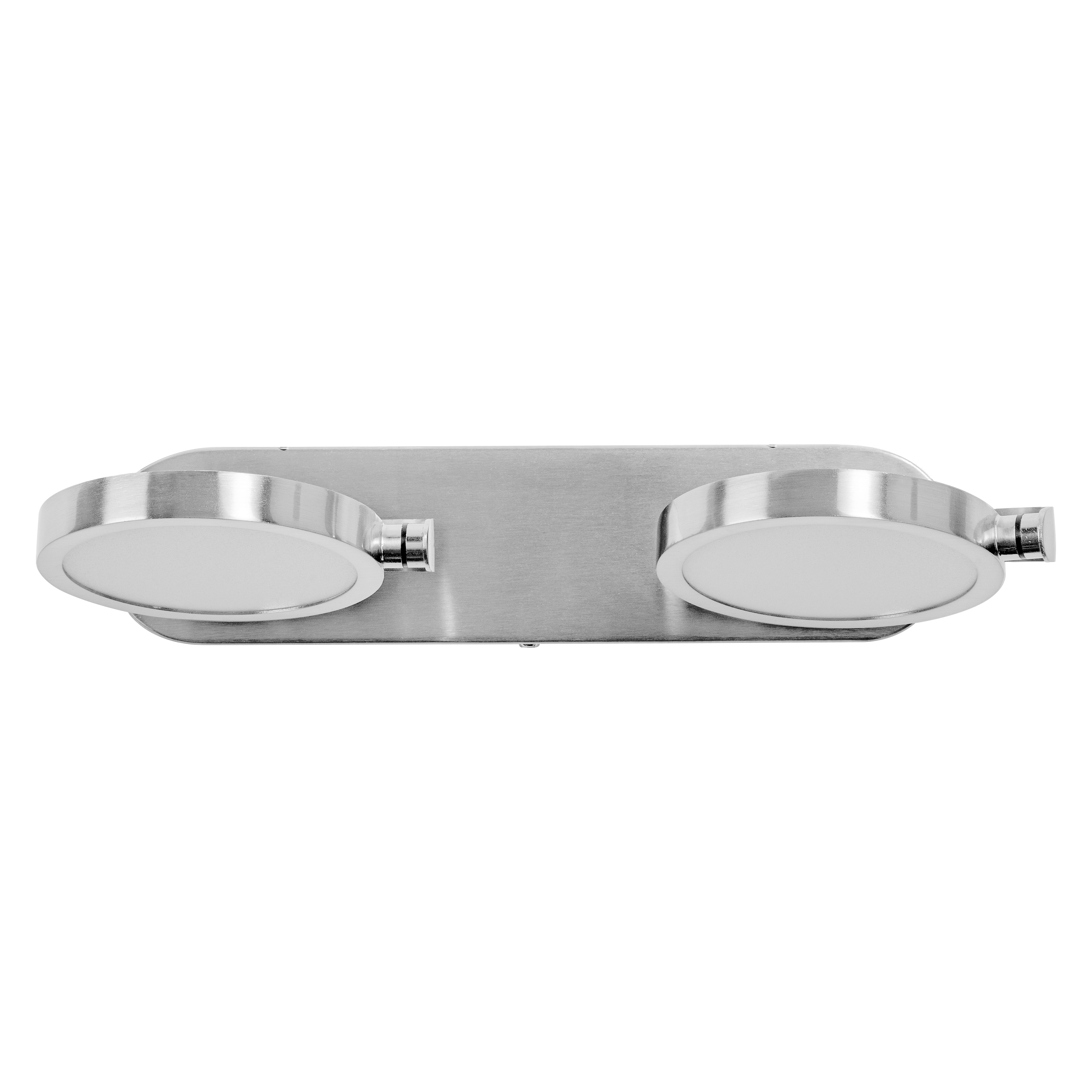

Product image: white background, upright, alternative image
SUNATHOME BATHROOM ROUND
JPG (549.25 KB)

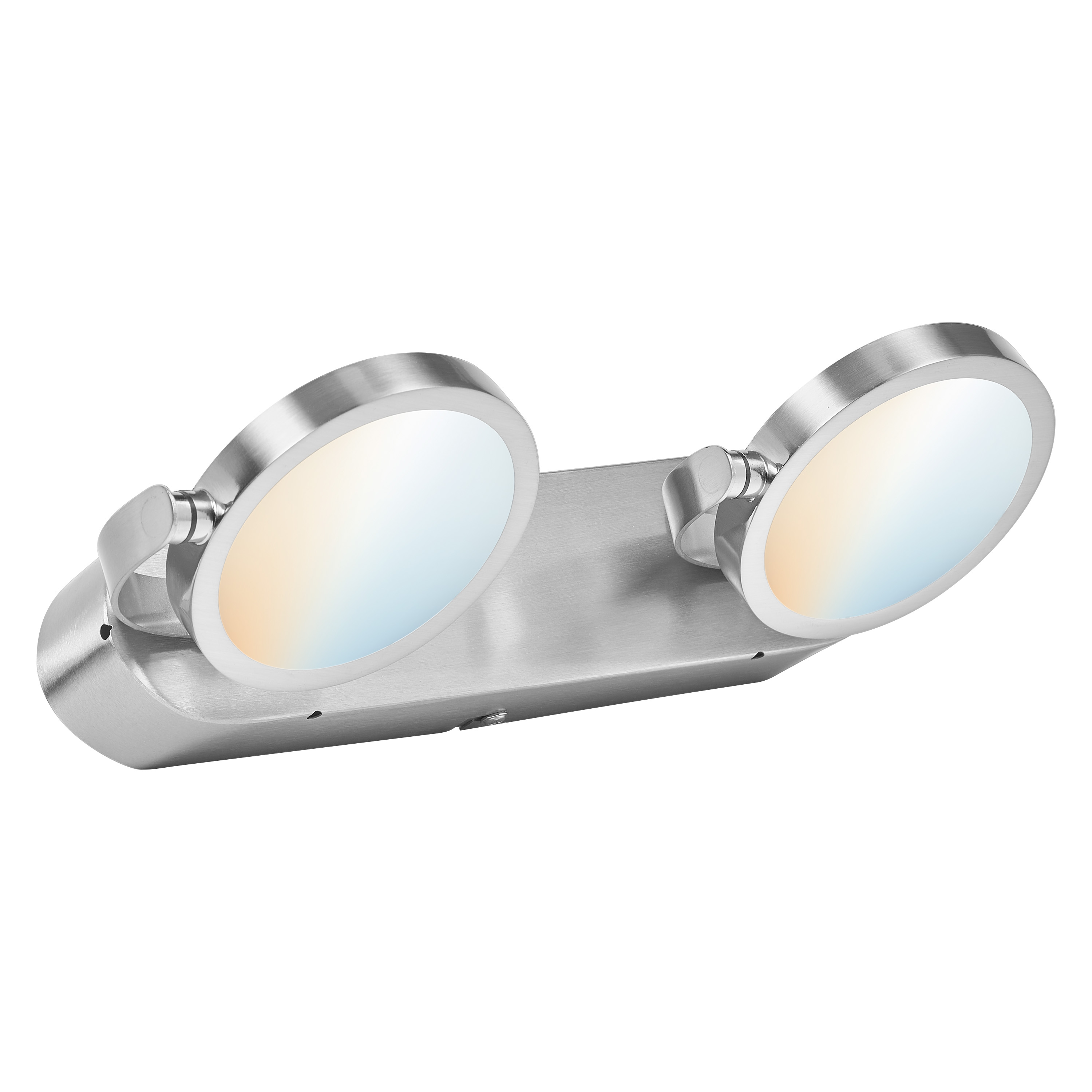

Product image: white background, upright, switched on
SUNATHOME BATHROOM ROUND
JPG (538.2 KB)
Product image: white background, upright, switched on
SUNATHOME BATHROOM ROUND
JPG (522.76 KB)

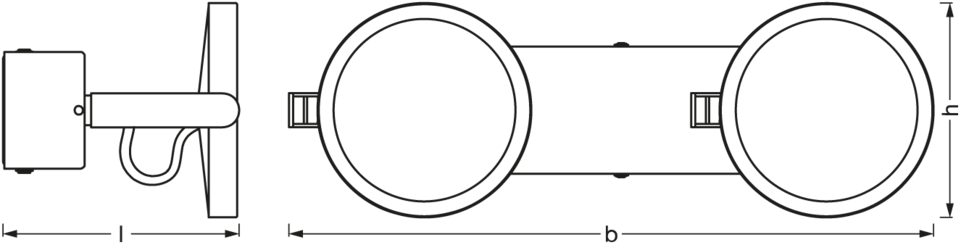

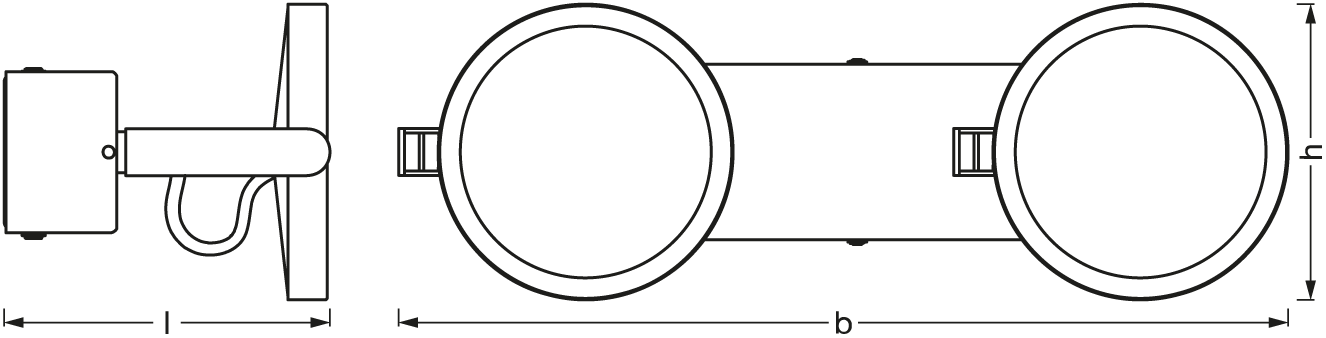

Product line drawing with letters
SUNATHOME BATHROOM ROUND
PNG (31.65 KB)
Product line drawing with numbers
SUNATHOME BATHROOM ROUND
PNG (26.06 KB)

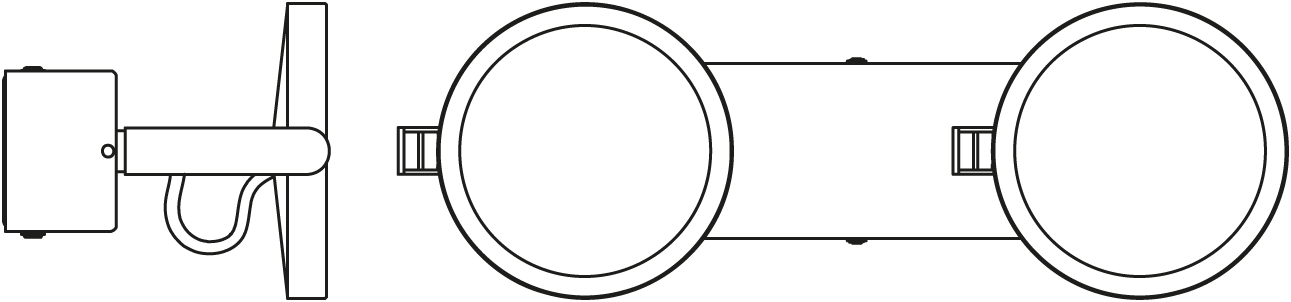

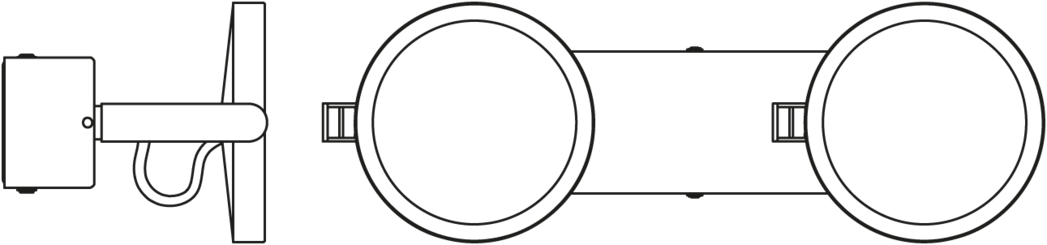

Product line drawing, front, no dimensions
SUNATHOME BATHROOM ROUND
PNG (27.91 KB)

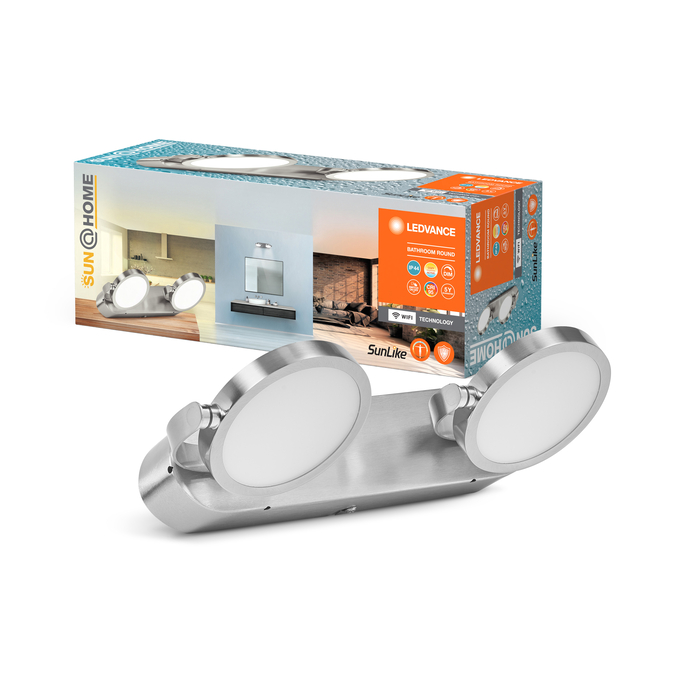

Combo Shot = Product Beauty Shot + Packaging Image
SH FC SUN BATH ROUND 300 IP44
JPG (937.97 KB)
Packaging image, frontal
SH FC SUN BATH ROUND 300 IP44 MiPRC
JPG (675.23 KB)
Packaging image, spacial
SH FC SUN BATH ROUND 300 IP44 MiPRC
JPG (874.02 KB)

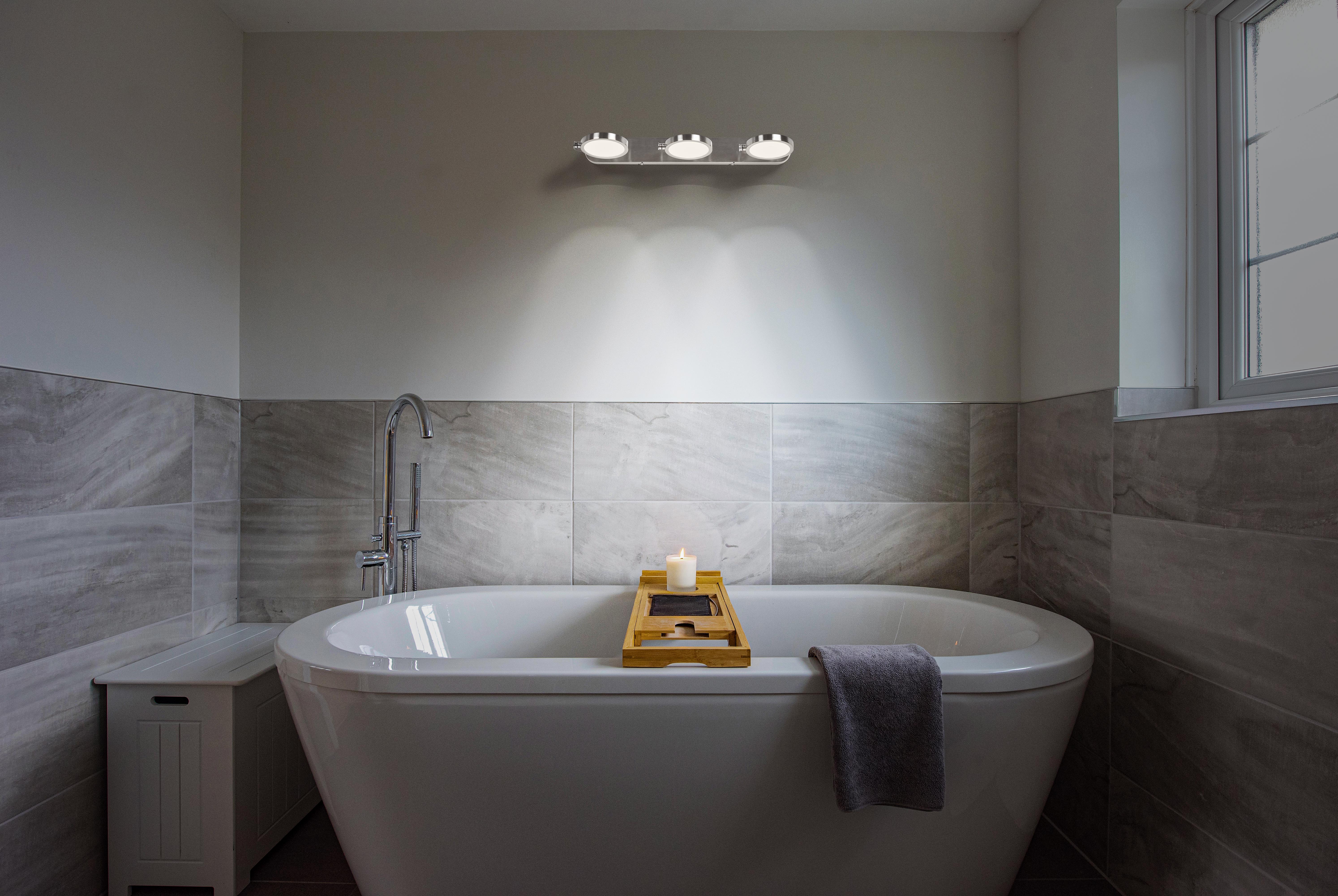

Application pictures Getty
SUNATHOME BATHROOM ROUND 300 5000K
JPG (3.07 MB)

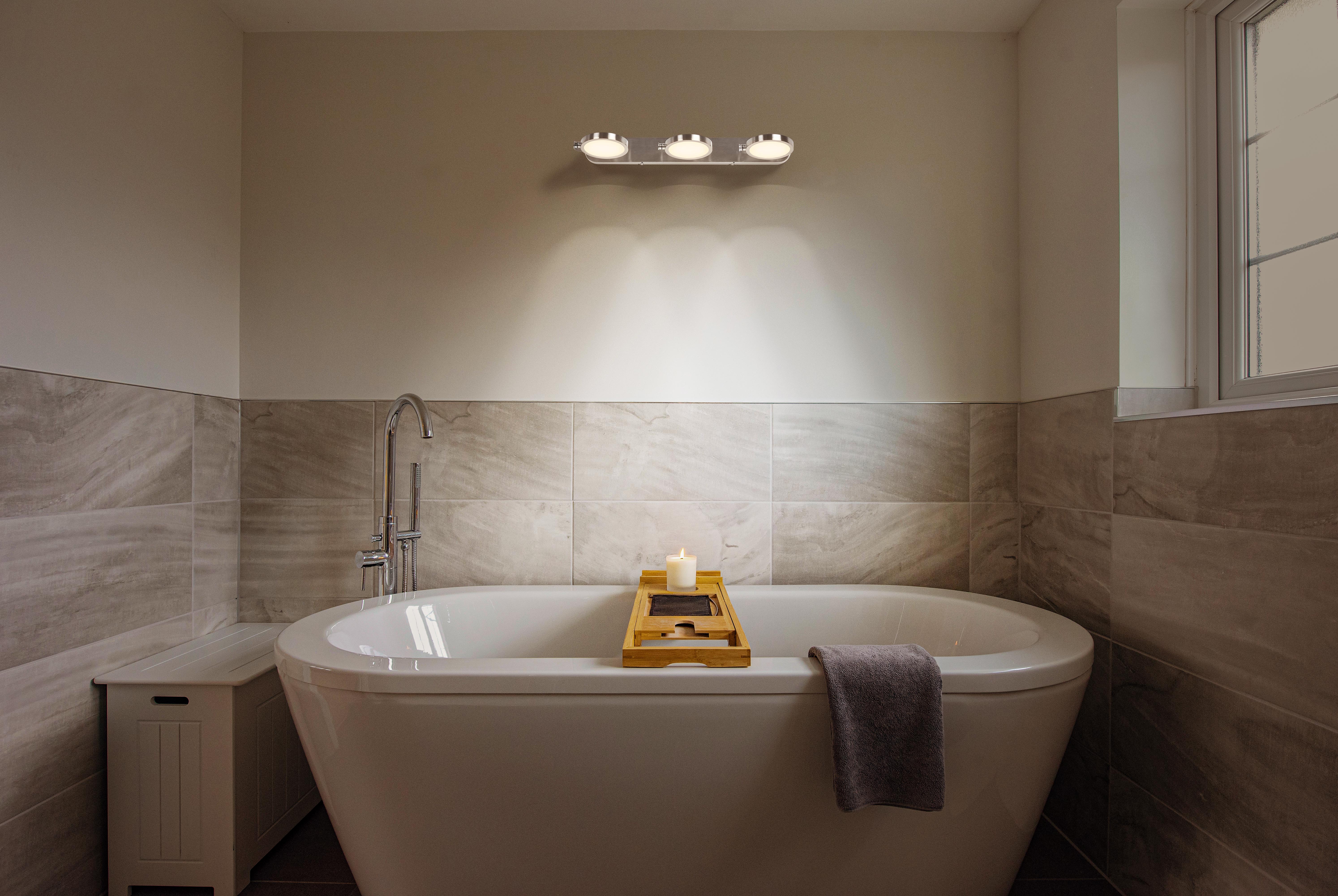

Application pictures Getty
SUNATHOME BATHROOM ROUND 300 3000K
JPG (3.09 MB)
Application pictures Getty
SUNATHOME BATHROOM ROUND 300 2200K
JPG (3.1 MB)
EAN ELDAS number
4058075750630 941320610
