SMART+ Mini bulb Tunable White

SMART ZB P40 TW 4.9W 220V FR E14

GTIN: 4058075729124 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination
  • Residential interiors
  • Professional (hotels, bars, boutiques etc.)
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Controllable via compatible smart home system (gateway and app)
  • Control via voice control available: Google Assistant or Amazon Alexa, depending on the smart home system in use
  • Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
  • Network protocol: ZigBee 3.0
  • Dimmable
  • Lifetime: up to 20,000 h
  • For full functionality connection to a compatible smart home System (gateway and app) required
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4.9 W
Construction wattage 4.90 W
Nominal voltage 220…240 V
Nominal current 38 mA
Mains frequency 50 Hz
Power factor λ > 0.50
Claimed equiv. conventional lamp power 40 W
Operating mode AC Mains
Photometrical data
Light color (designation) Tunable White
Lumen main.fact.at end of nom.life time 0.95
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 470 lm
Luminous flux 470 lm
Luminous efficacy 95 lm/W
Adjustable color temperature 2700…6500 K
Color temperature 2700…6500 K
Color rendering index Ra 80
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4
Light technical data
Beam angle 180 °
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Product weight 30.00 g
Diameter 47.00 mm
Maximum diameter 45 mm
Length 92.00 mm
Width 47 mm
Height 47 mm
Outer bulb [PICOS] P40
Lifespan
Number of switching cycles 100000
Lifespan 20000 h
Lumen maintenance at end of service lifetime 0.95
Colors & materials
Product color White
Housing color White
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E14
Capabilities
Dimmable Yes 1)
Compatible smart home technology Amazon Alexa, Google Assistant, Philips Hue
1) Via App
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Standards CE
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) Yes
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Standby power ＜ 0.5 W
Networked standby power for CLS ＜ 0.5 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.42
R9 Colour rendering index > 0
Beam angle correspondence SPHERE_360
Survival factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 1160674
Model number AC41288,AC41288
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075729124 Folding box
1		 61 mm x 96 mm x 154 mm 131.00 g 0.90 dm³
4058075729131 Shipping box
4		 210 mm x 165 mm x 135 mm 648.00 g 4.68 dm³
Extended installation guide
SMART+ INSTALLATION GUIDE
PDF (328.96 KB)
Declarations of conformity
SMART ZB TW A60/B40/P40/PAR16_ RGBW PAR16
PDF (374.53 KB)
Product image: white background, upright LEDVANCE logo
SMARTZBP40TW 5W 230VFR E14
JPG (456.79 KB)
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V1 1200x1200 2023 EN
JPG (982.87 KB)
Product infographic (application image with text and graphic)
Bluethooth Zigbee assortment E-Com-Grafik 1200x1200 2023 EN
JPG (680.15 KB)
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
JPG (822.84 KB)
Product line drawing with letters
SMART P40 E14
SVG (3.73 KB)
Product line drawing with numbers
SMART P40 E14
PNG (3.01 KB)
Product line drawing, front, no dimensions
SMART P40 E14
SVG (2.37 KB)

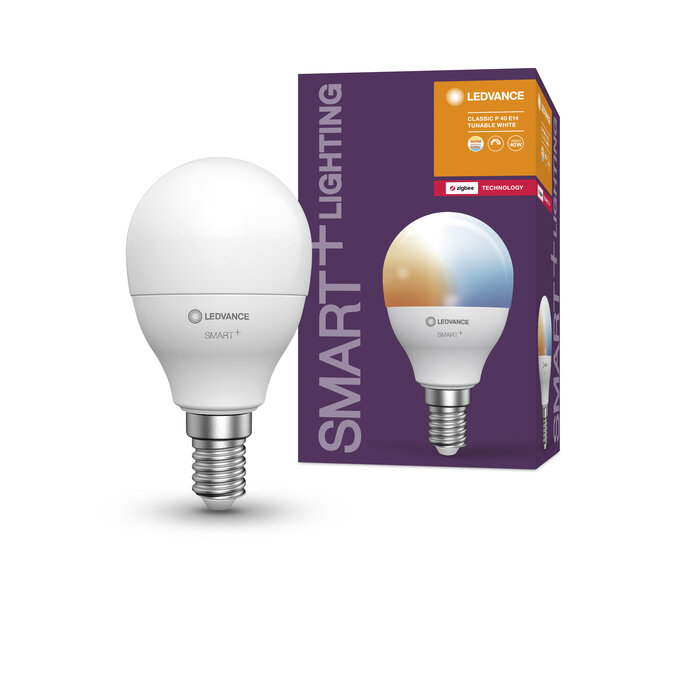

Combo Shot = Product Beauty Shot + Packaging Image
SMARTZBP40TW 5W 230VFR E14 4X1 LEDV
JPG (1.39 MB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC ZB P40TW 5W FR E14 MiPRC
JPG (1.14 MB)
Packaging image, frontal
SMARTZBP40TW 5W 230VFR E14 4X1 LEDV
JPG (626.67 KB)
Packaging image, spacial
SMARTZBP40TW 5W 230VFR E14 4X1 LEDV
JPG (776.15 KB)
Energy label
EL-4058075729124-AC412 88
PDF (21.58 KB)
Spectral power distribution
Everlight 67-23ST KKE 2700K
PNG (115.88 KB)
EAN ELDAS number
4058075729124 941814390
