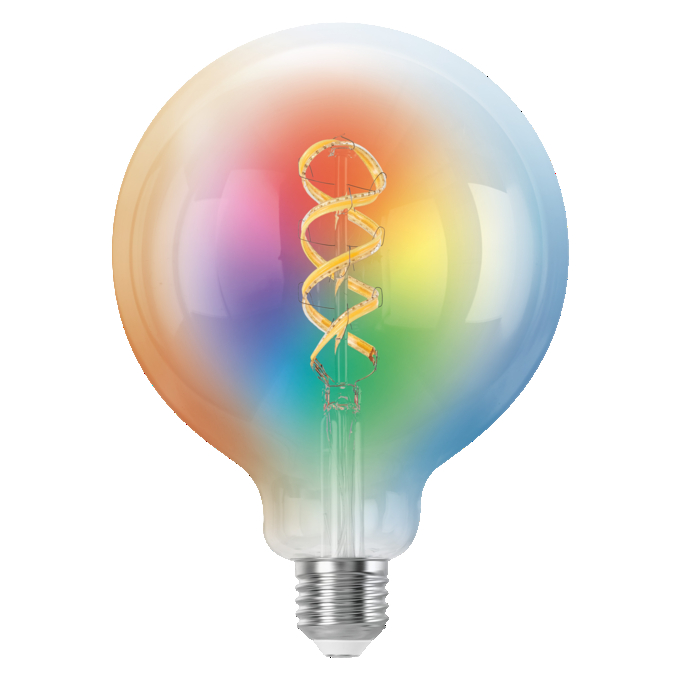

SMART+ MATTER FILAMENT GLOBE MULTICOLOR

SMART+ MATTER Filament Globe 125 40 4.8W 827...865 Multicolor E27

GTIN: 4099854195020 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Wireless control via app or voice control
  • Seamless integration with Matter-compatible systems
  • Simplified set up process due to the standard user-friendly installation steps
  • Enhanced security by implementing strong encryption and authentication protocols
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination through smart home technology
  • Professional applications (hotels, bars, boutiques etc.) utilizing dynamic and robust ambient lighting effects
  • When users want to mix and match smart home products from different manufacturers
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0) or any other Matter-compatible platforms
  • Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
  • RGB color control, approx. 16 million color options adjustable
  • Dimmable
  • Network protocol: Matter over WiFi
  • Lifetime up to 15,000 h
  • Compatible with Alexa, Google Home, Apple Home and other Matter-compatible platforms
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4.8 W
Construction wattage 4.80 W
Nominal voltage 220…240 V
Nominal current 50 mA
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ 0.40
Claimed equiv. conventional lamp power 40 W
Operating mode AC Mains
Photometrical data
Light color (designation) RGBW
Lumen main.fact.at end of nom.life time 0.93
Standard deviation of color matching ≤9 sdcm
Nominal luminous flux 470 lm
Luminous flux 470 lm
Luminous efficacy 97 lm/W
Adjustable color temperature 2700…6500 K
Color temperature 2700…6500 K
Color rendering index Ra ≥80
Flickering metric (Pst LM) ≤ 1
Stroboscope effect metric (SVM) ≤ 0.4
Light technical data
Beam angle 320 °
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Product weight 100.00 g
Diameter 124.00 mm
Maximum diameter 124 mm
Length 173.00 mm
Width 124.00 mm
Height 124.00 mm
Outer bulb [PICOS] G124
Lifespan
Number of switching cycles 100000
Lifespan 15000 h
Lumen maintenance at end of service lifetime 0.93
Colors & materials
Product color Clear
Body material Glass
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E27
Capabilities
Dimmable Yes 1)
1) Via App
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Standards CE, UKCA
Type of protection IP20
1) This product is exempt from the EU Energy Labelling Regulation (EU Directive 2019/2015)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) Yes
Color-tuneable light source Yes
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Networked standby power for CLS <0.5 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.463-0.313
Chromaticity coordinate y 0.420-0.337
R9 Colour rendering index >0
Beam angle correspondence SPHERE_360
Survival factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 1694304
Model number AC52863,AC52863
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854195020 Folding box
1		 143 mm x 140 mm x 195 mm 188.00 g 3.90 dm³
4099854195037 Shipping box
4		 304 mm x 290 mm x 207 mm 1016.00 g 18.25 dm³
Extended installation guide
Insert WIFI MATTER StartUpG Lamps LDV
PDF (2.45 MB)
Declarations of conformity
CE Declaration Smart Matter Filament
PDF (364.94 KB)

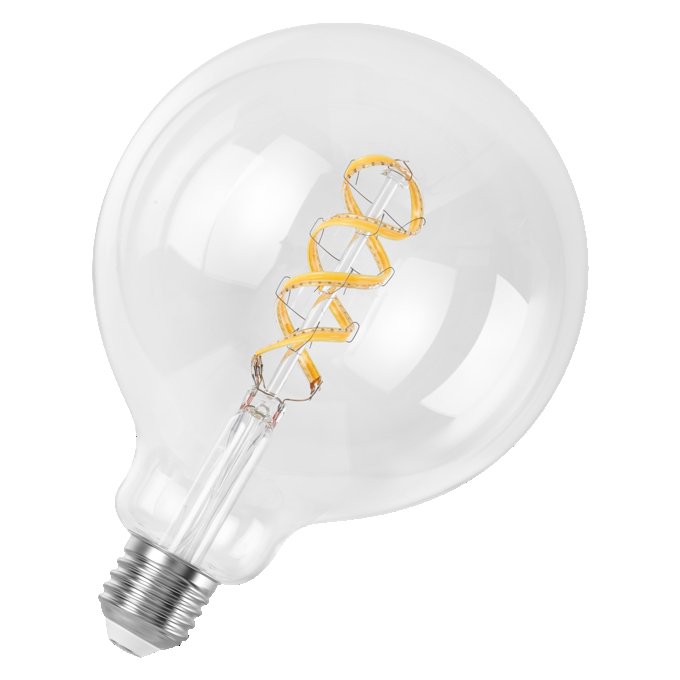

Product image: white background, diagonal with LEDVANCE logo
Smart matter Globe Ledvance
JPG (669.97 KB)
Product image: white background, diagonal with LEDVANCE logo
Smart matter Globe Ledvance
JPG (598.86 KB)
Product image: white background, diagonal
Smart matter Globe Ledvance
JPG (665.11 KB)
Product image: white background, diagonal
Smart matter Globe Ledvance
JPG (593.78 KB)

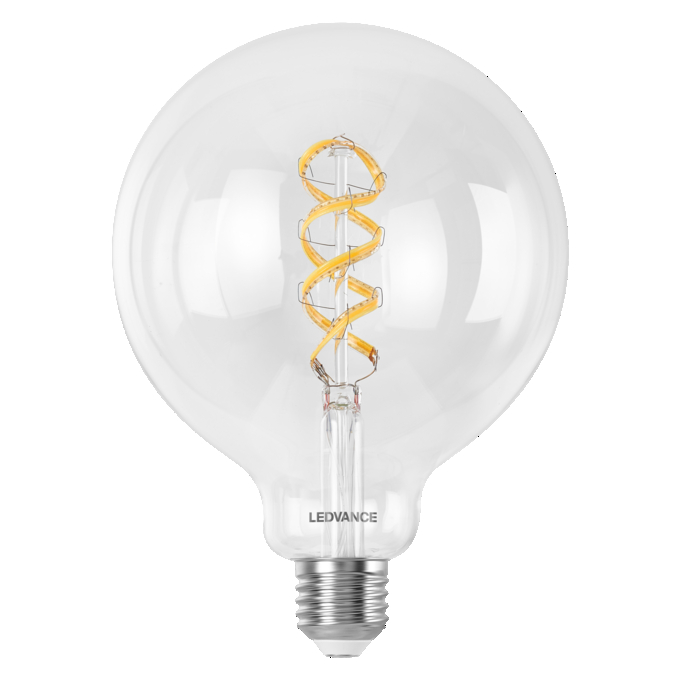

Product image: white background, upright LEDVANCE logo
Smart matter Globe Ledvance
JPG (612.34 KB)
Product image: white background, upright LEDVANCE logo
Smart matter Globe Ledvance
JPG (528.73 KB)
Product image: white background, upright
Smart matter Globe Ledvance
JPG (536.2 KB)

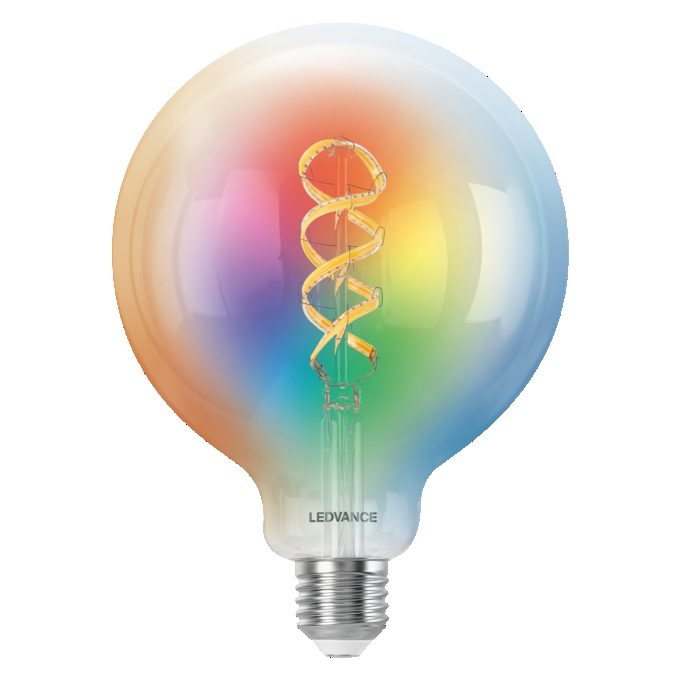

Product image: white background, upright, switched on
Smart matter Globe Ledvance
JPG (611.31 KB)
Product infographic (application image with text and graphic)
Matter E-Com Grafik V1 1200x1200px 2023 EN
JPG (699.5 KB)
Product line drawing with letters
Smart matter Globe Ledvance
SVG (96.4 KB)
Product line drawing with numbers
Smart matter Globe Ledvance
SVG (96.45 KB)
Product line drawing, front, no dimensions
Smart matter Globe Ledvance
SVG (2.43 KB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WFMAT G40 4 8W RGBTW E27 MiPRC LDV
JPG (2.66 MB)
Combo Shot = Product Beauty Shot + Packaging Image
Filament Globe 40W RGBW
JPG (3.22 MB)
Packaging image, frontal
SH FC WFMAT G40 4 8W RGBTW E27 MiPRC LDV
JPG (2.48 MB)
Packaging image, spacial
SH FC WFMAT G40 4 8W RGBTW E27 MiPRC LDV
JPG (2.74 MB)
Energy label
EL-4099854195020-AC528 63
PDF (21.88 KB)
Spectral power distribution
EPREL Data Spectral Diagram LEDr AC42286 AC42287 AC42288 RGBTW
PNG (103 KB)
Application pictures
Smartphone with SMART+ App screen Set scenes and application EN
JPG (375.86 KB)
Application pictures

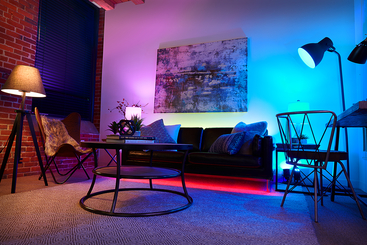

SMART+ Multicolor Living Room Side Angle
