SMART+ ZB OUTDOOR PLUG UK

SMART+ OUTDOOR PLUG

GTIN: 4058075210004 Folding box / 1 Show all packages

Download data sheet

Contact sales

5-year warranty

PRODUCT DETAILS

Product benefits

Integrates conventional electric equipment into compatible smart home systems
Enables switching of conventional light sources and other electric devices
Simple connection of electric devices via standard socket
The socket cover can be closed for the protection against splash water

Areas of application

Wherever non-smart devices need to be integrated into compatible smart home systems

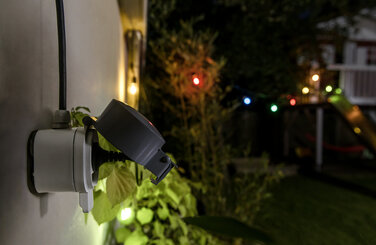

Gardens, balconies and other outdoor areas

Product features

Control via compatible smart home system, SMART+ Switch, SMART+ Switch Mini or on/off button on the device
Control via voice control available: Google Assistant or Amazon Alexa, depending on the smart home system in use
1.5 m power cable for flexible installation
Functionality depends on used type of control
High switching power: up to 3,680 W / 16 A
Network protocol: ZigBee
Type of protection: IP44

Equipment / Accessories

Control via app requires a compatible Smart home system
Ground spike included for easy fixation in garden soil

Safety advice

Disconnect devices which generate heat from the mains, i.e. from the SMART+ Outdoor Plug, after use in order to avoid them being accidentally switched on.
Very high capacitive and inductive loads may in some cases lead to destruction of the device or reduction in the number of switching cycles.
Do not use the SMART+ Outdoor Plug in conjunction with medical equipment.
To be connected to an automatic circuit breaker (for UK max. 13 A and for EU max. 16 A)

Electrical data

Nominal voltage

220…240 V

Dimensions & Weight

Product weight	710.00 g
Length	144 mm
Width	98.0 mm
Height	120.0 mm

Lifespan

Number of switching cycles

25000

Colors & materials

Product color

White

Temperatures & operating conditions

Ambient temperature range

-20…+40 °C

Additional product data

Product remark

High switching power: up to 2,990 W / 13 A, Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times., Alternatively, press the reset button once for ten seconds.

Capabilities

Compatible smart home technology

ZigBee

Certificates & Standards

Standards	CE
Protection class	I
Type of protection	IP44

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
