SMART+ MATTER PLUG WITH MATTER TECHNOLOGY

SMART+ WIFI MATTER PLUG CH White

GTIN: 4058075846265 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Wireless control via app or voice control
  • Seamless integration with Matter-compatible systems
  • Simplified set up process due to the standard user-friendly installation steps
  • Enhanced security by implementing strong encryption and authentication protocols
  • Small design, compatible with all types of sockets and does not interfere with neighboring sockets
  • Integrates conventional electric equipment into compatible smart home systems
  • Enables switching of conventional light sources and other electric devices
  • Monitors energy usage of connected devices and tracks the energy consumption
Areas of application
  • Wherever non-smart devices need to be integrated into compatible smart home systems
  • When users want to mix and match smart home products from different manufacturers
Product features
  • High switching power: up to 2,300 W / 10 A
  • Energy meter
  • Scheduling
  • Network protocol: Matter over WiFi (2.4 GHz)
  • Compatible with Amazon Alexa, Google Home, Apple Home, Samsung SmartThings and other Matter-compatible platforms
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • Disconnect devices which generate heat from the mains, after use in order to avoid them being accidentally switched on.
  • Very high capacitive and inductive loads may in some cases lead to destruction of the device or reduction in the number of switching cycles.
  • Do not use the SMART+ Plug in conjunction with medical equipment.
  • To be connected to an automatic circuit breaker (for max. 10 A)
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal voltage 230 V
Nominal current 10 A
Mains frequency 50 Hz
Dimensions & Weight
Product weight 85.00 g
Length 51 mm
Width 76 mm
Height 73 mm
Lifespan
Number of switching cycles 10000
Colors & materials
Product color White
Body material Polycarbonate (PC)
Temperatures & operating conditions
Ambient temperature range -10…+35 °C
Capabilities
Type of connection Plug
Compatible smart home technology Amazon Alexa, Google Assistant, Apple HomeKit, Samsung SmartThings
Certificates & Standards
Standards CE
Protection class I
Type of protection IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075846265 Folding box
1
56 mm x 76 mm x 82 mm 104.00 g 0.35 dm³
4058075846272 Shipping box
4
162 mm x 122 mm x 96 mm 489.00 g 1.90 dm³
User instruction / safety instructions
Smart Matter Plug GH
Declarations of conformity
SMART WIFI MAT PLUG CH

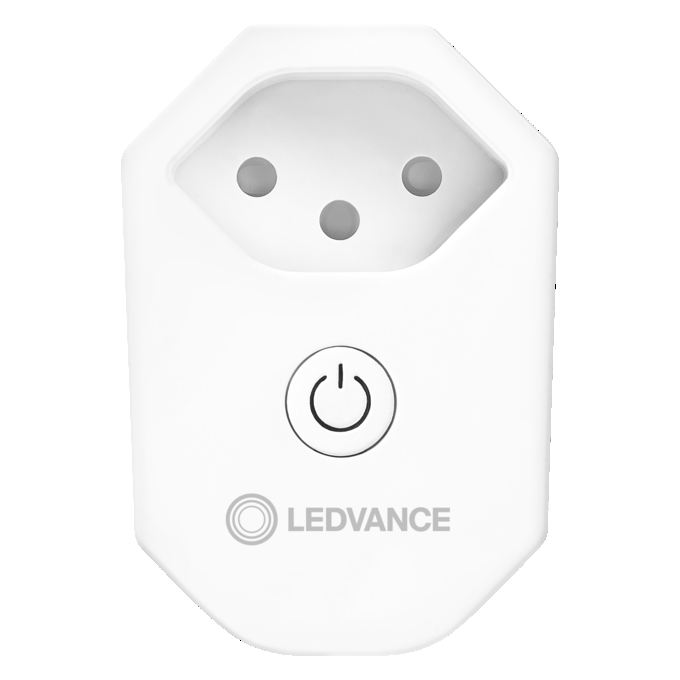

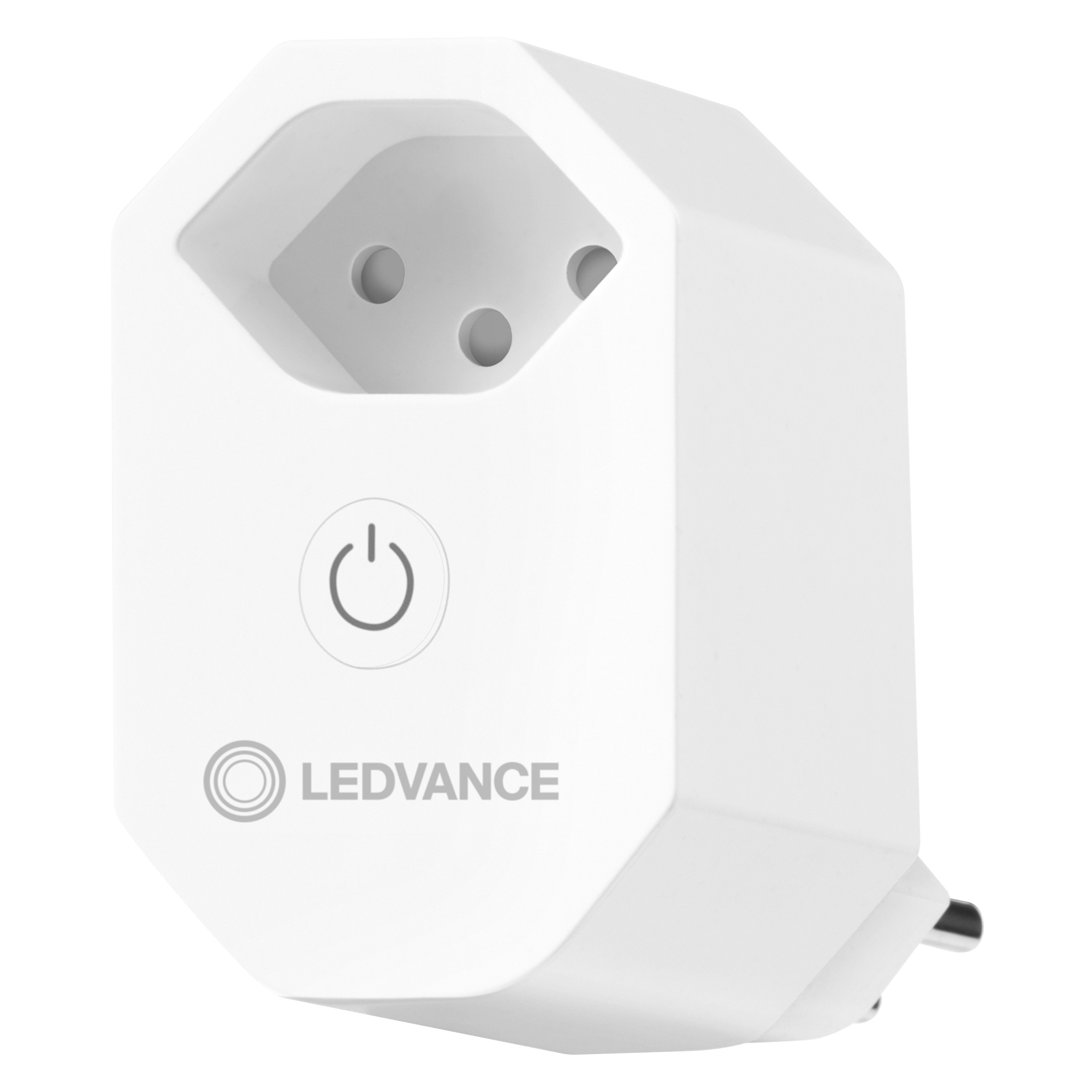

Product image: white background, upright
SMART WIFI MAT PLUG CH

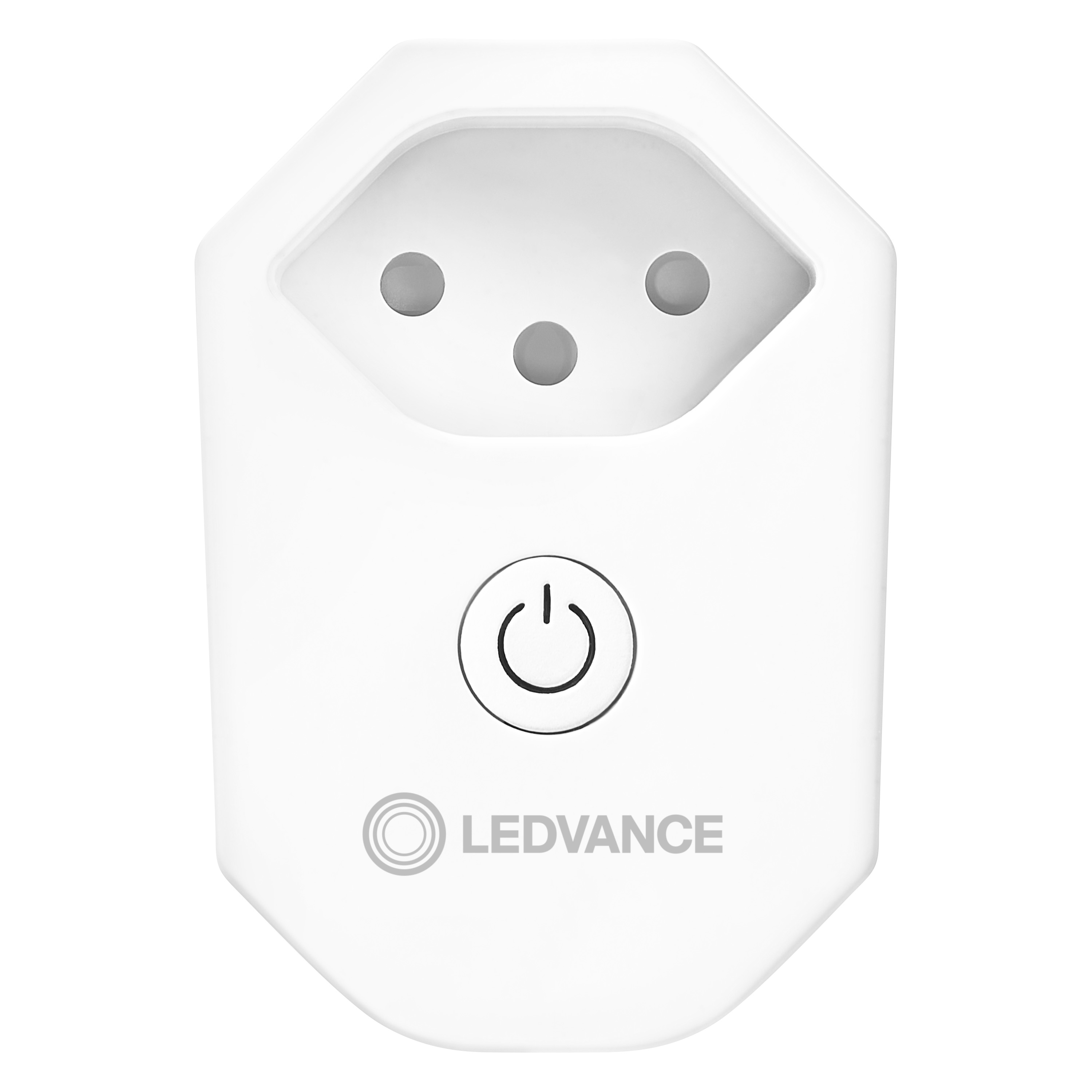

Product image: white background, upright, alternative image
SMART WIFI MAT PLUG CH
Product image: white background, upright, switched on
SMART WIFI MAT PLUG CH
Product infographic (application image with text and graphic)
Matter Plugs_e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
SMART WIFI MAT PLUG CH
Product line drawing with numbers
SMART WIFI MAT PLUG CH
Product line drawing, front, no dimensions
SMART WIFI MAT PLUG CH

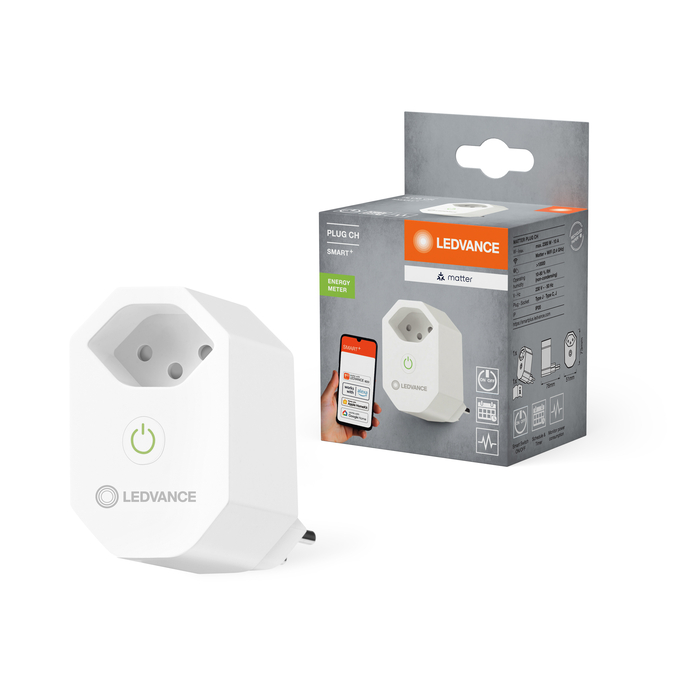

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WFMAT PLUG CH

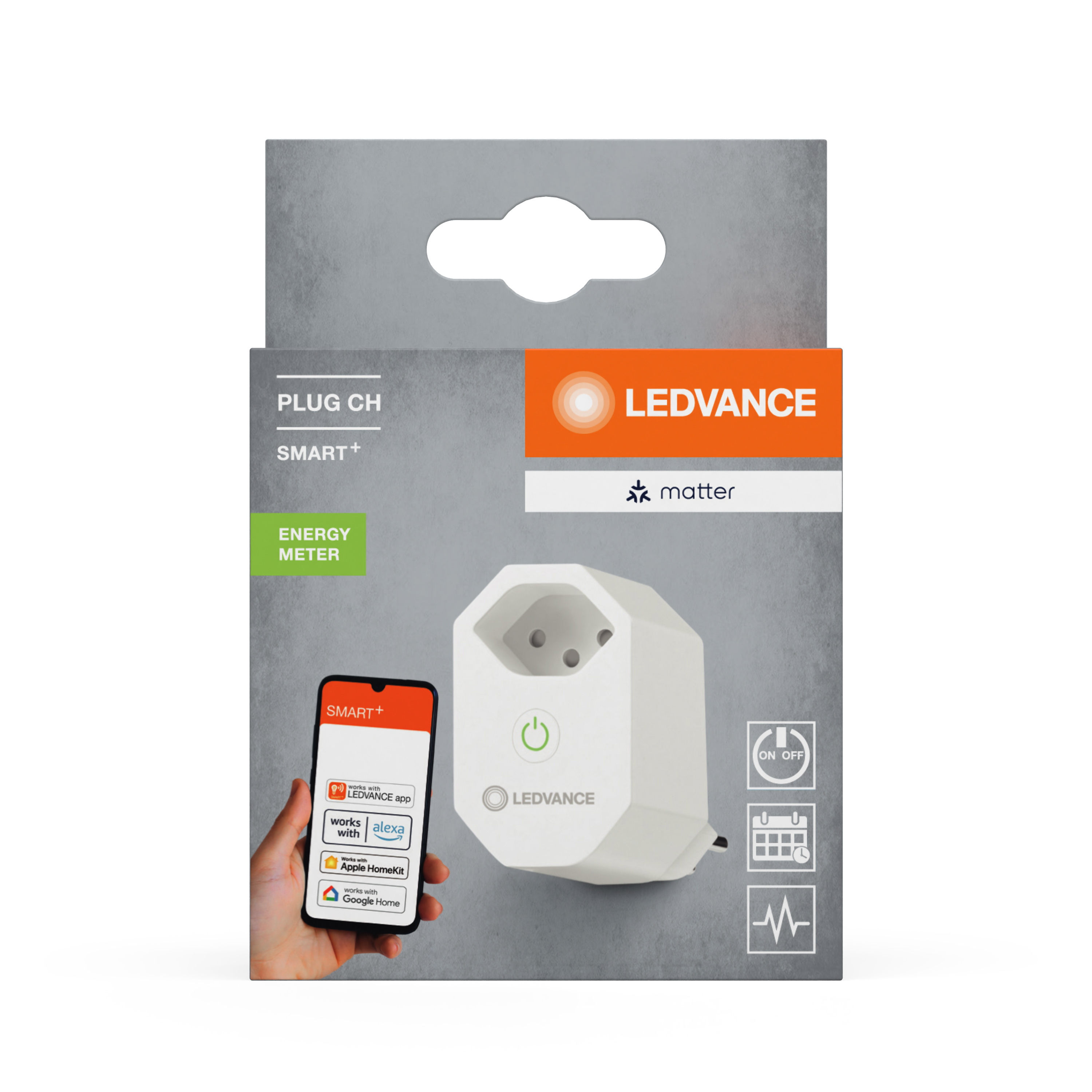

Packaging image, frontal
SH FC WFMAT PLUG CH

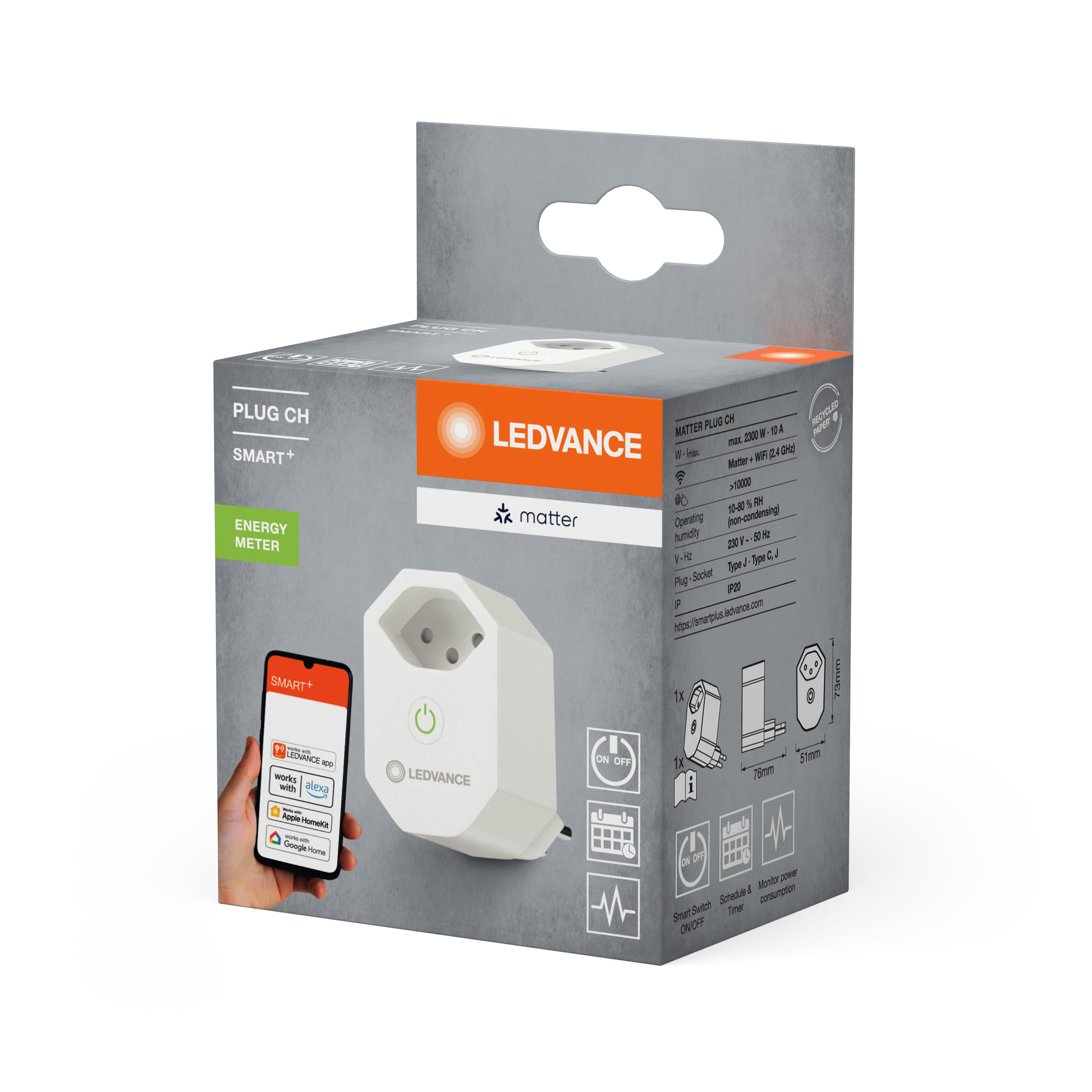

Packaging image, spacial
SH FC WFMAT PLUG CH
EAN ELDAS number
4058075846265 941922000
