ENDURA CLASSIC CALICE
ENDURA Classic Calice Wall Sensor E27
GTIN: 4058075477971
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High flexibility in the choice of the light source thanks to E27 socket
- Easy and quick installation
Areas of application
- Building facades
- Entrance lighting
- Patios, balconies
- Pathway lighting
- Driveways
Product features
- Available with and without motion sensor
- Stainless steel housing
- Type of protection: IP44
Equipment / Accessories
- Complete mounting and connecting accessories included
- No light sources included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.50 |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Standard deviation of color matching | < 6 sdcm |
Dimensions & Weight
| Length | 161.00 mm |
| Height | 305.00 mm |
| Width | 120.00 mm |
| Product weight | 950.00 g |
Materials & Colors
| Product color | Steel |
| Housing color | Steel |
| Body material | Stainless steel |
| Cover material | Glass |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | No |
| Replaceable light source | No |
Sensor
| Type of sensor | Light, Motion |
| Sensor technology | Passive infrared (PIR) |
| Sensor detection angle | 90 ° |
| Sensor controlled switching time | 5 s…6 min |
| Detection range of motion sensor | 5…8 m |
| Detection threshold of daylight sensor | 0…30 lx |
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Maximum bulb wattage: 60 W |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075477971 | Folding box 1 |
202 mm x 162 mm x 349 mm | 1109.00 g | 11.42 dm³ |
| 4058075477988 | Shipping box 4 |
420 mm x 365 mm x 340 mm | 5230.00 g | 52.12 dm³ |
User instruction / safety instructions
ENDURA CLASSIC CALICE
ENDURA CLASSIC CALICE
Legal information
Legal insert I-Outdoor
Legal insert I-Outdoor
Declarations of conformity
ENDURA CLASSIC CALICE WALL S
ENDURA CLASSIC CALICE WALL S

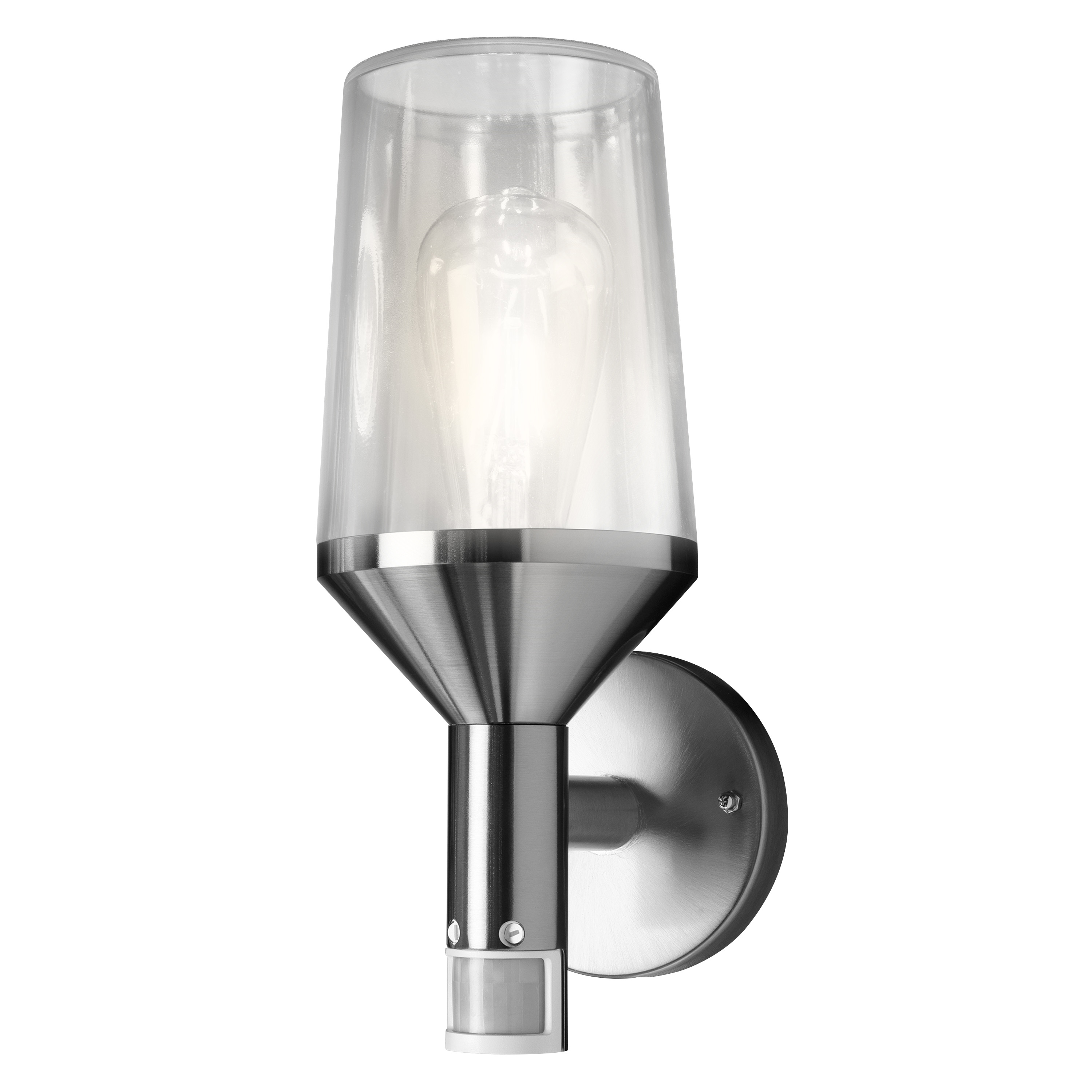

Product image: white background, upright
ENDURA CLASSIC CALICE WALL S E27 SI
ENDURA CLASSIC CALICE WALL S E27 SI

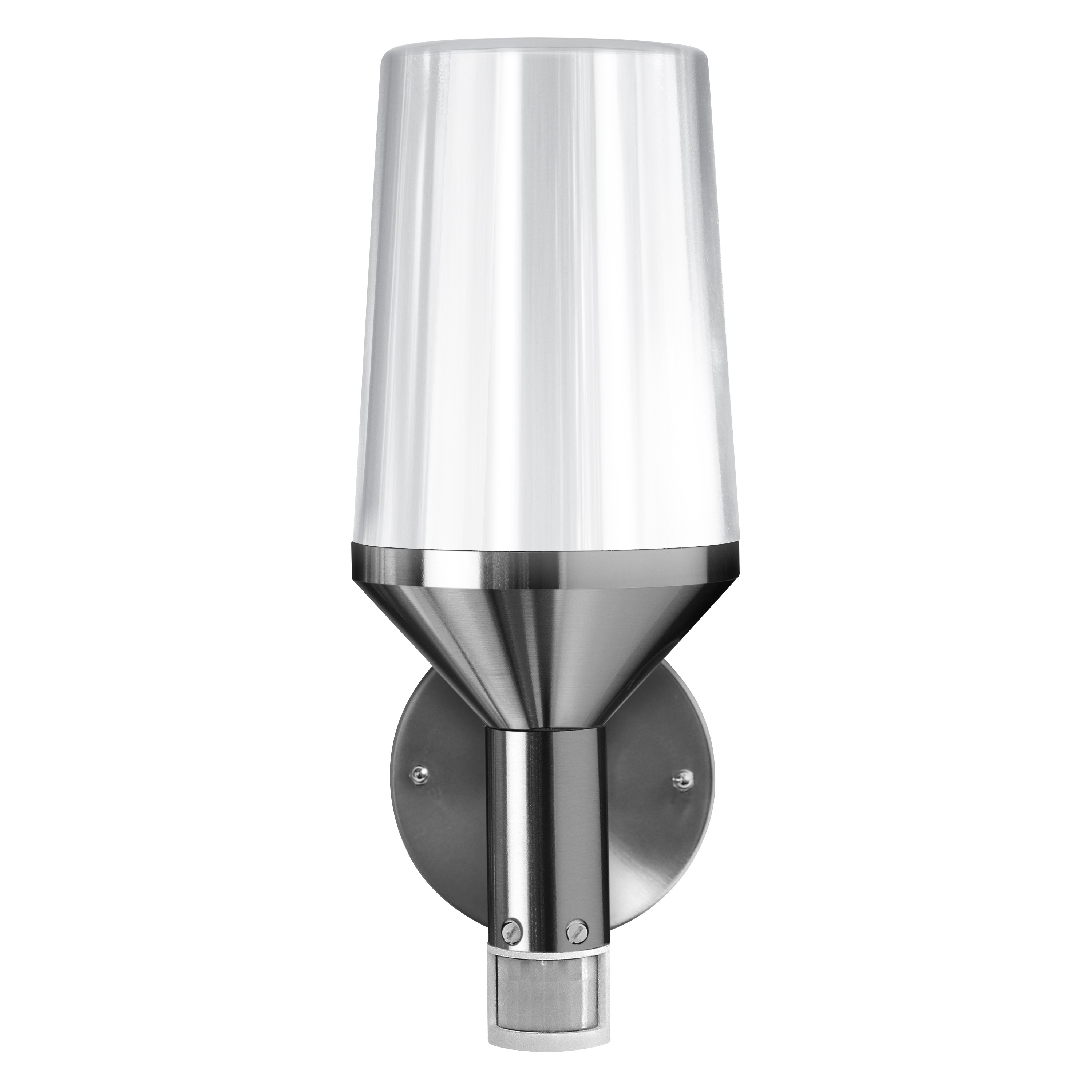

Product image: white background, upright, alternative image
ENDURA CLASSIC CALICE WALL S E27 SI
ENDURA CLASSIC CALICE WALL S E27 SI
Product image: white background, upright, switched on
ENDURA CLASSIC CALICE WALL S E27 SI
ENDURA CLASSIC CALICE WALL S E27 SI
Product line drawing with letters
ENDURA CLASSIC CALICE WALL S E27 SI
ENDURA CLASSIC CALICE WALL S E27 SI
Product line drawing with numbers
ENDURA CLASSIC CALICE WALL S E27 SI
ENDURA CLASSIC CALICE WALL S E27 SI
Product line drawing, front, no dimensions
ENDURA CLASSIC CALICE WALL S E27 SI
ENDURA CLASSIC CALICE WALL S E27 SI

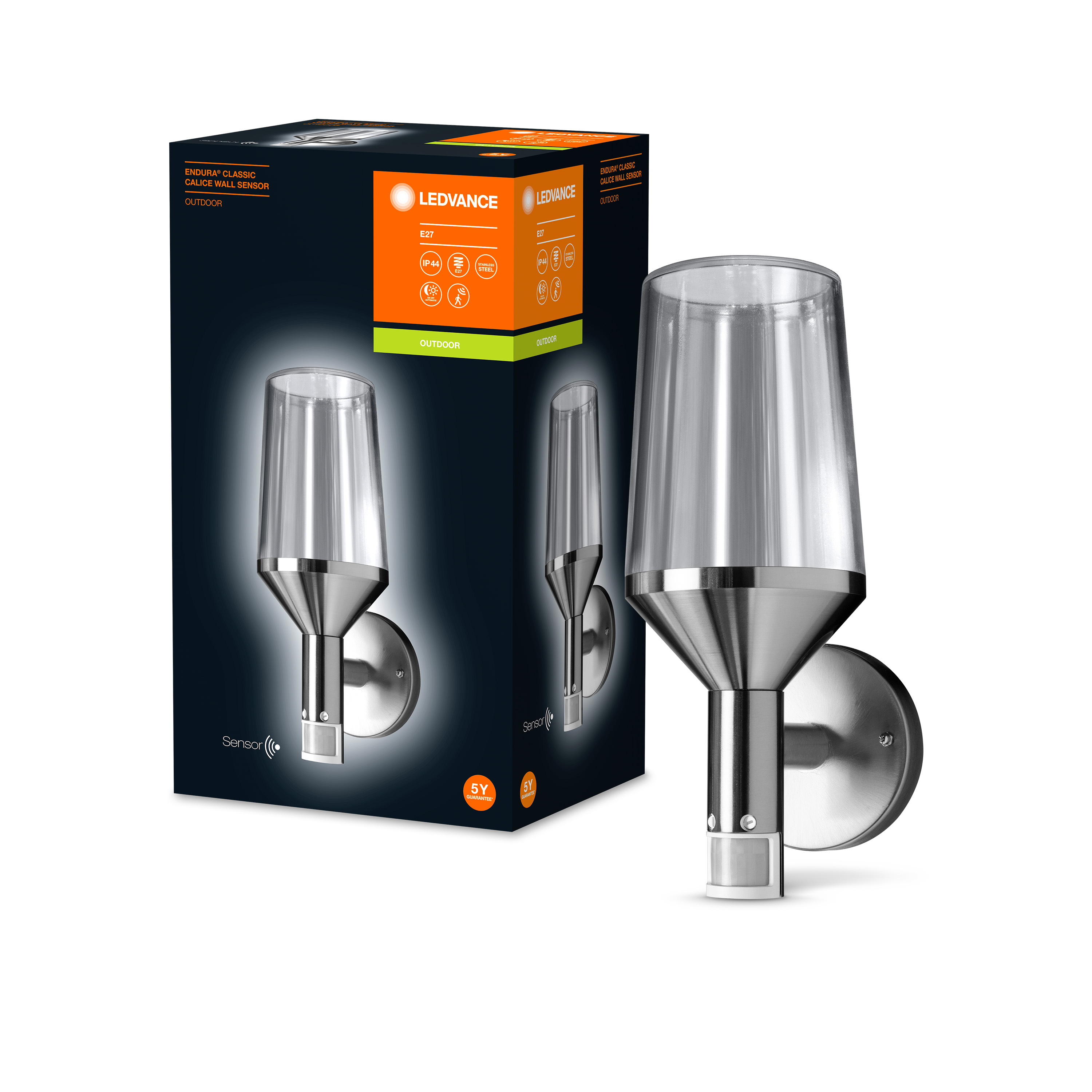

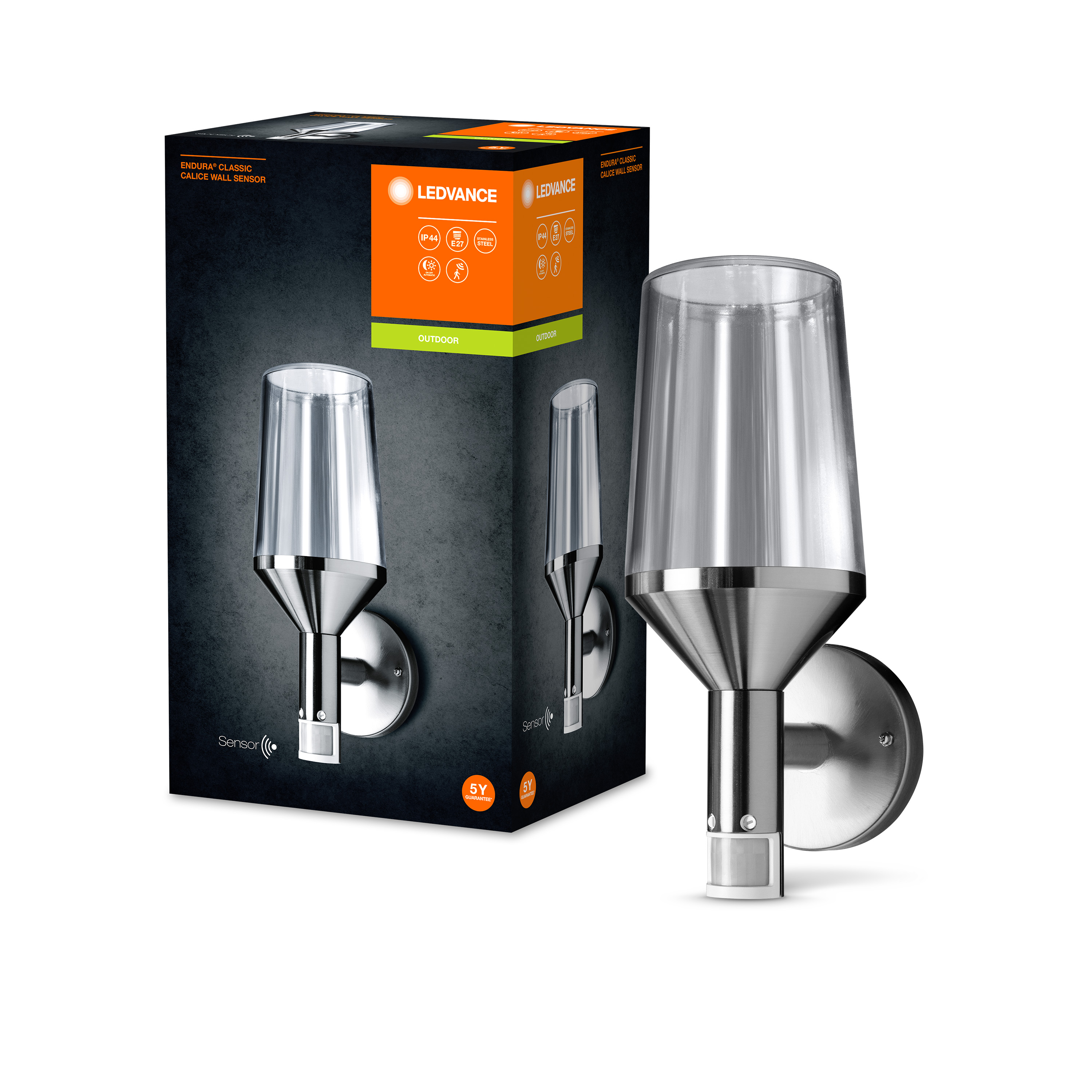

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC CALICE WALL S E27 SI MiPRC
LUM FC EC CALICE WALL S E27 SI MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC CALICE WALL S E27 SI MiPRC
LUM FC EC CALICE WALL S E27 SI MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC CALICE WALL S E27 SI MiPRC
LUM FC EC CALICE WALL S E27 SI MiPRC

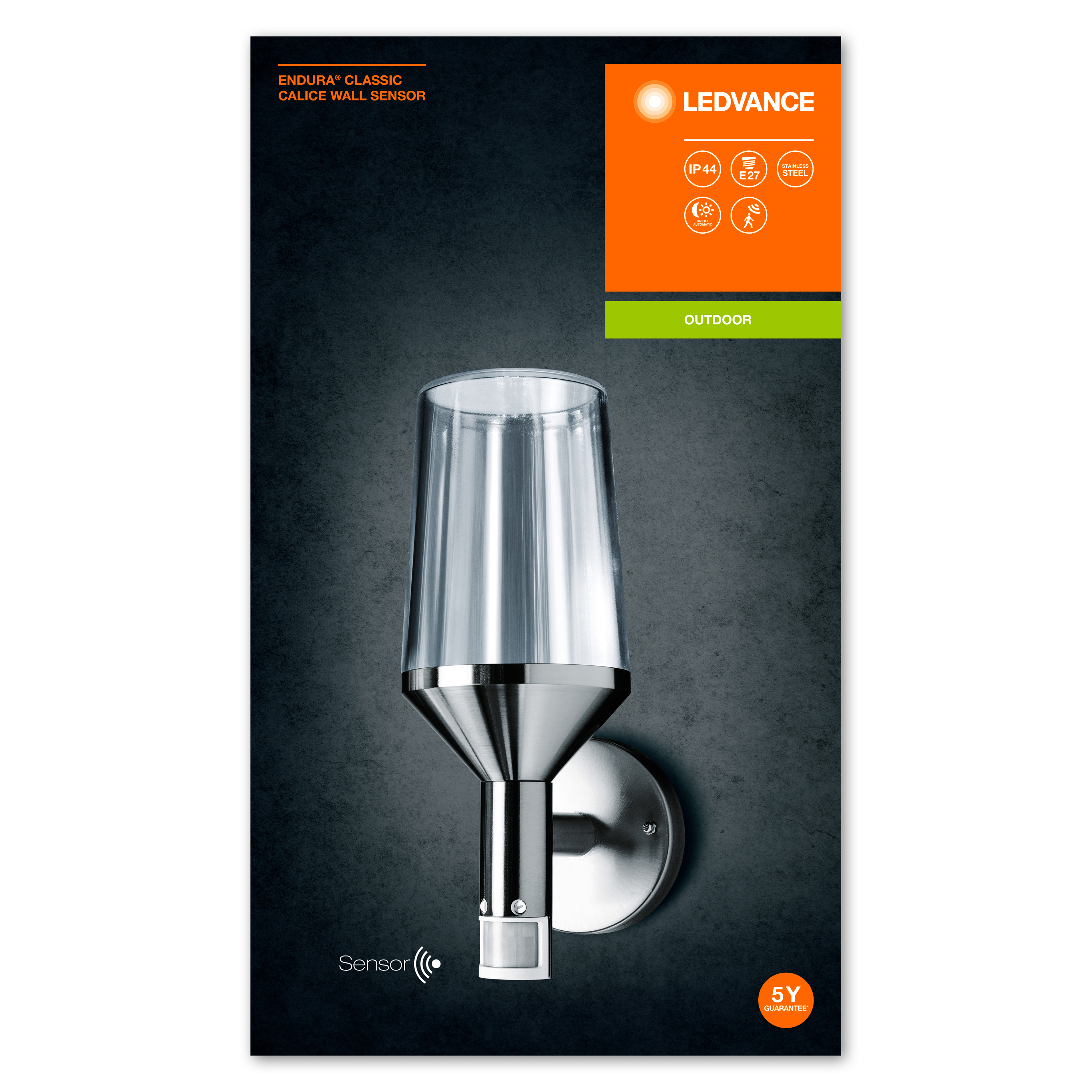

Packaging image, frontal
LUM FC EC CALICE WALL S E27 SI MiPRC
LUM FC EC CALICE WALL S E27 SI MiPRC

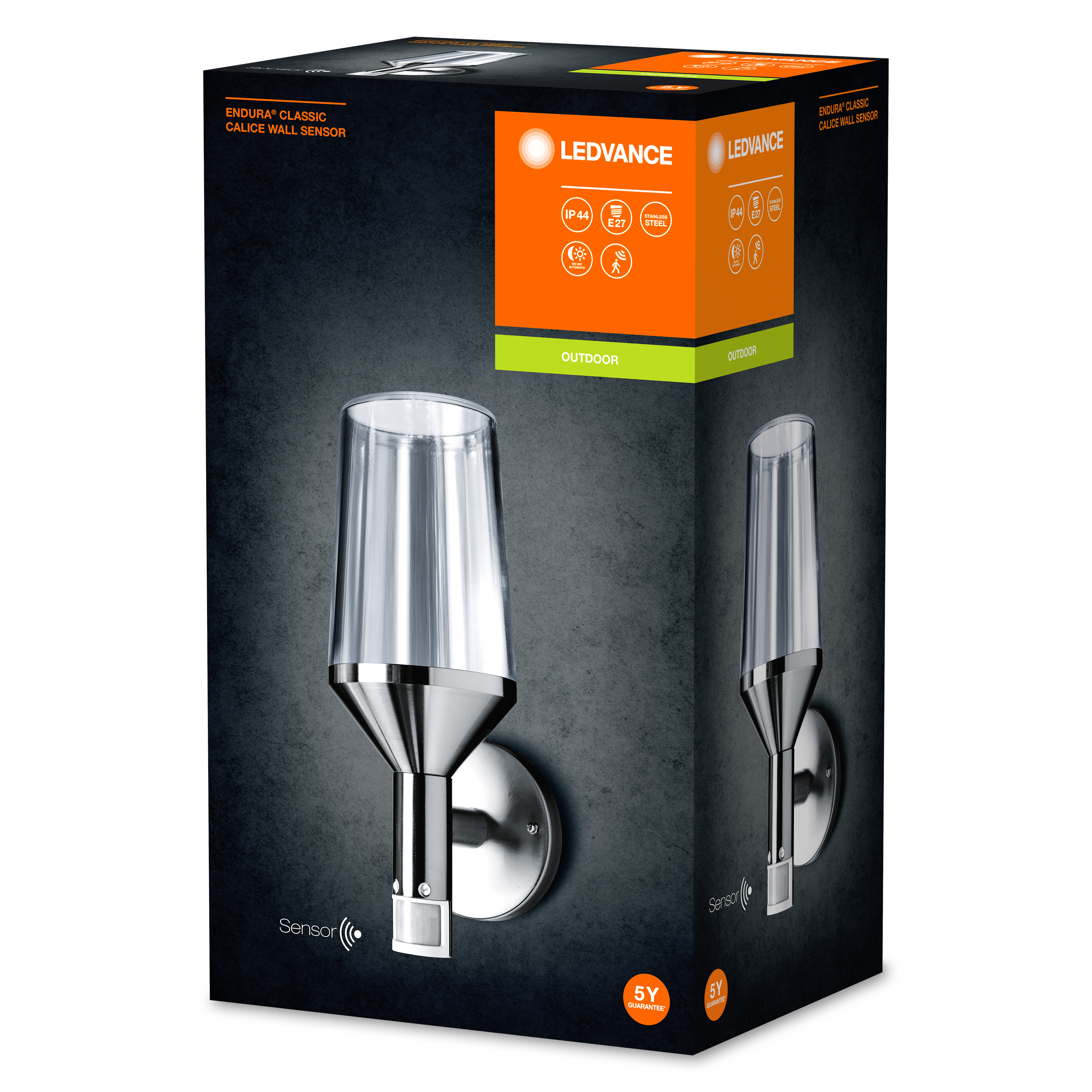

Packaging image, spacial
LUM FC EC CALICE WALL S E27 SI MiPRC
LUM FC EC CALICE WALL S E27 SI MiPRC

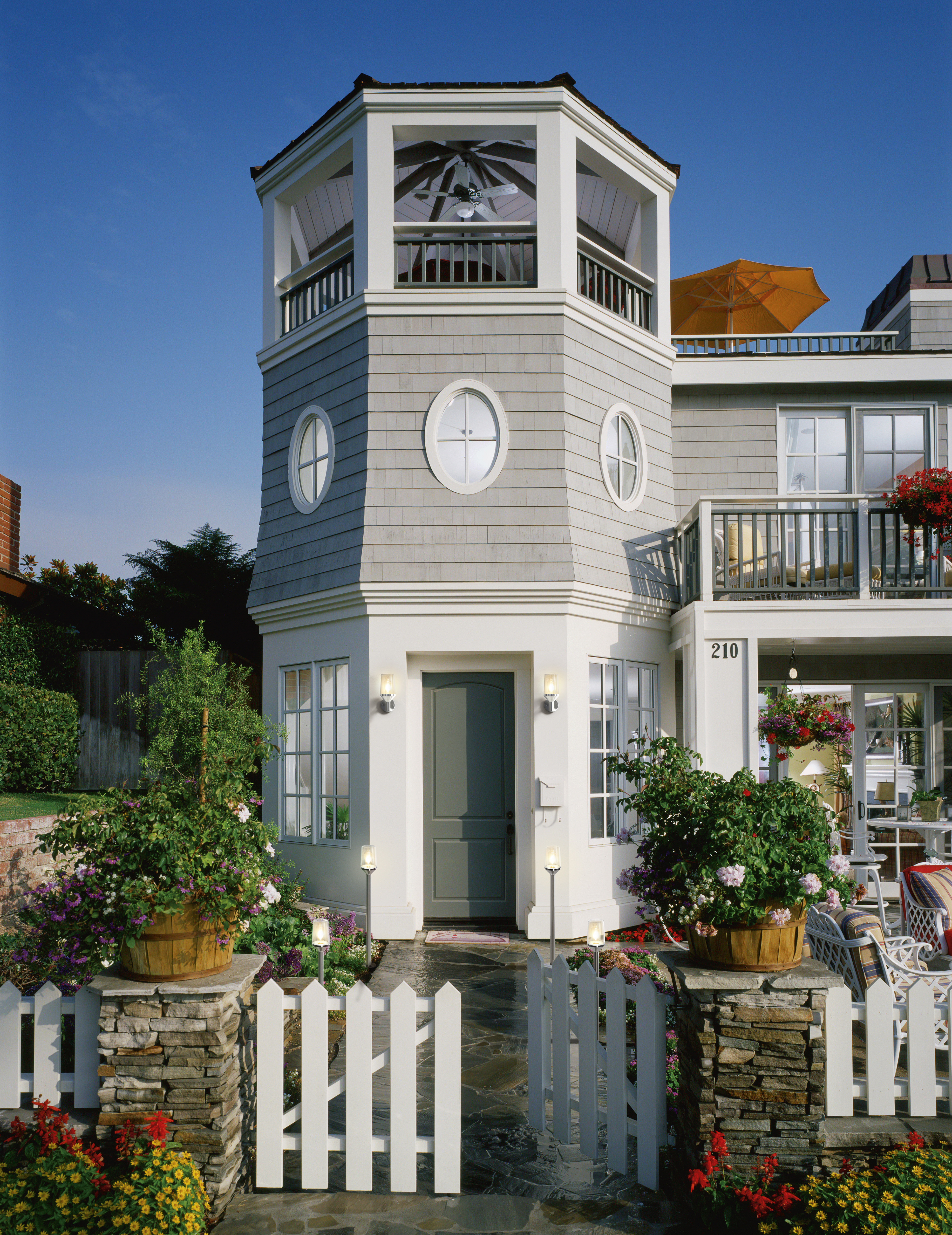

Application pictures Getty
OUTDOOR ENDURA CLASSIC CALICE
OUTDOOR ENDURA CLASSIC CALICE
| EAN | ELDAS number |
|---|---|
| 4058075477971 | 941259360 |
