ENDURA STYLE SOLAR BRIGHT SENSOR

Endura Style Solar Sensor Wall Shore IP54 Dark Grey

GTIN: 4099854415173 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Solar powered outdoor LED luminaire
  • Easy and quick installation, independent from connection to power supply
  • Long-term energy and cost savings
Areas of application
  • Outdoor
  • Entrance lighting
  • Patios, balconies
  • General illumination
  • Facade and building illumination
Product features
  • Bright light
  • Highly efficient monocrystalline solar panel
  • PIR motion detection and daylight sensor, matching with housing color
  • Lower light smog, on-demand lighting (sensor version)
  • Type of protection: IP54
  • Operating time with fully charged battery: up to 18 days (depending on the work mode and conditions)
  • 4 selectable operating modes (Dusk to Dawn): 1. 100 % light brightness; 2. 25 % light brightness; 3. 10 % light brightness + 100 % light brightness after movement detection for 30 second; 4. 0 % light brightness + 100 % light brightness after movement detection for 30 second
  • Energy-efficient thanks to LED technology
  • Sustainable energy, low environmental impact
Equipment / Accessories
  • Mounting accessories included
Safety advice
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 12.40 W
Nominal voltage 4,2 V
Nominal current 2950.000 mA
Protection class III
Operating mode Battery
Photometrical data
Luminous flux 540 lm
Total luminous flux of contained light sources 1000 lm
Luminous efficacy 44 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Flickering metric (Pst LM) <1 %
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 °
Dimensions & Weight
Length 283.00 mm
Height 50.00 mm
Width 62.00 mm
Product weight 325.00 g
Materials & Colors
Product color Dark gray
Housing color Dark gray
Body material Polycarbonate (PC)|Acrylonitrile butadiene styrene (ABS)
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Application & Mounting
Ambient temperature range -10…+55 °C
Temperature range at storage -20…+80 °C
Type of protection IP54
Protection class IK (shock resistance) IK04
Dimmable Yes
Mounting type Surface
Application environment Outdoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 54000 h 1)
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
Type of sensor Light, Motion
Sensor technology Passive infrared (PIR)
Sensor detection angle 110 °
Detection range of motion sensor 3…5 m
BATTERY
Type of Battery Lithium ion
Battery size [GMS] Others
Nominal voltage of battery 3.7 V
Nominal capacity of battery 2000 mAh
Battery charging time 8 h
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Available from June 2025
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854415173 Folding box
1
58 mm x 70 mm x 294 mm 368.00 g 1.19 dm³
4099854415180 Shipping box
6
184 mm x 150 mm x 310 mm 2344.00 g 8.56 dm³
User instruction / safety instructions
ENDURA STY SOL SHORE W S IP54 DG
Legal information
Informationstext 18 Abs 4 ElektroG
Legal information
Safety insert G11219579
Declarations of conformity
EU Declaration of Conformity solar light

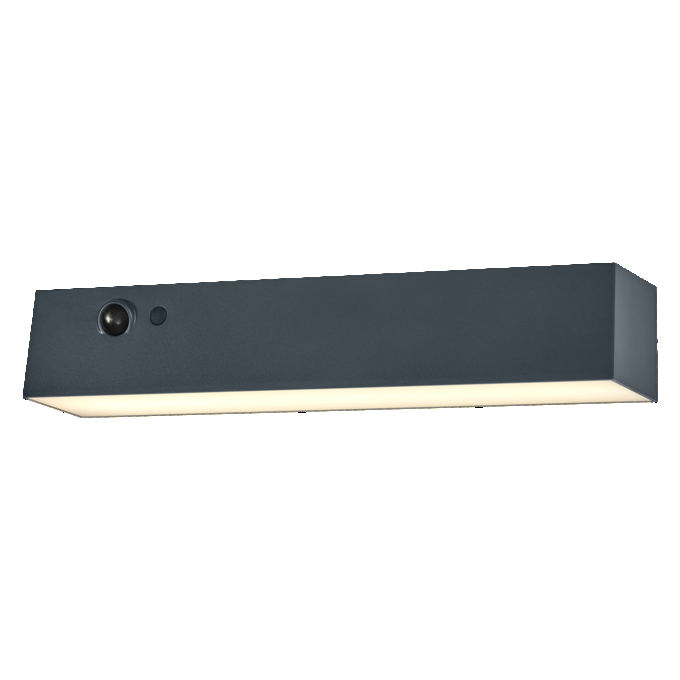

Product image: white background, upright
ENDURA STY SOL SHORE W S IP54 DG

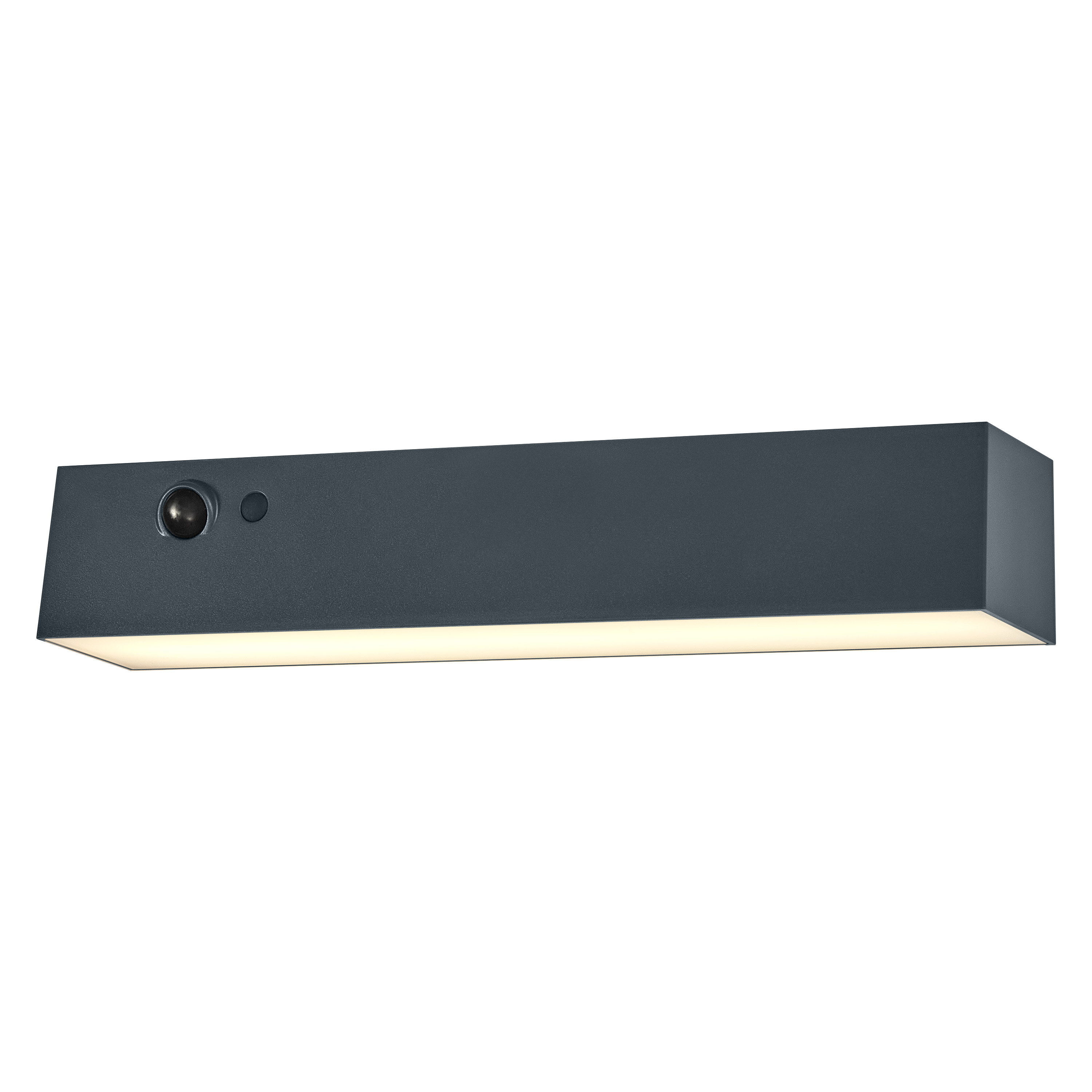

Product image: white background, upright, alternative image
ENDURA STY SOL SHORE W S IP54 DG

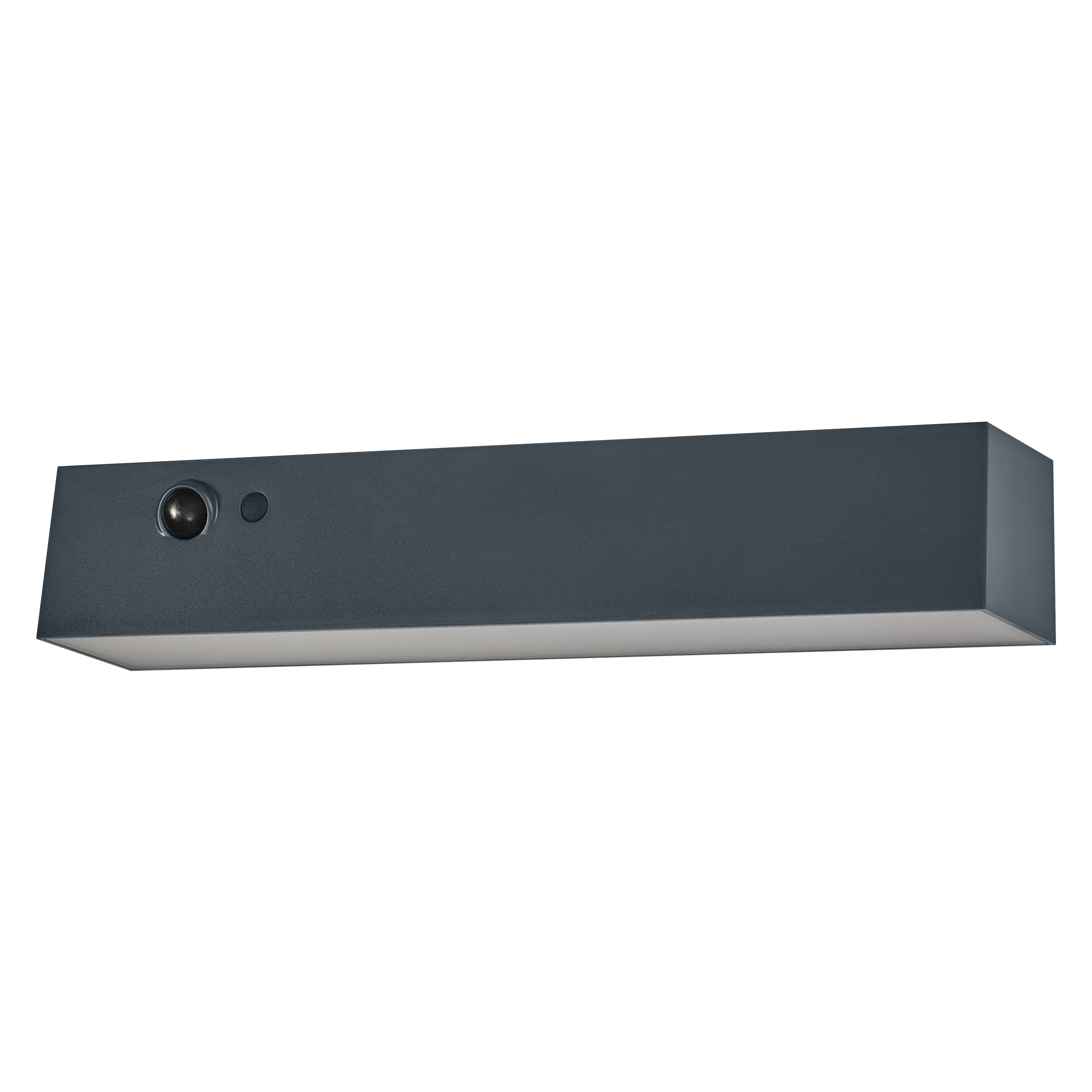

Product image: white background, upright, switched on
ENDURA STY SOL SHORE W S IP54 DG
Product line drawing with letters
ENDURA STY SOL SHORE W S IP54 DG
Product line drawing with numbers
ENDURA STY SOL SHORE W S IP54 DG

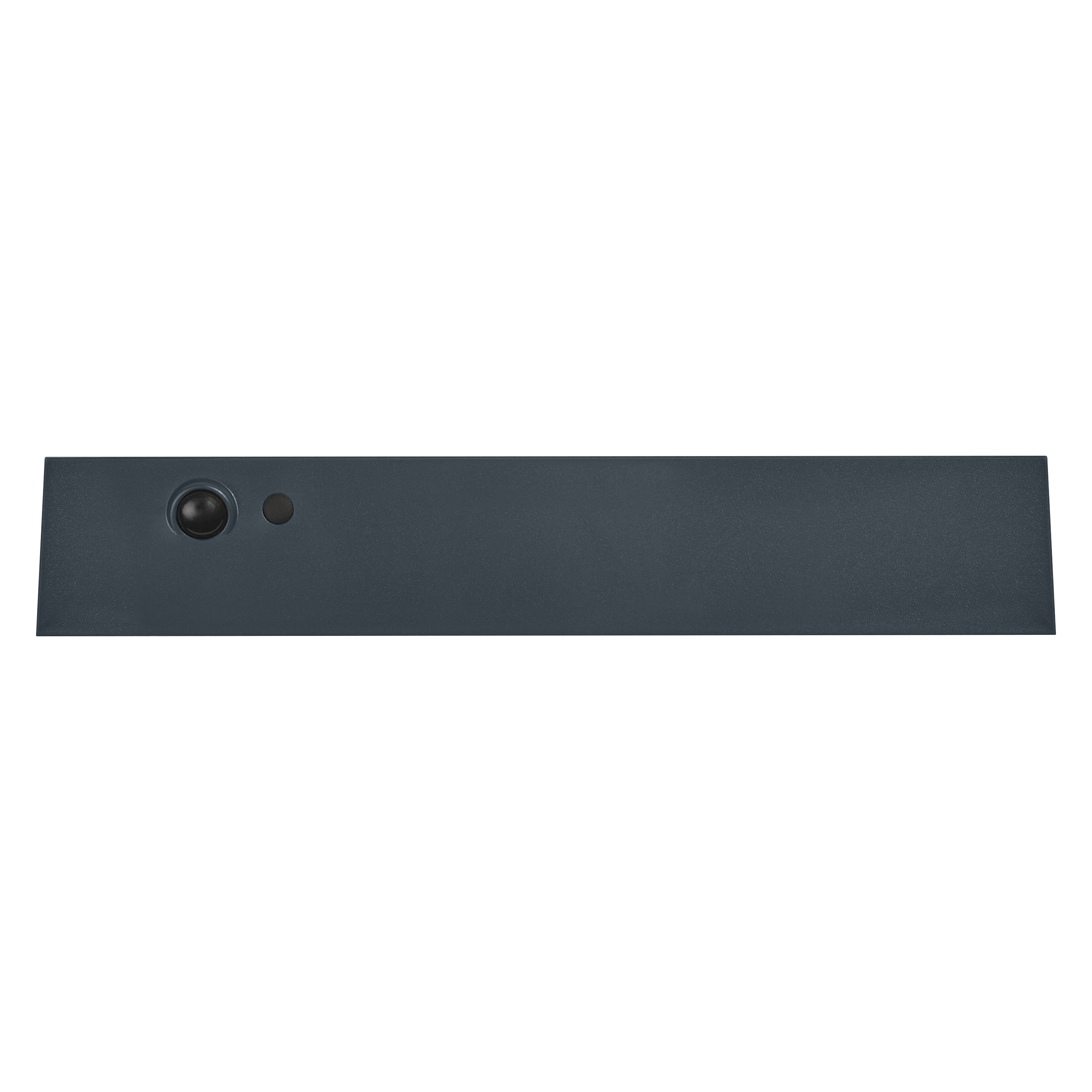

Product line drawing, front, no dimensions
ENDURA STY SOL SHORE W S IP54 DG

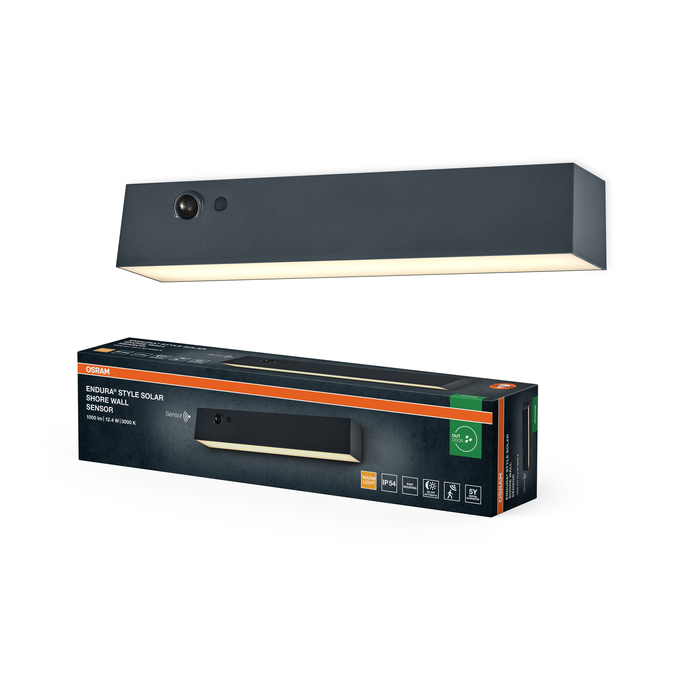

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ES SOL SHORE W S IP54 OSRAM
Packaging image, frontal
LUM FC ES SOL SHORE W S IP54 OSRAM
Packaging image, spacial
LUM FC ES SOL SHORE W S IP54 OSRAM

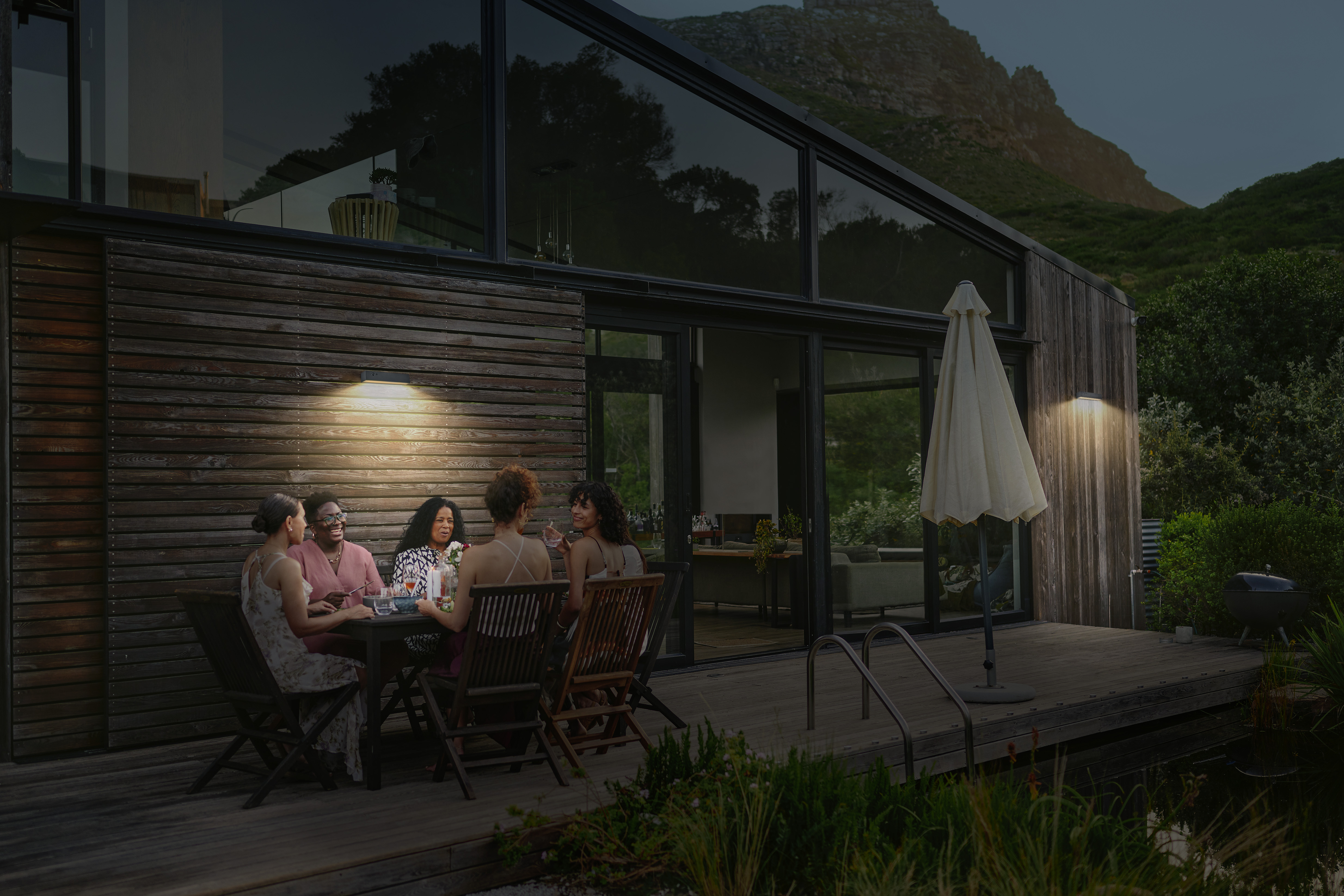

Application pictures Getty
