PLANON™ Frameless
Planon Frameless Round 300mm 19W 3000K
GTIN: 4058075470712
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Homogenous light distribution
- Easy and quick installation
Areas of application
- Indoor applications
- Decorative domestic lighting
- Wall and ceiling surface mounting
Product features
- Ceiling luminaire with advanced LED technology
- Available in square and rectangular form
- Color temperature: 3,000 K
- Aluminum housing, frosted PMMA diffuser
Equipment / Accessories
- Complete mounting and connecting accessories included
- Driver included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 19.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.90 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 1600 lm |
| Total luminous flux of contained light sources | 2300 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Beam angle | 110 ° |
Dimensions & Weight
| Diameter | 300.00 mm |
| Height | 65.00 mm |
| Product weight | 1340.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075470712 | Folding box 1 |
332 mm x 85 mm x 334 mm | 1515.00 g | 9.43 dm³ |
| 4058075470729 | Shipping box 5 |
449 mm x 352 mm x 369 mm | 8450.00 g | 58.32 dm³ |
User instruction / safety instructions
UI PLANON FRAMELESS ROUND
UI PLANON FRAMELESS ROUND
Declarations of conformity
PLANON FRAMELESS
PLANON FRAMELESS
Product datasheet -> old version of product
4058075470712 PLANON Frameless On Off ROUND 300 19 W 3000 K en old
4058075470712 PLANON Frameless On Off ROUND 300 19 W 3000 K en old

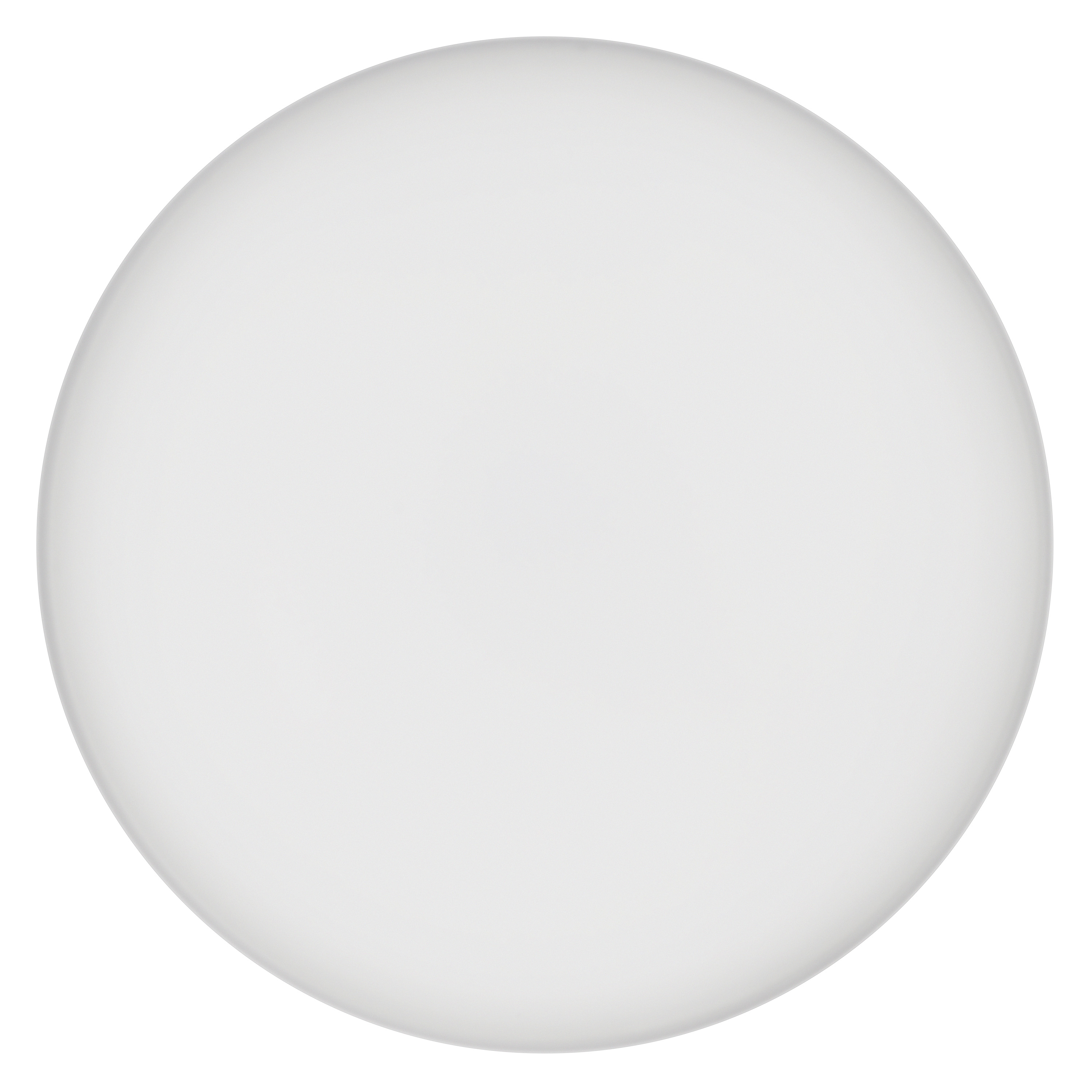

Product image: white background, upright
PLANON FRAMELESS RD 300 19W 830
PLANON FRAMELESS RD 300 19W 830

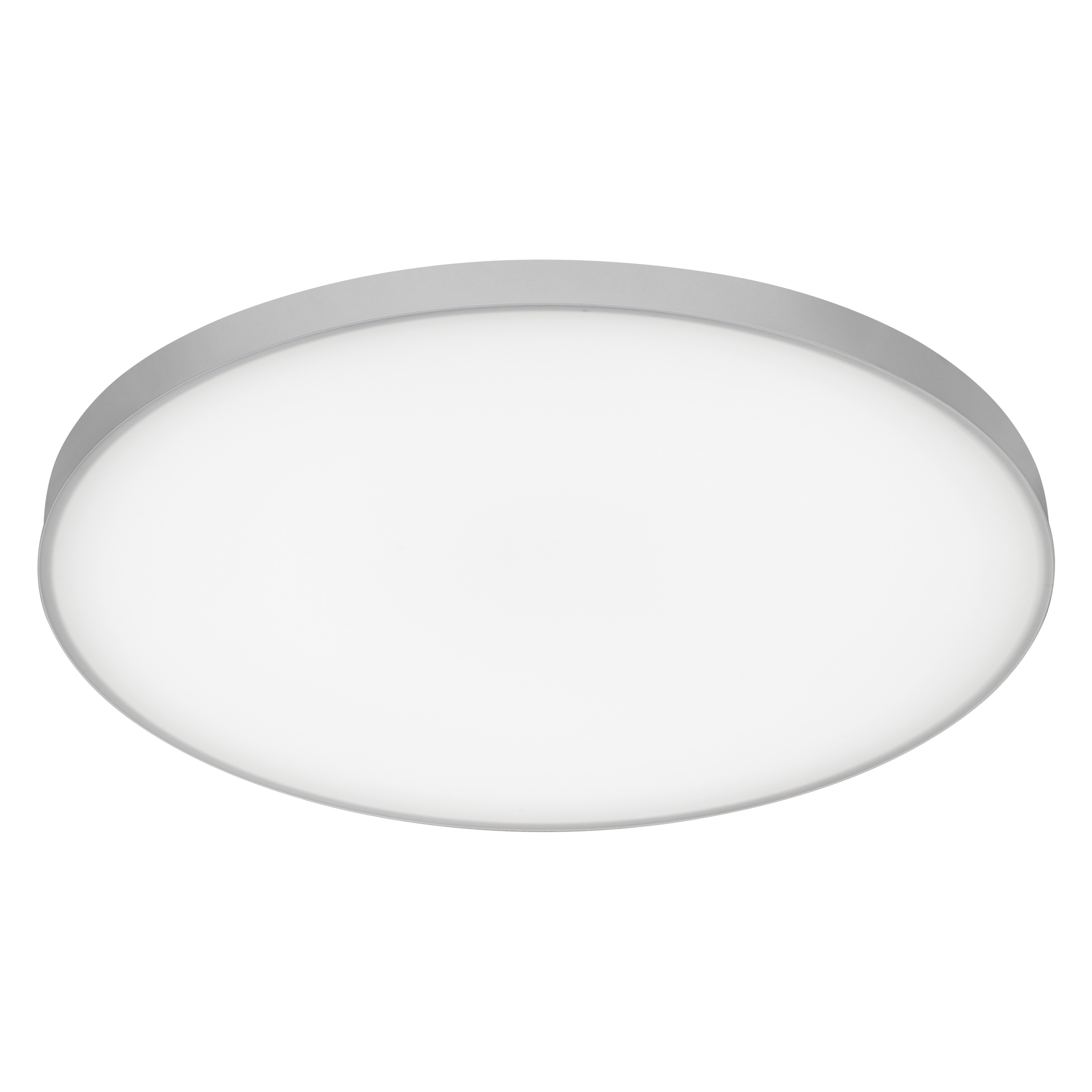

Product image: white background, upright, alternative image
PLANON FRAMELESS RD 300 19W 830
PLANON FRAMELESS RD 300 19W 830

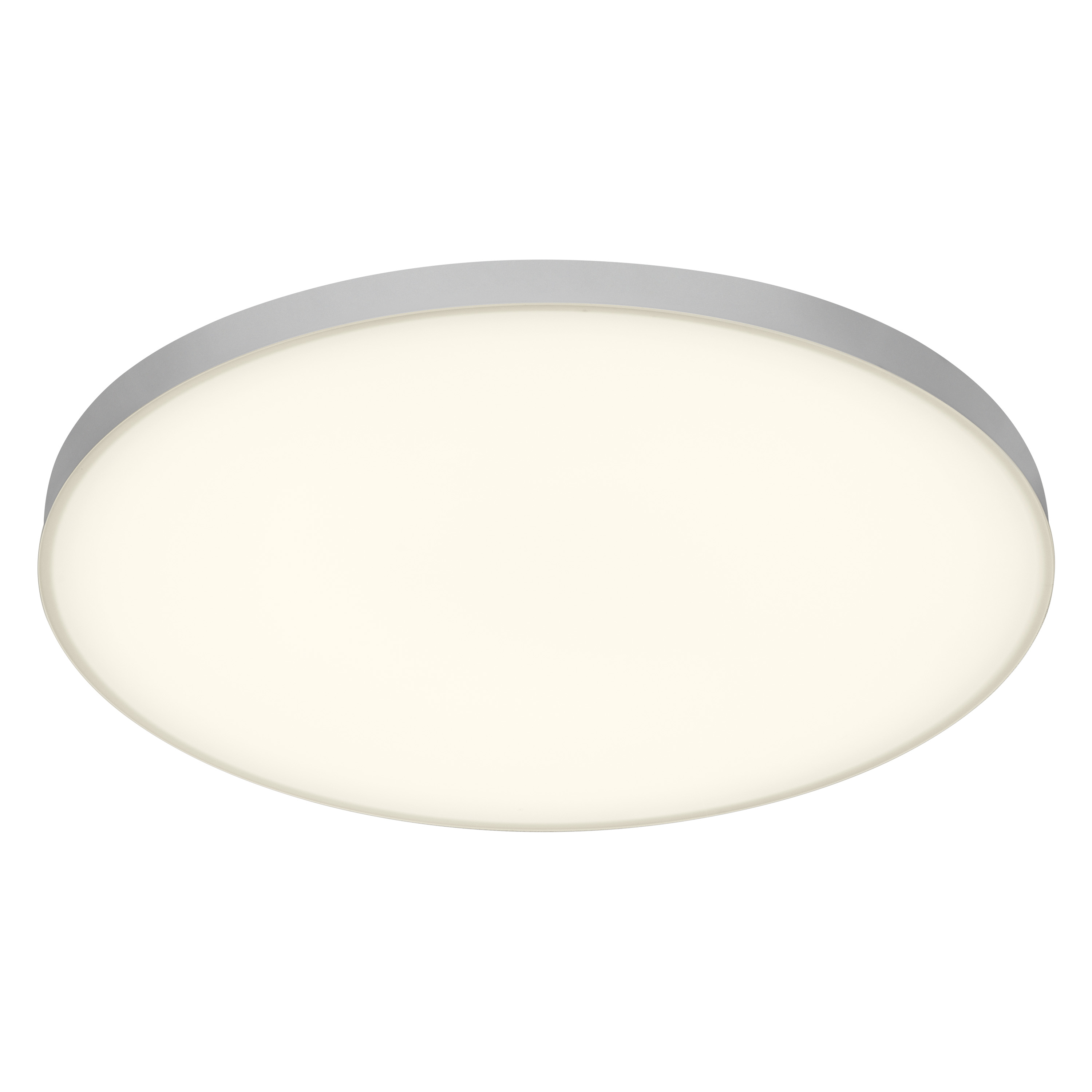

Product image: white background, upright, switched on
PLANON FRAMELESS RD 300 19W 830
PLANON FRAMELESS RD 300 19W 830
Product line drawing with letters
PLANON FRAMELESS RD 300 19W 830
PLANON FRAMELESS RD 300 19W 830
Product line drawing with numbers
PLANON FRAMELESS RD 300 19W 830
PLANON FRAMELESS RD 300 19W 830
Product line drawing, front, no dimensions
PLANON FRAMELESS RD 300 19W 830
PLANON FRAMELESS RD 300 19W 830

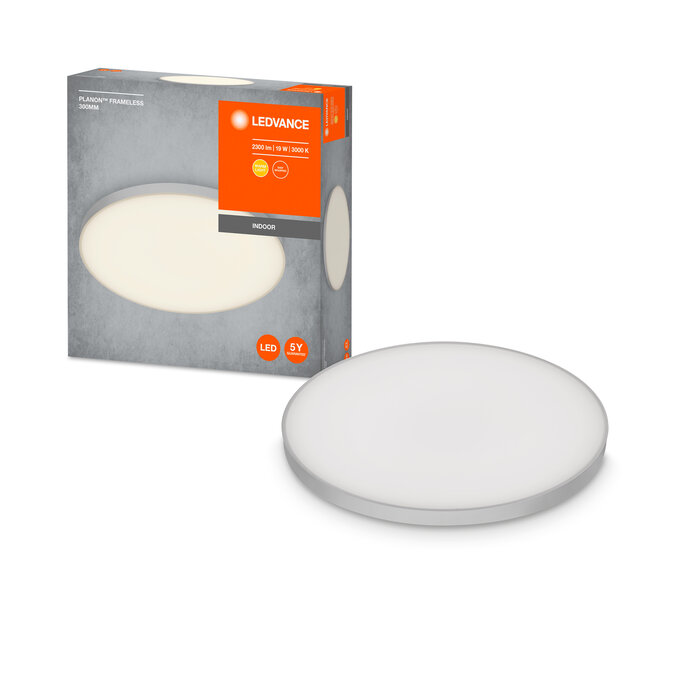

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC PL FL RD300 19W MiPRC
LUM FC PL FL RD300 19W MiPRC
Packaging image, frontal
LUM FC PLANON FL RD 300 19W MiPRC
LUM FC PLANON FL RD 300 19W MiPRC
Packaging image, spacial
LUM FC PLANON FL RD 300 19W MiPRC
LUM FC PLANON FL RD 300 19W MiPRC

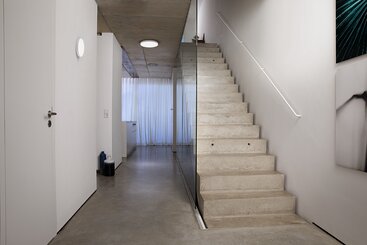

Application pictures
