Essential Orbis E27
Essential Orbis E27 220mm 1 Lamp Black
GTIN: 4058075855182
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Sustainable solution thanks to exchangeable light sources
- Excellent price/performance ratio
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Wall and ceiling luminaire with E27 socket
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Dimensions & Weight
| Diameter | 220.00 mm |
| Height | 95.00 mm |
| Product weight | 330.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Metal |
| Cover material | Poly methyl methacrylate (PMMA)|Acrylonitrile butadiene styrene (ABS) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20/IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Product remark | Available from October 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075855182 | Folding box 1 |
103 mm x 243 mm x 243 mm | 432.00 g | 6.08 dm³ |
| 4058075855199 | Shipping box 6 |
620 mm x 260 mm x 265 mm | 3289.00 g | 42.72 dm³ |
User instruction / safety instructions
Orbis Essential E27
Orbis Essential E27

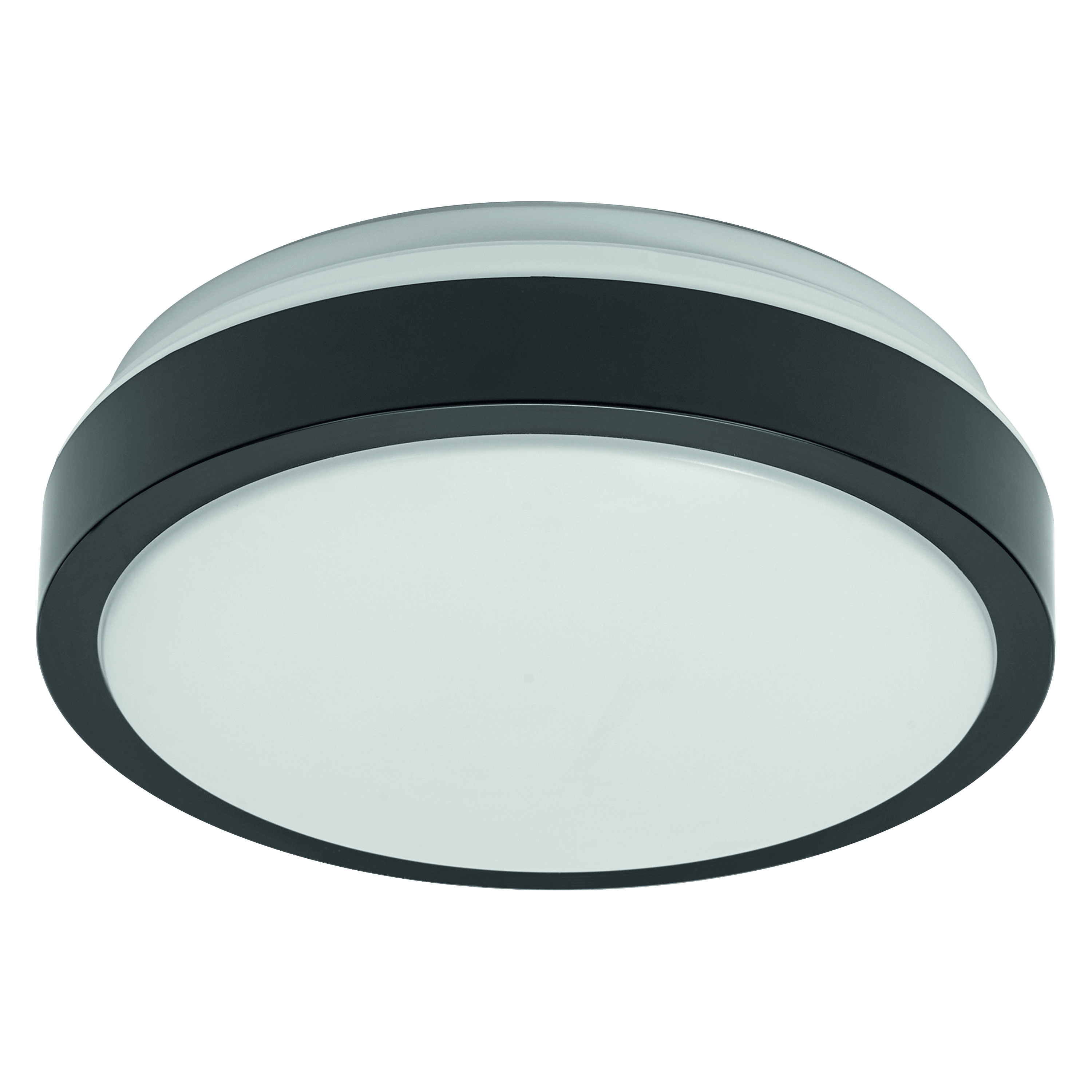

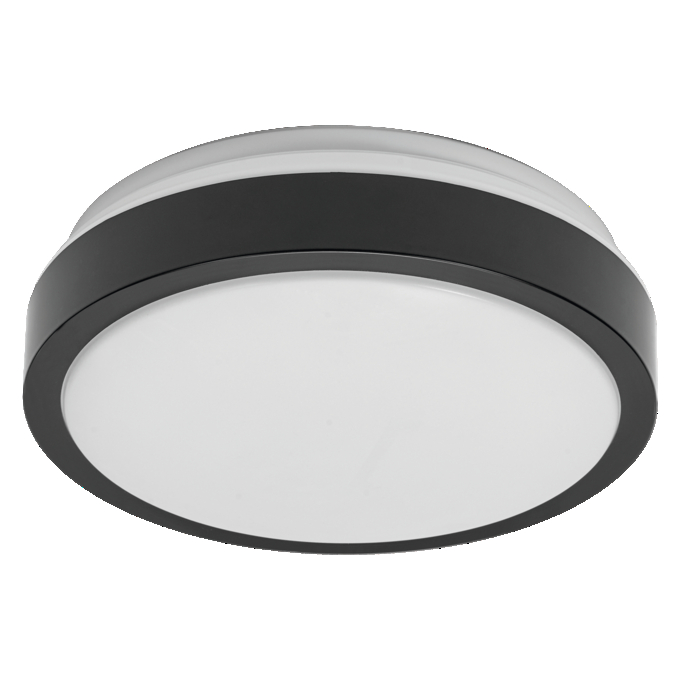

Product image: white background, upright
ORBIS ESSENTIAL 220 E27 BK
ORBIS ESSENTIAL 220 E27 BK
Product image: white background, upright, alternative image
ORBIS ESSENTIAL 220 E27 BK
ORBIS ESSENTIAL 220 E27 BK

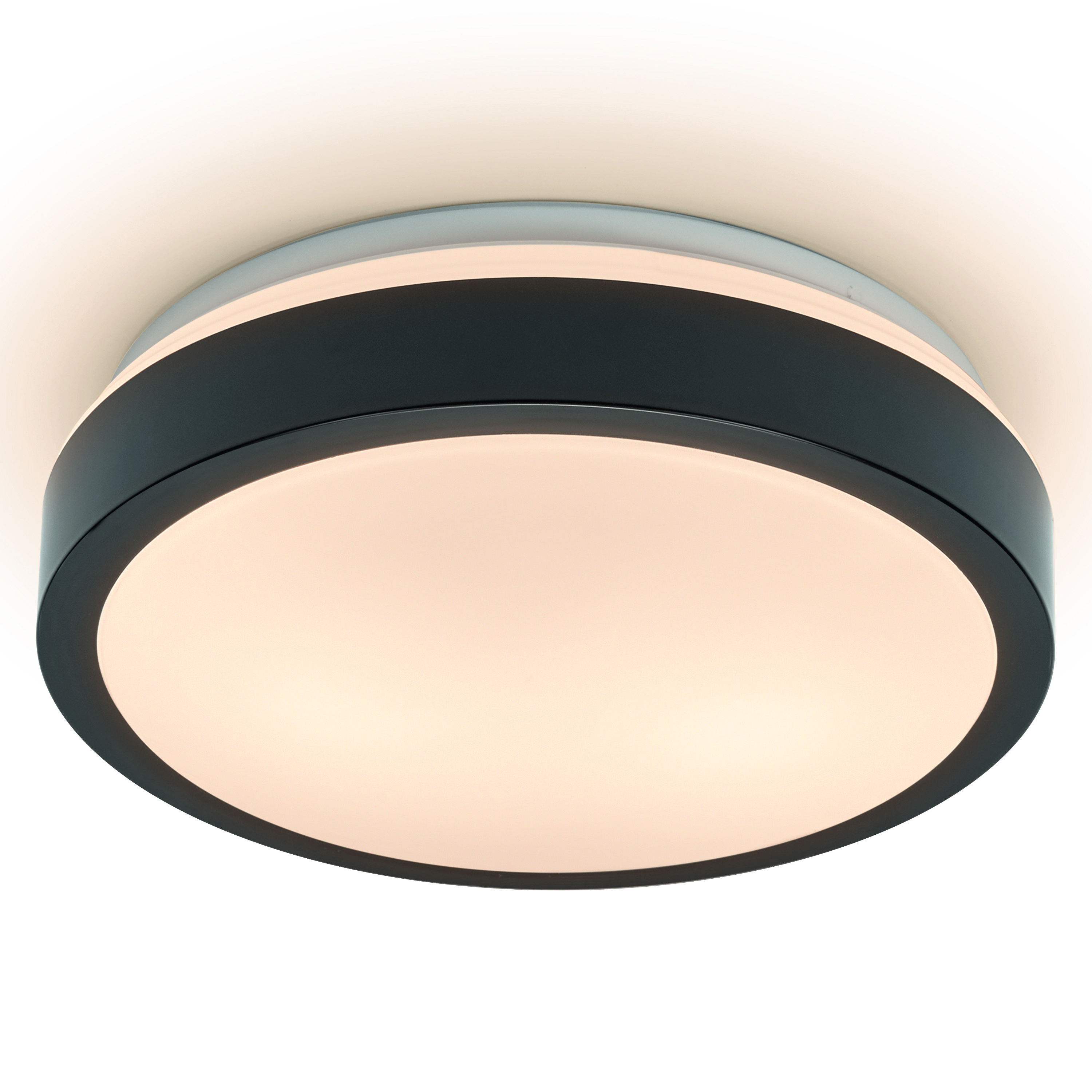

Product image: white background, upright, switched on
ORBIS ESSENTIAL 220 E27 BK
ORBIS ESSENTIAL 220 E27 BK
Product line drawing with letters
ORBIS ESSENTIAL 220 E27
ORBIS ESSENTIAL 220 E27
Product line drawing with numbers
ORBIS ESSENTIAL 220 E27
ORBIS ESSENTIAL 220 E27
Product line drawing, front, no dimensions
ORBIS ESSENTIAL 220 E27
ORBIS ESSENTIAL 220 E27

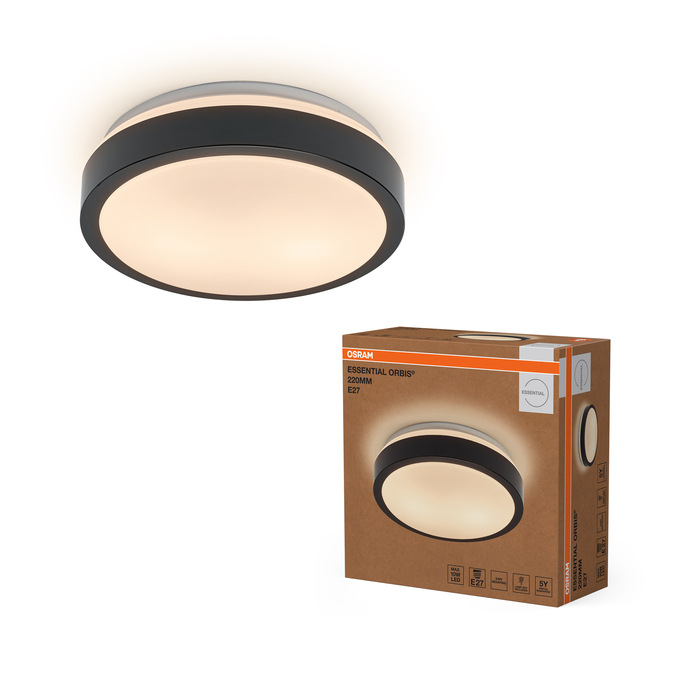

Combo Shot = Product Beauty Shot + Packaging Image
