SUBMARINE Integrated Slim Value
Submarine Integrated Slim Value 1.2M 18W 4000K
GTIN: 4058075266414
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Easy installation, no tools required for connection
- Impressive for its low-profile design
Areas of application
- Basements, garages, warehouses
Product features
- Damp-proof luminaires
- Dust-protected and jet-proof (IP65)
- Extremely low profile
- Not dimmable
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 18.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 170.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 46 |
| Max. number of luminaires per miniature circuit breaker C16 | 59 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
Photometrical data
| Luminous flux | 1600 lm |
| Total luminous flux of contained light sources | 1900 lm |
| Luminous efficacy | 89 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Flickering metric (Pst LM) | <10 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 1245.00 mm |
| Height | 35.00 mm |
| Width | 53.00 mm |
| Product weight | 299.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+35 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075266414 | Folding box 1 |
42 mm x 58 mm x 1,232 mm | 318.00 g | 3.00 dm³ |
| 4058075266421 | Shipping box 20 |
1,280 mm x 249 mm x 225 mm | 7203.00 g | 71.71 dm³ |
User instruction / safety instructions
SUBMARINE INTEGRATED SLIM
SUBMARINE INTEGRATED SLIM
Legal information
Legal insert B-not dimmable
Legal insert B-not dimmable
Declarations of conformity
CE Declaration SubMARINE LED Slim Value
CE Declaration SubMARINE LED Slim Value
Product datasheet -> old version of product
4058075266414 SubMARINE Integrated Slim Value 1200 18 W 4000 K en old
4058075266414 SubMARINE Integrated Slim Value 1200 18 W 4000 K en old
Product image: white background, diagonal
SUBMARINE I SLIM VALUE 1.2M 840
SUBMARINE I SLIM VALUE 1.2M 840
Product image: white background, horizontal
SUBMARINE I SLIM VALUE 1.2M 840
SUBMARINE I SLIM VALUE 1.2M 840

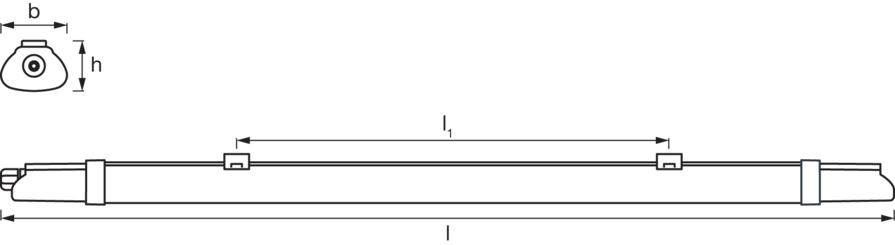

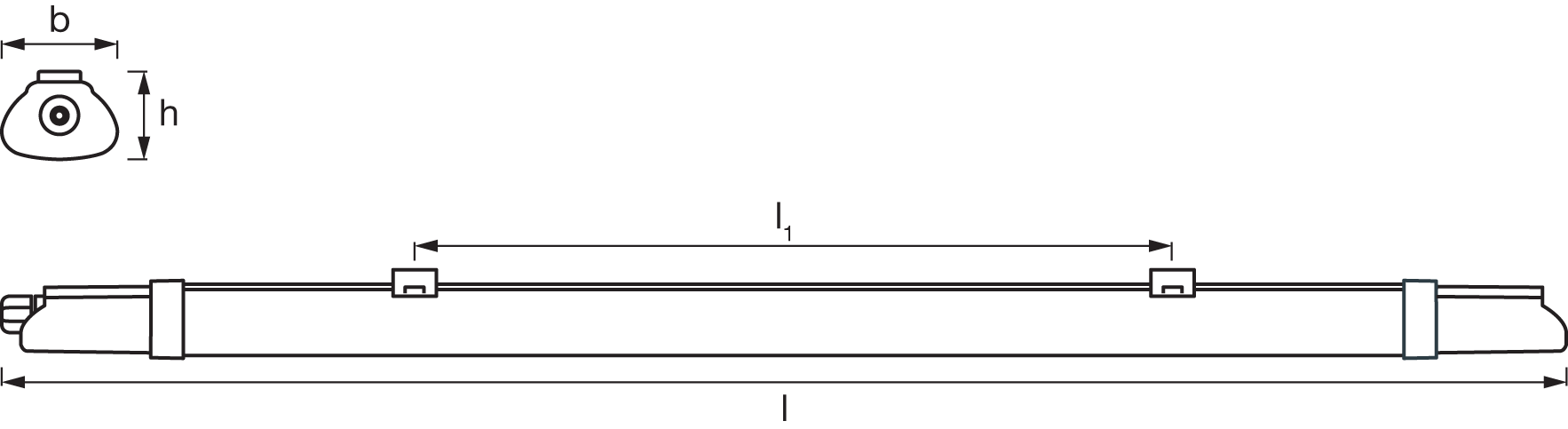

Product line drawing with letters
SUBMARINE I SLIM VALUE 1.2M 840
SUBMARINE I SLIM VALUE 1.2M 840

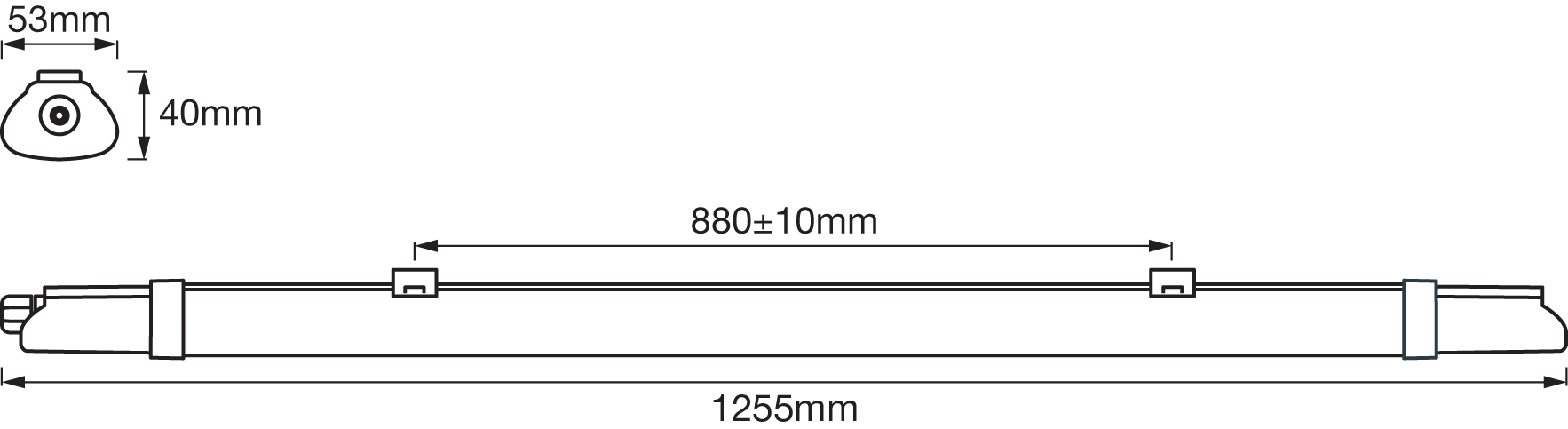

Product line drawing with numbers
SUBMARINE I SLIM VALUE 1.2M 840
SUBMARINE I SLIM VALUE 1.2M 840

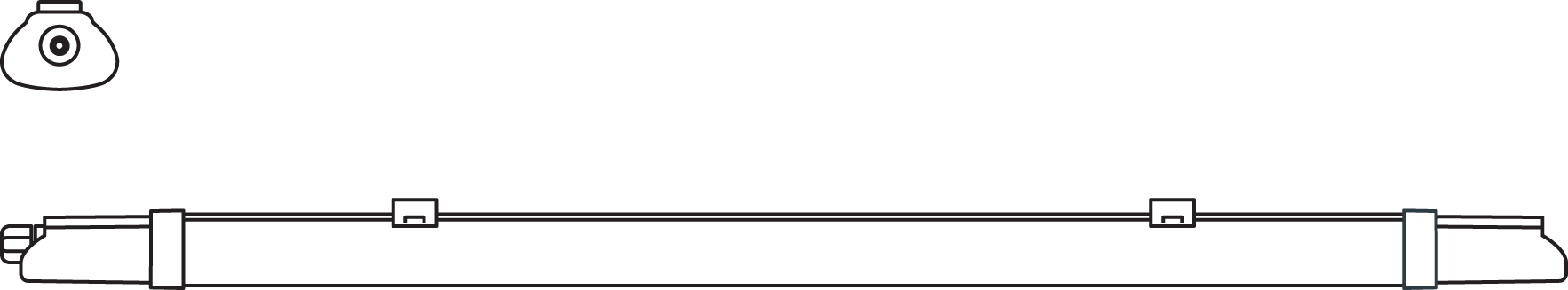

Product line drawing, front, no dimensions
SUBMARINE I SLIM VALUE 1.2M 840
SUBMARINE I SLIM VALUE 1.2M 840

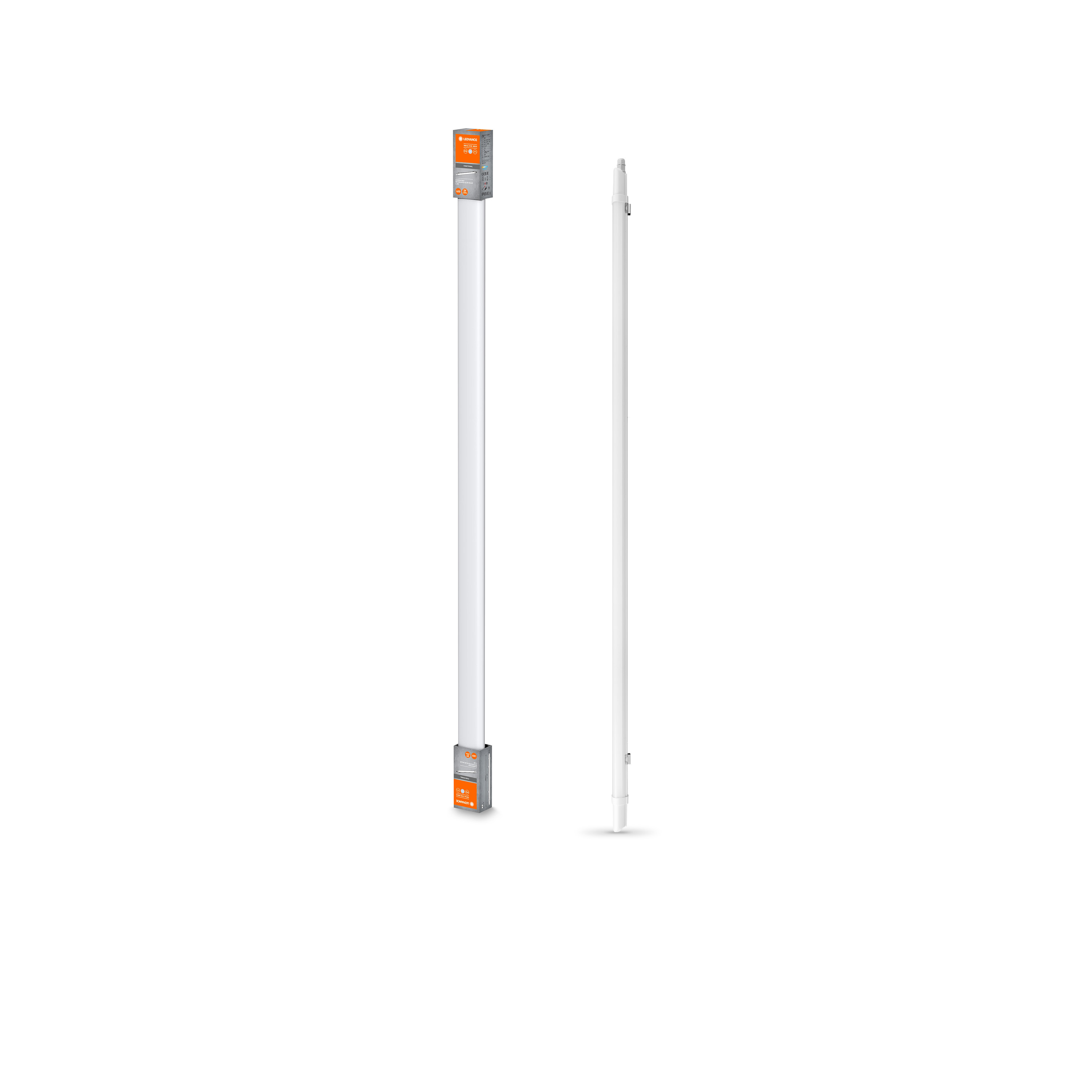

Combo Shot = Product Beauty Shot + Packaging Image
LUM EC SUBMARINE SL VAL 1200 MiPRC
LUM EC SUBMARINE SL VAL 1200 MiPRC
Packaging image, frontal
LUM ENDKAP SubMAR SL VAL 12 1 MiPRC
LUM ENDKAP SubMAR SL VAL 12 1 MiPRC

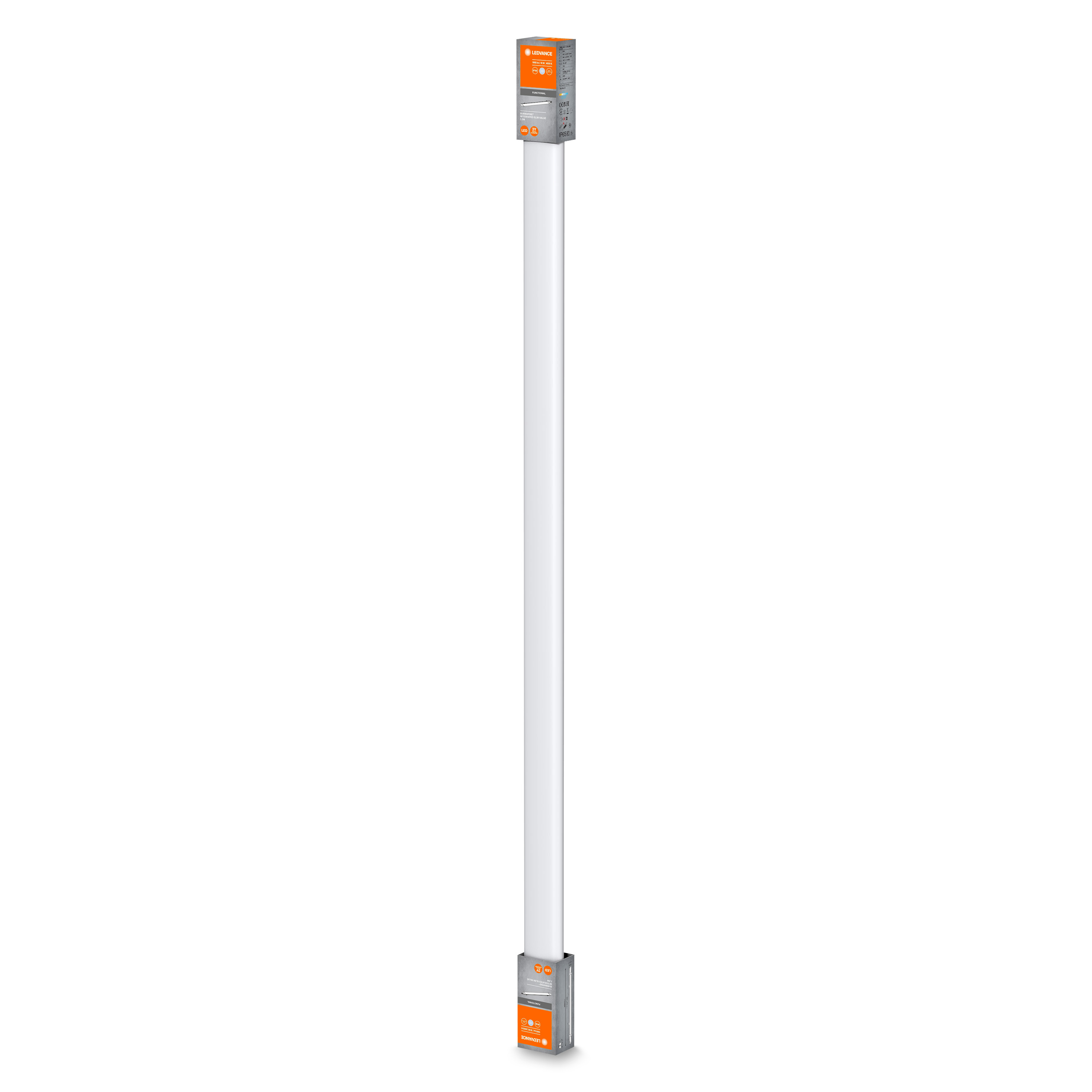

Packaging image, spacial
LUM ENDKAP SubMAR SL VAL 12 1 MiPRC
LUM ENDKAP SubMAR SL VAL 12 1 MiPRC
| EAN | ELDAS number |
|---|---|
| 4058075266414 | 941003320 |
