SUBMARINE Integrated
Submarine Integrated 0.6M 18W 4000K
GTIN: 4058075260351
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Very homogenous light
- Extremely bright
Areas of application
- Basements, garages, warehouses
Product features
- Dust-protected and jet-proof (IP65)
- Not dimmable
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 18.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 78.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 58 |
| Max. number of luminaires per miniature circuit breaker C16 | 73 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 1500 lm |
| Total luminous flux of contained light sources | 1900 lm |
| Luminous efficacy | 83 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Flickering metric (Pst LM) | <10 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 590.00 mm |
| Height | 66.00 mm |
| Width | 86.00 mm |
| Product weight | 670.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Number of switching cycles | 25000 |
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075260351 | Folding box 1 |
89 mm x 620 mm x 69 mm | 764.00 g | 3.81 dm³ |
| 4058075260368 | Shipping box 8 |
640 mm x 200 mm x 304 mm | 6606.00 g | 38.91 dm³ |
User instruction / safety instructions
SUBMARINE INTEGRATED
SUBMARINE INTEGRATED
Legal information
Legal insert C - Not dimmable
Legal insert C - Not dimmable
Declarations of conformity
CE Declaration SubMARINE LED I
CE Declaration SubMARINE LED I
Product datasheet -> old version of product
4058075260351 SubMARINE Integrated 600 18 W 4000 K en old
4058075260351 SubMARINE Integrated 600 18 W 4000 K en old
Product image: white background, upright
SubMARINE LED integrated
SubMARINE LED integrated
Product line drawing with letters
PG SubMARINE LED
PG SubMARINE LED
Product line drawing with numbers
PG SubMARINE LED i 0.6m 840 MIPRC
PG SubMARINE LED i 0.6m 840 MIPRC
Product line drawing, front, no dimensions
PG SubMARINE LED
PG SubMARINE LED

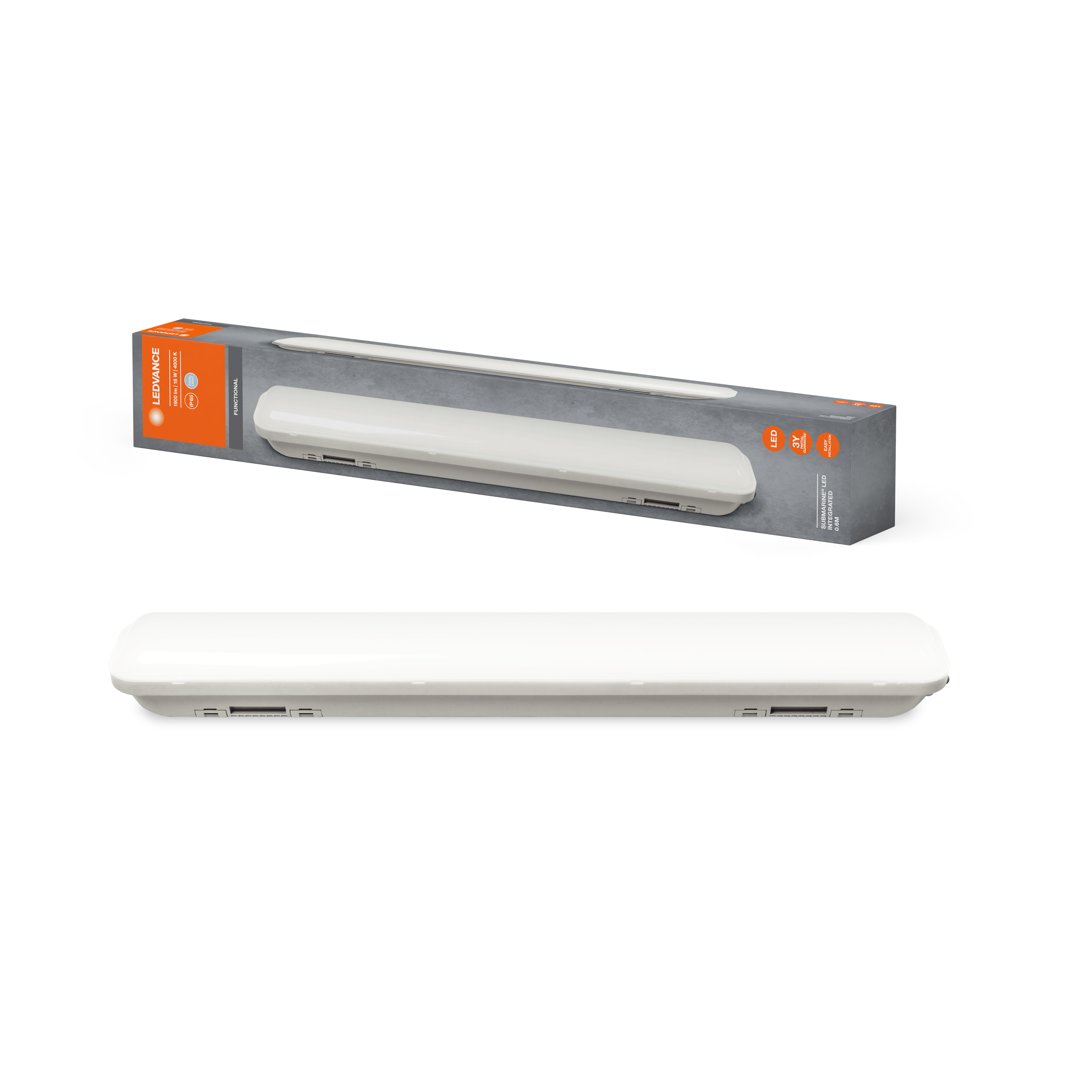

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SUBMARINE LED 600 MiPRC
LUM FC SUBMARINE LED 600 MiPRC

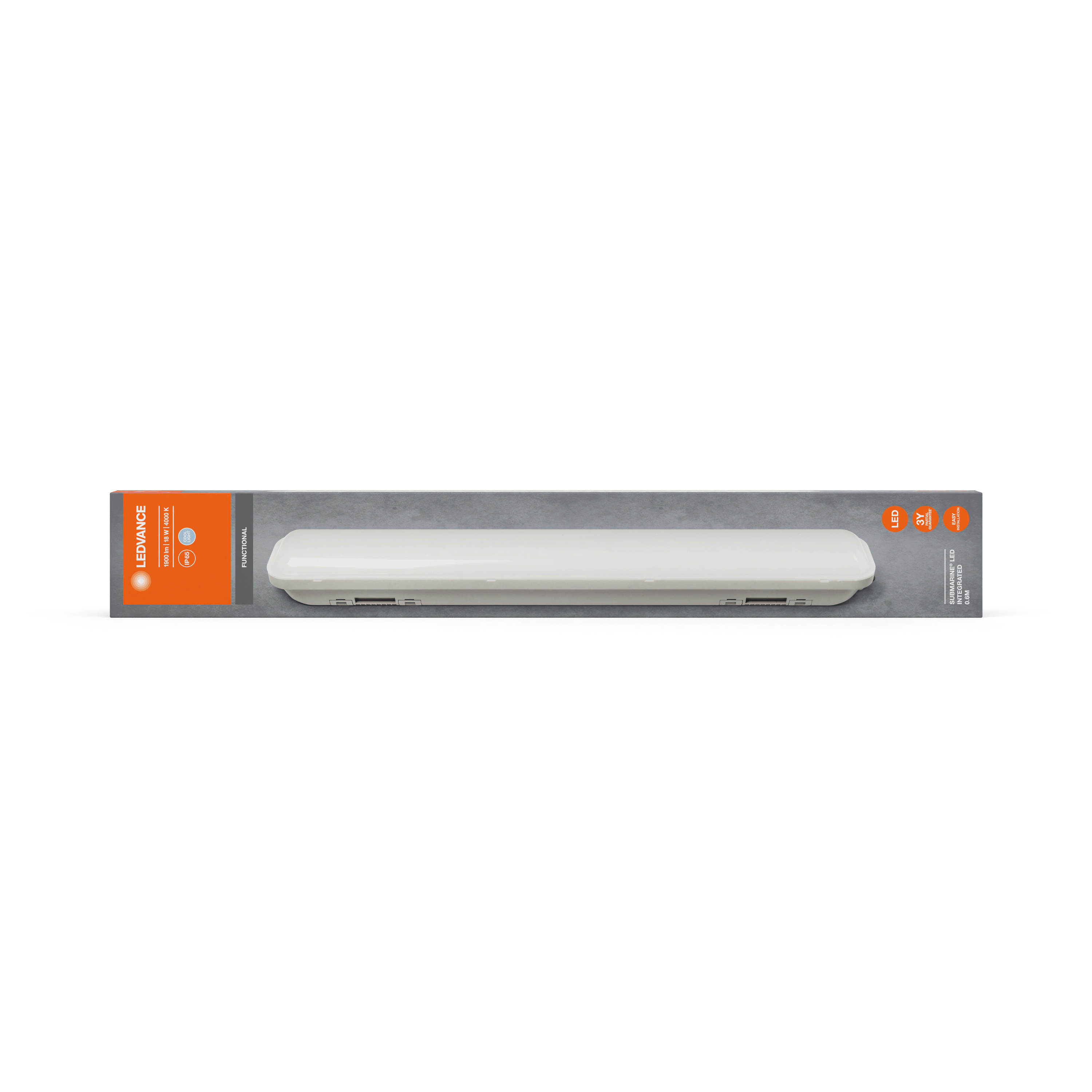

Packaging image, frontal
LUM FC SubMARINE 18W 60CM MiPRC Front
LUM FC SubMARINE 18W 60CM MiPRC Front

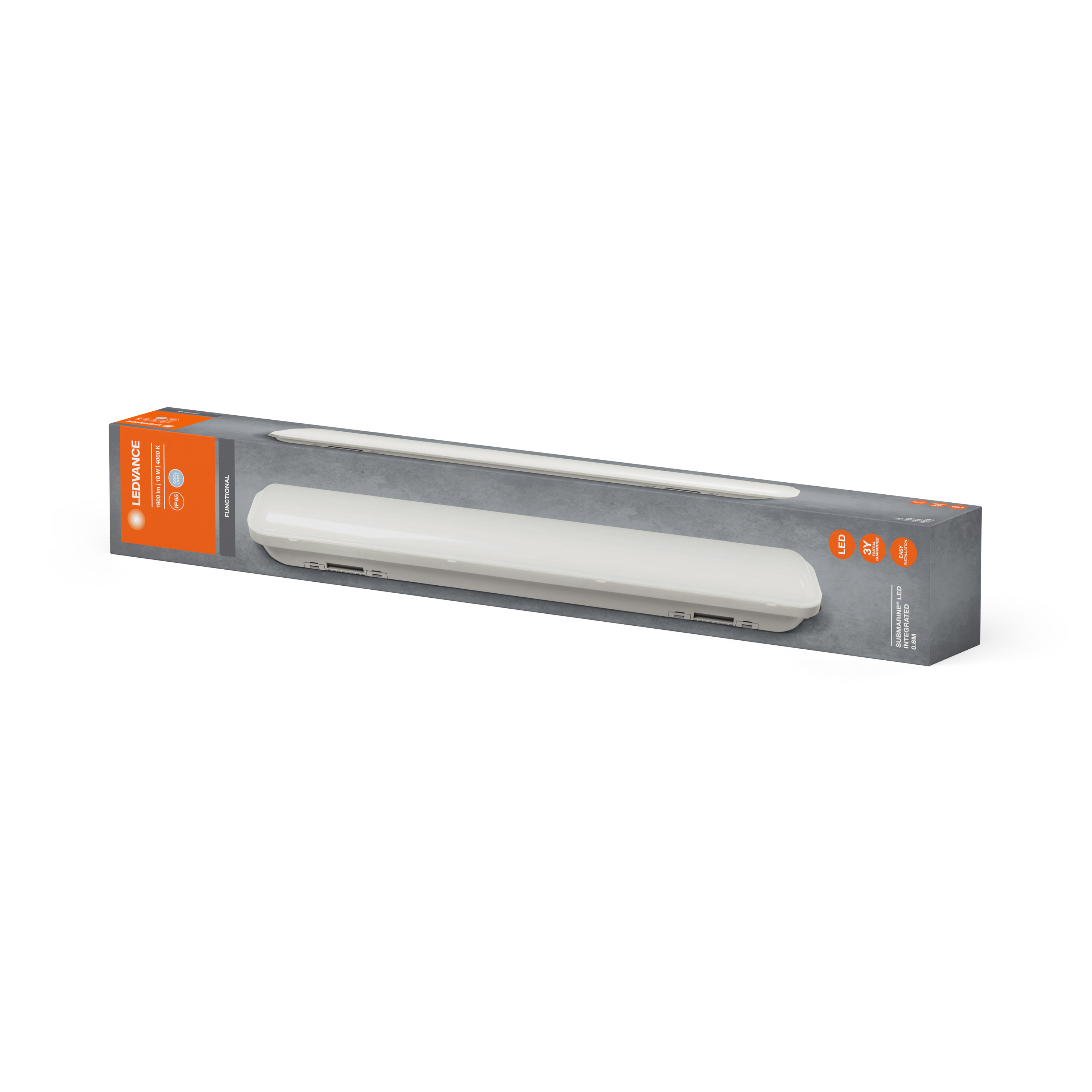

Packaging image, spacial
LUM FC SubMARINE 18W 60CM MiPRC Side
LUM FC SubMARINE 18W 60CM MiPRC Side
Application pictures
SubMARINE LED integrated cool
SubMARINE LED integrated cool
Application pictures
SubMARINE LED integrated & Tubekit cool
SubMARINE LED integrated & Tubekit cool
Application pictures
SubMARINE LED integrated cool
SubMARINE LED integrated cool
Application pictures
SubMARINE LED integrated & Tubekit cool
SubMARINE LED integrated & Tubekit cool
Application pictures
SubMARINE Tubekit cool
SubMARINE Tubekit cool
| EAN | ELDAS number |
|---|---|
| 4058075260351 | 941003470 |
