LED STAR CLASSIC B
ST CLAS B 40 5.5 W/4000 K E14
GTIN: 4052899962057
Blister / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Domestic applications
- General illumination
- Chandeliers
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 5.5 W |
| Construction wattage | 5.50 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 40 W |
| Nominal current | 43 mA |
| Type of current | AC |
| Inrush current | 10 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 287 |
| Max. lamp number on MCB B16 A | 461 |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 470 lm |
| Nominal useful luminous flux 90° | 470 lm |
| Luminous efficacy | 85 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | ≥80 |
| Light color | 840 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 100.00 mm |
| Diameter | 37.00 mm |
| Maximum diameter | 37 mm |
| Product weight | 20.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 92.3 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E14 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, In development, data preliminary |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 6.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| ILCOS | DRBB/F-5-220-240-E14-35 |
| Order reference | LEDSCLB40 5,5W/ |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E14 |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 100.00 mm |
| Height | 37.00 mm |
| Width | 37.00 mm |
| Displacement factor | 0.5 |
| EPREL ID | 1403232 |
| Model number | AC24718 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899962057 | Blister 1 |
42 mm x 140 mm x 120 mm | 35.00 g | 0.71 dm³ |
| 4052899962545 | Shipping box 6 |
262 mm x 153 mm x 132 mm | 282.00 g | 5.29 dm³ |
PRODUCT DATASHEET
LEDSCLB40 5,5W/840 230VFR E146XBLI1OSRAM
LEDSCLB40 5,5W/840 230VFR E146XBLI1OSRAM
Product image: white background, diagonal with OSRAM logo
655095_Classic B 25-40 frosted non-dim E14
655095_Classic B 25-40 frosted non-dim E14
Product image: white background, diagonal
LED CLASSIC B 40 E14
LED CLASSIC B 40 E14
Product image: white background, upright, OSRAM logo
Classic B 25-40 frosted non-dim E14
Classic B 25-40 frosted non-dim E14
Product image: white background, upright
LED CLASSIC B 40 E14
LED CLASSIC B 40 E14
Product line drawing with letters
LED CLASSIC B 40 E14
LED CLASSIC B 40 E14
Product line drawing with numbers
LED CLASSIC B 40 E14
LED CLASSIC B 40 E14
Product line drawing, front, no dimensions
LED CLASSIC B 40 E14
LED CLASSIC B 40 E14

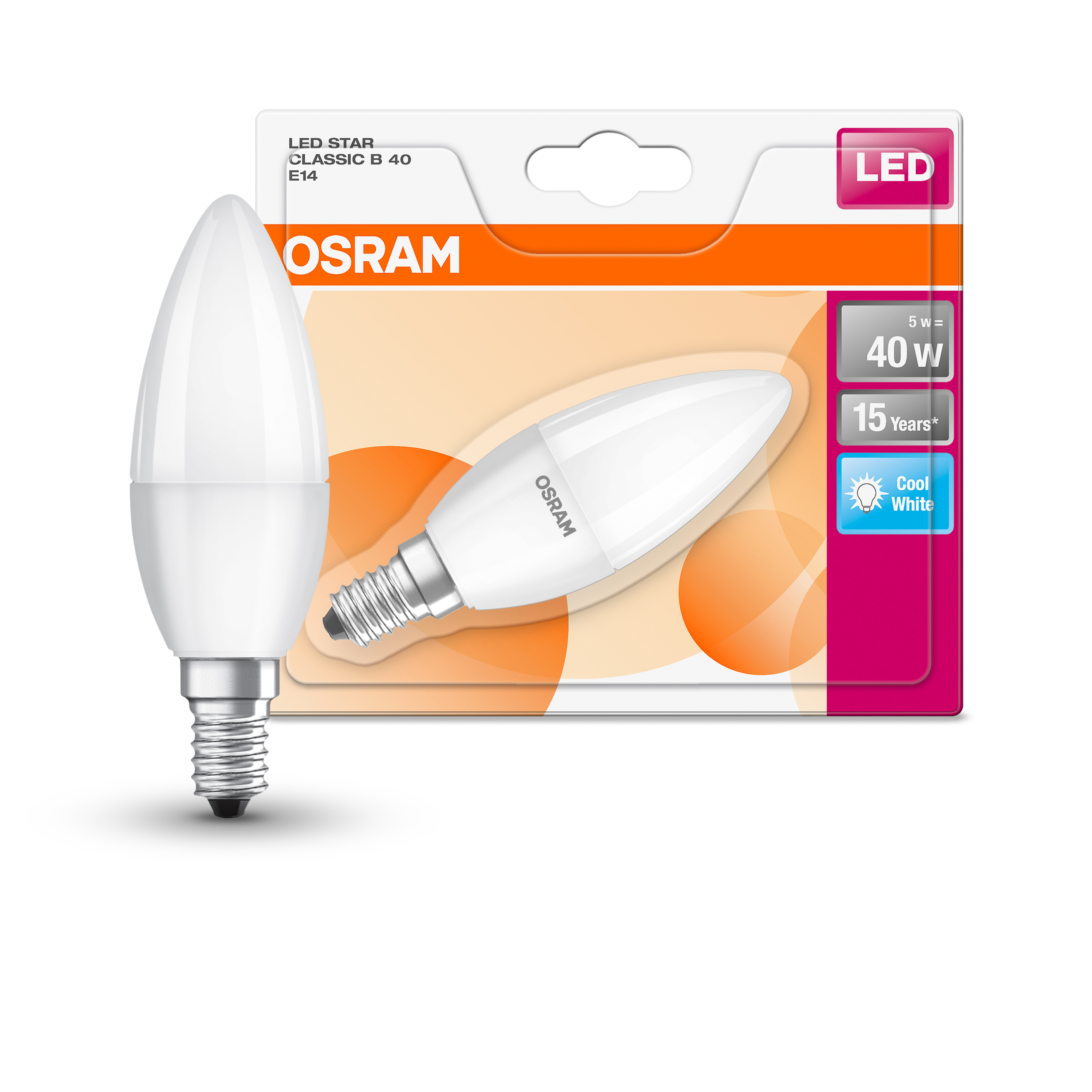

Combo Shot = Product Beauty Shot + Packaging Image
LEDSCLB40 5,7W-840 230VFR E146XBLI1
LEDSCLB40 5,7W-840 230VFR E146XBLI1
Packaging image, frontal
LED ST CLB 40 5W 840 FR E14 MiCh Front
LED ST CLB 40 5W 840 FR E14 MiCh Front
Energy label
EL-4052899962057-AC247 18
EL-4052899962057-AC247 18
| EAN | EFO number |
|---|---|
| 4052899962057 | 3771958 |
