SMART+ Classic Dimmable

Choose your product version

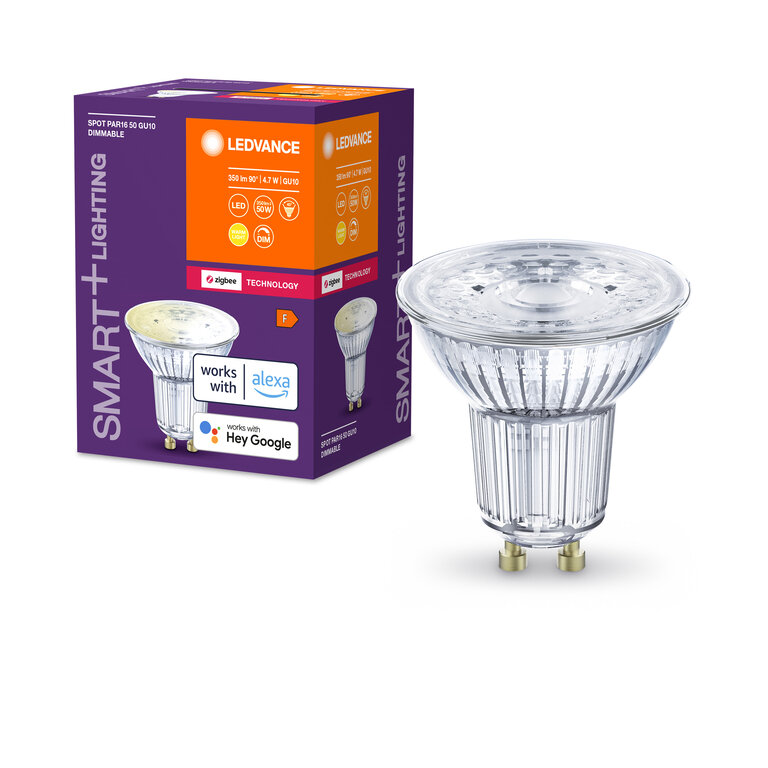

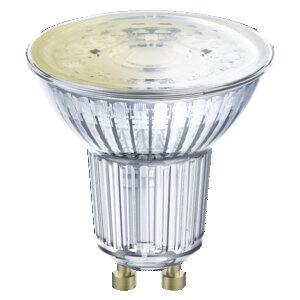

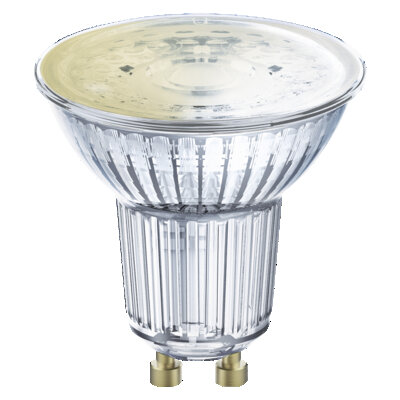

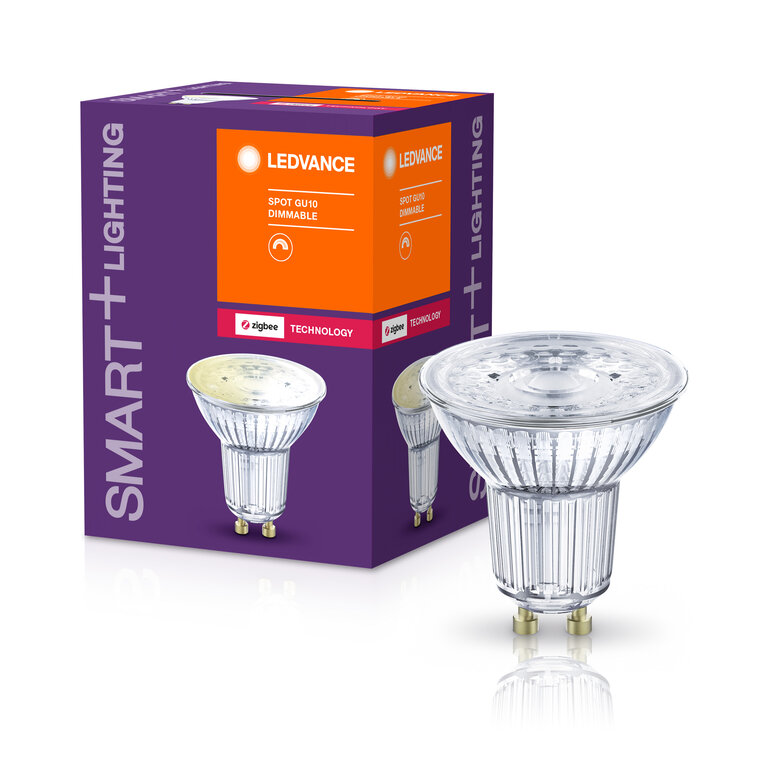

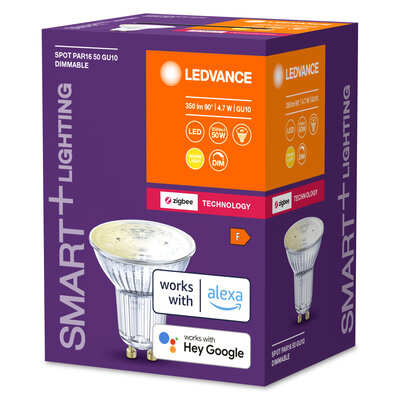

SMART ZB PAR16 50 4.7W 220V DIM GU10

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps

PRODUCT DETAILS

Electrical data

Nominal wattage 4.7 W
Construction wattage 4.70 W
Nominal voltage 220…240 V
Nominal current 38 mA
Mains frequency 50 Hz
Power factor λ > 0.50
Claimed equiv. conventional lamp power 50 W
Operating mode AC Mains

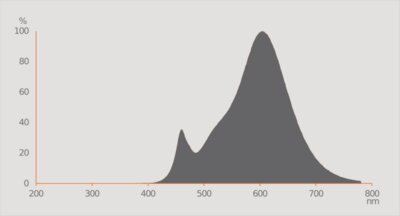

Photometrical data

Light color (designation) Warm White
Lumen main.fact.at end of nom.life time 0.95
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 350 lm
Luminous flux 350 lm
Luminous efficacy 74 lm/W
Luminous intensity 600
Adjustable color temperature 2700 K
Color temperature 2700 K
Color rendering index Ra 80
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 45 °
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s

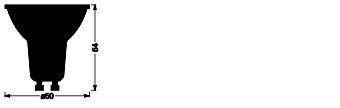

Dimensions & Weight

Product weight 43.00 g
Diameter 50.00 mm
Maximum diameter 50 mm
Length 54.00 mm
Width 50 mm
Height 50 mm
Outer bulb [PICOS] PAR51

Lifespan

Number of switching cycles 100000
Lifespan 20000 h
Lumen maintenance at end of service lifetime 0.95

Colors & materials

Product color Transparent
Housing color Transparent

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Additional product data

Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) GU10

Capabilities

Dimmable Yes 1)
Compatible smart home technology Amazon Alexa, Google Assistant, Philips Hue

1) Via App

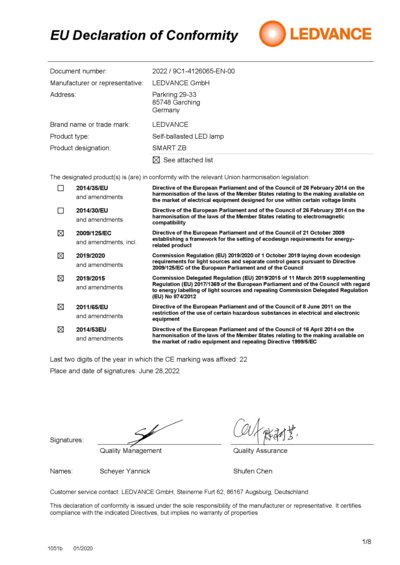

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Standards CE
Type of protection IP20

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) GU10
Connected light source (CLS) Yes
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power < 0.5 W
Networked standby power for CLS < 0.5 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index > 0
Beam angle correspondence NARROW_CONE_90
Survival factor 0,9
LED light source replaces a fluorescent light source No
EPREL ID 1160675
Model number AC41289,AC41289

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination
  • Residential interiors
  • Professional (hotels, bars, boutiques etc.)
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Control via compatible smart home system (gateway and app)
  • Control via voice control available: Google Assistant or Amazon Alexa, depending on the smart home system in use
  • Network protocol: ZigBee 3.0
  • Dimmable
  • Lifetime: up to 20,000 h
  • For full functionality connection to a compatible smart home System (gateway and app) required
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

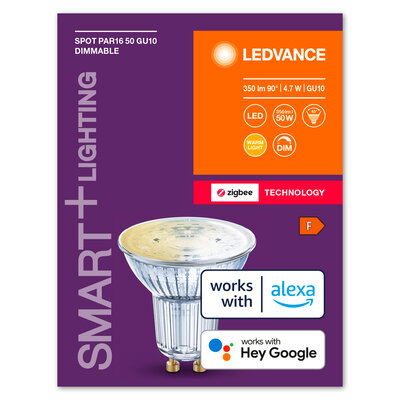

4058075729148 Folding box
1
61 mm x 78 mm x 96 mm 124.00 g 0.46 dm³
4058075729155 Shipping box
4
173 mm x 108 mm x 141 mm 585.00 g 2.63 dm³
4058075760165 Shipping box
32
359 mm x 229 mm x 303 mm 4928.00 g 24.91 dm³
EAN ELDAS number
4058075729148 941842270
