PRODUCT DETAILS

Product features
  • Commission and configure with LEDVANCE LINK™ app
  • Control using either the LEDVANCE LINK™ app or the wireless controller
  • Grouping and Zoning: Wirelessly group luminaires to act in sync with each other
  • Scene Control: Preset various scenes for individual or group of luminaires using the app and/or wireless/wired controllers
  • QR Code for Admin/Guest control: Using the LEDVANCE LINK™ app, Admin and Guest QR codes for each zone can be generated. Allows copying the settings to another phone/tablet by scanning this QR code
  • Allows setting time-based schedules and high-end and low-end trim through the LEDVANCE LINK™ app
Dimensions & Weight
Product weight 226.8 g
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135636530 Folding box
1
61 mm x 36 mm x 201 mm 272.00 g 0.44 dm³
4099854140907 Shipping box
100
415 mm x 385 mm x 325 mm 27635.00 g 51.93 dm³
Extended installation guide
INSTALLATION GUIDE LEDVANCE LINK BLUETOOTH® LOW ENERGY MESH SIGNAL BOOSTER/POWER PACK
Extended installation guide
INSTALLATION GUIDE LEDVANCE LINK BLUETOOTH® LOW ENERGY MESH SIGNAL BOOSTER/POWER PACK
Extended installation guide
USER GUIDE LEDVANCE LINK FW Manager
Product information bulletin
DATASHEET LEDVANCE LINK BLUETOOTH® LOW ENERGY MESH SIGNAL BOOSTER/POWER PACK
Other documents / promotion
LEDVANCE Product Launch Flyer August 2023
Other documents / promotion
CHOOSING THE RIGHT LEDVANCE CONTROL SOLUTION
Other documents / promotion
LEDVANCE LINK Sales Flyer
Product image: white background, with accessory, alternative image

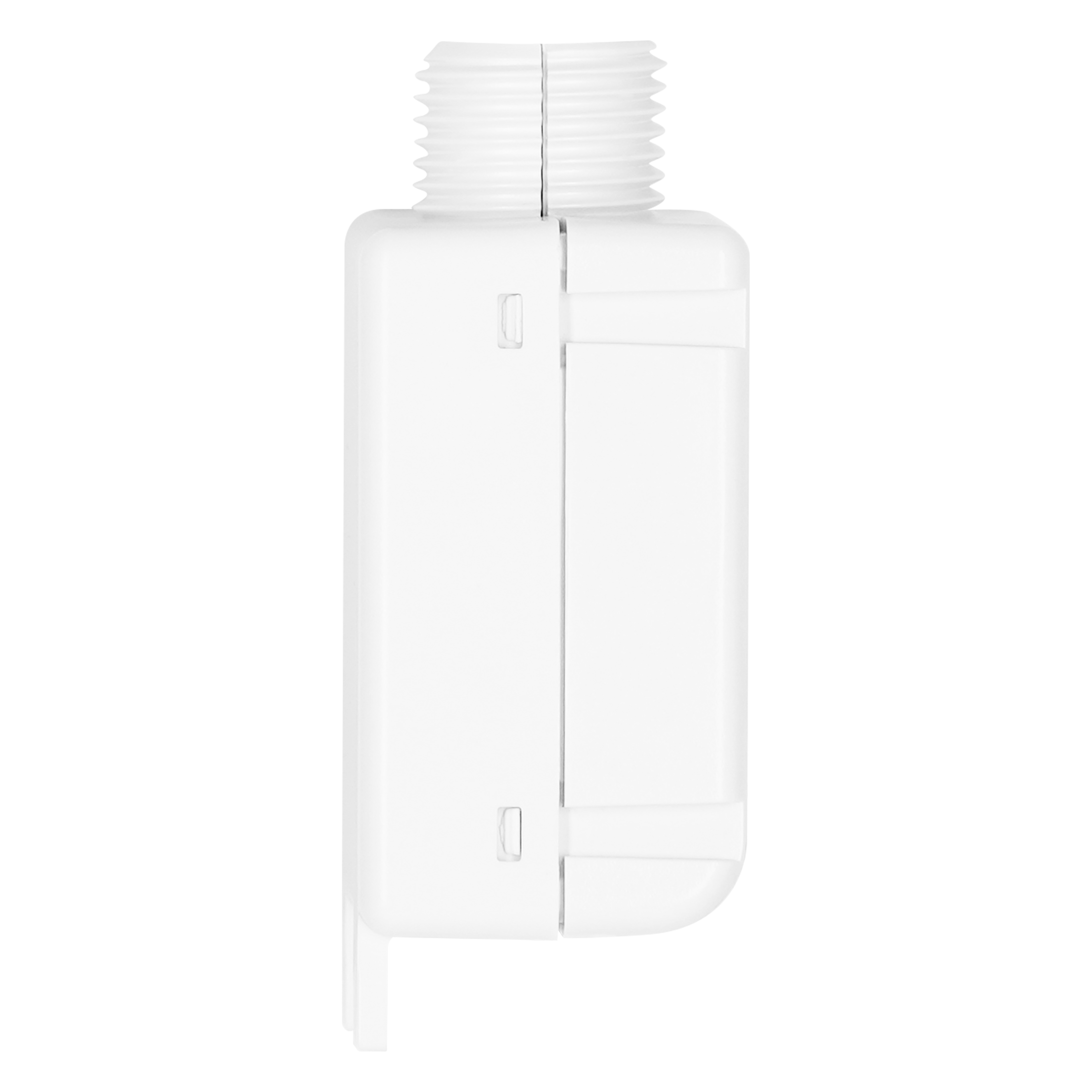

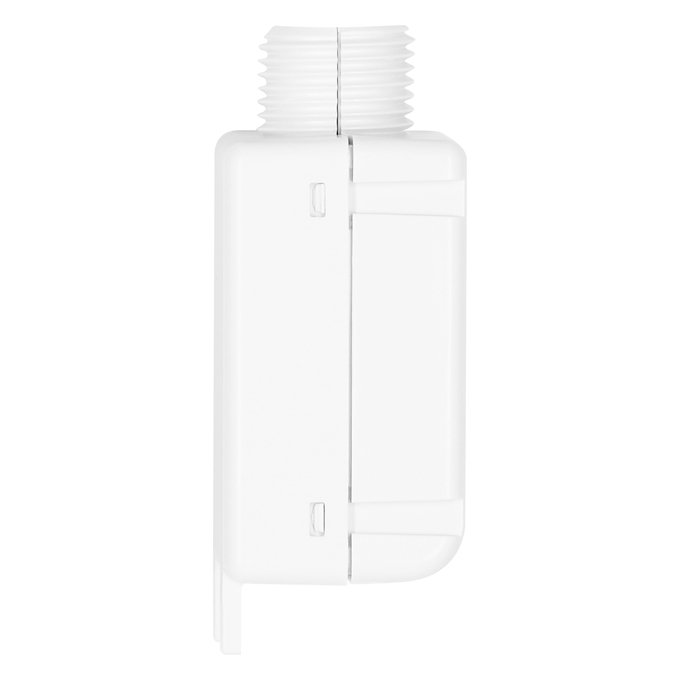

PPA102S W LiteTrace 2
Product image: white background, with accessory, alternative image

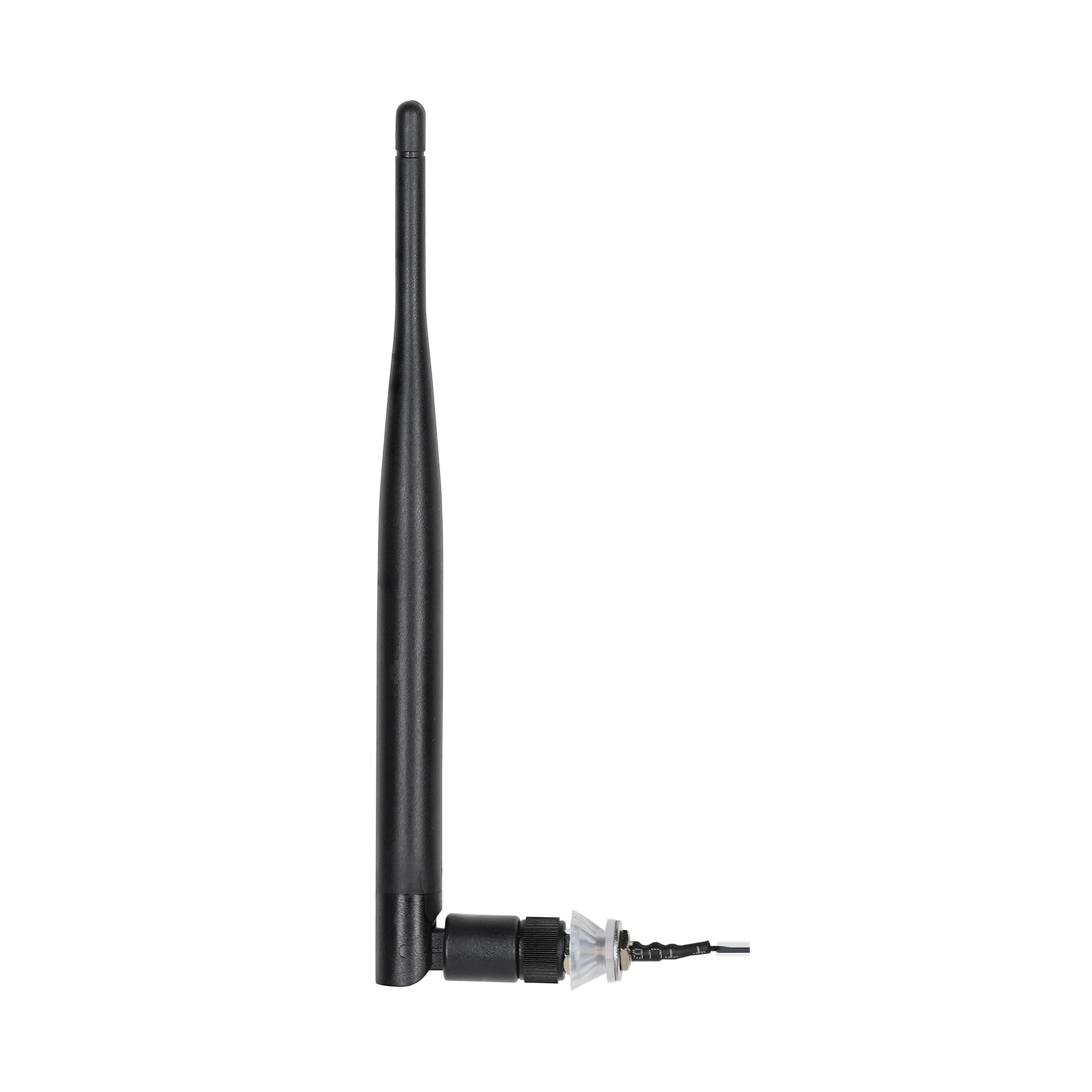

PPA102S W LiteTrace 3
Product image: white background, with accessory, alternative image

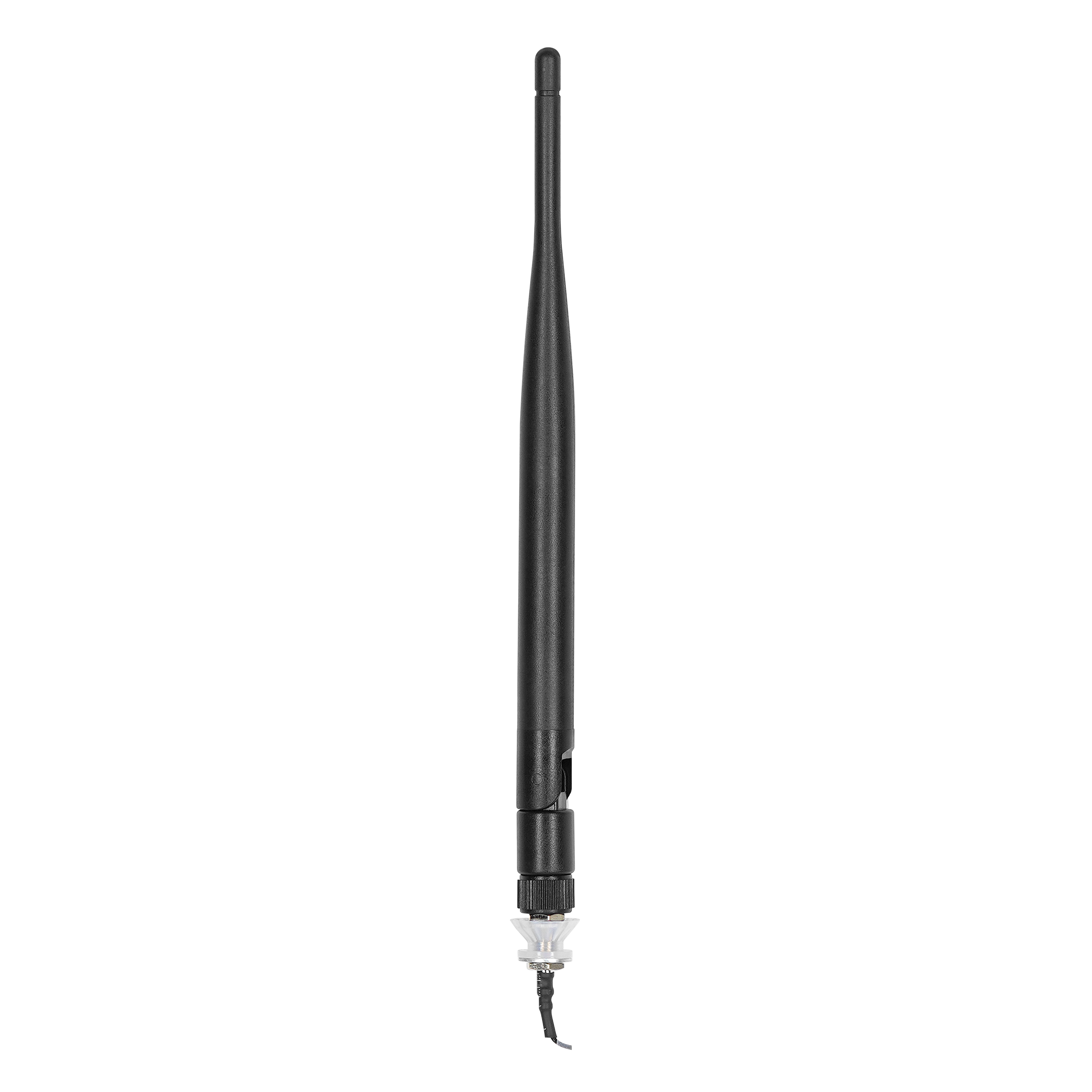

PPA102S W LiteTrace 4
