STRING INVERTER THREE PHASE 15 / 20 K
LT 20K F1-DC-WIET
GTIN: 4058075835276
Shipping box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- 10 years of product guarantee
- Built-in LCD display
- Wide output voltage range
- Versions with AFCI and PID available
- Level II surge protection on AC and DC side
- Automatic voltage stabilization technology in weak grid conditions
- Compatible with different energy meters
- Easy installation
Areas of application
- Residential installations
- Commercial and industrial installations
Product features
- Smart fan cooling
- Integrated DC switch
- Offline configuration
- Remote updates of the software
Equipment / Accessories
- Mounting bracket included
- Data logger included
- AC connector included
- Supplied with user manual
- Additional DC connectors for the outlets on the inverter
- RS485 connector included
- Mounting stainless steel screws included
- Stainless steel anti-collision bolts included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Output phases | 3-phase |
| Max. input power DC | 26 kW |
| Input voltage DC | 600 V |
| MPP voltage | 200 - 850 V |
| Max. input current DC | 32 A |
| Max. input current DC per string input | 10.7 A |
| Max. input current DC per MPP tracker | 32 A |
| Max. short circuit current per MPPT | 48 A |
| Number of independent MPPT inputs | 2 |
| String connections per MPPT input | 3 |
| Nominal output power AC | 20 kW |
| Power consumption | <1 W |
Dimensions & Weight
| Length | 330 mm |
| Width | 206 mm |
| Height | 508 mm |
| Product weight | 20000.000 g |
Additional product data
| Integrated DC switch | Yes |
| Connection DC for battery | No |
| Suitable for emergency power | No |
| Charging controller integrated | No |
| With data logging | Yes |
| Wireless | Yes |
| Display | Standard |
| Ethernet | Yes |
| Integrated transformer | No |
| Type of connection | MC4-Compatible |
| Temperature range in operation | -25…+65 °C 1) |
| Ambient temperature range | -25…+65 °C |
| Outdoor application | No |
| Type of protection | IP65 |
| Product color | White |
1) > 45℃ derating
Efficiency
| Maximum efficiency | 98.60 % |
| European efficiency | 97.80 % |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), 1,3,5-Triazine-2,4,6-triamine, Bisphenol A (BPA), 4,4'-Methylenedianiline, Formaldehyde, oligomeric reaction products with aniline, Tetrabromobisphenol A, Decabromodiphenyl ether [decaBDE], Dodecamethylcyclohexasiloxane [D6], 4-Nonylphenol |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075835276 | Shipping box 1 |
620 mm x 485 mm x 300 mm | 22000.00 g | 90.21 dm³ |
User instruction / safety instructions
Three Phased String Inverter 18-25K F1 User Manual
Three Phased String Inverter 18-25K F1 User Manual
Declarations of conformity
CE declaration_LT-20K-30K
CE declaration_LT-20K-30K
Product family datasheet
LT 18-25K F1
LT 18-25K F1

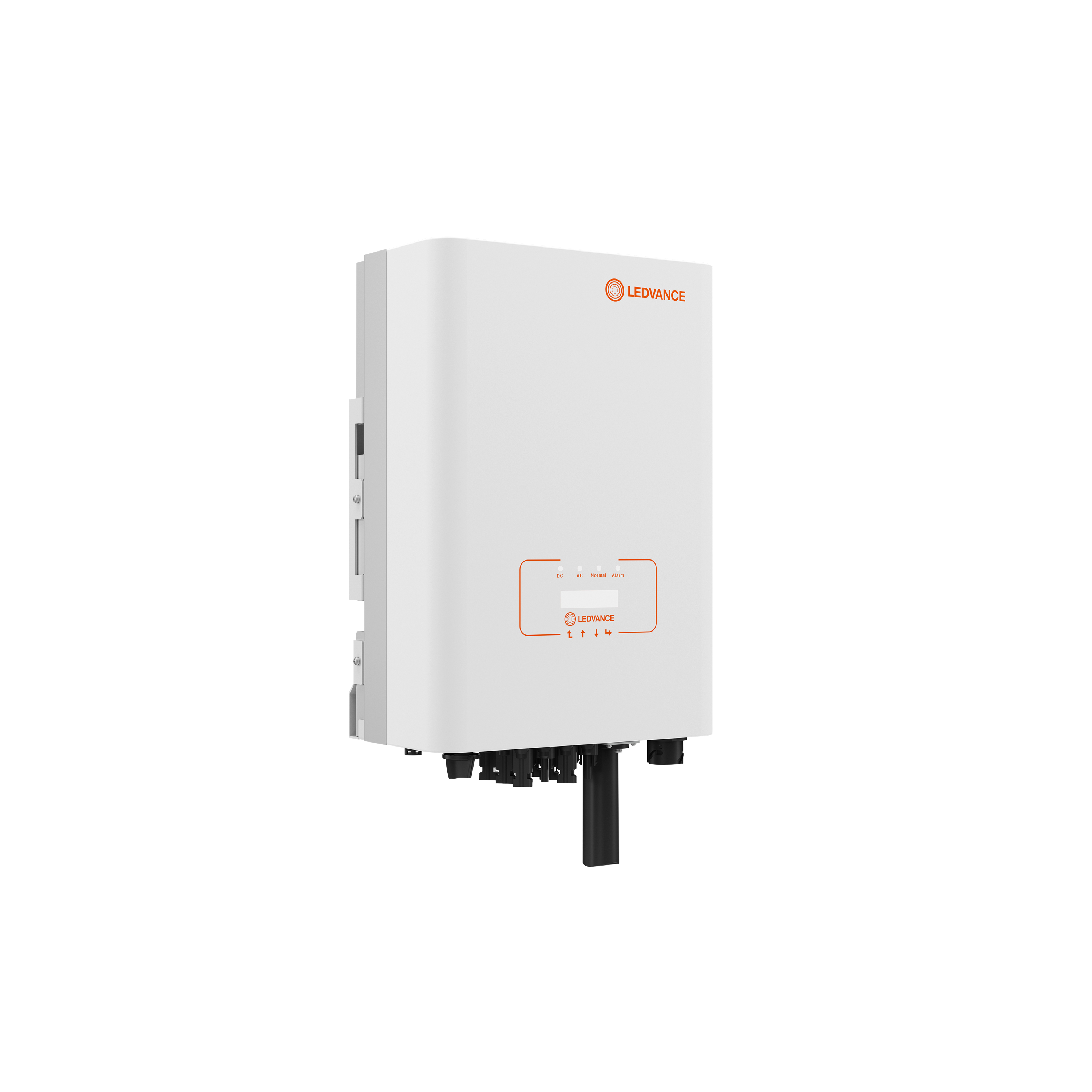

Product image: white background, diagonal
LT 25 K F1
LT 25 K F1
Product image: white background, upright
LT 25 K F1
LT 25 K F1
| EAN | STK number |
|---|---|
| 4058075835276 | 8010080 |
