DAMP PROOF COMPACT THROUGHWIRING GEN 2
DP COMP TH 1500 V 62W 840 IP66
GTIN: 4058075740990
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Excellently usable in bigger installations due to preinstalled through-wiring (3x1.5mm²)
- Easy access to electrical terminal thanks to end caps with twist and lock mechanism
- Tool-free electrical connection due to push button connector
- Uniform light distribution
- 5 years guarantee
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- Power select option available to select between 2 lumen packages
- Through-wiring 3x1.5mm² already installed
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
- High luminous efficacy: up to 123 lm/W
- Polycarbonate housing IP66 and IK08
- Beam angle: 120°
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 62.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 277.000 mA |
| Inrush current | 38.4 A |
| Inrush current time Th50 | 4.64 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 26 |
| Max. number of luminaires per miniature circuit breaker C10 | 22 |
| Max. number of luminaires per miniature circuit breaker C16 | 35 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 7500 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | ≤ 1 |
| Stroboscope effect metric (SVM) | ≤ 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 1585.00 mm |
| Height | 53.00 mm |
| Width | 60.00 mm |
| Product weight | 1005.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Screwless terminal, 3-Pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface/Suspended |
| Mounting location | Wall, Ceiling |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 55000 h 1) |
| Lifespan L80/B10 at 25 °C | 36000 h 1) |
| Lifespan L90/B10 at 25 °C | 19000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 694 mA |
| ECG - Output ripple current | < 20 % |
Certificates & Standards
| Standards | CE, CB, TÜV SÜD, UKCA, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00004-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075740990 | Folding box 1 |
60 mm x 1,612 mm x 67 mm | 1277.00 g | 6.48 dm³ |
| 4058075741003 | Shipping box 6 |
1,640 mm x 195 mm x 145 mm | 8756.00 g | 46.37 dm³ |
User instruction / safety instructions
UI DP COMP V
UI DP COMP V
Legal information
LSI DP COMP V
LSI DP COMP V
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
DP COMP_CE
DP COMP_CE
Declarations of conformity
DP COMP_UKCA
DP COMP_UKCA
EPD
PEP Ecopassport DP COMP G2
PEP Ecopassport DP COMP G2
Product image: white background, diagonal
DP COMP TH 1500 V
DP COMP TH 1500 V
Product image: white background, diagonal, alternative image
DP COMP TH 1500 V
DP COMP TH 1500 V
Product image: white background, horizontal
DP COMP TH 1500 V
DP COMP TH 1500 V
Product image: white background, upright
DP COMP TH 1500 V
DP COMP TH 1500 V
Product line drawing with letters
DP COMP TH 1500 V
DP COMP TH 1500 V
Product line drawing with numbers
DP COMP TH 1500 V
DP COMP TH 1500 V
Product line drawing, front, no dimensions
DP COMP TH 1500 V
DP COMP TH 1500 V

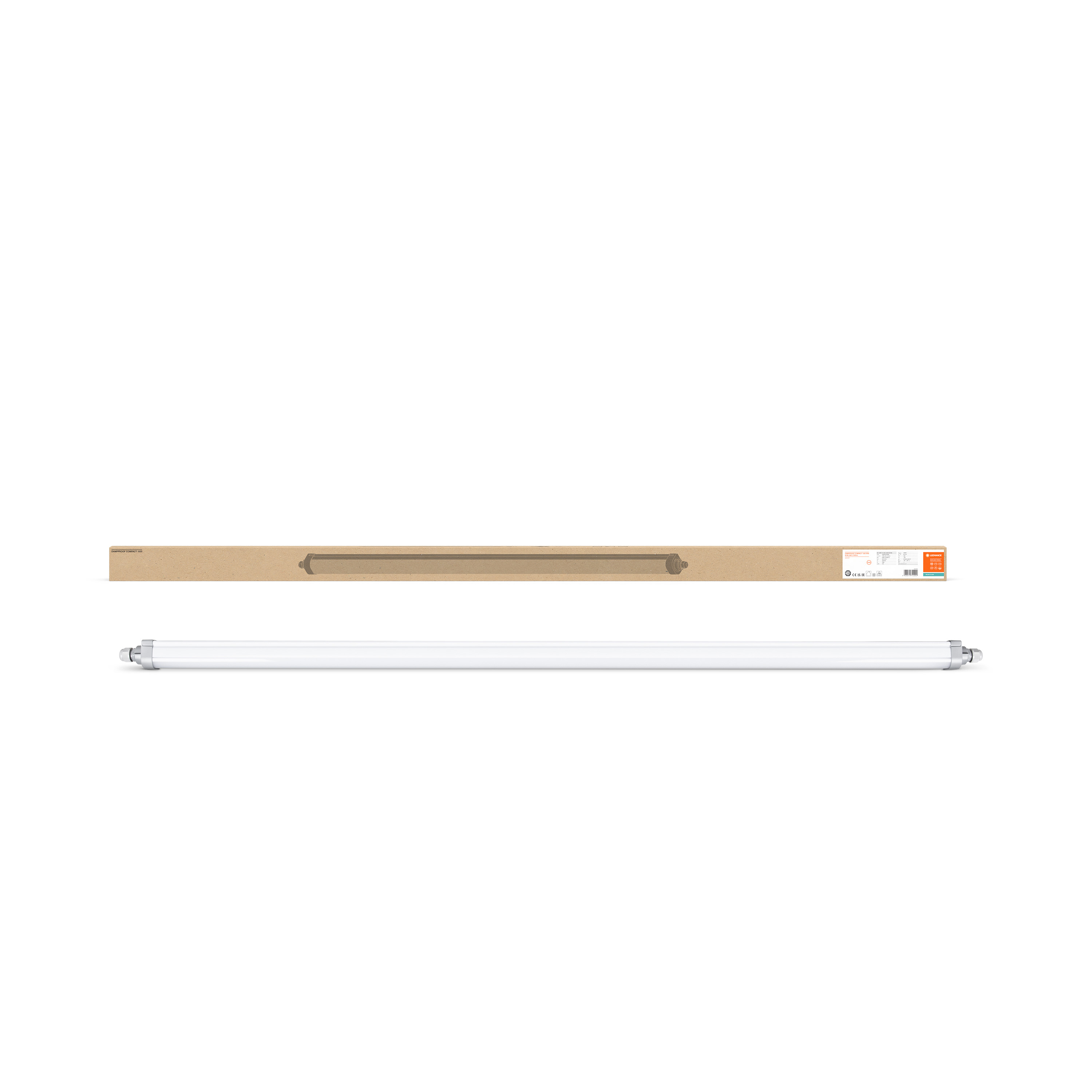

Combo Shot = Product Beauty Shot + Packaging Image
DP COMP TH 1500 V 62W 840 IP66
DP COMP TH 1500 V 62W 840 IP66

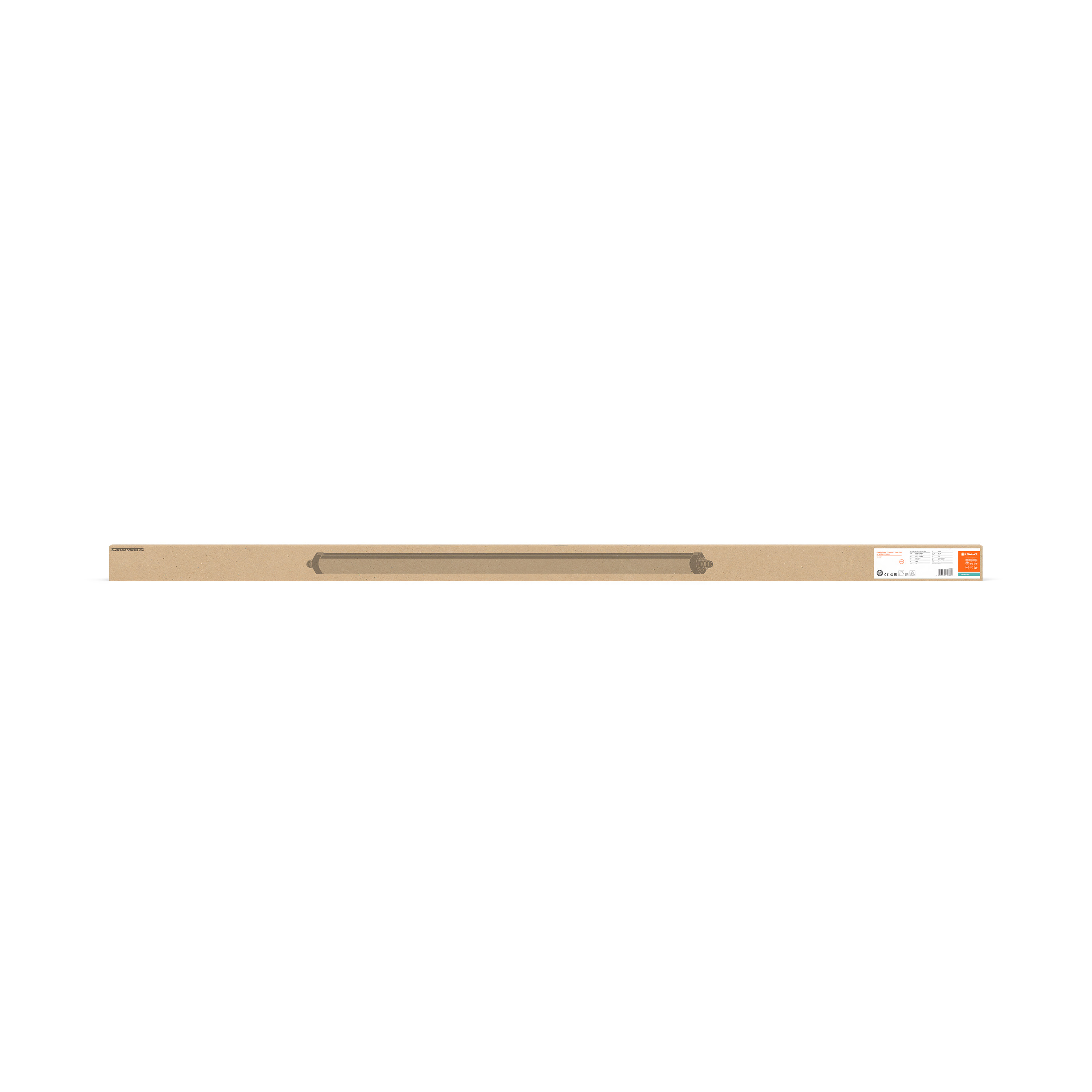

Packaging image, frontal
DP COMP TH 1500 V 62W 840 IP66
DP COMP TH 1500 V 62W 840 IP66

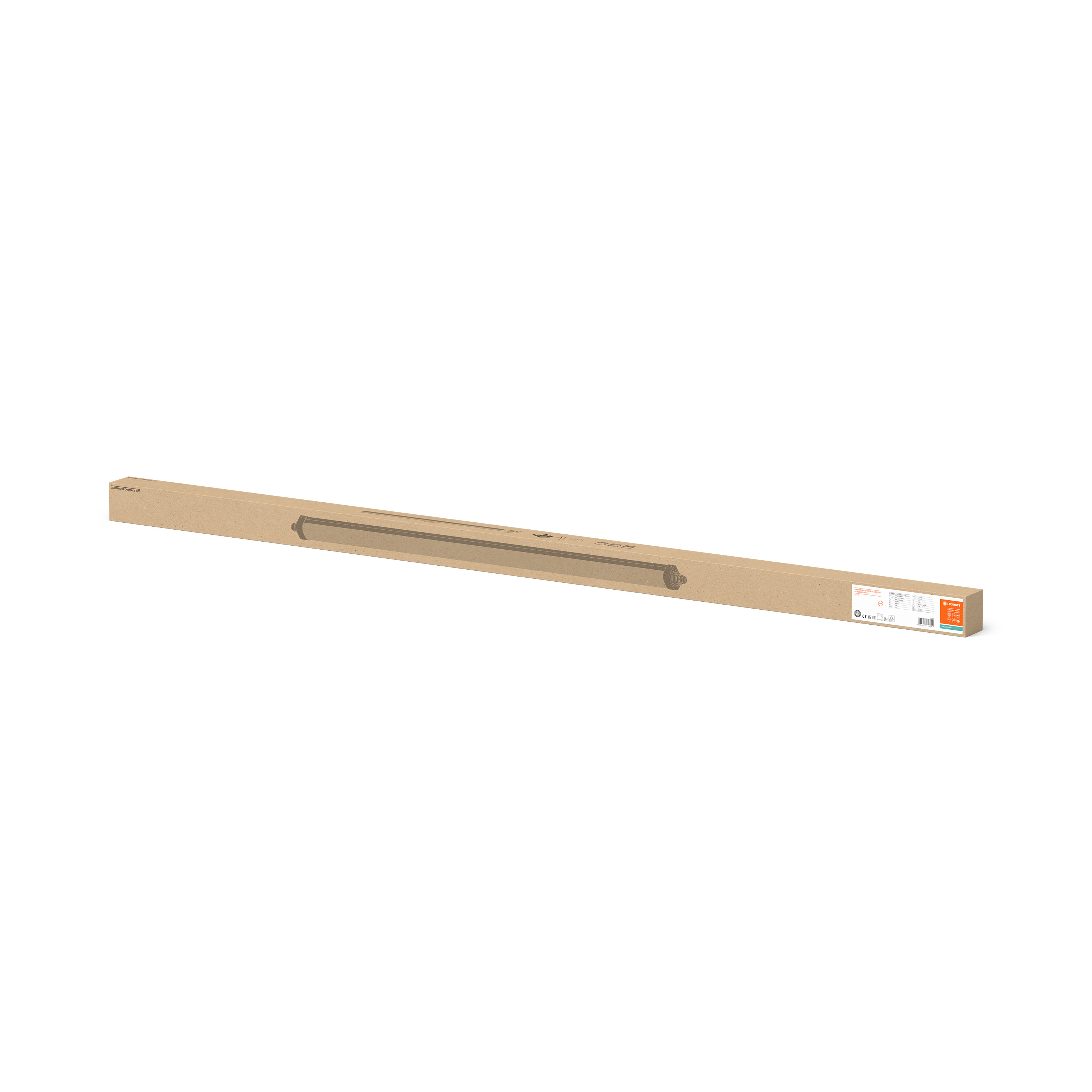

Packaging image, spacial
DampProof Compact Value 1500 TH MiCh
DampProof Compact Value 1500 TH MiCh
Catalog info 1
DP COMP V IP66
DP COMP V IP66
Catalog info 2
DP COMP V IP66
DP COMP V IP66
Catalog info 3
DP COMP V IP66
DP COMP V IP66
IES file (IES)
DP COMP TH 1500 V 62W 840 IP66
DP COMP TH 1500 V 62W 840 IP66
LDT file (Eulumdat)
DP COMP TH 1500 V 62W 840 IP66
DP COMP TH 1500 V 62W 840 IP66
ULD file (DIALux)
DP COMP TH 1500 V 62W 840 IP66
DP COMP TH 1500 V 62W 840 IP66
ROLF file (RELUX)
DP COMP TH 1500 V 62W 840
DP COMP TH 1500 V 62W 840

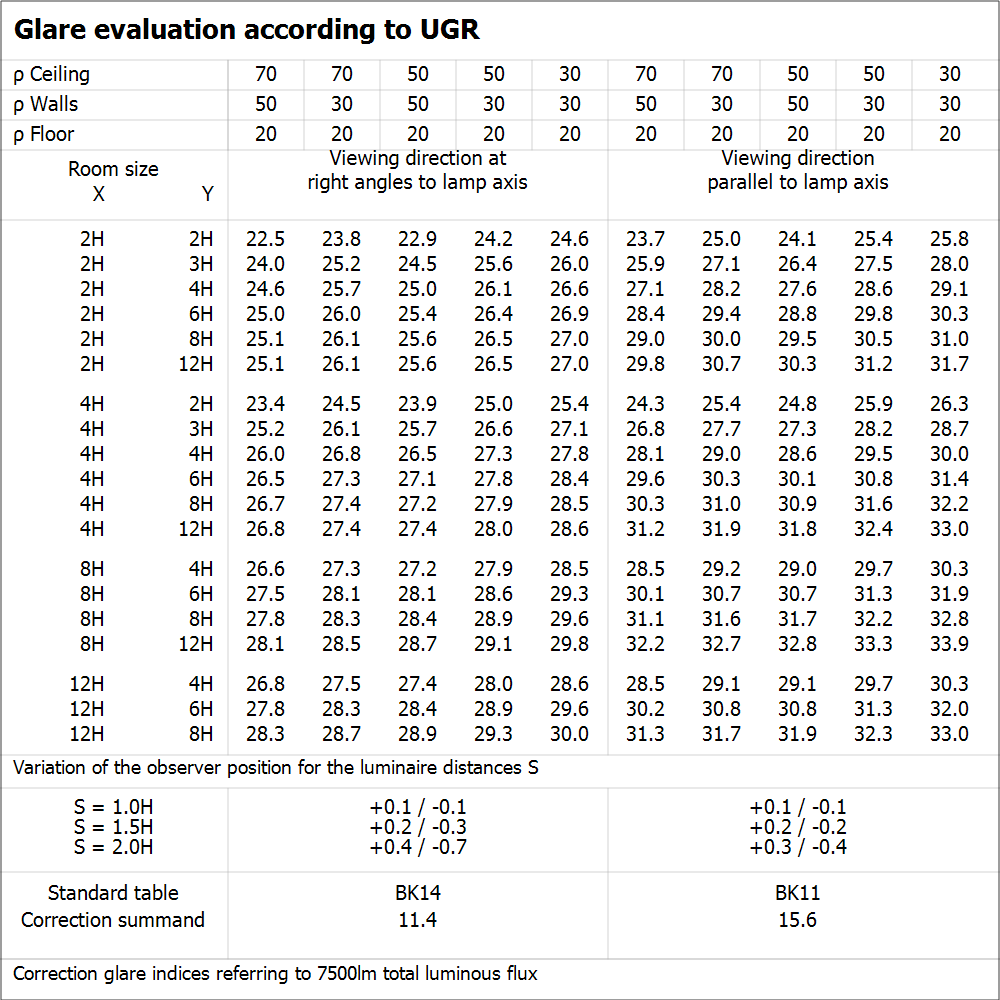

UGR file (UGR table)
DP COMP TH 1500 V 62W 840 IP66
DP COMP TH 1500 V 62W 840 IP66
Light distribution curve type cone
DP COMP TH 1500 V 62W 840 IP66
DP COMP TH 1500 V 62W 840 IP66
Light distribution curve type polar
DP COMP TH 1500 V 62W 840 IP66
DP COMP TH 1500 V 62W 840 IP66
BIM Revit 3D
DP COMP G2
DP COMP G2
CAD STEP 3D
DP COMP TH G2 1500
DP COMP TH G2 1500
Tender documents
DAMP PROOF COMPACT THROUGHWIRING GEN 2 1500 V 62W 840 IP66-EN
DAMP PROOF COMPACT THROUGHWIRING GEN 2 1500 V 62W 840 IP66-EN
Application pictures
LEDVANCE-luminaires-Da mp Proof Compact Gen2_Parking garage
LEDVANCE-luminaires-Da mp Proof Compact Gen2_Parking garage
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075740990 | 7217298 | 4324761 | 3310222 | 941386380 |
