DAMP PROOF FLEX EMERGENCY
DP FLEX EL 1200 P 34W ML 830 IP66
GTIN: 4099854717796
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Uniform light distribution in normal operation
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
- Parking garages
- Underground parking
Product features
- High luminous efficacy: up to 165 lm/W
- Luminaire suitable for normal lighting and emergency lighting
- Suitable for emergency central battery installations acc. to EN 60598-2-22
- Self-contained luminaires
- Luminous flux in emergency operation mode: 500 lm
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Protection rating: IP66
- Impact resistance: IK08
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
- EVERLOOP luminaire: upgrades and replacements available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 34 W / 31 W / 26 W / 20 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 158mA / 145mA / 126mA / 97 mA |
| Inrush current | 20 A |
| Inrush current time Th50 | 187 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 26 |
| Max. number of luminaires per miniature circuit breaker C10 | 28 |
| Max. number of luminaires per miniature circuit breaker C16 | 42 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | ≤ 25 % |
| Protection class | II |
| Surge capability (L-N) | 1000 V |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 5500 lm / 4900 lm / 4200 lm / 3000 lm |
| Luminous efficacy | 162 lm/W / 158 lm/W / 150 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
| UGR | < 25.5 |
Dimensions & Weight
| Length | 1320.00 mm |
| Height | 73.00 mm |
| Width | 88.00 mm |
| Product weight | 1585.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | +5…+35 °C |
| Temperature range at storage | +5…+35 °C |

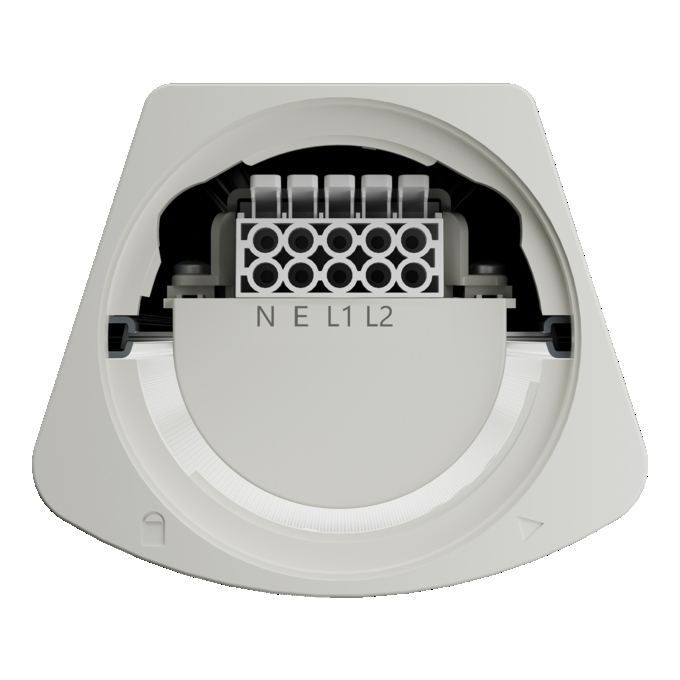

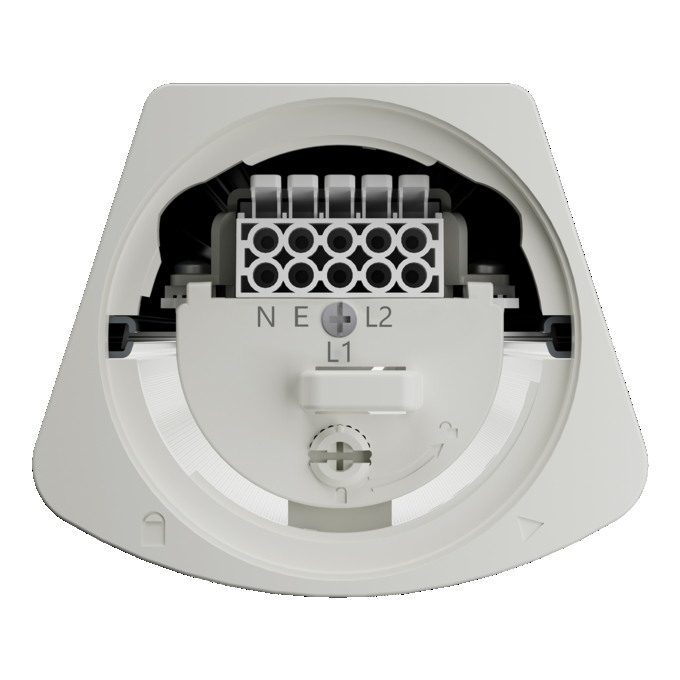

| Type of connection | Screwless terminal, 5-Pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Lifespan L90/B10 at 25 °C | 83000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 225/125 mA |
| ECG - Output ripple current | 5 % |
BATTERY
| Type of Battery | LiFePO4 |
| Nominal voltage of battery | 3.2 V |
| Nominal capacity of battery | 6000 mAh |
| Battery charging time | 24 h |
Emergency lighting
| Type of Emergency Lighting (EL) | EL unit (battery and controller) for decentral operation included |
| Area of emergency application | Anti-panic lighting, Escape route lighting |
| Type of emergency light operation | Maintained, Non-maintained |
| Type of emergency operation test | Automatic |
| Wattage in emergency operation mode | 3.2 W |
| Luminous flux in emergency operation mode | 500 lm |
| Battery life in emergency operation mode | 3 h |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Only by an expert |
Additional product data
| Product remark | Available from December 2025 |
| Added function | EVERLOOP |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854717796 | Folding box 1 |
1,328 mm x 95 mm x 78 mm | 1817.00 g | 9.84 dm³ |
| 4099854717802 | Shipping box 6 |
1,350 mm x 248 mm x 215 mm | 12041.00 g | 71.98 dm³ |
