LED CLASSIC GLOBE V
LED Globe 125 150 Filament V 17W 840 Frosted E27
GTIN: 4099854484414
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Can be easily fitted instead of ordinary light bulbs
Areas of application
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Not dimmable
- Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see www.ledvance.com/dim
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 17 W |
| Construction wattage | 17.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 150 W |
| Nominal current | 130 mA |
| Type of current | AC |
| Inrush current | 12 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 15 |
| Max. lamp number on MCB B16 A | 18 |
| Total harmonic distortion | ≤ 125 % |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 2452 lm |
| Luminous efficacy | 144 lm/W |
| Lumen main.fact.at end of nom.life time | 0.93 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | 80 |
| Light color | 840 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.4 |
Light technical data
| Beam angle | 320 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 173.00 mm |
| Diameter | 124.00 mm |
| Maximum diameter | 124 mm |
| Product weight | 100.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 62 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 10000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.93 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | D 1) |
| Energy consumption | 17.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, EAC, UKCA |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
| Order reference | LED G125150 17W |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E27 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0 W |
| Claim of equivalent power | Yes |
| Length | 173.00 mm |
| Height | 124.00 mm |
| Width | 124.00 mm |
| Chromaticity coordinate x | 0.3818 |
| Chromaticity coordinate y | 0.3797 |
| R9 Colour rendering index | 1 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | ≥ 0.7 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 2185181 |
| Model number | AC70415 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854484414 | Folding box 1 |
140 mm x 140 mm x 236 mm | 194.00 g | 4.63 dm³ |
| 4099854484421 | Shipping box 10 |
710 mm x 290 mm x 250 mm | 2312.00 g | 51.48 dm³ |
Declarations of conformity
LED lamp
LED lamp

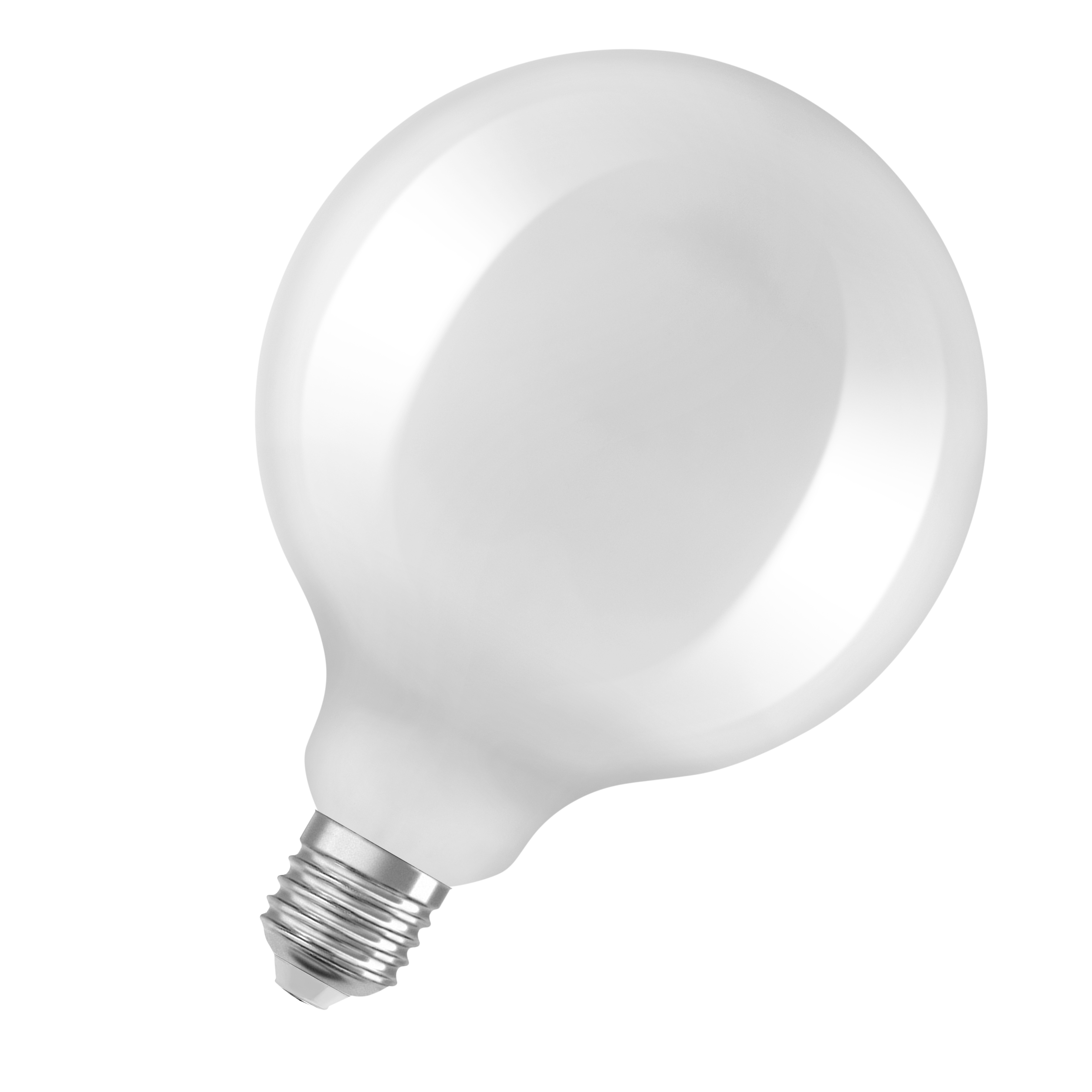

Product image: white background, diagonal
LED GLOBE 125 FROSTED E27
LED GLOBE 125 FROSTED E27

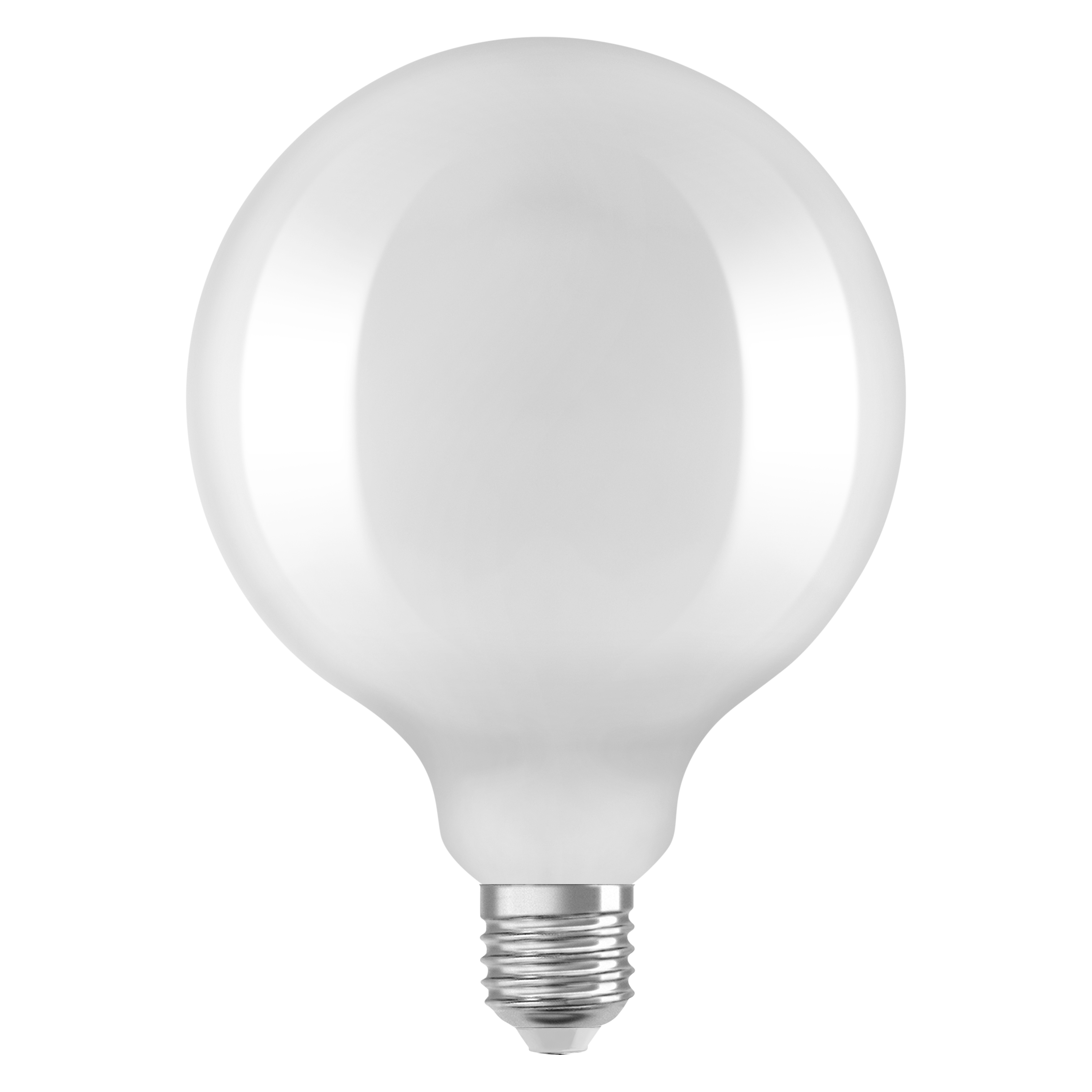

Product image: white background, upright
LED GLOBE 125 FROSTED E27
LED GLOBE 125 FROSTED E27
Product line drawing with letters
LED GLOBE 125 FROSTED E27
LED GLOBE 125 FROSTED E27
Product line drawing with numbers
LED GLOBE 125 FROSTED E27
LED GLOBE 125 FROSTED E27
Product line drawing - technical
LED GLOBE 125 FROSTED E27
LED GLOBE 125 FROSTED E27
Energy label
EL-4099854484414-AC704 15
EL-4099854484414-AC704 15

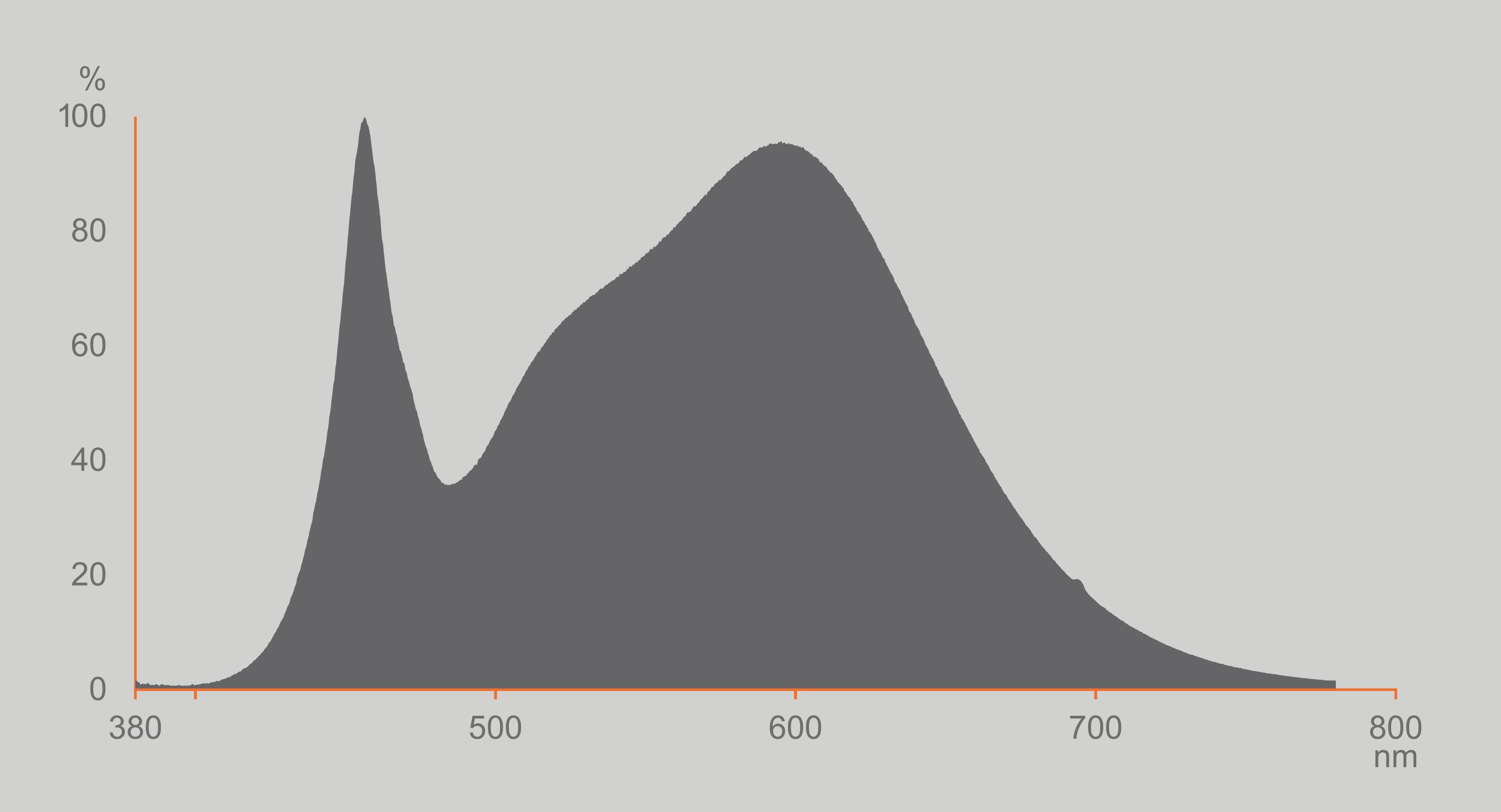

Spectral power distribution
Spectral graph Classic A, Globe 4000K
Spectral graph Classic A, Globe 4000K
