LED CLASSIC GLOBE P

LED Classic Globe 95 60 Filament P 6.5W 827 Frosted E27

GTIN: 4099854062384 Folding box / 1 Show all packages
5-year warranty

PRODUCT DETAILS

Product benefits
  • Lamps with innovative LED "filament" technology
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 6.5 W
Construction wattage 6.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 38 mA
Type of current AC
Inrush current 0.1 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 789
Max. lamp number on MCB B16 A 1263
Total harmonic distortion 90 %
Power factor λ > 0.50
Photometrical data
Luminous flux 806 lm
Luminous efficacy 124 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 135.00 mm
Diameter 95.00 mm
Maximum diameter 95 mm
Product weight 54.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 70 °C
Lifespan
Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference LED G9560 6.5W
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power not applicable
Networked standby power for CLS not applicable
Claim of equivalent power Yes
Length 135.00 mm
Height 95.00 mm
Width 95.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.42
R9 Colour rendering index >0
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥0.5
LED light source replaces a fluorescent light source No
EPREL ID 1361333
Model number AC45203
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854062384 Folding box
1
110 mm x 110 mm x 158 mm 110.00 g 1.91 dm³
4099854062391 Shipping box
6
342 mm x 231 mm x 175 mm 836.00 g 13.83 dm³
Declarations of conformity
LED CLASSIC

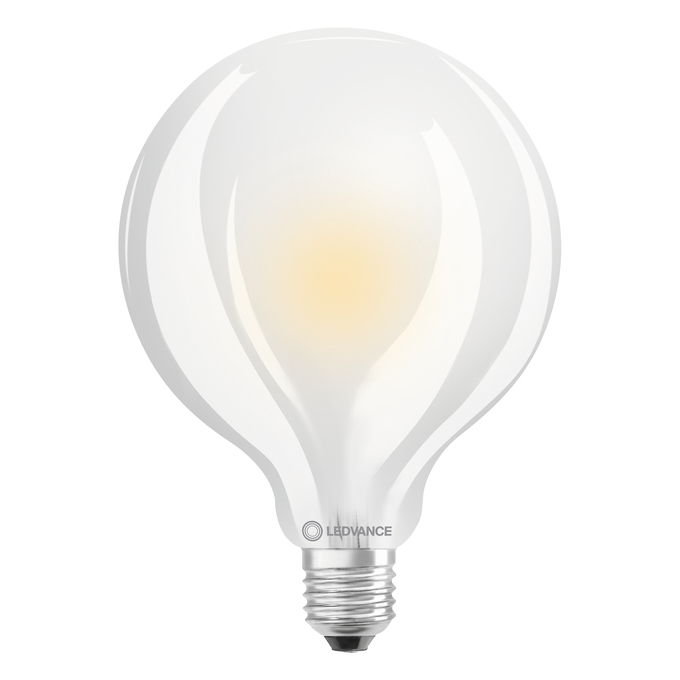

Product image: white background, diagonal with LEDVANCE logo
LED GLOBE95 FIL FR E27
Product image: white background, diagonal
CLG 95 GL FR E27 60
Product image: white background, upright LEDVANCE logo
LED GLOBE95 FIL FR E27

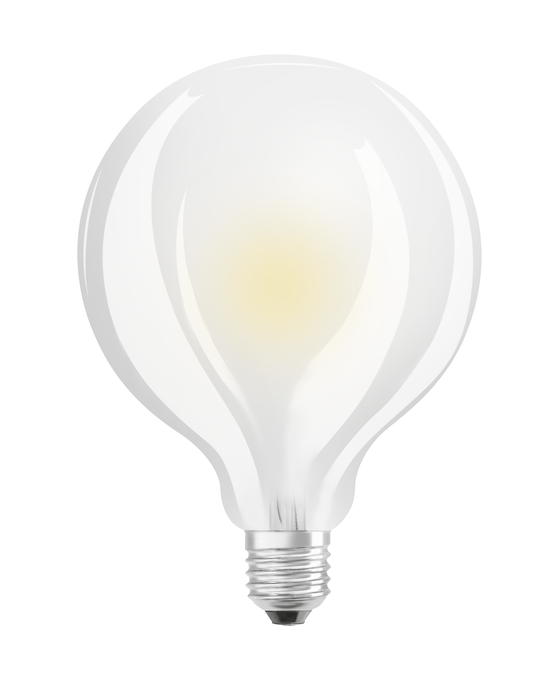

Product image: white background, upright
CLG 95 GL FR E27 90
Product line drawing with letters
CLG 95 GL FR E27
Product line drawing with numbers
LED GLOBE95 FILAMNET FROSTED EEA E27
Product line drawing, front, no dimensions
CLG 95 GL FR E27

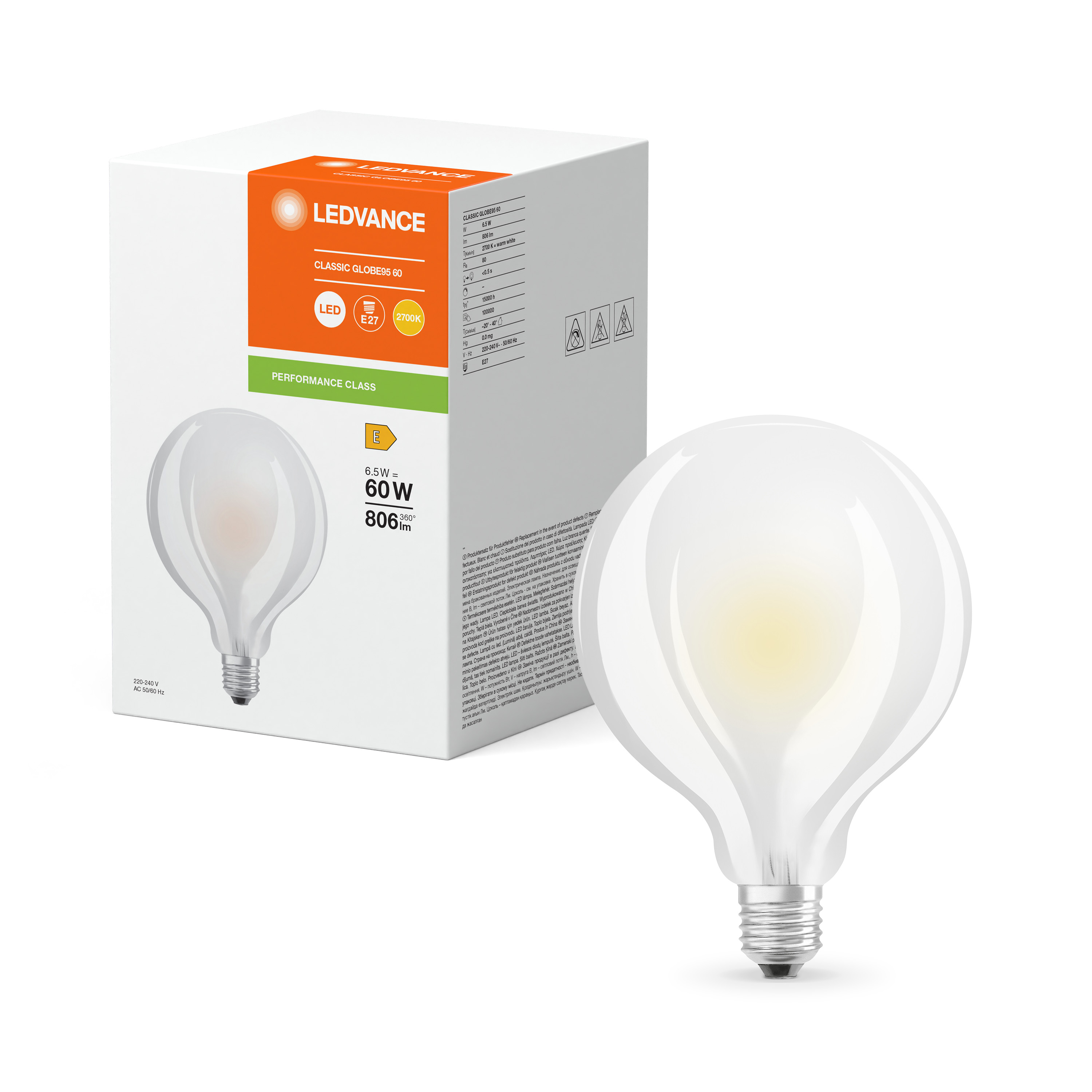

Combo Shot = Product Beauty Shot + Packaging Image
FC1 GLOBE95 60 PFM 6.5W 827 GLFR E27

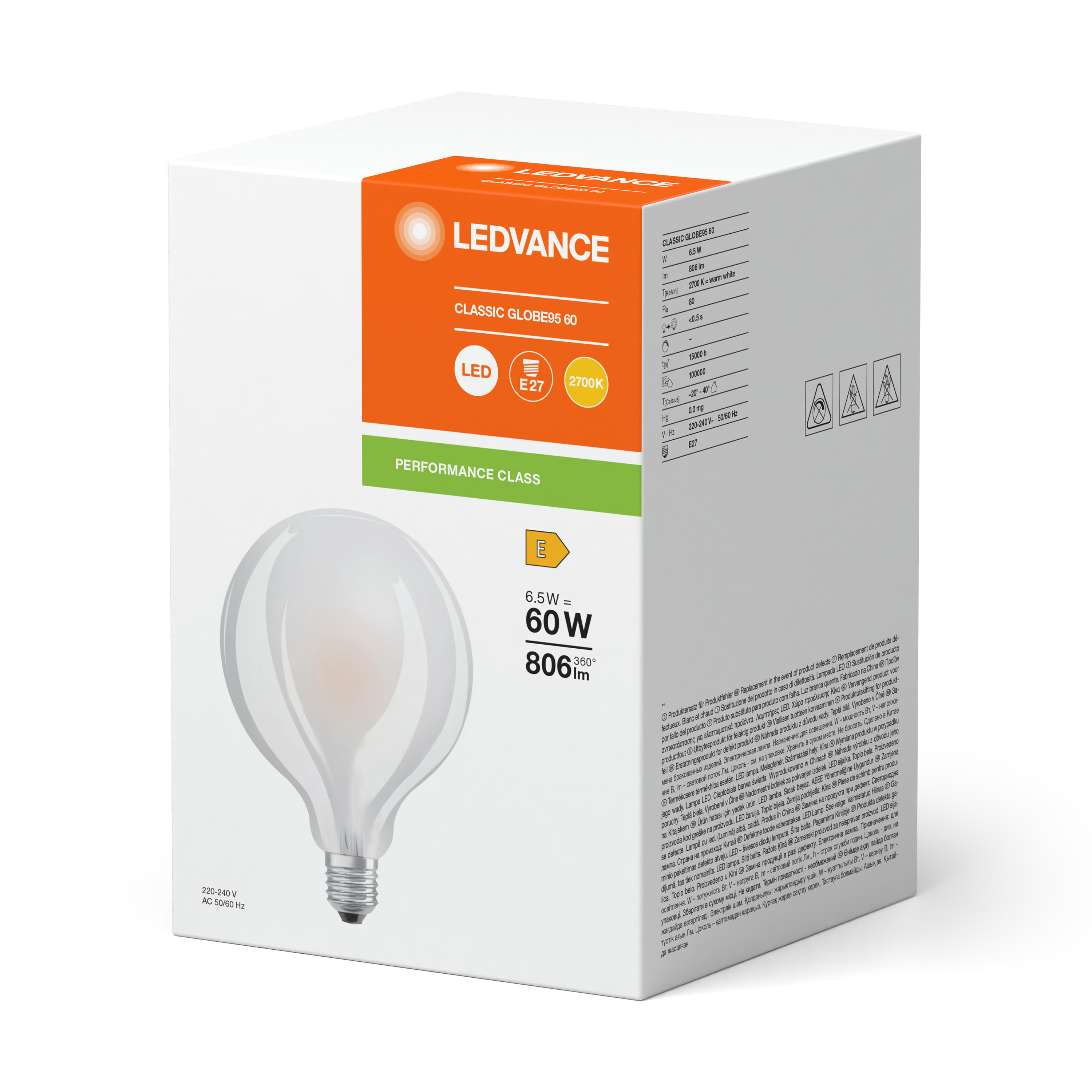

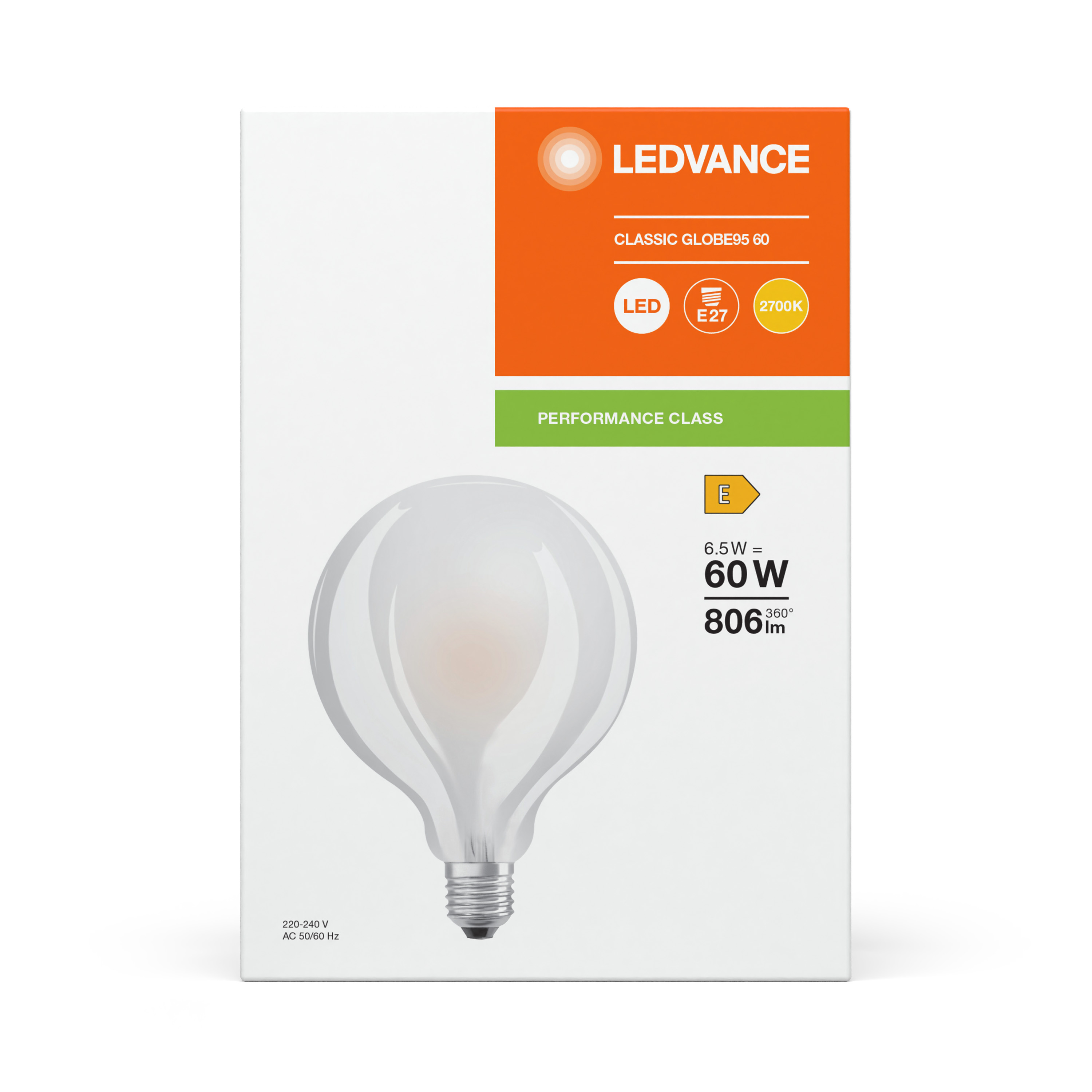

Packaging image, frontal
FC1 GLOBE95 60 PFM 6.5W 827 GLFR E27
Packaging image, spacial
FC1 GLOBE95 60 PFM 6.5W 827 GLFR E27
Energy label
EL-4099854062384-AC452 03
Spectral power distribution
EPREL data spectral diagram PROF LEDr 2700K
EAN SEG number STK number ELDAS number
4099854062384 8299175 4737057 941816850
