SMART+ MOTION SENSOR

SMART+ WIFI MOTION SENSOR

GTIN: 4058075731363 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Notification of detected motion
  • Monitors the history of motion detections
  • Easy control of compatible SMART+ WiFi products based on detected motions
Areas of application
  • For indoor use only
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Wireless smart PIR motion sensor for motion detection up to 5 meters
  • Easy and flexible installation thanks to adhesive pad and wireless operation
  • Rechargeable battery-powered (6 months lifetime per charging, 5 detections per day)
  • Check the battery level by LEDVANCE SMART+ WiFi APP
  • Network protocol: WiFi
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Rechargeable battery integrated
  • Charging cable and installation kit included
Safety advice
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal voltage 3,7 V
Mains frequency 0 Hz
Operating mode Battery
Dimensions & Weight
Product weight 52.00 g
Length 60.3 mm
Width 60.30 mm
Height 20.50 mm
Colors & materials
Product color White
Body material Plastic
Temperatures & operating conditions
Ambient temperature range -10…+50 °C
Capabilities
Dimmable No
Compatible smart home technology Amazon Alexa
Certificates & Standards
Standards CE
Type of protection IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075731363 Folding box
1
62 mm x 80 mm x 98 mm 91.00 g 0.49 dm³
4058075731370 Shipping box
4
173 mm x 108 mm x 141 mm 437.00 g 2.63 dm³
4058075731387 Shipping box
32
359 mm x 229 mm x 303 mm 3828.00 g 24.91 dm³
Extended installation guide
MOTION SENSOR
Declarations of conformity
SMART WIFI MOTION SENSOR

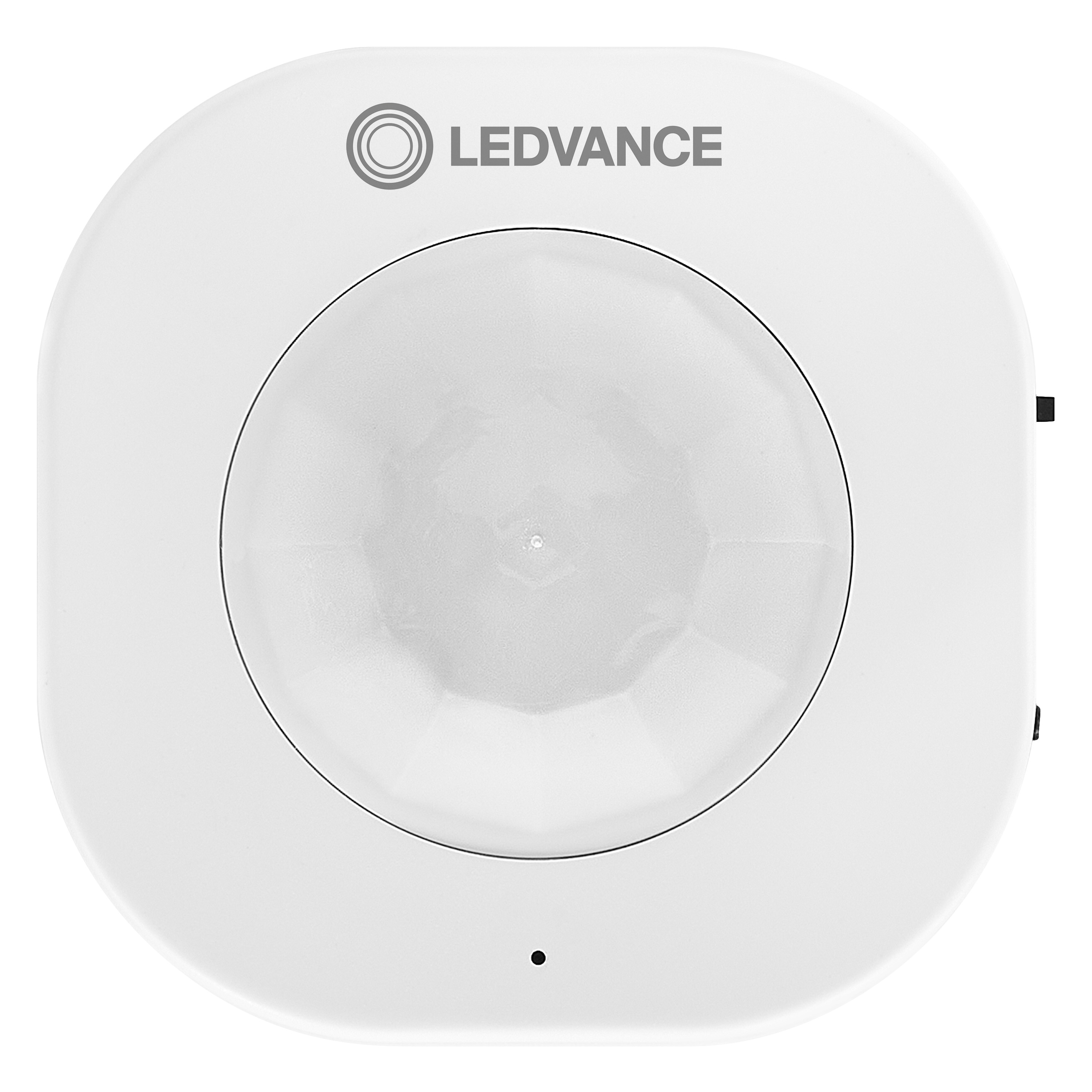

Product image: white background, upright
SMART+ WiFi Motion Sensor
Product image: white background, upright, alternative image
SMART+ WiFi Motion Sensor

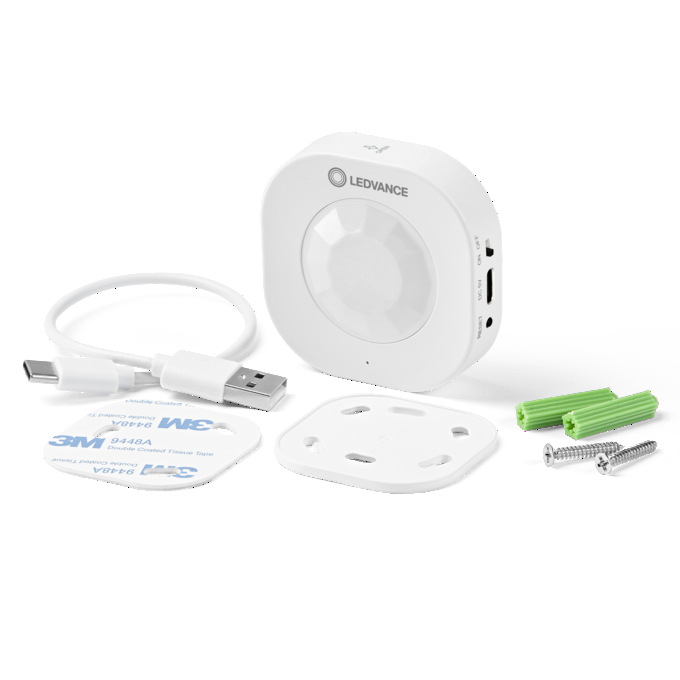

Product image: white background, with accessory, alternative image
SMART+ WiFi Motion Sensor
Product line drawing with letters
SMART+ WiFi Motion Sensor
Product line drawing with numbers
SMART+ WiFi Motion Sensor
Product line drawing, front, no dimensions
SMART+ WiFi Motion Sensor

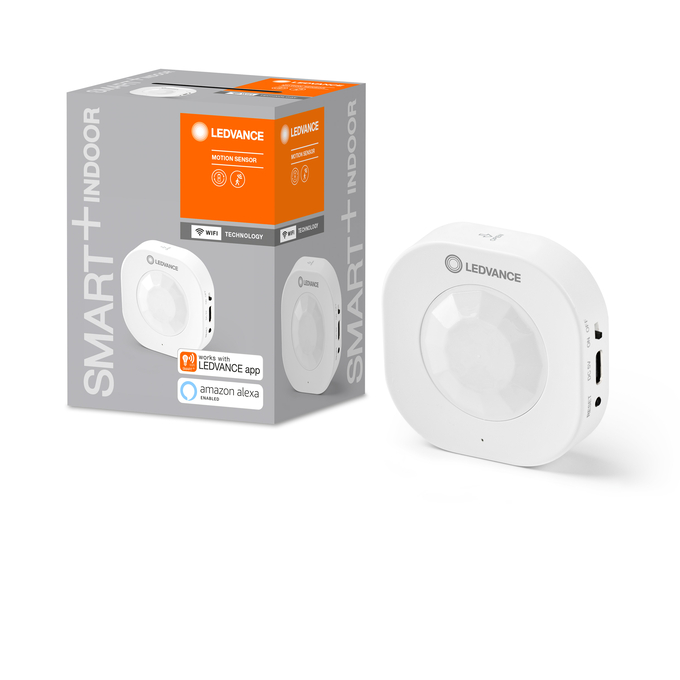

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI MOTION SENSOR MiPRC

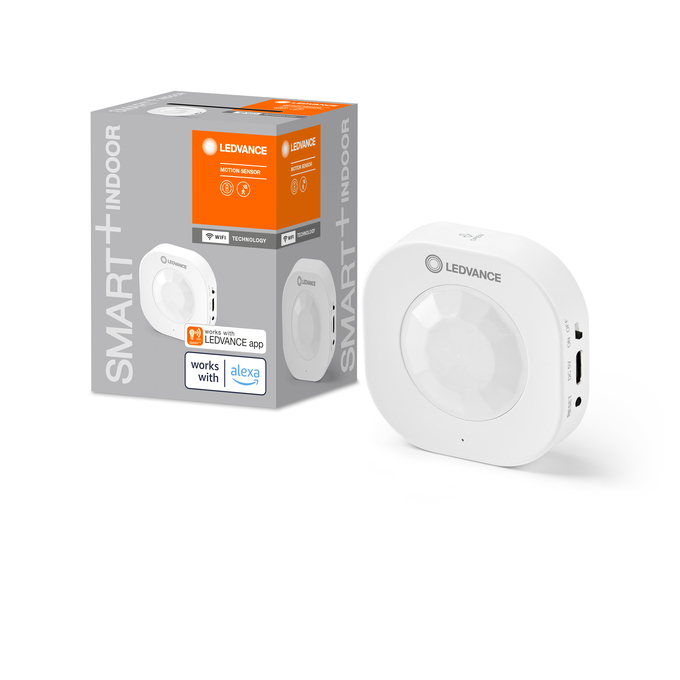

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI MOTION SENSOR MiPRC
Packaging image, frontal
SH FC WIFI MOTION SENSOR MiPRC
Packaging image, spacial
SH FC WIFI MOTION SENSOR MiPRC
Application pictures

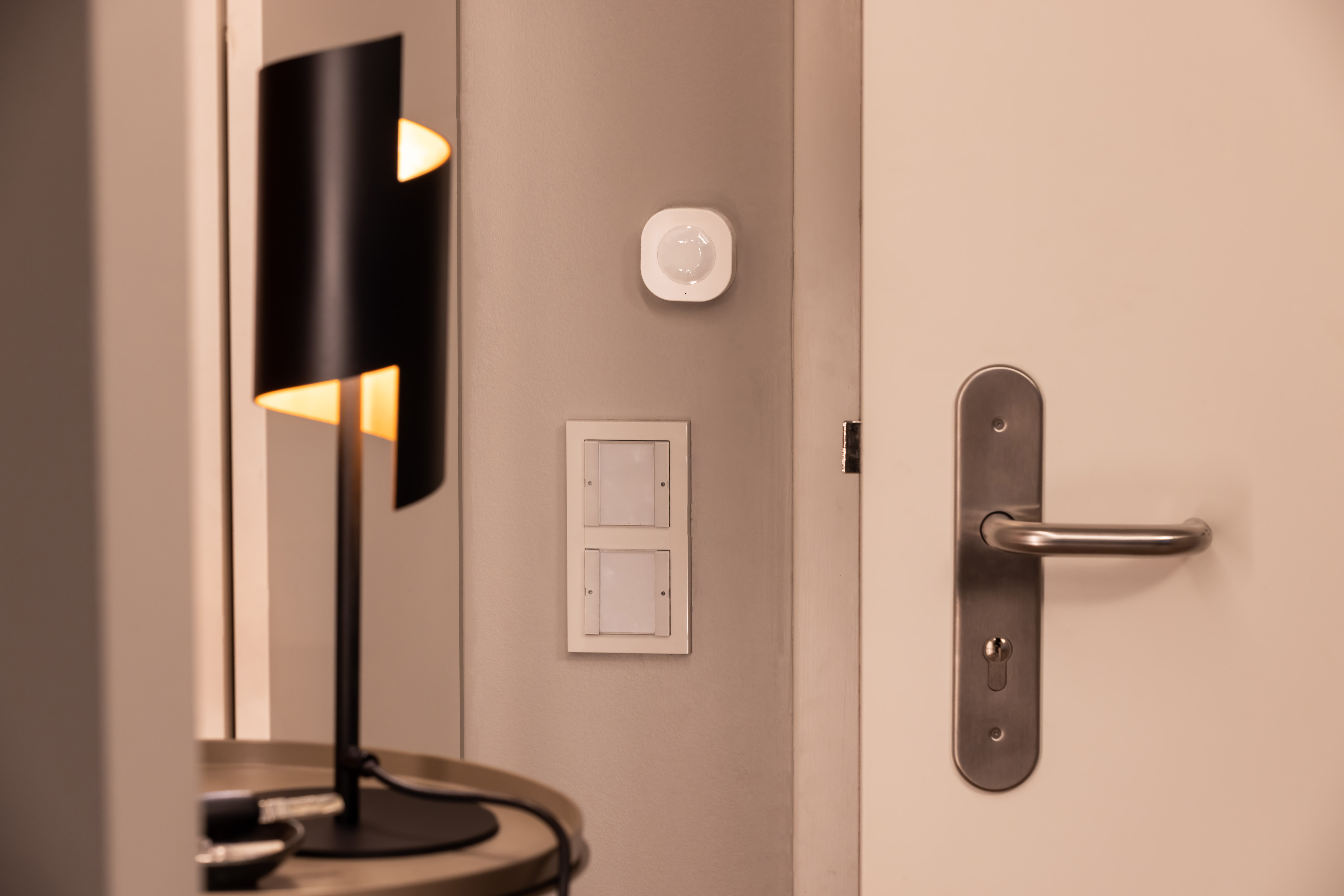

SMART WIFI MOTION SENSOR FRONT DOOR
EAN SEG number EFO number ELDAS number
4058075731363 7985396 1407947 535140108
