Decor Fuji
Decor Fuji 1XPendant 5W 930 Black
GTIN: 4058075841826
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Geometric shapes meet even illumination
- Minimalistic style fits to every room
- Different types of luminaires with the same design language maintain a consistent style at home
- Two options for easy wall installation (via EU plug on cable or direct wiring)
- On-/Off-switch on housing for convenient operation
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: metal
- High-power LED
- Color temperature: 3,000 K
- Optional 1.5m cable provided with fitted EU plug (only for wall luminaire)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 5.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 30.000 mA |
| Inrush current | 0.09 A |
| Inrush current time Th50 | 1400 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 23 |
| Max. number of luminaires per miniature circuit breaker C10 | 24 |
| Max. number of luminaires per miniature circuit breaker C16 | 39 |
| Power factor λ | ≥0.5 |
| Total harmonic distortion | < 60 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 180 lm |
| Total luminous flux of contained light sources | 330 lm |
| Luminous efficacy | 40 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 90 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 115 ° |
Dimensions & Weight
| Diameter | 120.00 mm |
| Height | 1500.00 mm |
| Product weight | 600.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Suspended |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075841826 | Folding box 1 |
172 mm x 172 mm x 293 mm | 790.00 g | 8.67 dm³ |
| 4058075841833 | Shipping box 4 |
367 mm x 367 mm x 320 mm | 3951.00 g | 43.10 dm³ |
User instruction / safety instructions
DECOR FUJI 1X/3X/4X PENDANT 830 BK
DECOR FUJI 1X/3X/4X PENDANT 830 BK
Legal information
DECOR FUJI
DECOR FUJI
Declarations of conformity
DECOR LUM FUJI WALL PENDANT
DECOR LUM FUJI WALL PENDANT

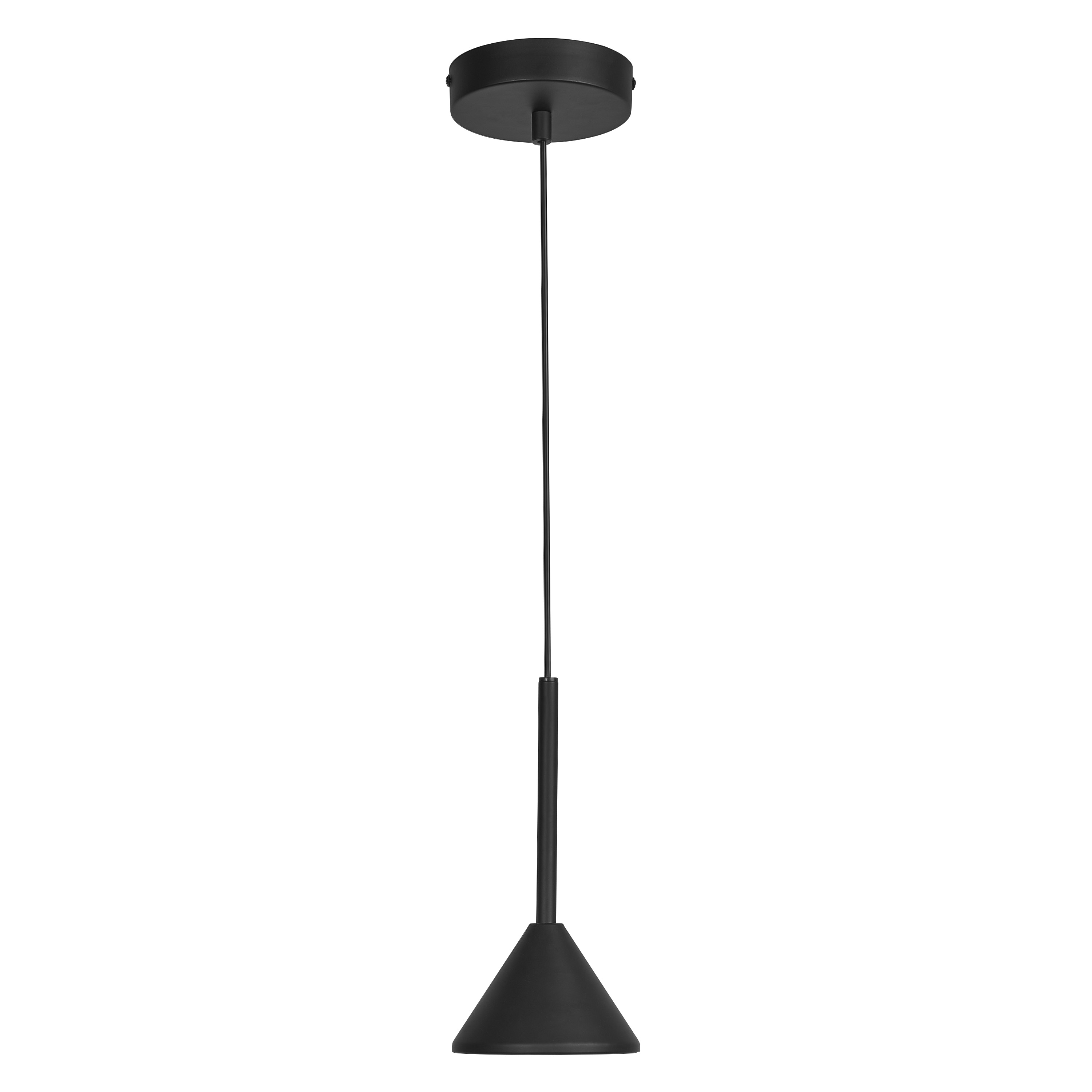

Product image: white background, upright
DECOR FUJI 1XPENDANT 5W 830 BK
DECOR FUJI 1XPENDANT 5W 830 BK

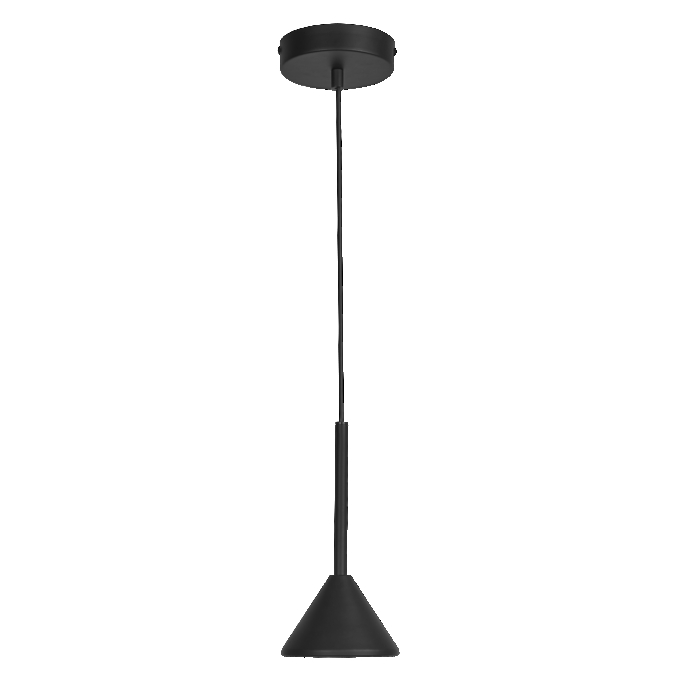

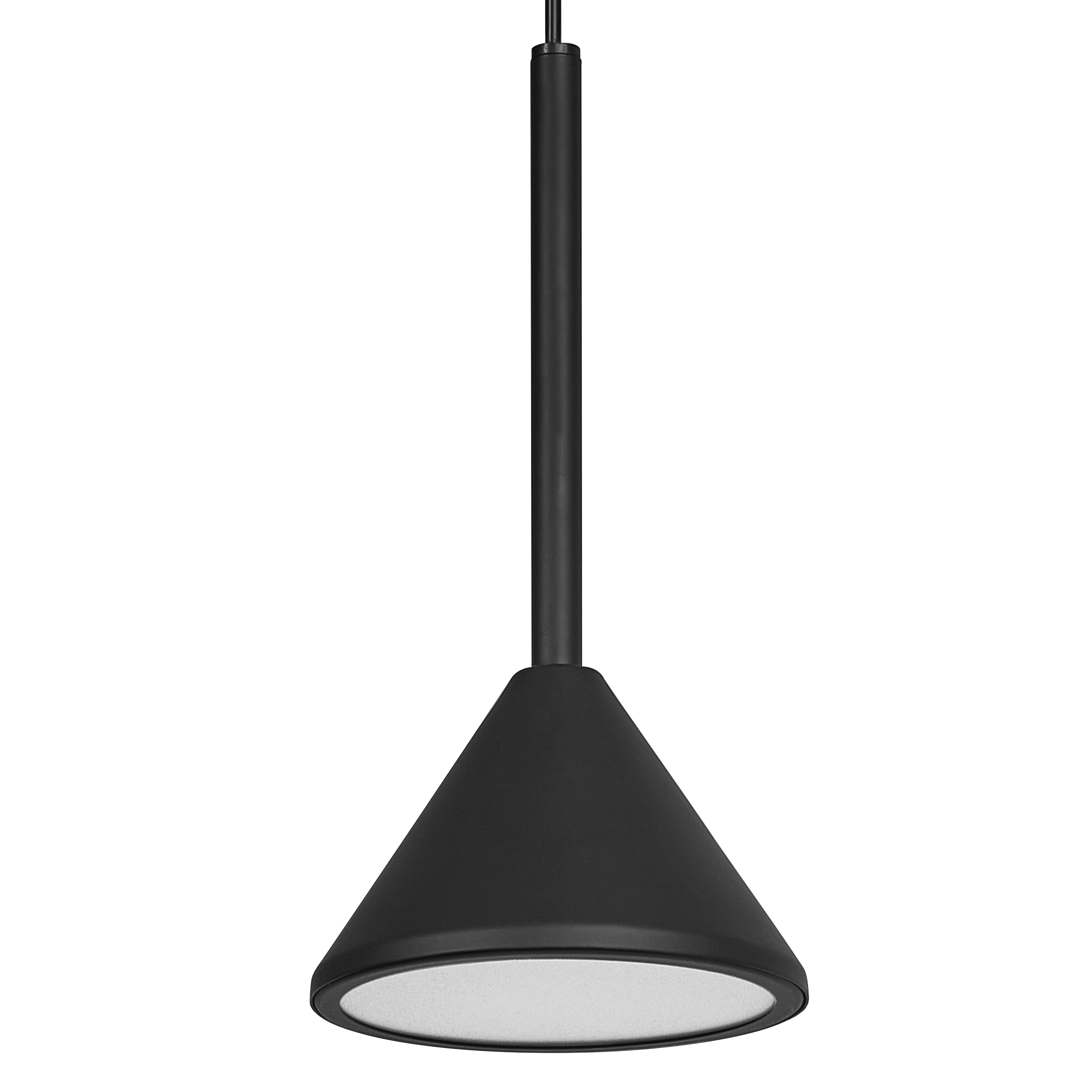

Product image: white background, upright, alternative image
DECOR FUJI 1XPENDANT 5W 830 BK
DECOR FUJI 1XPENDANT 5W 830 BK

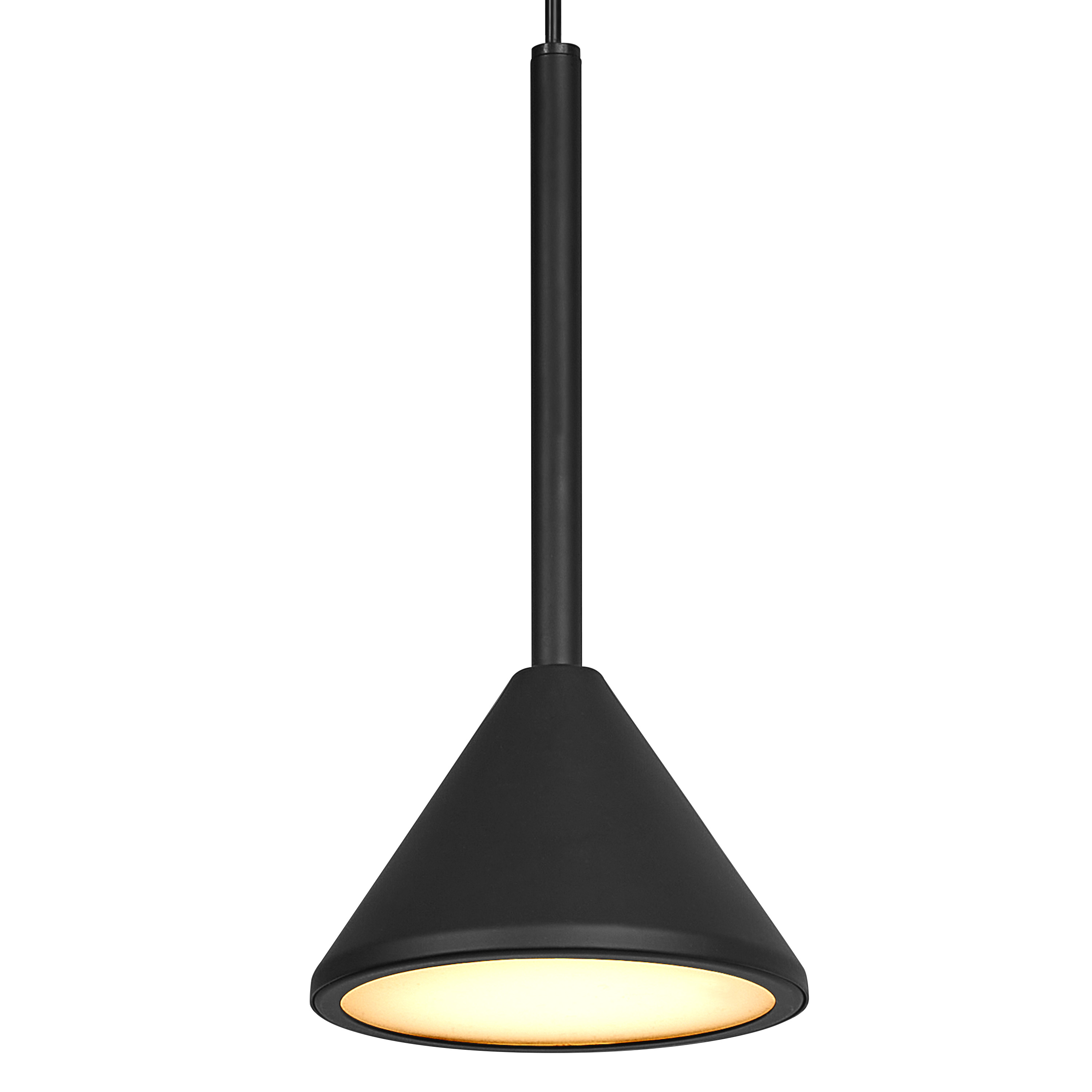

Product image: white background, upright, switched on
DECOR FUJI 1XPENDANT 5W 830 BK
DECOR FUJI 1XPENDANT 5W 830 BK
Product line drawing with letters
DECOR FUJI 1XPENDANT 5W 830 BK
DECOR FUJI 1XPENDANT 5W 830 BK
Product line drawing with numbers
DECOR FUJI 1XPENDANT 5W 830 BK
DECOR FUJI 1XPENDANT 5W 830 BK
Product line drawing - technical
DECOR FUJI 1XPENDANT 5W 830 BK
DECOR FUJI 1XPENDANT 5W 830 BK
Combo Shot = Product Beauty Shot + Packaging Image
LUM DECOR FUJI 1XPENDANT 5W
LUM DECOR FUJI 1XPENDANT 5W
Packaging image, frontal
LUM DECOR FUJI 1XPENDANT 5W
LUM DECOR FUJI 1XPENDANT 5W
Packaging image, spacial
LUM DECOR FUJI 1XPENDANT 5W
LUM DECOR FUJI 1XPENDANT 5W
Product infographic with environment and dimensions
DECORLUM
DECORLUM
Product image with graphic and measurements
DECORLUM
DECORLUM

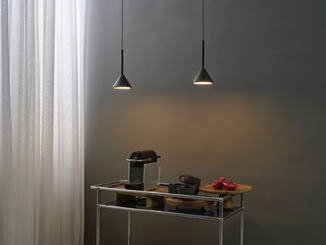

Application pictures
DECOR FUJI 1XPENDANT 5W 830 BK Ambient
DECOR FUJI 1XPENDANT 5W 830 BK Ambient

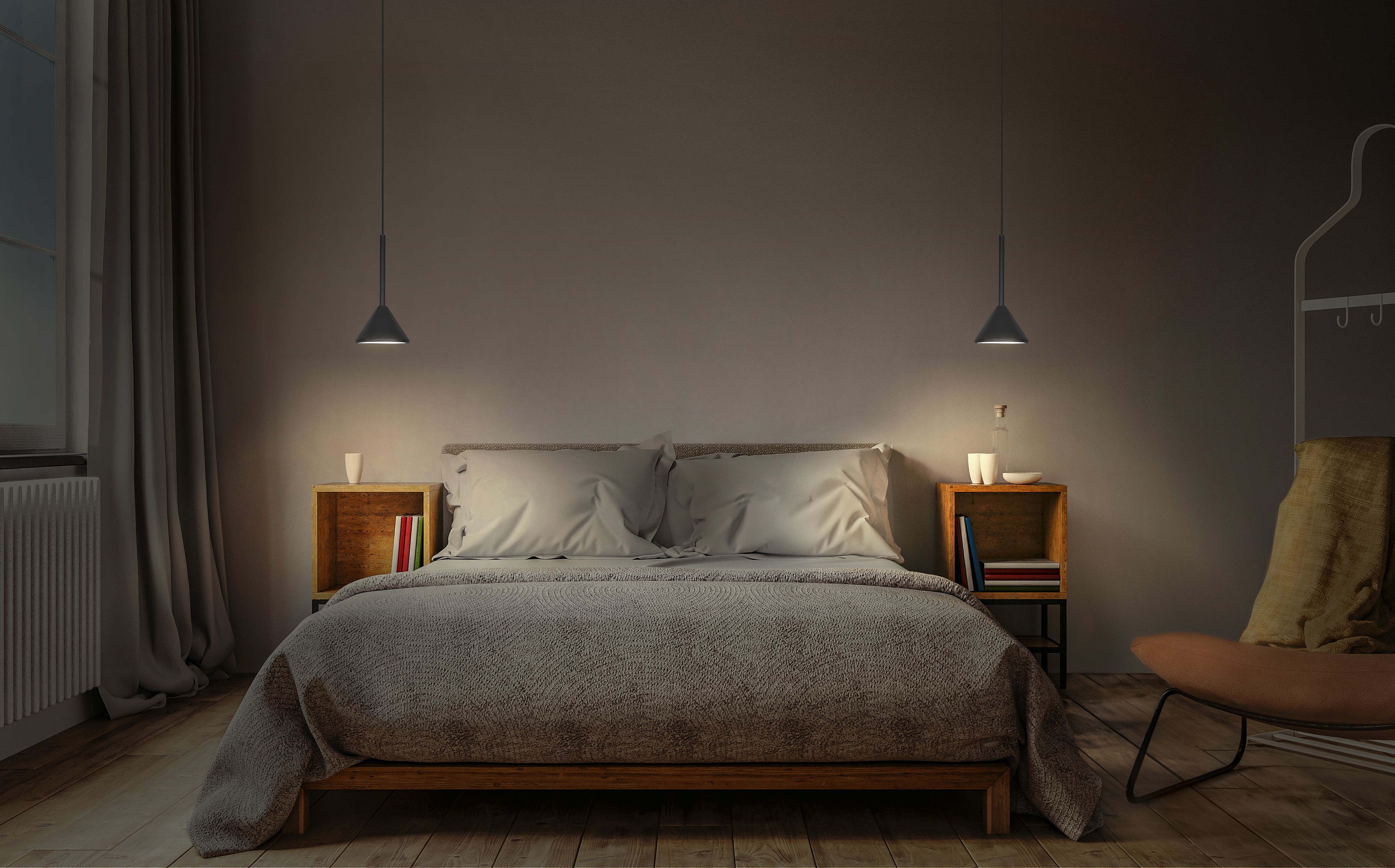

Application pictures
