EMERGENCY CONVERSION BOX TEMPERATURE SENSOR
EM CONVERSION BOX TEMPERATURE SENSOR
GTIN: 4099854455933
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Converts selected panels and downlights to emergency luminaires
- With integrated battery temperature sensor control
- Emergency conversion unit reduces stock-keeping complexity of emergency lighting products
- Plug-and-play system allows easy installation
- Easy testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
Areas of application
- Buildings requiring up to 3 h emergency light operation
Product features
- Self-contained emergency conversion unit with single battery
- Automatic function test of emergency lighting
- Battery technology: LiFePO4
- Recessed ceiling mounting
Equipment / Accessories
- Control LED with a retainer for recessed installation included
Safety advice
- The conformity of the converted luminaire with all relevant statutory and legal safety and other requirements and technical standards, such as EN 60598-1 and EN 60598-2-22, has to be ensured during and after installation of the Emergency Conversion Box. It is also recommended to comply with ICEL 1004:2018. The converted luminaire has to be marked with a new data plate.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Protection class | II |
Dimensions & Weight
| Length | 292.00 mm |
| Height | 41.00 mm |
| Width | 81.00 mm |
| Product weight | 352.00 g |
Materials & Colors
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | +5…+50 °C |
| Temperature range at storage | +5…+35 °C |
| Type of connection | Screwless |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Replaceable light source | No |
BATTERY
| Type of Battery | LiFePO4 |
| Battery size [GMS] | Others |
| Nominal voltage of battery | 3.2 V |
| Nominal capacity of battery | 4500 mAh |
| Battery charging time | 24 h |
Emergency lighting
| Type of emergency light operation | Maintained, Non-maintained |
| Type of emergency operation test | Automatic |
| Wattage in maintained operation mode | 3,0 W |
| Wattage in emergency operation mode | 3,0 W |
| Battery life in emergency operation mode | 3 h |
| Integrated test switch | No |
Certificates & Standards
| Standards | CE, UKCA, EAC, ENEC |
Additional product data
| Product remark | Available from March 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854455933 | Folding box 1 |
46 mm x 412 mm x 90 mm | 402.00 g | 1.71 dm³ |
| 4099854455940 | Shipping box 8 |
428 mm x 208 mm x 206 mm | 3428.00 g | 18.34 dm³ |
User instruction / safety instructions
Emergency Conversion Box
Emergency Conversion Box
Legal information
Safety Insert G11216983
Safety Insert G11216983
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
EM CONVERSION BOX
EM CONVERSION BOX
Certificates
Manufacturer Declaration Compatibility of the LEDV EM CONVERSION BOX
Manufacturer Declaration Compatibility of the LEDV EM CONVERSION BOX

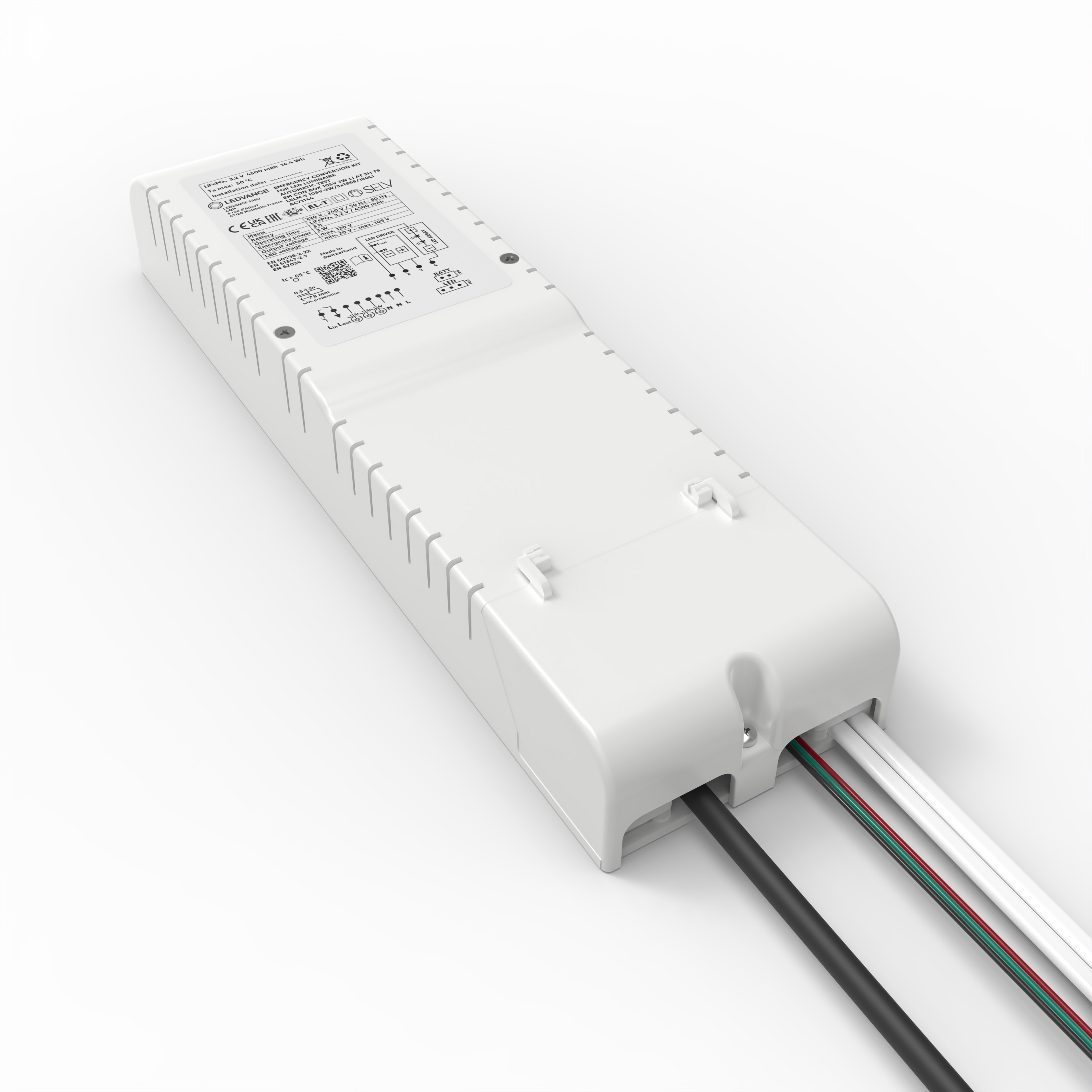

Product image: white background, diagonal
EM CON BOX 105V 3W LI AT 3H TS
EM CON BOX 105V 3W LI AT 3H TS

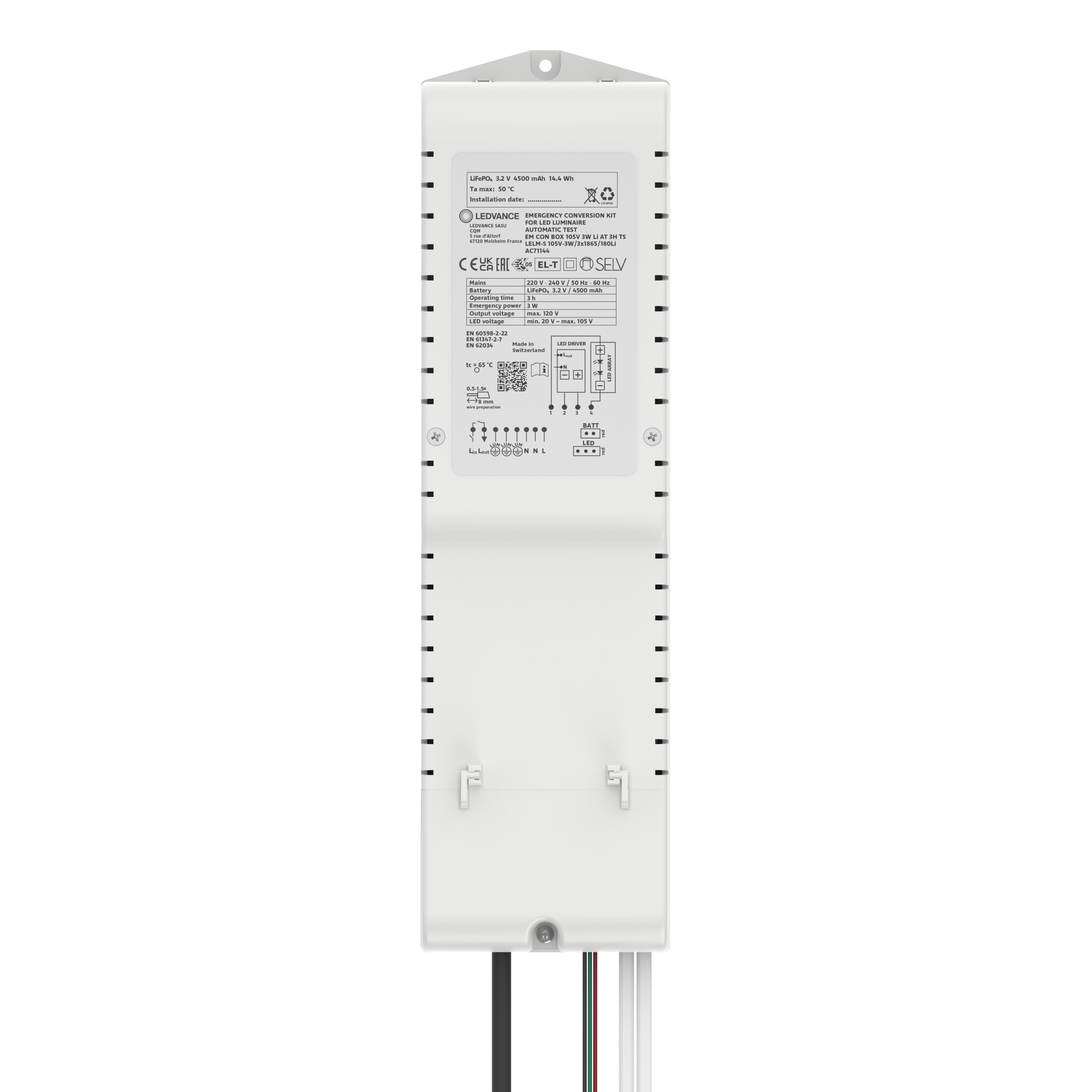

Product image: white background, spacial
